Digital Watchdog Compressor DW-ENHD16 Quick Start Manual

DW-ENHD16
Default Login Information
Username: admin Password: admin
WHAT'S IN THE BOX
QSG Manual 1 Set 12V D/C & Power Cable
NOTE: Download All Your Support Materials and Tools in One Place
1. Go to: http://www.digital-watchdog.com/support-download/
2. Search your product by entering the part number in the 'Search by Product' search bar. Results for
applicable part numbers will populate automatically based on the part number you enter.
3. Click 'Search'. All supported materials, including manuals, Quick Start Guides (QSG), software and
firmware will appear in the results.
Attention: This document is intended to serve as a quick reference for initial set-up. It is
recommended that the user read the entire instruction manual for complete and proper installation
and usage.
Tel: +1 (866) 446-3595 / (813) 888-9555
Technical Support Hours: 9:00AM – 8:00PM EST, Monday thru Friday
Quick Start Guide

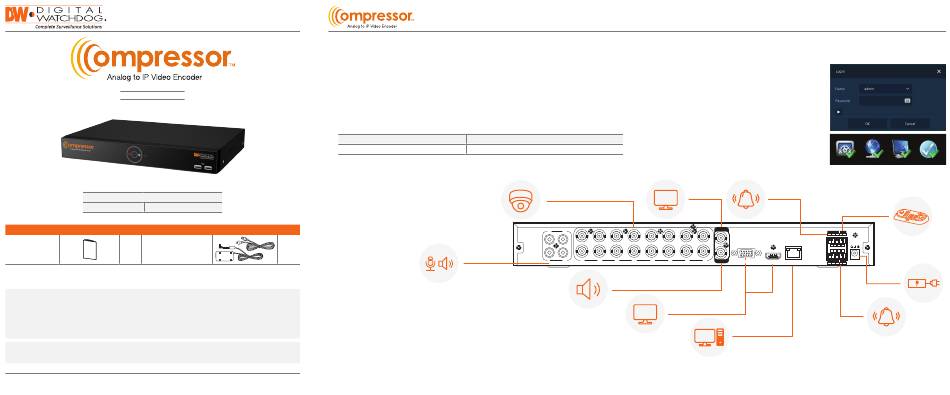

STEP 1 – CONNECTING THE ENCODER
1. Mount and install all necessary cameras and external devices. Refer to their individual
manuals for additional information.
2. Place the encoder in its final position. See installation tips below.
3. Connect all necessary cables to the encoder.
4. Once all additional devices have been properly connected to the encoder, connect the
encoder to an appropriate power supply. The encoder will boot up automatically.
Model
DW-ENHD16
1 Set
SAFETY TIPS
1. Make sure the cameras and the monitors are properly connected to the encoder.
2. The encoder should be placed in a dust and moisture free environment. It must
never be directly exposed to sunlight. Server room temperature is highly recommended
to reduce the chance of overheating, which may cause the encoder to become unstable.
3. During the boot up process, the encoder should not be interrupted by pressing any
buttons on the mouse. Do not unplug the power adapter or turn the encoder off during
the boot up process.
4. A UPS (Uninterrupted Power Supply) is highly recommended to prevent damage to the
digital-watchdog.com
encoder during a power outage.
Power Consumption
12V DC, 2A Max. 14.4W, 1.2A
CAMERAS
3 1
15 13 11 9
AUDIO IN
4 2
16 14 12 0
AUDIO IN VIDEO IN
AMPLIFIED
SPEAKER
STEP 2 – POWERING UP THE ENCODER
1. When the encoder boots up, it will be in
protective mode. This means you will not be able
to access the encoder's setup menu until you
login using the proper username and password.
2. To unlock the encoder, right-click anywhere on
the screen. The login screen will appear. (Default
Username / Password: admin / admin)
3. When the encoder boots up for the first time,
you will be guided through the Startup Wizard.
It is highly recommended that you change
your password after initial setup for security
purposes.
SPOT
MONITOR ALARM IN
SPOT
CVBS
ALARM IN
1 2
7 5 3 1
AUDIO OUT
8 6 4 2 VGA LAN ALARM IN
HD Output
3 4
MONITOR
CMS / WEB
VIEWER
Quick Start Guide
KEYBOARD
CONTROLLER
OUT
+ A+ A-
OUT DC 12V
o + -
POWER
ADAPTOR
ALARM
OUT
