SvoëMesto Kayfun Lite Manual

1. Before use

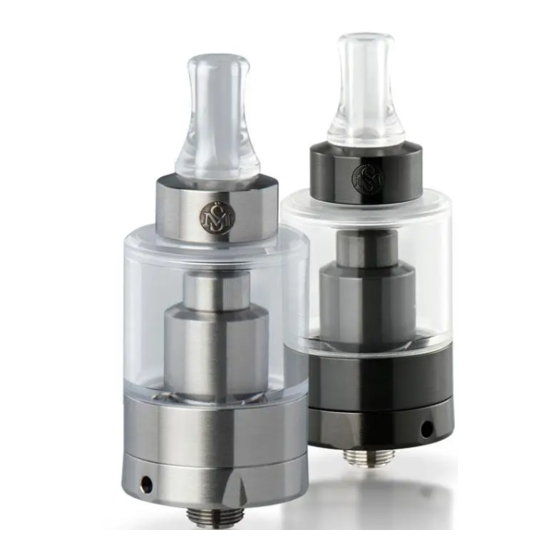

The SvoëMesto Kayfun Lite is a rebuildable tank atomizer specifically designed to vaporize e‐liquid for
electronic cigarettes. Before use you must install a coil intended for use in electronic cigarettes. It is re‐
commended to clean the device with water, dry and lube all visible o‐rings with e‐liquid.
This manual is meant as a brief overview on the general functionality of the SvoëMesto Kayfun Lite. If
you have no experience using a rebuildable atomizer or creating coils, please consult your local vendor.
Further information and languages at www.svoemesto.de.

2. Application

The SvoëMesto Kayfun Lite's recommended use is for coils with a minimum resistance of 0.5 ohm and an
electric input from 5 to 25 watts. Please use the atomizer responsibly and the coils you've created at your
own risk. Instructions for use.

2.1 Accessing the deck

Step 1
Flip the atomizer upside
down, if the tank is filled.

2.2 Installing coil and wick

ATTENTION: Please exclusively use materials that are designed to be used in electronic cigarettes.
The coil is placed diagonally between the build screws and approx. 1.5 mm – 2 mm above the air outlet,
so that air can smoothly flow around the coil. The ends of the wire are placed under the build screws
and then clamped underneath them.
The overhanging ends of the wick should be placed in the
empty spaces beneath the terminals, so that they lay above
the liquid channels. Before assembling the atomizer, it is
recommended to saturate the wick with e‐liquid.
Kayfun [lite]
Step 2
Unscrew the base
counter‐clockwise
Kayfun
MANUAL
Step 3
Remove the base to
access the deck.
ATTENTION
For your own safety please note the
following
The coil has to be connected with one
end at the plus terminal, with the
other end at the minus terminal.
The exceeding ends of the wire have
to be cut flush with the terminals and
must not stick out of the build deck.
Otherwise, this may cause a short
circuit.
The coil must not touch the deck itself.
[lite]
