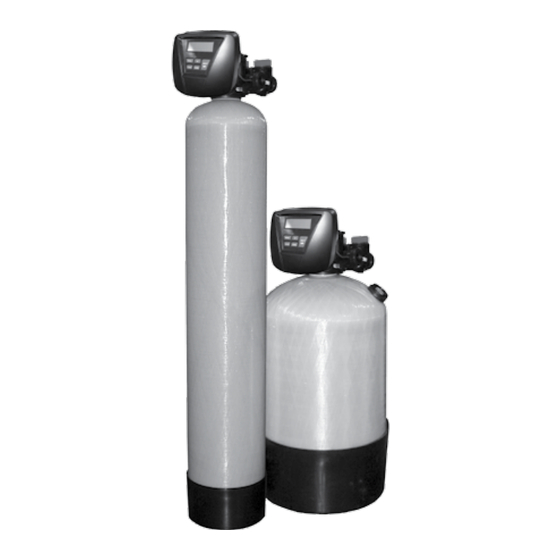

"KLEAR FLO II"
AUTOMATIC WATER CONDITIONERS
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
FILL IN FOR FUTURE REFERENCE
MODEL NO:___________________________________________
SERIAL NO:___________________________________________
DATE INSTALLED:______________________________________
DEALER:___________________________________________ ___
8-555 R3
Advertisement
Related Manuals for Marlo Incorporated KLEAR FLO II
Summary of Contents for Marlo Incorporated KLEAR FLO II
- Page 1 “KLEAR FLO II” AUTOMATIC WATER CONDITIONERS INSTALLATION, OPERATION, AND MAINTENANCE MANUAL FILL IN FOR FUTURE REFERENCE MODEL NO:___________________________________________ SERIAL NO:___________________________________________ DATE INSTALLED:______________________________________ DEALER:___________________________________________ ___ 8-555 R3...
-
Page 3: Table Of Contents
KLEAR FLO II AUTOMATIC WATER CONDITIONERS TABLE OF CONTENTS Installation Diagram ...............................1 Installation Instructions ..............................2 Start-Up Procedures ..............................3 Principle of Operation ..............................5 Recharge Sequence ..............................6 System Component Parts List ............................7 MCV Valve Assembly ..............................8 Injector, Refill Port, & Drain Assembly for Oxidizer Vessel ..................10 Injector, Refill Port, &... -
Page 5: Installation Instructions
KLEAR FLO II AUTOMATIC WATER CONDITIONERS INSTALLATION INSTRUCTIONS Proper operation of this equipment is dependent on an installation that conforms to the manufacturers instructions and follows local plumbing and electrical codes. Meeting the following requirements will assure long, reliable product operation. -
Page 6: Start-Up Procedures
KLEAR FLO II AUTOMATIC WATER CONDITIONERS FILTER VESSEL PREPARATION Remove Filter Vessel from shipping carton. Carefully unscrew the Control Valve mounted on top of the Tank. Set the Valve aside. The Riser Pipe in Filter Vessel should be 1” above the top of the Vessel. - Page 7 KLEAR FLO II AUTOMATIC WATER CONDITIONERS 17. The unit must sit for 24 to 48 hours before a complete regeneration should occur. This gives the media time to saturate. Insufficient saturation time will cause media to be lost to drain. FAILURE TO FOLLOW PROPER START-UP INSTRUCTIONS WILL RESULT IN EQUIPMENT MALFUNCTION NOT COVERED UNDER WARRANTY.
- Page 8 KLEAR FLO II AUTOMATIC WATER CONDITIONERS User Display Settings When the system is operating, several displays may be shown. Pressing NEXT will alternate between the displays. One of the displays is the current time of day. CAPACITY REMAINING is the gallons that will be treated before the system goes through GPM and flow rate a regeneration cycle.
- Page 9 KLEAR FLO II AUTOMATIC WATER CONDITIONERS STEP 1U – Press CLOCK. STEP 1U STEP 2U - Current Time (hour): Set the hour of the day using DOWN or UP. AM/PM toggles after STEP 2U 12. Press NEXT to go to Step 3U.
-
Page 10: Principle Of Operation
KLEAR FLO II AUTOMATIC WATER CONDITIONERS PRINCIPLE OF OPERATION The Klear-Flo II uses a four-step process called Oxidation/Filtration to reduce the levels of iron, manganese and hydrogen sulfide gas from potable water without the need for retention tanks, chemicals, air compressors and re-pressurizing pumps. -
Page 11: Recharge Sequence
KLEAR FLO II AUTOMATIC WATER CONDITIONERS RECHARGE SEQUENCE The Klear-Flo II filter system is comprised of two individual pressure vessels each having plumbing connections providing a means for installation into a continuously pressurized water system. The vessels are installed in series with the Oxidizer Ves- sel positioned ahead of the Filter Vessel. -
Page 12: System Component Parts List
KLEAR FLO II AUTOMATIC WATER CONDITIONERS KLEAR FLO II SYSTEM COMPONENT PARTS LIST FILTER VESSEL www.Marlo-Inc.com OXIDIZER VESSEL www.Marlo-Inc.com Item No. Part No. Description B1074162 Control Valve - Filter A2126207 Media Tank - Filter B1023056 Distributor Tube Assembly - Filter... - Page 13 KLEAR FLO II AUTOMATIC WATER CONDITIONERS Phone: (262) 681-1300 • Web: www.Marlo-Inc.com • E-mail: info@marlo-inc.com...
- Page 14 KLEAR FLO II AUTOMATIC WATER CONDITIONERS Drive Cap Assembly, Downflow Piston, Upflow Piston, Regenerant Piston and Spacer Stack Assembly Item No. Part No. Description Quantity A2466034 *Spacer Stack Assembly w/o o-rings A2080077 Drive Cap Assembly B1213022 O-Ring 228 (use Valve O-ring Kit)
- Page 15 KLEAR FLO II AUTOMATIC WATER CONDITIONERS OXIDIZER UNIT Injector Cap, Injector Screen, Injector, Plug , O-Ring, Refill and Refill Port Plug, &Drain Line - 3/4” t Part of Kit, O-ring (Item #51, pg. 20) 25a, 25b Proper flow washer orientation directs water flow towards the washer face with rounded edge.
- Page 16 KLEAR FLO II AUTOMATIC WATER CONDITIONERS OXIDIZER UNIT Injector Cap, Injector Screen, Injector, Plug and O-Ring Item No. Part No. Description Quantity A2080079 Injector Cap Use Item 51 O-Ring 135 (Use Valve O-ring Kit) A2142016 Injector Screen A2079059 Injector Assembly Z Plug...
- Page 17 KLEAR FLO II AUTOMATIC WATER CONDITIONERS FILTRATION UNIT Injector Cap, Injector Screen, Injector, Plug , O-Ring, Refill and Refill Port Plug, &Drain Line - 3/4” t Part of Kit, O-ring (Item #51, pg. 20) Phone: (262) 681-1300 • Web: www.Marlo-Inc.com • E-mail: info@marlo-inc.com...
- Page 18 KLEAR FLO II AUTOMATIC WATER CONDITIONERS FILTRATION UNIT (parts list) Injector Cap, Injector Screen, Injector, Plug and O-Ring Item No. Part No. Description Quantity A2080079 Injector Cap Use Item 51 O-Ring 135 (Use Valve O-ring Kit) A2142016 Injector Screen A2079059 Injector Assembly Z Plug *The injector plug and the injector each contain one 011 (lower) and 013 (upper) o-ring.
-
Page 19: Water Meter & Meter Plug
A2287077 Meter Plug Assembly *Item #37 includes Items #38 & #39. Standard plug assembly for the Klear Flo II Does not come standard on the Klear Flo II Part of Kit, O-ring (Item 51, pg. 20) Phone: (262) 681-1300 • Web: www.Marlo-Inc.com • E-mail: info@marlo-inc.com... -
Page 20: Bypass Valve
KLEAR FLO II AUTOMATIC WATER CONDITIONERS BYPASS VALVE Item No. Part No. Description Quantity A2095069 Nut 1” Quick Connect A2453012 Split Ring * 43 use item 52 O-Ring 215 (Kit available - see Item #10) A2607004 Bypass 1” Rotor A2080090... -
Page 21: Valve Fittings
KLEAR FLO II AUTOMATIC WATER CONDITIONERS VALVE FITTINGS Order No: A2129080 (Optional) Order No: A2099054 (Optional) Description: Fitting 1” PVC Male NPT Elbow Assembly Description: Fitting 3/4” & 1” PVC Solvent 90 Item No. Part No. Description Quantity Item No. Part No. - Page 24 2227 South Street • P.O. Box 044170 • Racine, WI 53404-7003 Ph. (262) 681-1300 • Fax (262) 681-1318 • Info@Marlo-Inc.com • www.Marlo-Inc.com 8-555 R3...
