93034033 CIMARRON CL1 LED INSTALLATION INSTRUCTIONS (PG 1/2)
WARNING!
Fixtures must be grounded and installed in accordance with the National Electrical Code and all local codes. Failure to
do so may increase the RISK OF PERSONAL INJURY, PROPERTY DAMAGE, FIRE AND DEATH. Install and use where burnouts do
not cause a hazard and use only in environments for which the product is specifically marked.
WARNING!
This product contains chemicals known to the State of California to cause cancer, birth defects, and/or other reproductive
harm. Thoroughly wash hands after installing, handling, cleaning, or otherwise touching this product.
CAUTION!
Follow ALL luminaire recommendations, product markings, instructions, restrictions and warnings regarding lumninaire
operation and burning position. Luminaire label shows electrical and environmental requirements.
All electrical work must be done by a qualified electrician.
Turn off electric power to all affected circuits and allow to cool before servicing.
A regularly scheduled maintenance program should be established to retain optimum light output and reduce heat retention. Dusting
with a soft, clean, dry cloth is normally sufficient. Any accumulation of dust or dirt should be removed regularly from the lens. Use only a
mild soapy solution, DO NOT use alkaline or acid cleaners.
Carefully read these instructions before installing product. If you do not understand these instructions, before starting any work, contact
your Hubbell Lighting distributor or techsupport@hubbell-ltg.com or (864) 678-1000
Giv e instructions to facility owner/manager for future reference.
CIMARRON LED FIXTURE INSTALLATION
NOTE: IT IS NOT NECESSARY TO OPEN THE FIXTURE FOR INSTALLATION. THE
FIXTURE HAS BEEN DESIGNED TO BE INSTALLED BY REMOVING THE ARM
MOUNTING COVER ONLY.
WARNING: DISCONNECT POWER BEFORE INSTALLATION
CAUTION: FIXTURE WEIGHS ABOUT 50 POUNDS

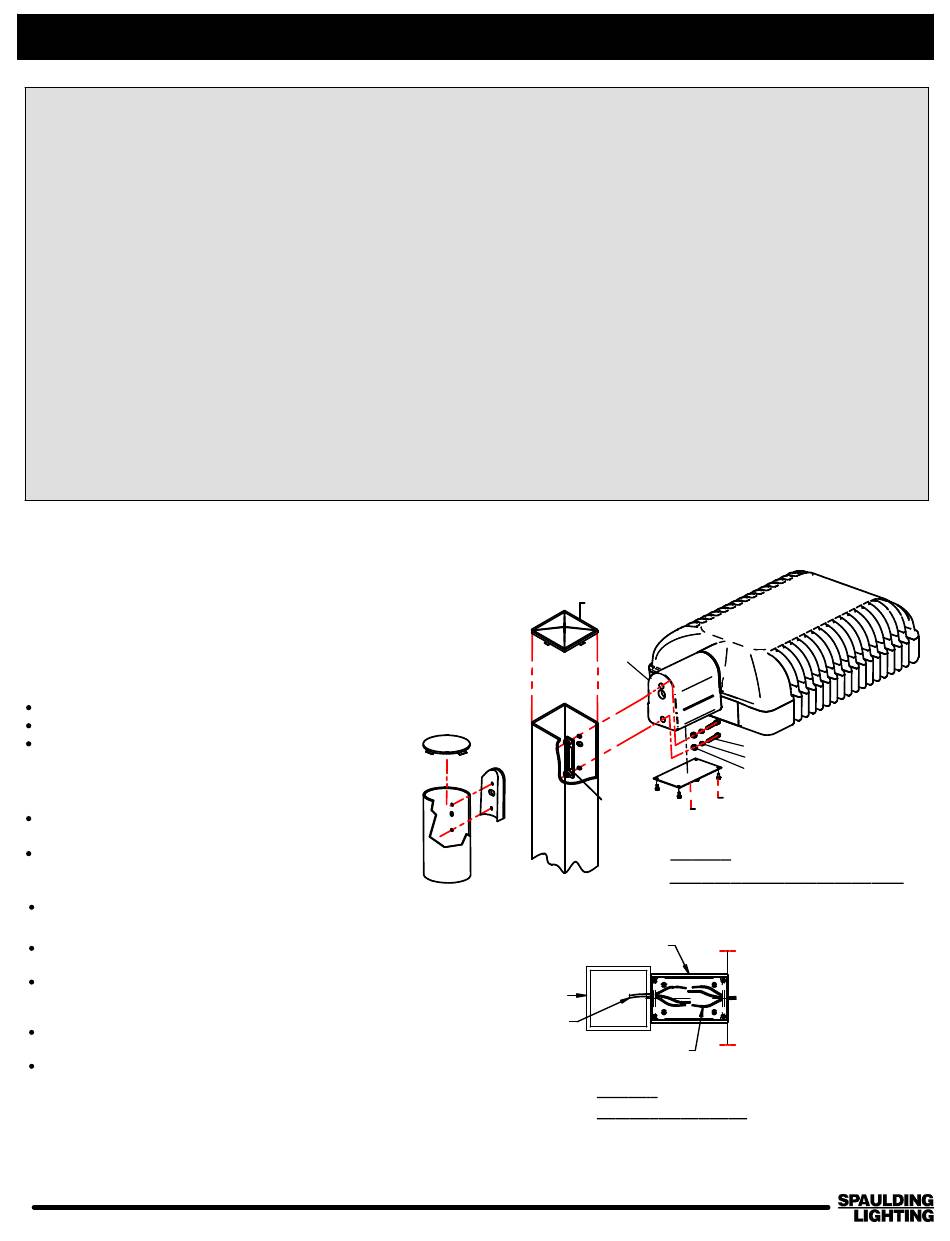

1. MOUNTING PREPARATION (See Fig. 1)
Remove Arm Cover by removing the (4) Screws.
Remove Pole Cover
Pull the supply wires from Pole through Nut Plate
and into the Arm.
2. MOUNTING FIXTURE TO POLE
Attach Fixture to Pole with (2) ½" Hex Bolts,
Lockwashers and Flatwashers into Nut Plate inside pole.
Torque Bolts to approx. 45 Ft-Lbs.
3. WIRING (See Fig. 2)
POWER MUST BE OFF.
(WIRING MUST BE PERFORMED BY A QUALIFIED ELECTRICIAN)
Wire service leads to fixture power leads according to local
and National Electric Codes.
Luminaire is equipped with universal voltage drivers capable of
120V-277V input. An optional 347/480 V input transformer is
available.
Wire connections to be made inside Arm with Fixture Wires and
Supply Wires (By others). Secure Wire inside Pole.
For direct wire connections, connect ground wire to green wire,
connect black to black and white to neutral then push connections
back inside Arm and attach Arm Cover.
701 Millennium Boulevard Greenville, SC 29607 (864) 678-1000
SAVE THESE INSTRUCTIONS
COVER- RND POLE
COVER- SQ POLE
ARM
CAST
ADPTOR
NUT PLATE
SQUARE
ROUND
POLE
POLE
ARM
POLE
SUPPLY WIRES
SECURE WIRE
FIXTURE WIRES
INSIDE POLE
FIGURE 2
ARM COVER REMOVED
HEX BOLT
LOCKWASHER
FLAT WASHER
SCREW
COVER
FIGURE 1
STRAIGHT SQUARE AND ROUND POLES
