Stahl YA6S Series Operating Instructions Manual

Grp flameproof audible signal - 110 db(a)
Hide thumbs Also See for YA6S Series:
Table of Contents

Advertisement

Quick Links

Download this manual
GRP Flameproof Audible Signal -
110 dB(A)
Series YA6S
Operating instructions
Additional languages www.r-stahl.com
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YA6S Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stahl YA6S Series

Summary of Contents for Stahl YA6S Series

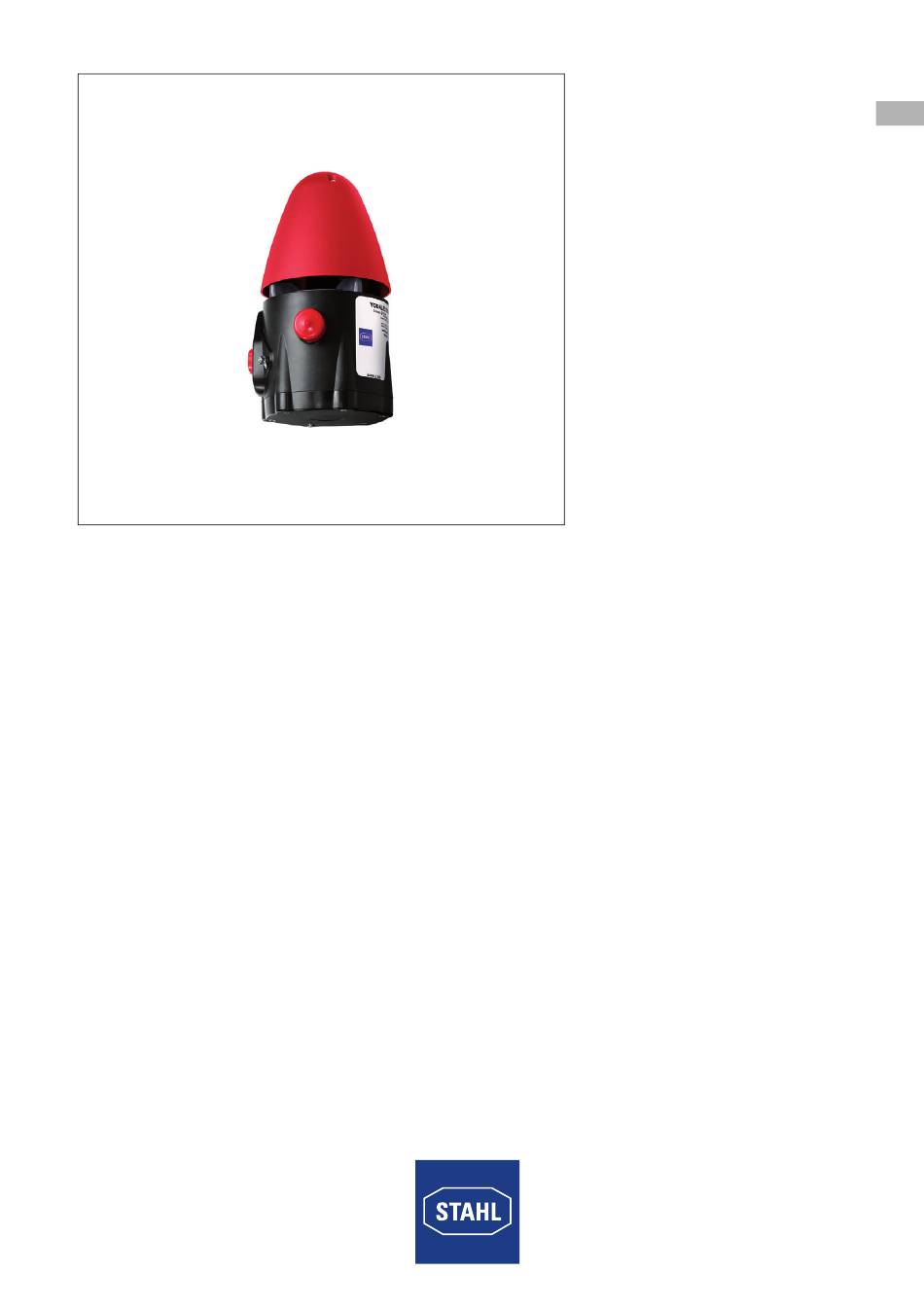

  • Page 1 Operating instructions Additional languages www.r-stahl.com GRP Flameproof Audible Signal - 110 dB(A) Series YA6S...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................5 Symbols on the device ..................5 Safety notes ......................6 Operating instructions storage ................6 Safe use ......................6...

  • Page 3: En En En

    • Data sheet For documents in additional languages, see www.r-stahl.com. Conformity with standards and regulations See certificates and EC Declaration of Conformity: www.r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ 224617 / YA6S60300010 GRP Flameproof Audible Signal - 110 dB(A) 2018-03-26·BA00·III·en·02...

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts = Sounder = Earth = Sounder Stage 1 = Sounder Stage 2 = Sounder Stage 3...

  • Page 5: Warning Notes

    Explanation of the symbols Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation. The warning notes have the following structure: • Signalling word: DANGER, WARNING, CAUTION, NOTICE • Type and source of danger/damage •...

  • Page 6: Safety Notes

    Safety notes Safety notes Operating instructions storage • Read the operating instructions carefully and store them at the mounting location of the device. • Observe applicable documents and operating instructions of the devices to be connected. Safe use • Read and observe the safety notes in these operating instructions! •...

  • Page 7: En 5 Technical Data

    Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx BAS 14.0064 IEC 60079-0: 2011 / IEC 60079-1: 2007 / IEC 60079-31: 2013 Ex d IIB T* Ta -** ... +** °C Gb Ex d IIC T* Ta -** ... +** °C Gb Ex tb IIIC T*** °C Ta -** ...

  • Page 8: En 6 Transport And Storage

    Mounting / Installation Connection 2.5 mm terminals For further technical data, see www.r-stahl.com. Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free. • Do not drop the device.

  • Page 9: Mounting And Installation

    Mounting and installation Mounting and installation Dimensions / fastening dimensions Dimensional Drawings (All Dimensions in mm [inches]) - Subject to Alterations Ø [ 0,35] Ø [1,26] [3,74] 178,50 [7,03] 189 [7,44] Ø [ 5,70] Ø 17150E00 16919E00 GRP Audible Signal Series YA6S GRP Audible Signal Series YA6S with L-Bracket without L-Bracket...

  • Page 10: Mounting / Dismounting, Operating Position

    Mounting and installation Mounting / dismounting, operating position DANGER Risk of explosion! Risk of injuries and material damage! • Terminal sleeves are fitted, they must be gas-tight and applied with a suitable tool. DANGER Explosion hazard! Risk of injuries and material damage! •...
  • Page 11 Mounting and installation 7.2.2 Installation with mounting bracket • Fix bracket to wall • Attach device 17161E00 17219E00 1 Horn 2 PCB 3 End cap 4 Cheese-head screws M5 x 25 17220E00 • Loosen 6 x cheese head screws (4) and remove end cap (3) •...
  • Page 12 Mounting and installation 7.2.3 Reassembly of Enclosure • Lift end cap towards device. • Replace cheese-head screws M5 x 25 (see information below) and tighten the screws with a tightening torque of 4 Nm. 7.2.4 Electrical Connection Key Components 1 plug for sounder 2 PCB Termination board 3 Terminal blocks 4 Sound selection switch...
  • Page 13 Mounting and installation TELEPHONE TELEPHONE INITIATE INITIATE NEUTRAL NEUTR LIVE (Vac) STROBE 24/48 Vdc STAGE AC/DC 17228E00 17193E00 Circuit diagram DC voltages Circuit diagram AC voltages = Sounder Stage 1 = Sounder Stage 2 = Sounder Stage 3 7.2.5 Earth Connection 17191E00 Earth connection Use of metallic cable glands...
  • Page 14 Mounting and installation 7.2.6 Sound Tone Selection • For signal tone selection and its switch positions refer to the table below. • Check if the correct switch positions of the selected signal tones have been selected. • Do not use tone 12, 14 and 32 for AC variants. Tone table Sound selection Repeti-...
  • Page 15 Mounting and installation Tone table Tone Interrupted tone 11001 6/12 Important message, Sweden Tone Interrupted tone 1000 00101 Tone Interrupted tone 10101 Air-raid alarm, Sweden Tone Interrupted tone 01101 0.25 Local warning, Sweden Tone Interrupted tone 11101 0.7/0.3 Industrial alarm, Germany Tone Interrupted, fast,...

  • Page 16: En 7.3 Installation

    Commissioning Installation WARNING Danger of electric shock due to energised parts! Non-compliance can result in severe or fatal injuries. • All connections and wiring must be disconnected from the power supply. • Secure the connections against unauthorized switching. DANGER Explosion hazard! Risk of injuries and material damage! •...

  • Page 17: Operation

    If an error occurs please re-visit the earlier sections of this document. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number •...

  • Page 18: En 10.1 Maintenance

    DANGER Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries. • Repair work on the devices must be performed only by R.STAHL Schaltgeräte GmbH. GRP Flameproof Audible Signal - 110 dB(A) 224617 / YA6S60300010 Series YA6S...

  • Page 19: 10.3 Returning The Device

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the www.r-stahl.com website.
