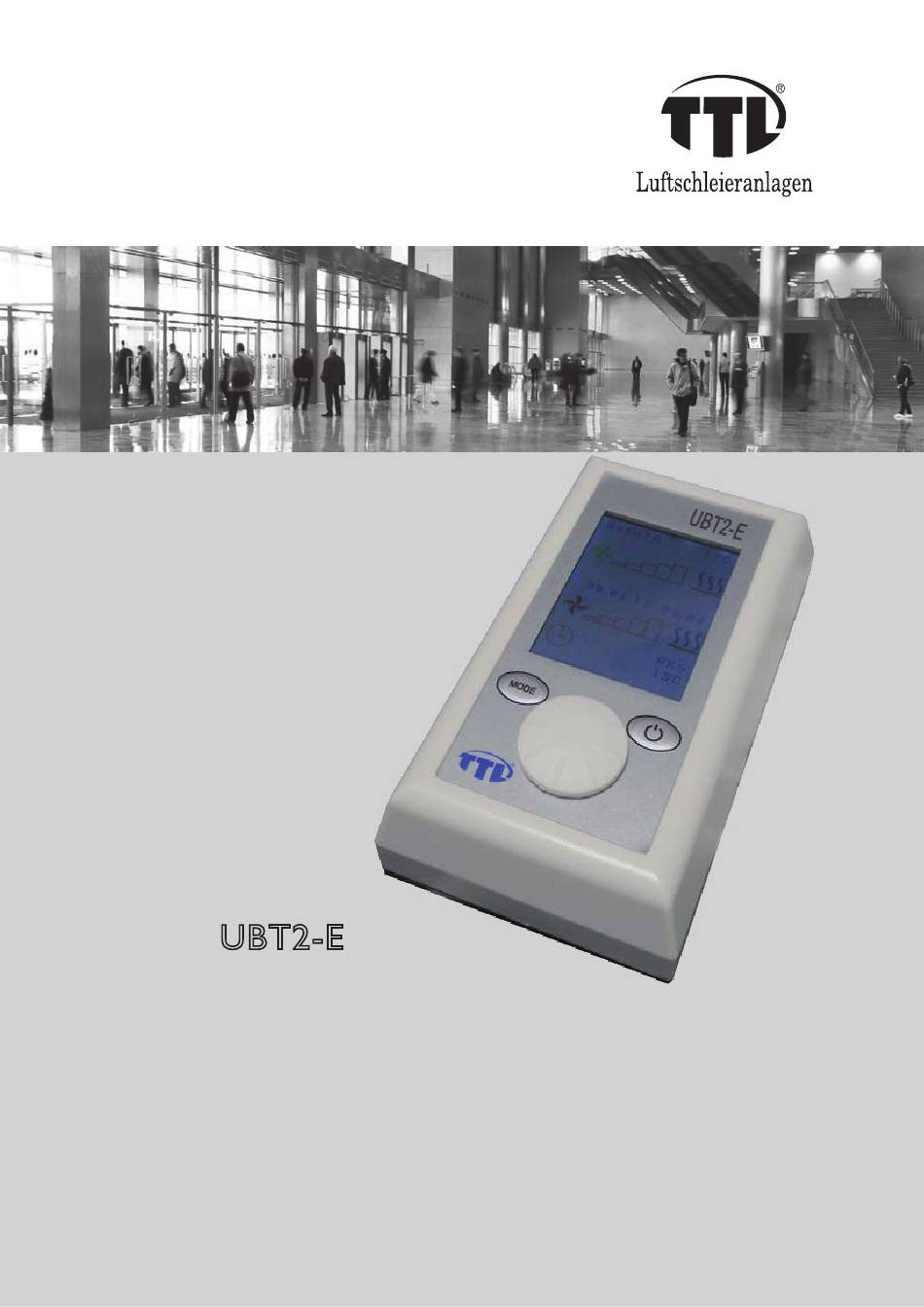

- Page 1 UBT2-E Controller TTL air curtain systems with electric heating User manual Translated English version...
-
Page 2: Table Of Contents
TTL Luftschleieranlagen - Controller UBT2-E Contens 1. Safety information 2. Fixing 3. Technical data 3.1 Technical data of controller UBT2-E 3.2 Technical data of internal connecting board (ASP/PCB) 4. Quick -start guide 5. Application possibilities - basics 6. Controls 7. Operating modes 7.1 OFF mode... - Page 3 Original replacement parts and accessories approved by the manufacturer are designed for safety. When using other parts or in the event of failure to observe the TTL documentation, we decline all liability. In the event of any ambiguities regarding technology, handling or use, we expressly recommend checking with the manufacturer or his representative, citing the model designation.
-
Page 4: Fixing
TTL Luftschleieranlagen - Controller UBT2-E 2. Fixing The electronic controller UBT2-E is made for wall mounting The case is designed two-piece with a basic plate and an upper section with integrated electronic equipment. The top part is screwed with 4 screws with the basic plate. The screws are accessible below the cover plugs at the case edges. -
Page 5: Technical Data
TTL Luftschleieranlagen - Controller UBT2-E 3. Technical data 3.1 Technical data of controller UBT2-E Electrical connection data line, factory ready-made with plugs in several lengths, 8-wire, RJ45 (ISDN) plugs, lengths 6, 10, 20, 30, 50 m Bus system bus two-core, voltage supply two-core,... -
Page 6: Quick -Start Guide
If necesarry. control lines at groupings Switch-ON main power supply for air curtain unit(s) Switch-ON power supply for air curtain unit(s) Operating via TTL - UBT2-E controller Selection of operating mode: • push Mode button • select desired mode by central multifunctional wheel... -
Page 7: Application Possibilities - Basics
TTL Luftschleieranlagen - Controller UBT2-E 5. Application possibilities - basics The controller TTL -UBT2-E is an universal electronic operator panel for comfortable switching and control of TTL air curtain devices with electric heating of all types and construction lengths. The used CAN bus technology affords the possibility to connect several units. -
Page 8: Operating Modes
TTL Luftschleieranlagen - Controller UBT2-E 7. Operating modes The switch-off of air curtain device(s) by OFF key (0) at the UBT-E control panel doesn`t disconnect automatically the power connection to the electricity grid. Electrical systems inside the air curtain unit as well as in the control panel and also the power cable and the data lines may still be energized. -
Page 9: Manual Mode
TTL Luftschleieranlagen - Controller UBT2-E The system must have been provided with a turning-off delay to prevent that the air curtain system is turned on or off every time the door is opened or closed. This overrun can be set in the BASIC menu to 10 - 300 sec. -
Page 10: Mode Autort - Automatic Mode With Room Temperature Sensor
TTL Luftschleieranlagen - Controller UBT2-E 7.4 AutoRT - Automatic operation with room temperature sensor Press the Mode key (PGM Mode display). Select AutoRT using the multifunctio- AutoRT 20°C nal rotary knob (the text colour will change from orange to black). Press the knob AutoRT option will be displayed on the top line next to the actual temperature. -
Page 11: Basic - Settings In Basic Menu
TTL Luftschleieranlagen - Controller UBT2-E 9. Basic - settings in Basic menu Press the Mode key (PGM Mode display). Select Basic by using the multifunc- AutoRT 21°C tional rotary knob (the text colour will change from orange to black). Press the PGM Mode A menu will be displayed with the different setting options. -
Page 12: Messages
TTL Luftschleieranlagen - Controller UBT2-E At most 10 air curtain systems can be managed with one control panel with the UBT2-E control. Each printed circuit board is equipped with a coding switch for this purpose. The coding reads as follows: 0= MASTER, 1 - 9 = SLAVE. -
Page 13: Faults
TTL Luftschleieranlagen - Controller UBT2-E 12. Faults Faulty message The error message will be generated as a collective fault in the MASTER system when a fault occurs. Only the faulty fan will be put out of service with regard to Motor overheat . -
Page 14: Schedule
TTL Luftschleieranlagen - Controller UBT2-E 14. Schedule UBT2 -E UBT2-E MODE Manual AutoTK AutoTA AutoRT Timer Basic Step Step Week Date / Step temperature time switching clock Heating Heating Heating Timer Language Timer Timer Timer Factory set R Temp (cooling... -
Page 15: Eu Declaration Of Conformity
In the event of any questions, please contact the manufacturer at the address above. TTL GmbH reserves the right to undertake any change or improvement to parts or their acces- sories without the obligation to update earlier products and existing documentation. - Page 16 User manual for controller TTL-UBT-2E Translated English version 01 Manufacturer: TTL Torluftschleier GmbH 1. Edition January 2019: 1.500, printed at chloreene-free paper By: TTL Torluftschleier GmbH (German version) Copyright: TTL Torluftschleier GmbH Reprint, also excerpts, only with written authorization. Technical changes reserved.
