TTL TWICS User Manual

Controller for ttl air curtain systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TWICS
Controller
for
TTL air curtain systems
User manual
Translated English version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWICS and is the answer not in the manual?

Questions and answers

Related Manuals for TTL TWICS

Summary of Contents for TTL TWICS

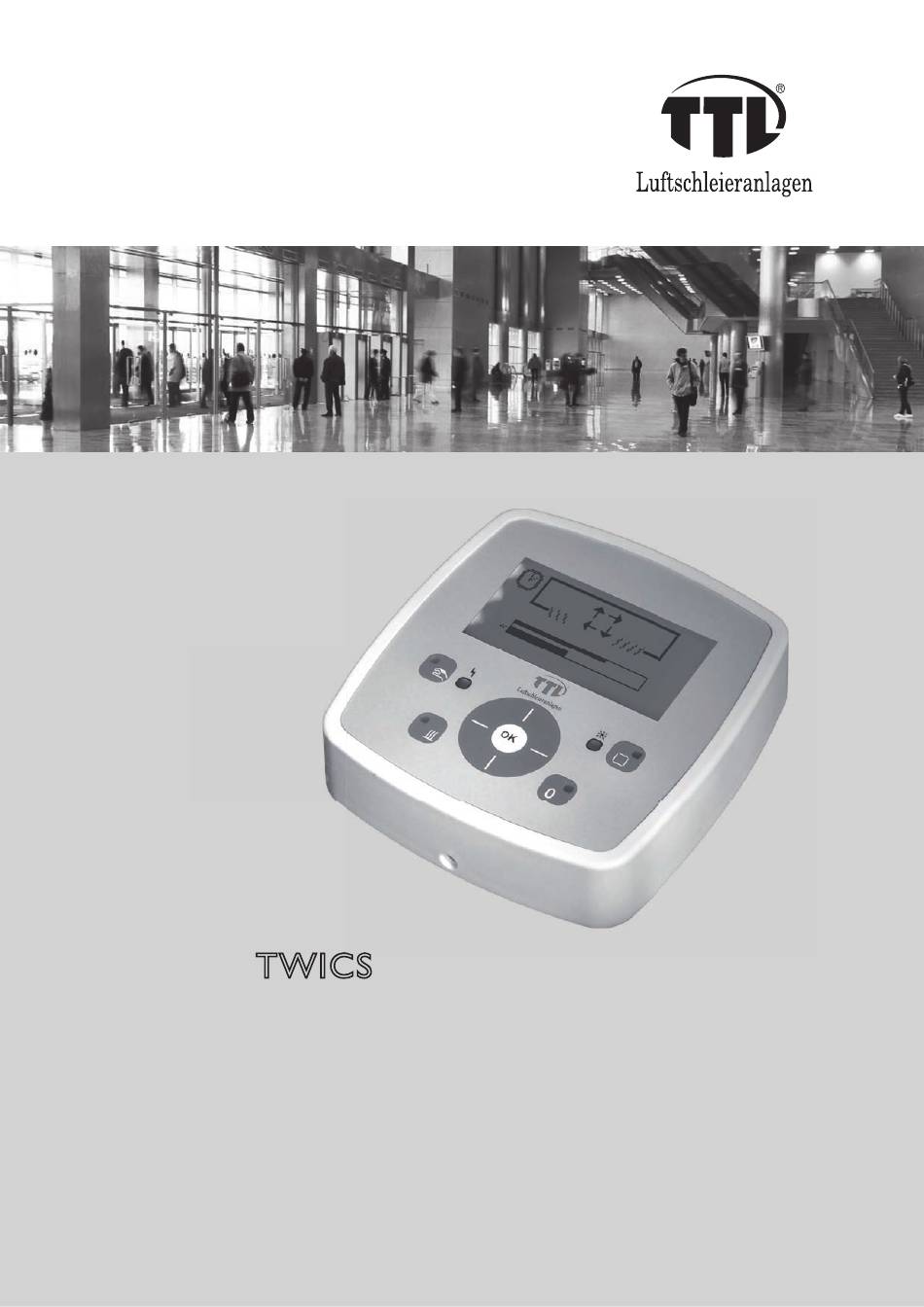

  • Page 1 TWICS Controller TTL air curtain systems User manual Translated English version...

  • Page 2: Table Of Contents

    TTL air curtain systems - Controller TWICS Content 1. Safety information 2. Fixing 3. Technical data 3.1 Technical data of control and automation panel TWICS 3.2 Technical data of internal connecting board (PCB) 4. Quick start guide 5. Application possibilities - basics 6. Operating modes 6.1 OFF mode...
  • Page 3 12.2 Fault clearance 13. EU Declaration of Conformity Manufacturer, contact, service adress Imprint User manual for controll and automation panel TTL-TWICS Translated English version 01 Manufacturer: TTL Torluftschleier GmbH 1. Edition October 2016: 1.500, printed at chloreene-free paper By: TTL Torluftschleier GmbH (German version) Copyright: TTL Torluftschleier GmbH Reprint, also excerpts, only with written authorization.

  • Page 4: Safety Information

    Switching off the air curtain system(s) using the OFF key (0) on the TWICS control and automation panel does not automatically interrupt the mains power supply. Electrical equipment in the air curtain system and in the control panel as well as the mains and connection lines may still be energised.

  • Page 5: Fixing

    TTL air curtain systems - Controller TWICS 2. Fixing The electronic control and automation panel TWICS is made for wall mounting. The case is designed two-piece with a basic plate and an upper section with integrated electronic equipment. The cover can be opened by removing th ecover top part from the base plate at the bottom side of the combination.

  • Page 6: Technical Data

    TTL air curtain systems - Controller TWICS 3. Technical data 3.1 Technical data control and automation panel TWICS Electrical connection data line, factory ready-made with plugs in several lengths, 6-wire, lengths 6, 10, 20, 30, 50 m Bus system CAN bus two-core, voltage supply two-core,...

  • Page 7: Quick Start Guide

    TTL air curtain systems - Controller TWICS 4. Qick -Start -Guide Connect the control lines resp. check them air curtain unit — controller TWICS air curtain unit — automatic contact (if possibly) air curtain unit — room thermostat (if possibly) If necesarry.

  • Page 8: Application Possibilities - Basics

    The control and automation panel TTL -TWICS is an universal electronic operators panel for comfortable switching and control of TTL air curtain devices of all types and construction lengths. With ist menu concept the control and automation panel TTL -TWICS is preferably made to control the dual air curtain system type TWIN with two air outlet nozzles using the TTL-TWINtec principle.

  • Page 9: Operating Modes

    In the OFF mode the air curtain system is switched off, but in serviceability and can be activated for operation by actuation of the buttons MANUAL mode or AUTOMATIC mode. The switch-off of air curtain device(s) by OFF key (0) at the TWICS control panel doesn`t disconnect automatically the power connection to the electricity grid. Electrical systems inside the air curtain unit as well as in the control panel and also the power cable and the data lines may still be energized.

  • Page 10: Overrun Within Automatic Mode

    TTL air curtain systems - Controller TWICS 6. Operating modes (cont.) 6.3.1 Overrun within AUTOMATIC mode A overrun time for the AUTOMATIC mode can be set in menu 3.1 (Basic settings - Overrun time). In case of shu- tup of the automatic contact (clambs 18/19 at the internal connecting board (PCB) inside the air curtain unit) of the installation, that means if the door closes, the air curtain unit will keep in operation for the preselected time.

  • Page 11: Energy Saving Modes

    TTL air curtain systems - Controller TWICS 6. Operating modes (cont.) 6.5 Energy saving functions For an especially and energy saving operation of air curtain system(s) ca be activated special functions: Output performance coupling of both air outlet systems The air curtain system TWIN implemented in device.

  • Page 12: Image -Menu Illustrations -Used Symbols

    TTL air curtain systems - Controller TWICS 7. Image -menu illustrations -used symbols 7.1 Overview operating elements 1 LCD display 2 MANUAL mode key 3 AUTOMATIC mode key 4 SUMMER/WINTER mode key 5 OFF(0) 6 Navigation keys 7 Display „Fan fault“...

  • Page 13: Display Symbols

    TTL air curtain systems - Controller TWICS 7.3 Display symbols OFF mode MANUAL AUTOMATIC mode mode (active „streaming air“symbols) Power indicator stepless, AUTOMATIC mode (bargraphs -actual values for cold air outlet above + warm air outlet below) Power stepped, AUTOMATIC mode (in assoc.
  • Page 14 TTL air curtain systems - Controller TWICS 8. Menu guidance - menu tree The menu tree is showing a general listing of all functions and menu points available by controller These documentation will expound every menu point. TWICS. 8.1 Main menu To enter the main menu press the „SELECT...

  • Page 15: Setting Of Parameters

    TTL air curtain systems - Controller TWICS 8. Menu guidance - menu tree (cont.) 8.3 Setting of parameters Parameter value to change Press the „SELECT“ key to jump into the changing menu DDC enable GLOBAL Quit submenu 0=NO 1=YES 4 SELECT PARAMETER 8.4 Changing parameters...

  • Page 16: Menu Guidance - Menu Tree

    TTL air curtain systems - Controller TWICS 8. Menu guidance - menu tree (cont.) Main menu point Submenu Function Parameter / Default 1 Information menu Info Per unit adress display of: I/O status insertion status jumper at PCB Status input/output and analogue inputs...
  • Page 17 TTL air curtain systems - Controller TWICS 8. Menu guidance - menu tree (cont.) Main menu point Submenu Function Parameter / Default 3 Basic settings Overrun time Preselection of overrun time for 1-1000 (sec) AUTOMATIC mode Heating stage Preselection of operating satge for HEATING mode at closed door Aut.start after frost...
  • Page 18 TTL air curtain systems - Controller TWICS 8. Menu guidance - menu tree (cont.) Main menu point Submenu Function Parameter / Default 5 Clock Timer Impact of timer for the several opera- 0= OFF / 1=AUTO ting modes 2=MAN + AUTO SUMMERtime automat.

  • Page 19: Displays And Basic Operating Settings

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings 9.1 Display of operating modes 1 OFF mode Symbol „streaming air“ (warm/cold air outlet) not activated Bargraphs „warm air output“/„cold air output“ not activated 2 MANUAL mode -stepless ( in assoc.

  • Page 20: Main Menu

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.2 Main menu 1 Info menu M;ain menu with 9 menu points 2 Statistics Selection of desired menu point with navigation cursor 3 Basic settings Analogue input...
  • Page 21 TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.3 Menu 1 - Information menu (cont.) 1 Information menu 3 Version Version 3 SELECT FUNCTION Submenu 3.1 TTL-TWICS Display of type and version, Jan 28 2015...

  • Page 22: Menu 2 - Statistics

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.4 Menu 2 - Statistics Statistics 2 Statistics menu 1 for EC fans Motor fault Statistics for: Frost alert Filter change : Next change : = adress of PCB Operat.

  • Page 23: Menu 3 - Basic Settings

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.5 Menu 3 - Basic settings 3 Basic settings menu 1 0180 Overrun time Time of overrun within the AUTOMATIC mode operation Overrun time 1-1000 after shut-off of automatic contact (closing of door)
  • Page 24 TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.5 Menu 3 - Basic settings (cont.) 3 Basic settings menu 7 Monitoring PCB‘s Determination of the number of PCB‘s in the bus group to Monitoring PCBs...
  • Page 25 TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.5 Menu 3 - Basic settings (cont.) 3 Basic settings menu 13 Auto contact inverted Automatic contakt inverses, that means it react not as an Auto cont. inverted...

  • Page 26: Menu 4 - Analogue Input

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.5 Menu 4 - Analogue input 4 Analogue input menu 1 VOL via ext. 0-10 V Activation of air volume control via external control VOL via ext. 0-10V 0=OFF 1=GLO.
  • Page 27 TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.6 Menu 5 - Clock (cont.) menu 4 5 Clock Timer adjust Timer adjust Using the „SELECT“ key opens the submenu for timer settings 4 SELECT FUNCTION Weekday ?: Submenu 4.1...

  • Page 28: Menu 6 - Key Lock

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.7 Menu 6 - Key lock 6 Key lock menu 1 Key lock -time Default time until automatic activation of key lock Key lock -time 0=OFF...

  • Page 29: Menu 8 - Language

    TTL air curtain systems - Controller TWICS 9. Displays and basic operation settings (cont.) 9.8 Menu 7 - LCD (display settings) (cont.) 7 LCD menu 3 LCD -time exit menu Setting time until automatic quit of menu display and return to...

  • Page 30: Connecting Device - Start Up

    TTL air curtain systems - Controller TWICS 10. Connecting device - start up 10.1 Internal connecting board (PCB) The internal connecting board is implemented inside of the air curtain unit. External control contacts like e.g. DDC enable, door contact etc. will be connected at these internal connecting board.

  • Page 31: Connecting Control Panel

    OFF(0) button and to restart renewed. The motor fault will be collect statisti- cally and is accessible by menu 2.1 ( In case of recurring motor faults pleas contact the TTL service immidiately. Shut-up after frost alert (only with a implemented frost alert thermostat) - a restart after frost alert Aut.start after frost.).

  • Page 32: Grouping - Adressing

    TTL air curtain systems - Controller TWICS 11. Grouping - adressing by programming. The adresses are free selectable up 1 to 9 and will be determined at the internal connecting board. All recognised air curtain units will be listed by its internal connectiong boards in the respective menus and shown by their adress.

  • Page 33: Malfunctions

    TTL air curtain systems - Controller TWICS 12. Malfunctions 12.1 Fault visualization Display safe EEPROM nent illuminated the memory is defective. In this case please contact the manufacturer of the air curtain unit by CAN bus failure The databus fault (CAN bus fault) is signalized via a yellow LED below the symbol „CAN bus fault“.

  • Page 34: Fault Clearance

    (common fault message). In case of a fan/motor fault please contact your service compa- ny or the TTL service. Remedy the cause of the error and unlock via the OFF(0) key. To avoid a demage don‘t set the air curtain system in operation without consultation of the manufacturer TTL.

  • Page 35: Eu Declaration Of Conformity

    In the event of any questions, please contact the manufacturer at the address above. TTL GmbH reserves the right to undertake any change or improvement to parts or their acces- sories without the obligation to update earlier products and existing documentation.

  • Page 36: Manufacturer, Contact, Service Adress

    TTL Torluftschleier GmbH Fabrikstraße 3 • 73650 Winterbach Fon +49 (0) 71 81 / 40 09 - 0 Fax +49 (0) 71 81 / 40 09 - 10 info@luftschleier.de • www.luftschleier.de...
