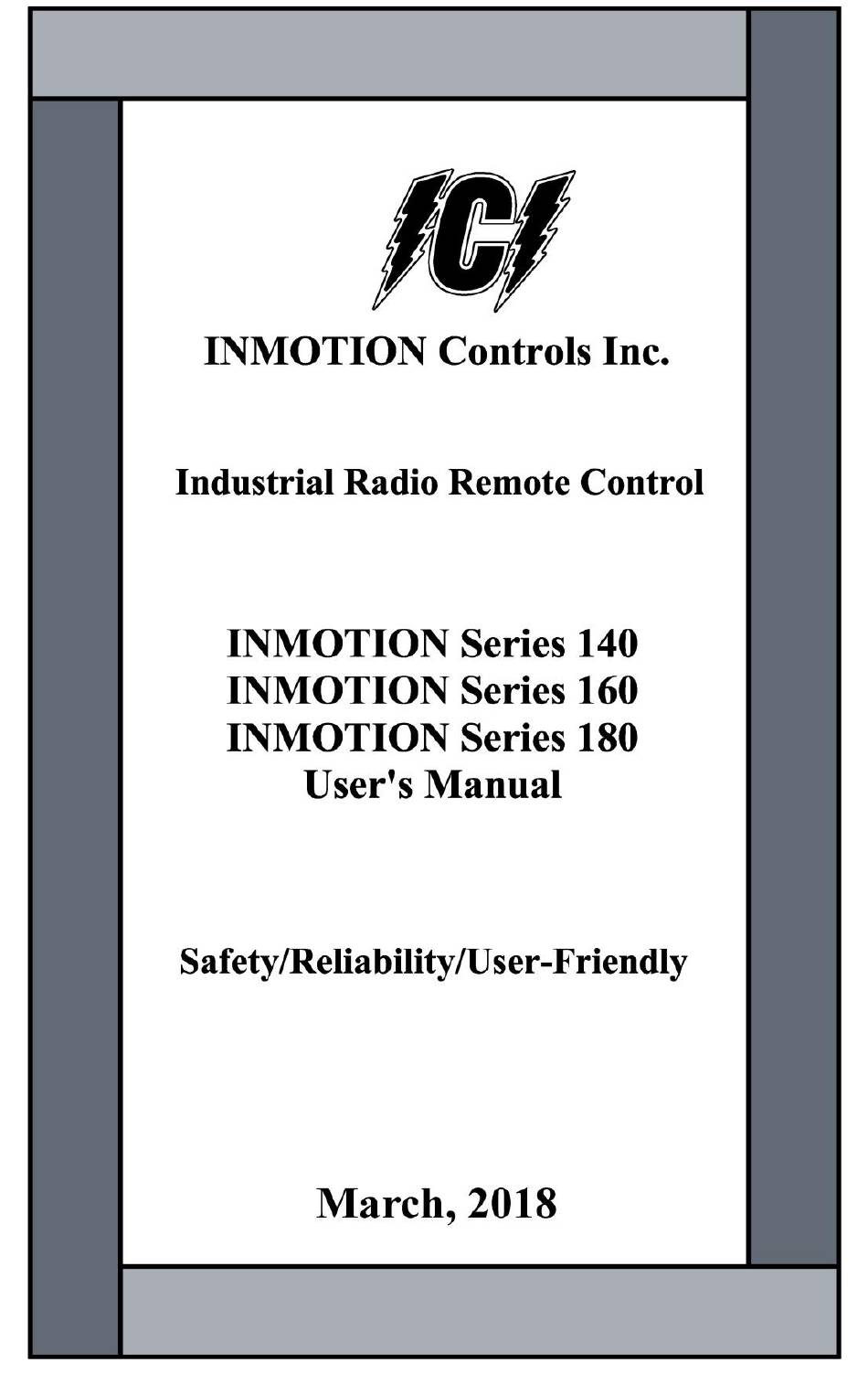

Inmotion controls 140 Series User Manual

Industrial radio remote control
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 140 Series and is the answer not in the manual?

Questions and answers

mike gensel
May 20, 2025

How do I code new remotes to an existing receiver with series 180 ?

0

Related Manuals for Inmotion controls 140 Series

Summary of Contents for Inmotion controls 140 Series

  • Page 2: Warranty

    This equipment is warranted against defects in materials and workmanship for a period of one year from the date of shipment. During the warranty period, INMOTION Controls, Inc. is responsible for necessary repairs, as long as the product can be proved to be defective.

  • Page 3: Operating Precautions

    OPERATING PRECAUTIONS ATTENTION  Due to the complex nature of the equipment, it is necessary to read the entire manual before installation.  Never dismantle equipment by any unauthorized personnel, or equipment may be damaged.  This Manual is for reference only; please call your distributor if further assistance is required.
  • Page 4 PRECAUTIONS  After Operating Series 140-160-180, please press the Stop pushbutton to shut off main power in the Crane & Receiver.  Stop operating when slow-response occurs due to insufficient Transmitter power, beyond the remote control range, or severe interference. ...

  • Page 5: Emergency Procedures

    EMERGENCY PROCEDURES In case of emergency, please follow the steps below and ask the distributor for service immediately.  Press the Stop pushbutton.  Remove the batteries.  Shut off the main power of the Crane and discontinue the operation. Contact the distributor to find out possible causes.

  • Page 6: Standard Accessories

    STANDARD ACCESSORIES A standard INMOTION Series 140-160-180 System consists of: (1) Transmitter, 2 units (2) Receiver, 1 unit Note: INMOTION Series 180 shown.

  • Page 7: Operation

    OPERATION TRANSMITTER CONFIGURATION Note: Inmotion Series 180 Shown.

  • Page 8: Receiver Configuration

    RECEIVER CONFIGURATION Note: Inmotion Series 180 Shown. Models vary depending on options.

  • Page 9: General Operation

    GENERAL OPERATION  Turn on the main power switch of the equipment (Crane).  Install 2 AA batteries in the battery box in the Transmitter. Make sure the polarity is correct.  Attach Transmitter battery door with screws.  Press the “Start/R0” Button. Note: LED indicator will flash with red color if proper procedures are not followed.
  • Page 10 RECEIVER VOLTAGE OPTIONS There are two types of power voltages (DC and AC) available for the 140-160-180 Series. 1) DC Type: Input Voltage: 12~24 VDC Relay Contact: 10A-36 VDC 2) AC Type: Three different AC transformers: 24/48V, 48/110V, 110/220V. Set the jumper to either Hi or Lo depending on which voltage is required.
  • Page 11 DC TYPE RELAY P.C. BOARD LAYOUT For INMOTION 140-160-180 Note: The Polarity of DC Input is not requried when plugging in the power.
  • Page 12 AC TYPE RELAY P.C. BOARD LAYOUT INMOTION 180 Shown Note: The Ground of the receiver must be connected with metal Part of equipment, or electrical shock may occur.
  • Page 13 INDEPENDENT COMMONS INMOTION Series 140-160-180 offer optional independent COM lines as: INMOTION-180 4 Independent COM Lines Up/Dn, E/W, S/N, R0 INMOTION-160 3 Independent COM Lines Up/Down, E/W, R0 INMOTION-140 2 Independent COM Lines Up/Down, R0 Please refer to the figure of the relay board above. If any independent COM line is required then cut the wire labeled with a white “X”.
  • Page 14 BATTERIES Two AA size alkaline batteries are required for the Transmitter. The LED will flash green when the battery power is sufficient. The LED will flash red when the battery power is low.  The operating distance will become shorter and intermittent when the battery is low.
  • Page 15 CHANGING R0/START N.O. (normally open) to N.C. (normally closed) Instructions:...

  • Page 16: Wiring Diagrams

    WIRING DIAGRAMS Notes: (1) The R0/Start can be N.O. or N.C. See page 16. (2) The fuse for the power AC 48/110/220 is 0.25A. The fuse for the power DC 12/24V is 1.5A. (3) The fuse for the AC type at the COM(MAIN) is 10A. The fuse for the DC type at the COM(MAIN) is 20A.
  • Page 17 NOTES...

  • Page 18: Troubleshooting

    TROUBLESHOOTING Item Problem Cause Action Required Red LED flashing a) One of the a) Replace the quickly (every 0.2 sec.) pushbutton Pushbutton. when any motion is jammed. b) Power on again pushbutton is b) The system is according to the pressed.

  • Page 19: Mounting The Receiver

    MOUNTING THE RECEIVER Please note that the drawing below is not to scale.

This manual is also suitable for:

160 series180 series
