A
B
BP
D
E
EV7
L
M
Z
58

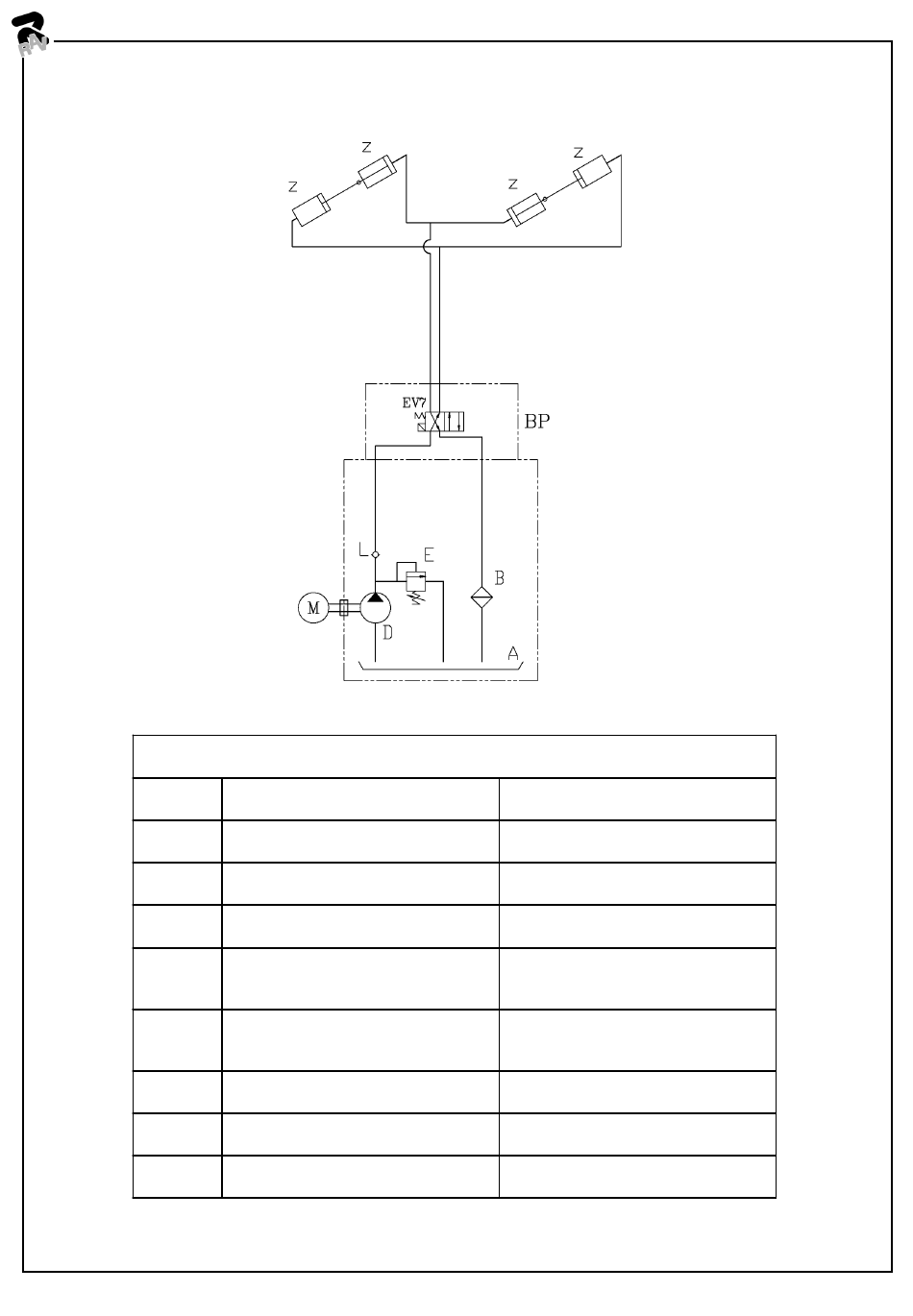

SCHEMA IDRAULICO (R200 - R200 I)
HYDRAULIC DIAGRAM (R200 - R200 I)
LEGENDA - LEGEND
Serbatoio olio
Filtro
Blocco valvola
Pompa
Valvola di massima (taratura 210
bar)
Elettrovalvola comando piastre
provagiochi
Valvola di non-ritorno
Motore potenza 2,6 kW
Cilindro
Oil tank
Filter
Valve block
Pump
Maximum valve (calibration 210
bar)
Play detector plates control
solenoid valve
Non-return valve
Motor of power 2.6 kW
Cylinder
1506-M001-1
R200 - R200 I
R200/8 - R200/8 I
R200M - R200MI
