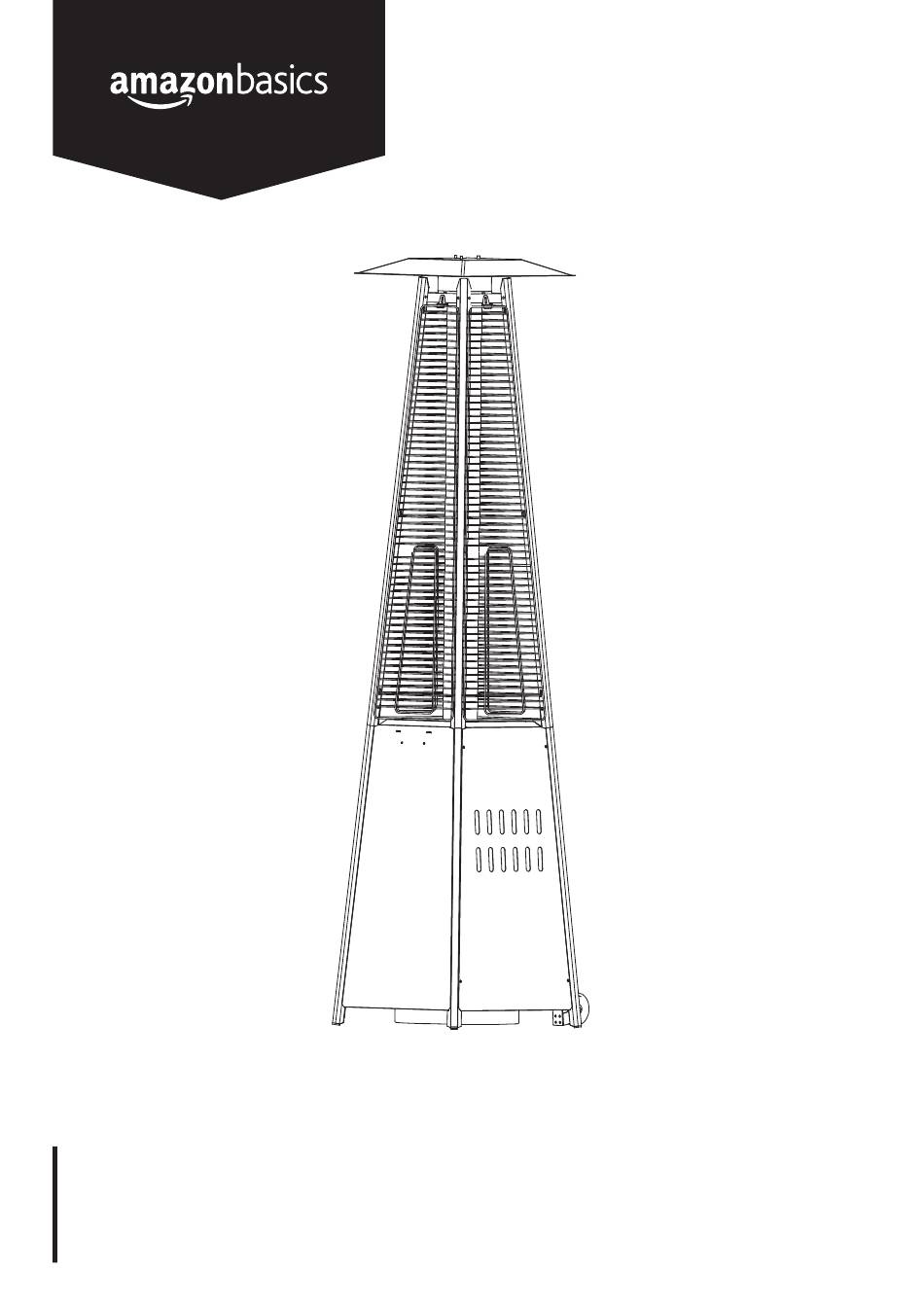

- Page 1 Pyramid Patio Heater Calefactor Piramidal para Patios Chauffage pour Patio en Pyramide B0753P16BL , B0753PHV8Z...
- Page 2 English ��������������������������������������������������� 3 Español ������������������������������������������������ 26 Français ����������������������������������������������� 49...
- Page 3 WARNING For outdoor use only. DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame. 3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department. DANGER •...
- Page 4 Welcome Guide • English Contents: Before getting started, ensure the package contains the following components:...
- Page 5 Guard screen x4 Wheel x2 Emitter Door panel Control box Reflector Lower support x4 Back panel Upper support x4 Side panel x2 Middle plate Handle Gas cylinder bracket x3 Silicone ring Base plate Flame tube...
-
Page 6: Important Safeguards
IMPORTANT SAFEGUARDS Read these instructions carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included. When using the product, basic safety precautions should always be followed to reduce the risk of injury including the following: •... -
Page 7: Gas Safety
• Shut off the valve at the gas cylinder or the regulator before moving the product. • Only use the gas regulator supplied with the product. The outlet pressure shall be according to the table in the chapter “Specifications”. • The tubing or the flexible hose must be changed if it is cut or worn or kinked. -
Page 8: Intended Use
Preparation • Before beginning assembly of the product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Contact customer service for damaged or missing parts. •... - Page 9 Assembly Step 1: Hardware used: Short bolt (B) x3, Bolt C x3 Attach the gas cylinder brackets (5) to the base plate (6). Align the gas cylinder brackets with the eyelets in the base plate surrounding the large center hole. Fasten the gas cylinder brackets to the base plate using 3 short bolts (B).
- Page 10 Assembly Step 3: Hardware used: Screw E x20 • Assemble the lower frame. Align the eyelets at the bottom of lower supports (3) with the small eyelets on the corners of the base plate (6). Fasten the lower supports to the base plate using 12 screws (E). Attach the middle plate (10) at the top of the lower supports using 8 screws (E).
- Page 11 Assembly Step 4: Hardware used: Screw E x12 Slide the 4 upper supports (15) onto the lower supports (3). Slide the corresponding opening of the upper supports onto the v-shaped rail of the lower supports. The upper and lower support brackets need to fit flush. Secure the connections using 12 screws (E).
- Page 12 Assembly Step 5: Hardware used: Screw E x8 • Attach the emitter (13) to the upper supports (15) using 8 screws (E). NOTICE Assembly step 5 may require a ladder. Follow safety precautions when working on a ladder. Step 6: Hardware used: Screw E x4 •...
- Page 13 Assembly Step 7: WARNING The black silicone ring (11) must be in place around the lower rim of the flame tube (12) prior to operating the product. • Place the black silicone ring. • Carefully install the flame tube by guiding it up. •...
- Page 14 Assembly Step 8: Hardware used: Stud F x 3, Washer J x 6, Wing nut G x 3, Screw E x4, Guard bracket K x 4 • Attach the reflector (14) to the emitter (13). Screw the 3 reflector studs (F) into the top of the emitter, then slide 3 washers (J) onto the studs.
- Page 15 Assembly Step 9: • Assemble the guard screens (1). • Hang the hooks of the guard screens onto the holes near the top, middle, and bottom of the upper supports (15). • Secure the guard screens by tightening the screws (E) of the guard brackets (K) (attached to the emitter in previous step).
- Page 16 Assembly Step 10: Hardware used: Screw E x16 • Attach the side panels (4) and the back panel (9) to the product using 4 screws (E) per panel. • On the front side, insert the 4 screws (E) directly into the matching holes on the lower supports (3). NOTICE Do not cover the front, which is the side where the control knob of the control box faces.
- Page 17 Assembly Step 11: Hardware used: Screw D x2, Brace with chain (L) x 1 Attach the handle (16) on the outside of the door panel (2) and connect it with the brace with chain (L) on the inside of the door panel using 2 screws (D). Insert the tabs on the bottom of the door panel into the tab holes at the front of the base plate (6).
- Page 18 Assembly Step 12: • Remove the door panel (2). • Pry open the plastic cap of the sandbox (pre-installed on the base plate (6)). • Fill the sandbox with sand or water, then securely close the plastic cap. Step 13: •...
-
Page 19: Operation
Information on Gas Cylinders • Use this product only with a LPG vapor withdrawal supply system. • Storage of the product indoors is permissible only if the cylinder is disconnected and removed from the product. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children. A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or any other enclosed area. -
Page 20: Before Lighting
3. Apply several drops of the soapy water where the regulator connects to the cylinder. 4. Make sure all valves are closed. 5. Open the cylinder valve. If bubbles appear at any connection, there is a leak. 1. Turn the cylinder valve off. 2. -
Page 21: During Operation
4. If after repeating steps 2-3, the product does not light, then: – Lift the flame tube (12) and prop it to give at least 1/2” of clearance below the tube. – Push in control knob and turn counterclockwise to PILOT (Figure 3). -
Page 22: Cleaning And Maintenance
Shut Down 1. Turn the control knob clockwise to PILOT. Normally, the burner will make a slight popping sound when extinguished. The burner will extinguish but the pilot will remain on. 2. To extinguish the pilot, depress the control knob and continue to turn it clockwise to OFF. 3. - Page 23 • Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs of possible blockage include: – Gas odor with extreme yellow tipping of flame. – The product does not reach the desire temperature. – The product glow is excessively uneven. –...
-
Page 24: Troubleshooting
Storage Store the product between uses and/or during periods of extended inactivity or when transporting. Proceed as follows: • Turn the control knob to the OFF position. • Disconnect the LPG cylinder. • Store the product upright in an area sheltered from direct exposure to inclement weather (rain, sleet, hail, wind, snow, dust and debris). -
Page 25: Specifications
55.1 lbs (25 kg) Color B0753P16BL: Black and stainless steel B0753PHV8Z: Stainless steel Feedback and Help Love it? Hate it? Let us know with a customer review. AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage you to write a review sharing your experiences with the product. - Page 26 MADE IN CHINA HECHO EN CHINA FABRIQUÉ EN CHINE...
