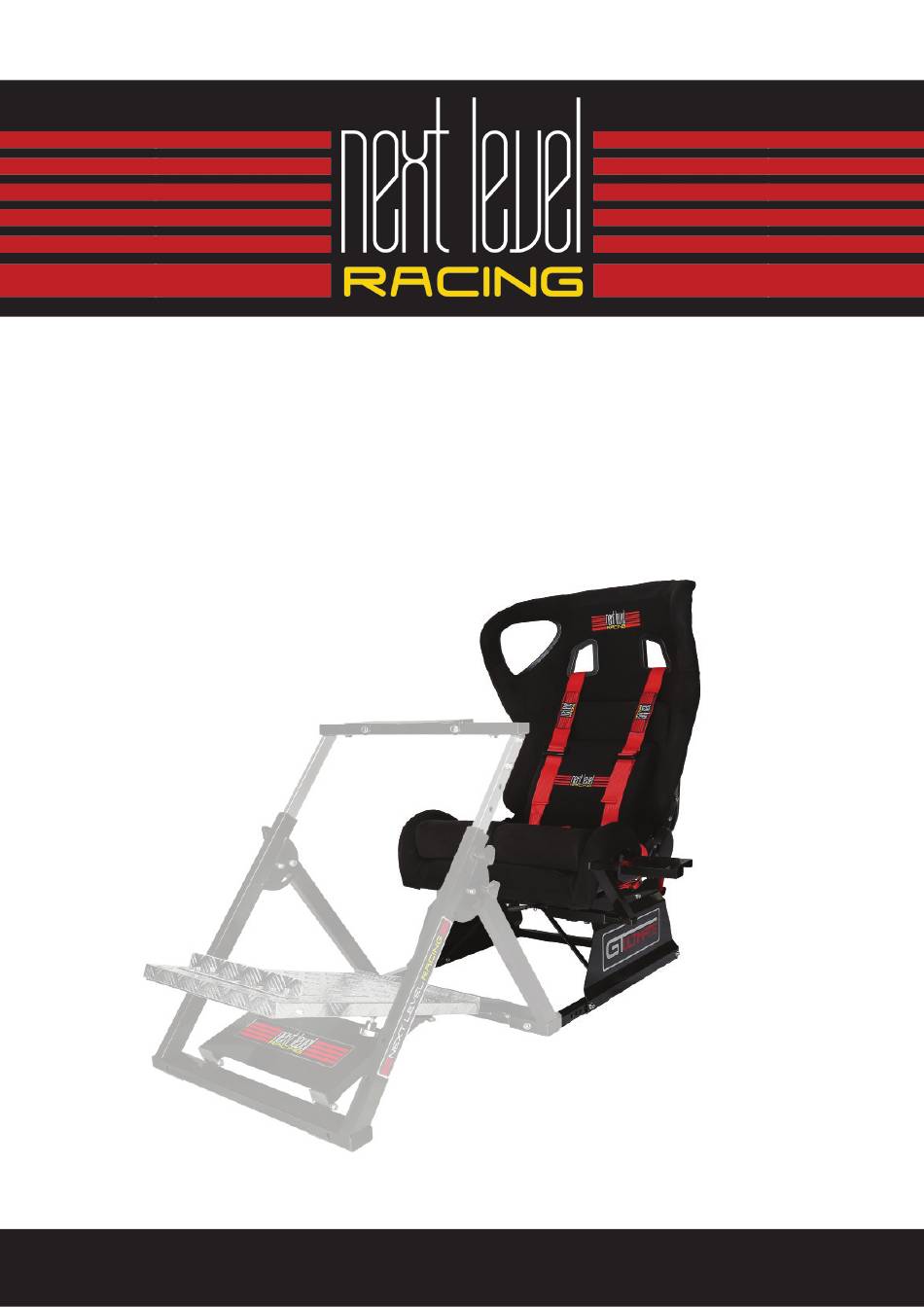

- Page 1 INSTRUCTION MANUAL FOR NEXT LEVEL RACING SEAT ADD ON/ GTULTIMATE For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 2 Thank-you for purchasing a Seat Add On/ GTultimate If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response.
-
Page 3: What's In The Box
SEAT ADD ON/ GTULTIMATE What’s In The Box: For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... - Page 4 SEAT ADD ON/ GTULTIMATE Step 1: Centre Bar M8 35MM BOLTS U Shape Bar M8 15MM BOLTS Install SIDE PANELS to U SHAPE BAR using 2 x M8 35MM BOLTS and CENTRE BAR using 2 x M8 15MM BOLTS. STOP IF USING MOTION PLATFORM, REFER TO MOTION PLATFORM Step 2: INSTRUCTIONS BEFORE ATTACHING SEAT Install SIDE PANELS to the GTULTIMATE SEAT using 2 x M8 50MM BOLTS.
- Page 5 SEAT ADD ON/ GTULTIMATE Step 3: Feed through longest straps of harness through seat headrest holes. Attach 2X CROSS HEAD SCREWS to frame under back of seat. Step 4: Attach support bars from U SHAPE BAR to frame under seat using 2X M6 10MM BOLTS.
- Page 6 SEAT ADD ON/ GTULTIMATE Step 5: T Pole Attach T POLE under seat using 2X M8 15MM BOLT. (Left or right side depending on gear shifting preference) Step 6: Gear Shifter Adaptor T Pole Gear Shifter Plate Attach GEAR SHIFTER ADAPTOR to T POLE using 2X M8 15MM BOLTS. Attach GEAR SHIFTER PLATE to GEAR SHIFTER ADAPTOR using 1X M8 15MM BOLT.
- Page 7 SEAT ADD ON/ GTULTIMATE GEAR SHIFTER ADAPTOR reversible to be further or closer. Step 7 (OPTIONAL): If you own the Buttkicker Gamer 2, attach the optional BUTTKICKER ADAPTOR using holes underneath seat framing. Install with 2X M8 35MM BOLTS. For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 8 SEAT ADD ON/ GTULTIMATE LUMBAR CUSHION Step 8: Position LUMBAR CUSHION to support lower back. Feed strap through seat and clip into position. For assistance please contact: service@Force2Motion.de wwww.Force2Motion.de und www.nextlevelracing.com...
- Page 9 SEAT ADD ON/ GTULTIMATE GTULTIMATE SETUP Step 9: Attach WHEEL STAND to SEAT ADD ON using 2X M8 85MM BOLTS. For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 10 SEAT ADD ON/ GTULTIMATE FLATTENING/ ADJUSTING PEDAL PLATE ANGLE Step 10 (OPTIONAL): For customers that need angle of pedal plate flatter or have high performance pedals that require stronger support Remove M8 BOLT in hinge in middle of pedal plate. Repeat both sides.
-
Page 11: Need Assistance
SEAT ADD ON/ GTULTIMATE NEED ASSISTANCE? If you require any support with your product please contact our friendly team at: support@nextlevelracing.com for a prompt response. For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com... - Page 12 SEAT ADD ON/ GTULTIMATE FOLDS FOR EASY STORAGE For assistance please contact: service@Force2Motion.de wwww.Force2Motion.de und www.nextlevelracing.com...
- Page 13 SEAT ADD ON/ GTULTIMATE Krok 1: Nainstalujte SIDE PANELS na U SHAPE BAR pomocí šroubů 2 x M8 35MM a na CENTRE BAR pomocí šroubů 2 x M8 15MM Krok 2: JESTLIŽE POUŽÍVÁTE MOTION PLATFORM, PŘERUŠTE PRÁCI A PODÍVEJTE SE PŘED PŘIPOJENÍM SEDADLA DO NÁVODU K MOTION PLATFORM.
- Page 14 SEAT ADD ON/ GTULTIMATE Stap 1: Installeer SIDE PANELS op U SHAPE BAR met 2 x M8 35MM BOLTS en CENTRE BAR met 2 x M8 15MM BOLTS. Stap 2: STOP BIJ GEBRUIK VAN MOTION PLATFORM, ZIE MOTION PLATFORM INSTRUCTIES VOORDAT DE ZETEL WORDT BEVESTIGD. Installeer de SIDE PANELS aan de GTULTIMATE SEAT d.m.v.
- Page 15 SEAT ADD ON/ GTULTIMATE Étape 1 : Fixez les SIDE PANELS à l’U SHAPE BAR à l’aide des boulons 2 x M8 35MM et la CENTRE BAR en utilisant les boulons 2 x M8 15MM. Étape 2 : ARRÊTEZ L’OPÉRATIOΝ SI VOUS UTILISEZ UΝE MOTION PLATFORM, LISEZ LES IΝSTRUCTIOΝS SUR LA MOTION PLATFORM AVANT DE FIXER LE SIÈGE.
- Page 16 SEAT ADD ON/ GTULTIMATE Passaggio 1: Istallare i SIDE PANELS sulla U SHAPE BAR utilizzando le VITI 2 x M8 35MM e la CENTRE BAR utilizzando le VITI 2 x M8 15MM. Passaggio 2: IN CASO DI UTILIZZO DELLA MOTION PLATFORM, FARE RIFERIMENTO ALLE ISTRUZIONI PER LA MOTION PLATFORM PRIMA DI COLLEGARE IL SEDILE.
- Page 17 SEAT ADD ON/ GTULTIMATE Paso 1: Instale los SIDE PANELS en la U SHAPE BAR usando los 2 x TORNILLOS M8 DE 35 MM y la CENTRE BAR usando los 2 x TORNILLOS M8 DE 15 MM. Paso 2: PARE SI UTILIZA LA MOTION PLATFORM, CONSULTA LAS INSTRUCCIONES MOTION PLATFORM ANTES DE INSTALAR EL ASIENTO.
- Page 18 SEAT ADD ON/ GTULTIMATE Schritt 1: Installieren Sie die Seiten-Paneele (SIDE PANELS) an den U-förmigen Träger (U SHAPE BAR) mit 2 x M8 35mm Schrauben und den mittleren Träger (CENTRE BAR) mit 2 x M8 15mm Schrauben. Schritt 2: STOP. Wenn Sie die Motion Platform verwenden, beachten Sie bitte vor dem weiteren Zusammenbau des Sitzes unbedingt die Hinweise in der Bedienungsanleitung der Motion Platform.
- Page 19 SEAT ADD ON/ GTULTIMATE AVAILABLE ACCESSORIES TO BUILD THE ULTIMATE COCKPIT For assistance please contact: support@nextlevelracing.com www.nextlevelracing.com...
- Page 20 BUILD THE ULTIMATE COCKPIT For assistance please contact: support@nextlevelracing.com...
