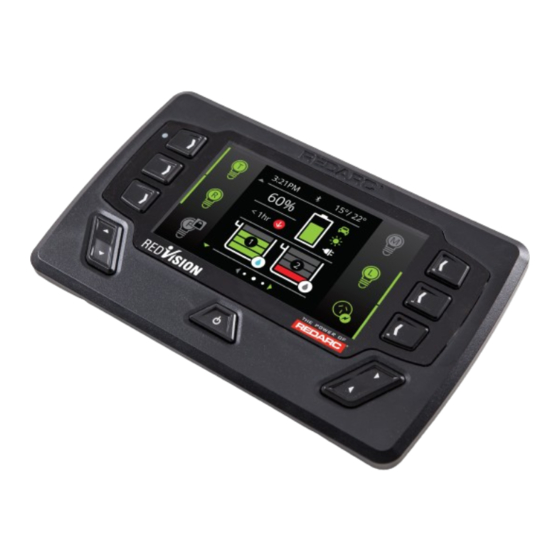

RedVision Quickstart Guide
Up/Down
function
Softkeys
Softkey
Locked
Up/Down
arrow
Navigation
The Left/Right arrows are used to navigate
the pages on the centre of the screen.
The Up/Down arrows are used to cycle
through SoftKeys on the Home Page or to
navigate through options found on other
pages.
The Left/Right and Up/Down arrow functions
are indicated on the screen.
Softkeys
The Softkeys are used to toggle devices on/
off (eg Lights, Water Pump).
Softkeys may also be conditionally locked,
for example to prevent a shower pump
being accidentally operated while the vehicle
ignition is on.
WARDISP4300-QS Rev 3

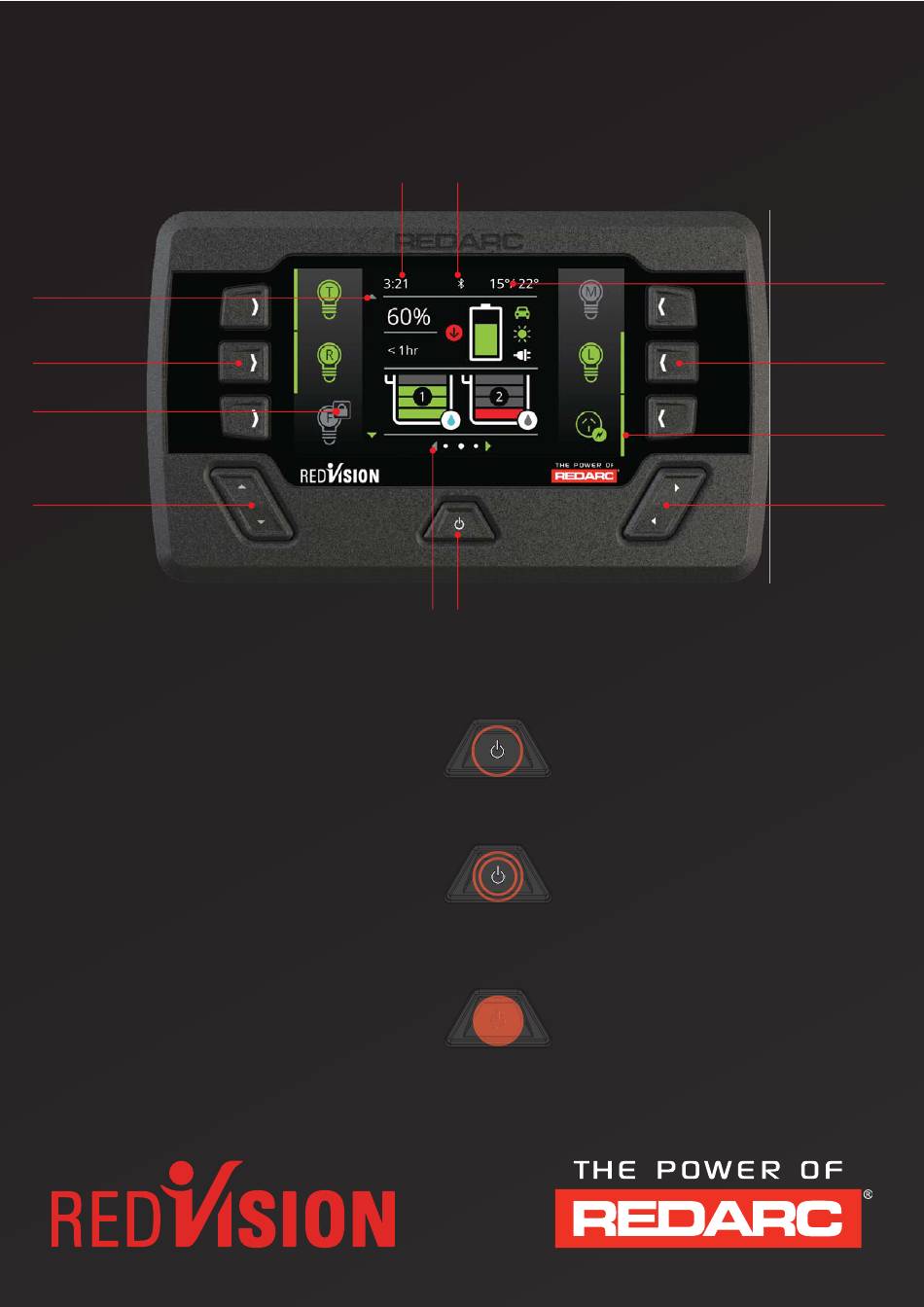

Time
Left/Right function
Power Button Function
Notification Bar
Power Button
Pushing the Power Button ONCE
will open a Power Button instruction
dialogue and allow switching between
Push
Storage and Touring modes.
Pushing the Power Button TWICE will
invoke the 'Master Switch' function.
This function switches a defi ned set of
Push x2
devices and can be customised to user
specifi cations.
HOLDING the Power Button will put
the screen into Standby mode. Pushing
any button will wake the screen up
HOLD
again. When the system is set to
'Storage Mode' only the Power
Button will wake the display up.
Temperature
indication
Softkeys
Device active
indication
Left/Right
arrow
