Summary of Contents for Redarc SPPA-RM

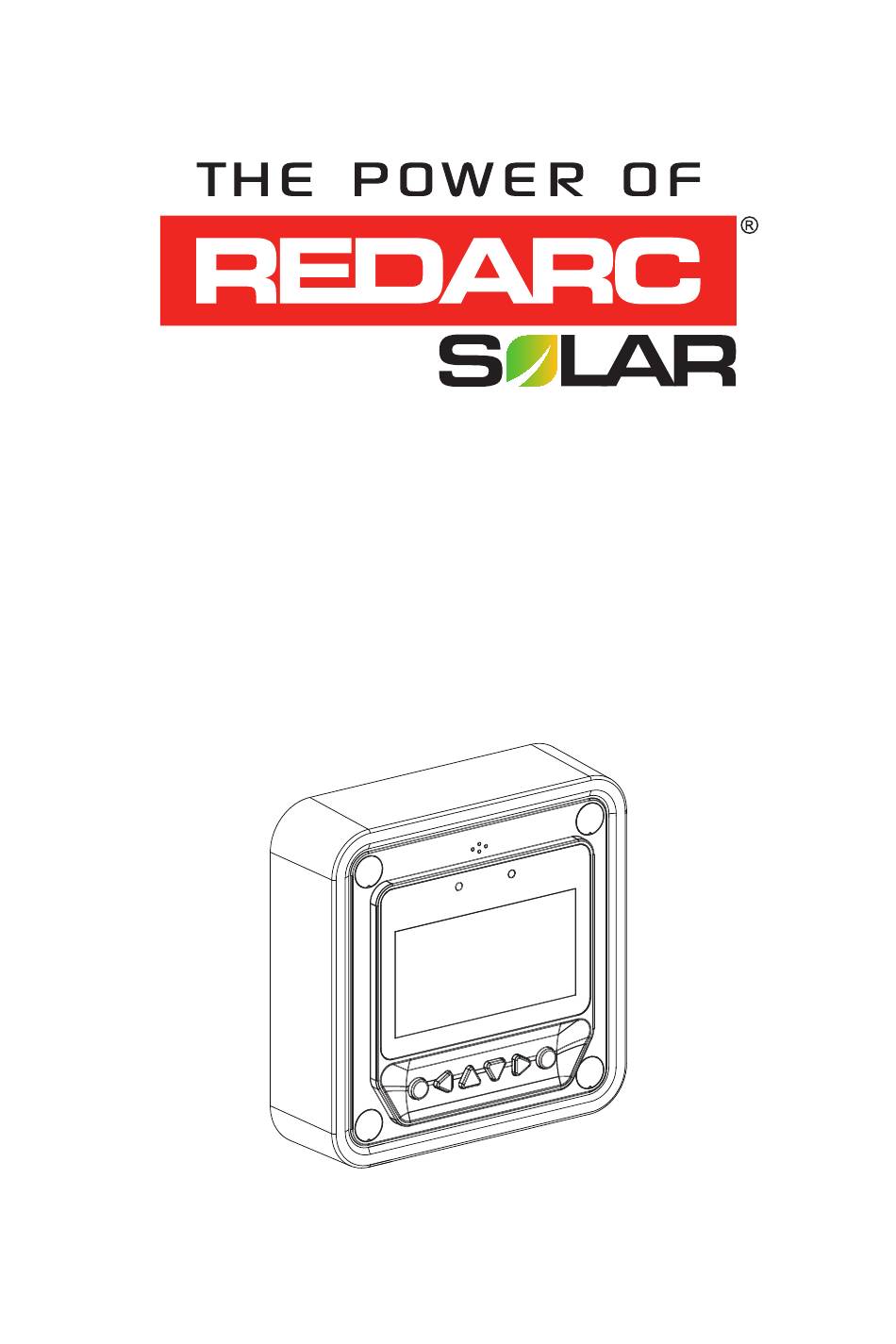

- Page 1 Remote Monitor for Solar Regulator SRPA-RM To suit SRPA0120, SRPA0240 & SRPA0360 Solar Regulators...
-
Page 2: The Solar Regulator Remote Monitor
THE SOLAR REGULATOR REMOTE MONITOR The REDARC Solar Regulator Remote Monitor allows you to monitor how your solar panels are performing and keep track of the charge state of your battery/s. The unit is simple to setup and control and provides an easy to read graphical interface, which can be modified to suit your preferences. -
Page 3: Table Of Contents
Redarc recommend buying a cable of the required length rather than shortening the supplied cable. Do not forget your password. The factory default password is ‘000000’. This user manual is to be read in conjunction with the Redarc SRPA solar regulator user manual. CONTENTS The Solar Regulator Remote Monitor Warning &... -
Page 4: Specifications
SPECIFICATIONS DIMENSIONS 84mm 98mm 114mm MOUNTING The remote monitor is not waterproof or designed for installation under bonnet or outdoors. Ensure the monitor is installed in a cool and dry environment. -
Page 5: Menu Navigation
MONITOR OPERATION System Status 14.6 Volts Batt 16.2 Volts S-Pnl Amps Charge 01 01 2013 09:39:54 .Monitoring Charging Logs 0.0kWh .Device Info. 0.0kWh .Control Para. Month 0.0kWh .Device Para. Total .Device PSW. Battery Info Battery Info Battery Info .Failure Info. Mode : Absorb 14.6V... -
Page 6: Monitor Information
MONITOR INFORMATION MONITORING System Status System Status 14.6 This screen shows the essential voltage and charging status of your Volts Batt 16.2 Volts S-Pnl system: Amps Charge Volts Batt The voltage level of the battery Volts S-Pnl The input voltage from the solar panel Amps Charge The real time charging performance in amps Date &... -
Page 7: Menu
MONITOR INFORMATION Solar Panel Information (2 Screens) S-Panel Info These screens show detailed solar panel information: 16.2 Volts: Amps: 16.8W Power: Volts Solar panel real time voltage Amps Solar panel real time amperage from the panel Power The calculated power (watts) the panel is producing Status The solar panels charging status ( Normal, No Charge ) Normal - Charging without error or fault... -
Page 8: Device Information
The regulators rated voltage 12 or 24v Char. Cur The regulators rated charging current Internal serial number (REDARC use only) CONTROL PARAMETERS To change settings, press the ‘OK’ button, enter the device password and press ‘OK’ again. Change the setting to the desired value and press ‘OK’ once more to save the setting. - Page 9 MONITOR INFORMATION Batt. AH The Battery amp hours can be set to offer a state of charge percentage, the range is from 1 - 9999Ah. Note1: This a calculated guide available on the Battery Information page 3. Note2: This setting is a guide only, the battery size does not need to be set for correct function/charging.
- Page 10 28 days Absorb time This is the Absorb charging stage time duration, this setting is defaulted to 180 minutes, and can be adjusted from 10 - 180 minutes. Note: Redarc does not recommend changing this or any of the default settings.
-
Page 11: Device Parameters
This Screen shows the Remote Monitors software version and ID number: Ver. The internal software version, this information is for Redarc use only. The internal software ID number, this information is for Redarc use only Device Parameter (Backlight) Device Parameter 100S... -
Page 12: Failure Information
201510160000001 Type The remote monitors part number (SRPA-RM) The software version, for Redarc use only. The units serial number, for Redarc use only. Meter Parameters (Screen 2) Meter Para. 000S This screen shows and allows changes to the time duration of the... -
Page 13: Remote Monitor Cable (8-Pin Rj45 10M)
Plug B to the regulator. The communication data cable is an 8-Pin RJ45 type Ethernet cable. If a cable of different length is required, Redarc recommend buying a cable of the required length rather than shortening the supplied cable. - Page 14 Australian Consumer Law. Redarc Electronics Pty Ltd atf the Redarc Trust trading as Redarc Solar (“Redarc”) offers a warranty in respect of its Solar Products where the Solar Products are purchased from an authorised Redarc Solar distributor or reseller by a person (“Purchaser”), on the terms and conditions, and for the duration, outlined below in this document (“Warranty”).
- Page 15 Warranty. (where the subject of the claim is capable of being photographed); 21. Redarc shall not be responsible or liable to the Customer or any third 9.3 the serial number of the Solar Product, specified on the label party in connection with any non-performance or delay in performance affixed to the Solar Product;...
- Page 16 This product has been specified and tested in Australia in accordance with REDARC specifications and testing requirements by REDARC Engineers. You can be assured that this product meets the stringent quality levels of all REDARC products. For free technical assistance please contact...
