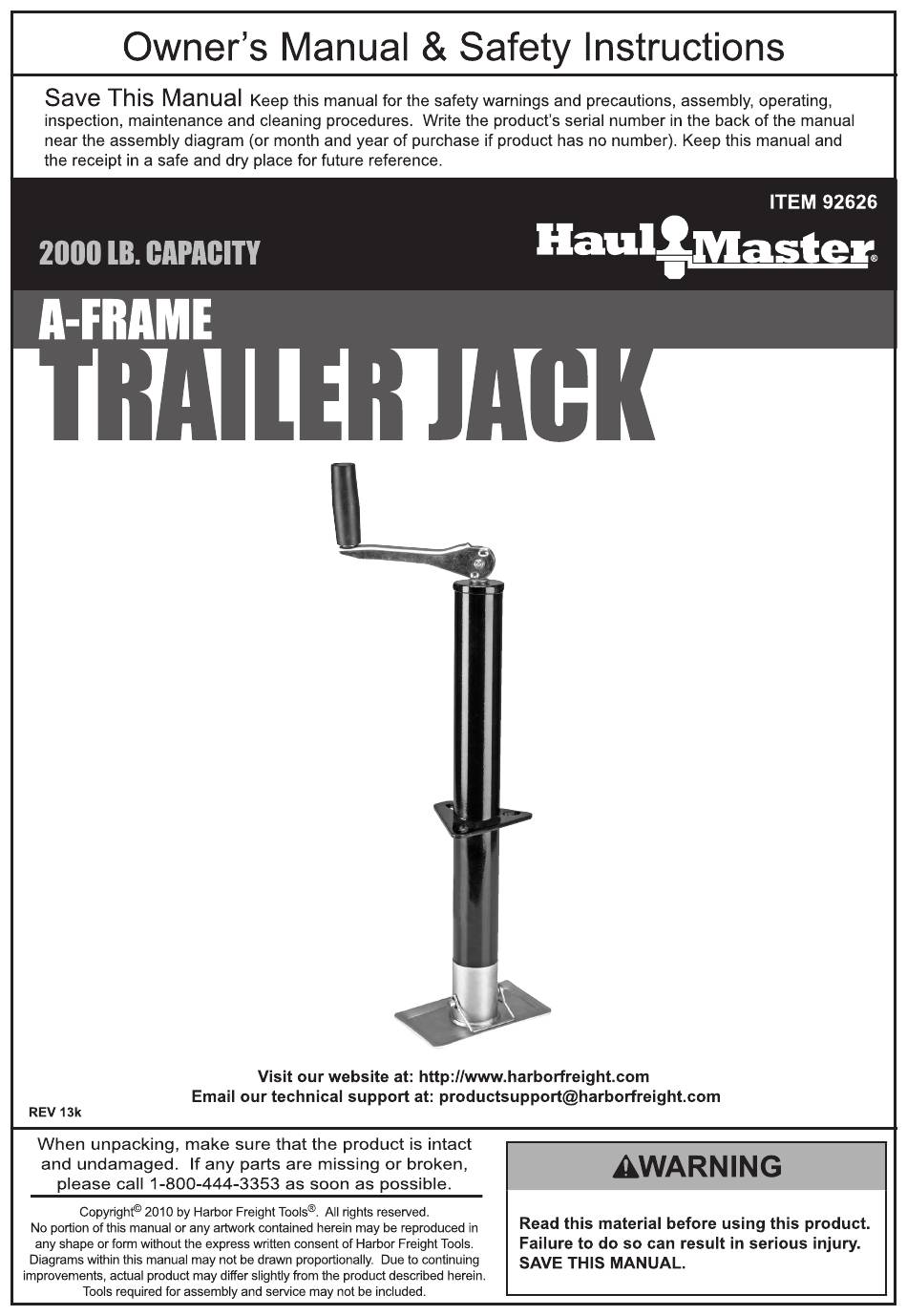

HAUL MASTER 2000 LB. A-Frame Trailer Jack Owner's Manual & Safety Instructions

Hide thumbs Also See for 2000 LB. A-Frame Trailer Jack:

Advertisement

Quick Links

Advertisement

loading

Related Manuals for HAUL MASTER 2000 LB. A-Frame Trailer Jack

Summary of Contents for HAUL MASTER 2000 LB. A-Frame Trailer Jack

  • Page 2: Table Of Contents

    Table of Contents Safety ............2 Maintenance ..........8 Specifications ..........4 Parts List and Assembly Diagram....10 Installation ..........6 Warranty ............ 12 Operation ............ 7 WARNING SYMBOLS AND DEFINITIONS This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
  • Page 3 Service Have your tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the tool is maintained. Specific Safety Warnings 1. Do not exceed rated capacity. 11. Apply force to Jack vertically only. Side forces will compromise the Jack.

  • Page 4: Specifications

    Functional Description Specifications Weight Capacity 2000 lb. Travel Length 13-3/4" Lift Range 10-1/4"– 24" Application For use with A-frame trailers Hardware (sold 3 bolts 3/8" D x 1" L (grade 5 or separately) better), 3 lock nuts, 6 washers Page 4 For technical questions, please call 1-888-866-5797.
  • Page 5 Components Crank Outer Tube Mounting Plate Lock Pin Footplate Item 92626 For technical questions, please call 1-888-866-5797. Page 5...

  • Page 6: Installation

    Installation Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Note: For additional information regarding the parts listed in the following pages, refer to Parts List and Assembly Diagram on page 10.

  • Page 7: Operation

    Operation Instructions Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this manual including all text under subheadings therein before set up or use of this product. Mounting the Trailer to the Towing Vehicle 1. Before mounting, chock the trailer wheels 5.

  • Page 8: Maintenance

    User-Maintenance Instructions Procedures not specifically explained in this manual must be performed only by a qualified technician. TO PREVENT SERIOUS INJURY: Remove Jack from trailer before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM TOOL FAILURE: Do not use damaged equipment.
  • Page 9 PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.

  • Page 10: Parts List And Assembly Diagram

    Parts List and Diagram Parts List Part Description Part Description Outer Tube Bolt M6 x 25 Inner Tube Lock Nut M6 Jack Screw Washer Crank Bearing Foot Plate Bushing Lock Pin Record Product’s Serial Number Here: Note: If product has no serial number, record month and year of purchase instead. Note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts.
  • Page 11 Assembly Diagram Item 92626 For technical questions, please call 1-888-866-5797. Page 11...

  • Page 12: Warranty

    Limited 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
