Summary of Contents for GPX TVTR149BVP

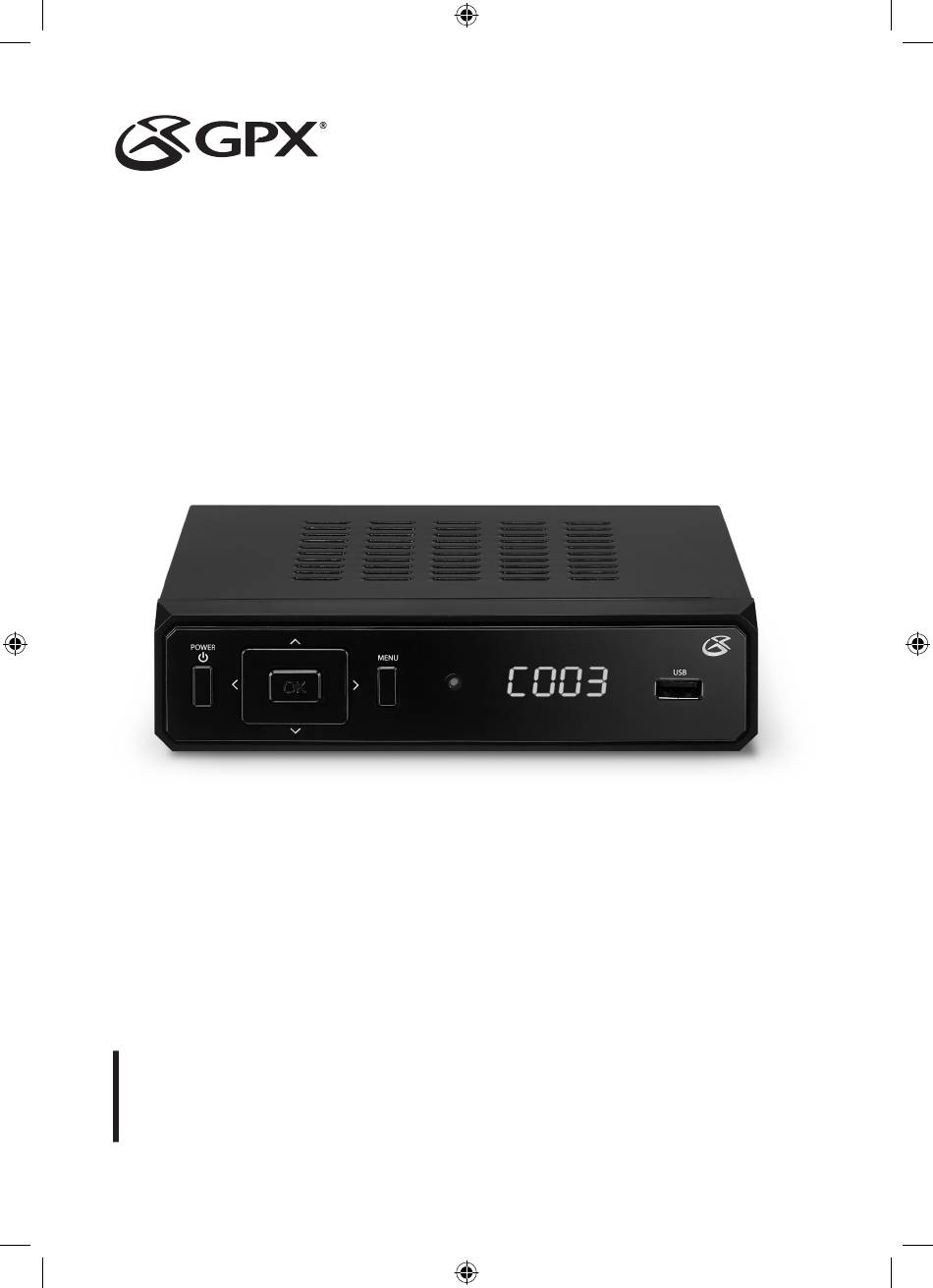

- Page 1 Digital TV Tuner + Recorder User’s Guide for Model TVTR149BVP v2420-01 For the most up-to-date version of this User’s Guide, go to www.gpx.com TVTR149BVP-2420-01-IB.indd 1 19/08/2019 6:35:06 PM...
- Page 2 • Do not use the tuner in the following conditions: and on, the user is encouraged to try to correct the interference – Extremely hot, cold, or humid environments by one or more of the following measures: – Environments with excessive amounts of dust and dirt in • Reorient or relocate the receiving antenna. the atmosphere. • Increase the separation between the equipment and receiver. – Near appliances generating a strong electromagnetic • Connect the equipment into an outlet on a circuit different field or heat. from that to which the receiver is connected. – In direct sunlight. • Consult the dealer or an experienced radio/TV technician • If the air vents become clogged or dirty, use a vacuum or air for help. compressor and nozzle to clean. Do not use canned air, as the gas may leave a residue inside the enclosure. TVTR149BVP-2420-01-IB.indd 2 19/08/2019 6:35:06 PM...
- Page 3 WARNING : This product can expose you on the apparatus. to chemicals including lead, which is known • Do not place any objects, heavy or otherwise, on the tuner. to the State of California to cause cancer and birth defects or other reproductive harm. For • This product meets and complies with all Federal regulations. more information go to www.P65Warnings. • See tuner enclosure for related safety markings. ca.gov. • No user serviceable parts inside, do not attempt to open the unit or perform any repair. Doing so may cause damage or injury, and will void your warranty. • Refer all repairs or replacement to qualified service personnel. • Stop using the tuner and unplug the power source immediately if you notice the following: – Smoke coming from the unit or power supply. – Strange odors or noises coming from the unit. – Liquid or foreign objects have gotten inside the unit. – Unit has been dropped and enclosure has been damaged. TVTR149BVP-2420-01-IB.indd 3 19/08/2019 6:35:06 PM...
-
Page 4: Table Of Contents
3. Channels Saved - 14 4. Recording TV - 14 5. Playing Recorded TV - 15 6. Restore Factory Default - 15 Customer Support Contact Information - 16 Warranty - 16 International Support - 16 TVTR149BVP-2420-01-IB.indd 4 19/08/2019 6:35:06 PM... -
Page 5: Features
• Native Resolution: 720 x 480/1080p HDMI (included) • Aspect Ratio: 16:9, 4:3 • RCA audio/video cable • Outputs: HDMI, AV, Component video, • User's Guide RCA stereo • USB port for media play and recording storage TVTR149BVP-2420-01-IB.indd 5 19/08/2019 6:35:06 PM... -
Page 6: Front
Audio Output 2. OK/Select 6. USB Media Port 10. HDMI Output 13. Composite (Y) 3. Menu 7. Remote Sensor Video Output 11. Component 4. Power Indicator 8. TV Antenna (YPbPr) Video Light Input & Output Output TVTR149BVP-2420-01-IB.indd 6 19/08/2019 6:35:07 PM... -
Page 7: Remote
Press to access recorded media channels. Make selections and from the USB drive. navigate menus. TIMER Press OK to display channel list. Set a recording schedule for INFO specific times and channels. Press to display channel information. TVTR149BVP-2420-01-IB.indd 7 19/08/2019 6:35:08 PM... -
Page 8: Batteries
Remote Batteries Requires 2 AAA batteries (included). TVTR149BVP-2420-01-IB.indd 8 19/08/2019 6:35:08 PM... -
Page 9: Setup
1. Connect the cable TV or TV antenna cable to the input on the tuner. The tuner will then need to be connected to a TV or other display using video and audio cables. See the following pages for details. Antenna Input TV Antenna/Cable Wire TVTR149BVP-2420-01-IB.indd 9 19/08/2019 6:35:08 PM... -
Page 10: Hdmi
1. Using an HDMI cable, connect the HDMI output on the tuner to the HDMI input on your TV. 2. Set the TV's Source to the connected HDMI input and use the tuner remote to select and play media. HDMI Output Connect to HDMI input on TV TVTR149BVP-2420-01-IB.indd 10 19/08/2019 6:35:09 PM... -
Page 11: Audio/Video Input & Output
2. Set the TV's Source to the connected AV input and use the tuner remote to select and play media. Component Output (green/blue/red) Component Video Cable Note: Be sure to use a separate RCA stereo cable to connect the audio inputs and outputs. Connect to Component Input on TV TVTR149BVP-2420-01-IB.indd 11 19/08/2019 6:35:09 PM... -
Page 12: External Audio
1. Connect a USB drive to the USB Port on the front of the tuner. 2. Press USB on the remote to access the USB drive. 3. Use the Arrow/OK buttons to select Music/ Photo/Movie/PVR. 4. Use the Arrow/OK buttons to select files to play. TVTR149BVP-2420-01-IB.indd 12 19/08/2019 6:35:10 PM... -
Page 13: Using The Tuner
3. When finished, press Confirm to proceed to the Channel Search. 2. Channel Search 1. The tuner will scan for available TV channels and automatically save them to memory. This process may take several minutes. Please allow the tuner to finish searching before proceeding. TVTR149BVP-2420-01-IB.indd 13 19/08/2019 6:35:10 PM... -
Page 14: Channels Saved
1. Select the channel you wish to record, then press the Record button on the remote to start recording. A marker will appear in the top left corner of the screen. 2. To stop recording, press the Stop button on the remote and use the Arrow/OK buttons to confirm. TVTR149BVP-2420-01-IB.indd 14 19/08/2019 6:35:10 PM... -
Page 15: Playing Recorded Tv
2. Use the Arrows/OK buttons to select System. 3. Use the Arrows/OK buttons to select Restore Factory Default. 4. Enter the password "0 0 0 0 0 0" or "8 8 8 8 8 8." TVTR149BVP-2420-01-IB.indd 15 19/08/2019 6:35:11 PM... -
Page 16: Customer Support
To download this User’s Guide in English, Spanish, and French, or to get answers to frequently asked questions, visit the support section at: www.gpx.com Para descargar este Manual del Usuario en inglés, español y francés, o para obtener respuestas a preguntas frecuentes, visite la sección de apoyo en: www.gpx.com...
Need help?
Do you have a question about the TVTR149BVP and is the answer not in the manual?
Questions and answers
Can't seem to get the GPX TVTR149B to record or play back anything through my USB port or device. There's plenty of room on my USB drive stick. The TV screen just goes blank when the USB port is engaged. Everything else seems to be working just fine.
The GPX TVTR149B may not be recording or playing back through the USB port for several possible reasons:
1. USB Drive Issue: The USB drive may not be properly connected, may be incompatible, or may not have enough storage space.
2. Incorrect Mode: The device may not be in USB play mode. You must press the correct button to enter USB playback.
3. No Recorded Content: There may be no recorded media on the USB drive to play back.
4. Recording Not Scheduled: A recording schedule may not be set using the TIMER function.
5. Power or Connection Issue: The device may not be powered correctly or the USB port may not be functioning.
Ensure the USB drive is properly connected and formatted, recordings are scheduled, and the correct playback function is used.
This answer is automatically generated
What is the maximum Usable size of the stick drive
