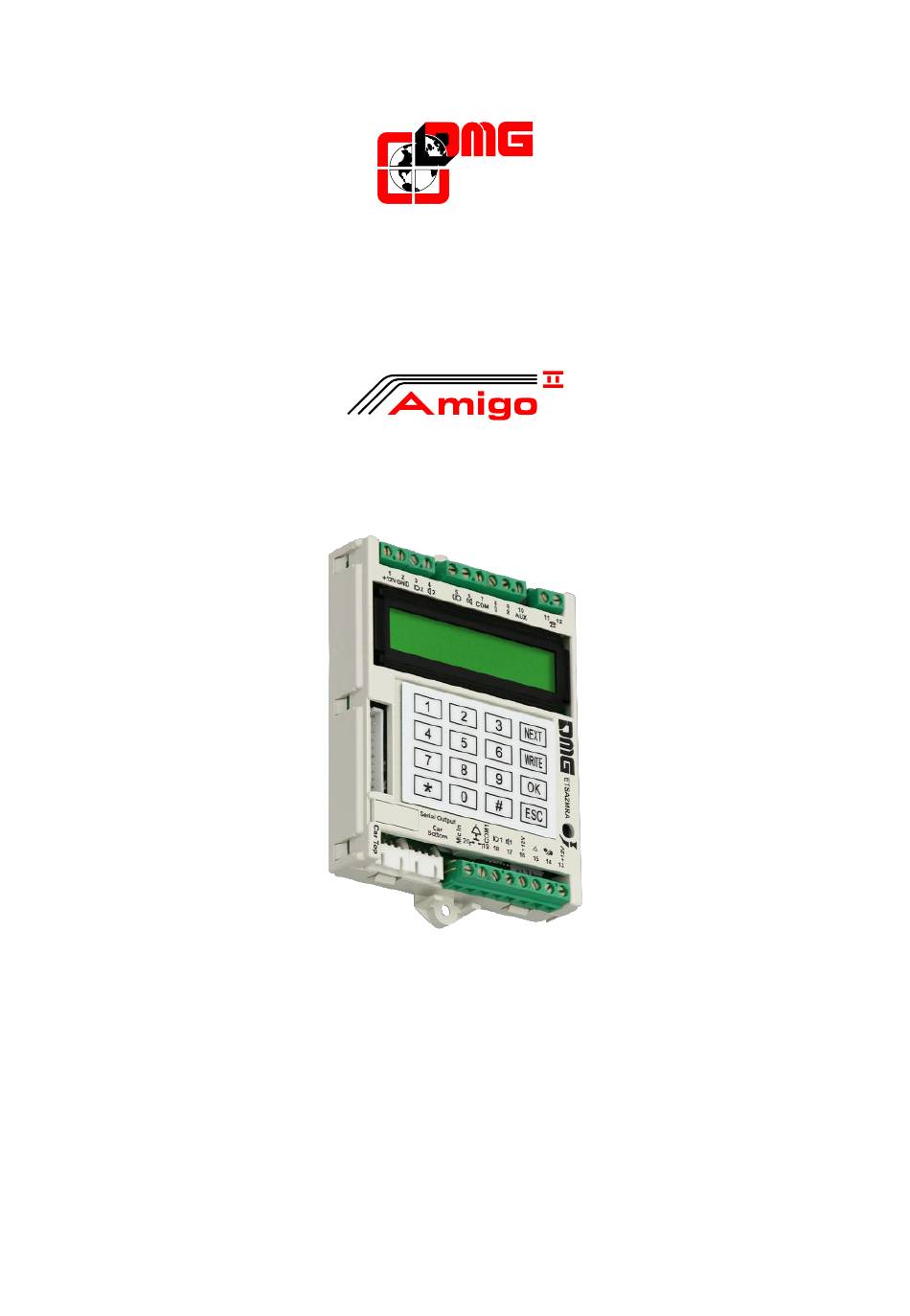

Emergency Telephone
(EN 81-28:2018 compliant)

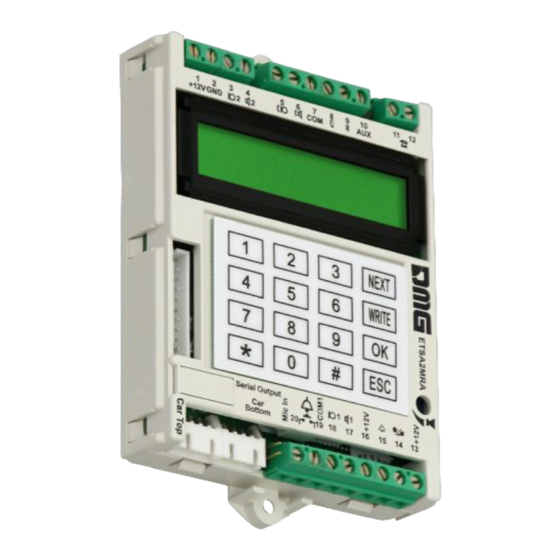

ETSA2MRA
Installation manual
Vers. 2.5 - English
NOTE:
Leave this document close to the emergency
telephone after installation
93010189.EN_E_amigo-R2_200120_v2.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Amigo II ETSA2MRA and is the answer not in the manual?

Questions and answers

Related Manuals for DMG Amigo II ETSA2MRA

Summary of Contents for DMG Amigo II ETSA2MRA

  • Page 1 Emergency Telephone (EN 81-28:2018 compliant) ETSA2MRA Installation manual Vers. 2.5 - English NOTE: Leave this document close to the emergency telephone after installation 93010189.EN_E_amigo-R2_200120_v2.5...
  • Page 2 Consultare il manuale "Precauzioni d'uso e sicurezza" Refer to the "Safety and usage precautions" manual Consulter manuel technique "Precautions de securite et d'emploi" Handbuch lesen "Sicherheits- und Gebrauchsanweisung" Consulte el manual "Precaucioned de seguridad" www.dmg.it...
  • Page 3 SYSTEM COMPONENTS Main device Phone receiver ETSA2MRA CITCOC ETSA2MRA.P (Pitagora 3 devices) CITCOC.P (Pitagora 3 devices) Device ETSA2SLA PR EW IRE D ET SA 2S LA GPRS external module ETSGPRS Feeder / battery charger ETS8128CH3/7 Inductive LOOP GSM external module ETSILP.FQ (frontal mounting) ETSGSM_V4 ETSILP.VP (back mounting)

  • Page 4: Table Of Contents

    INDEX Product description Technical features ..........pg. Main functions .

  • Page 5: Product Description

    1) - Product description AMIGO is a programmable phone dialler for lifts, complying with EN 81-28 norm requirements. 1.1) - Technical features • Power supply: 12Vdc +/- 15% • Absorption in stand-by: ETSA2MRA: 95mA +/- 5% ETSA2MRA + DEVICES: 115mA +/- 5% •...

  • Page 6: Description Of Alarm Cycle

    1.4) - Description of Alarm Cycle STAND-BY No-panic message (§ 3.2.17) When in this status, the AMIGO II can receive external calls; it will reply after Alarm Sent the choosen amount of rings (§ 3.2.19). (0÷3 sec. - § 3.2.12) (0÷3 sec.
  • Page 7 Autodialling of emergency numbers stored in memory (§ 3.2.4) If all programmed numbers are called without reply for the programmed number of times (§ 3.2.11), the line is 1° disconnected, the "alarm sent" LED stays on and the Emergency 2° Telephone returns to the stand-by 3°...

  • Page 8: Installation Guide

    2) - INSTALLATION GUIDE 2.1) - 3-Device Configuration STANDARD PITAGORA Communication Network PLAYBOARD III CITCOC Just pick up the interphone handset to communicate with ALL devices. CITCOC.P Just pick up the Machine Room interphone handset to INTERCOM communicate with ALL SPARE devices.

  • Page 9: Dimensions

    2.2) - DIMENSIONS 11 12 +12V GND ETSA2MRA Serial Output Bottom 20,7 CAR TOP/CAR BOTTOM ETSA2SLA PREWIRED 44,5 2.3) - INSTALLATION ISTRUCTIONS 2.3.1) - Amigo telephone - faceplate cut-out Ø 3,5 32,08 32,08 23,32 23,32 Studs M3x12 22,5 22,5 58,25...
  • Page 10 2.3.2) - Amigo telephone on supporting plate Insert the light diffusers Follow the inverse procedure to dismantle 2.3.3) - On TD5 st/steel capacity plate Insert the light diffusers Remove the two breakable parts This steps is for ETSA2MRA device only...

  • Page 11: Basic Connections

    Connect the ALARM PUSHBUTTON (NO/C or NC/C (§ 3.2.13)) to its input Connect the 12V DC power source to terminals 1(+) and 2(-) ; power up the Emergency phone subsequently Make sure the screen shows "DMG - AMIGO2" followed by software release number (ex. "v.2.2") To check the availability of the phone line, perform the basic programming (see §...
  • Page 12 2.4.2) - Device ETSA2SLA ETSA2MRA ETSA2MRA Mic in COM1 CAR TOP/CAR BOTTOM +12V +12V PREWIRED JST 4 P. 2.4.3) - GSM external module connections ETS8128CH3/7 OUTPUT DESCRIPTION 12VDC=PERMANENT OUTPUT 12V DC MAX 0.4A +E=EMERGENCY LAMP -LB=LOW BATTERY MAX 0.3A 230V ETSGSM_V4 The external module ETSGSM_V4 BATTERY...

  • Page 13: Advanced Connections

    2.4.5) - Emergency power supply test (§ 4.1.3 of EN 81-28 norm) Emergency telephone AMIGO 2 can be connected to the Playboard III controller battery (Pitagora system) or to the (optionals) ETS8128CH3/7 battery charger with 12V external battery. When power in tension falls below 10V, the AMIGO 2 sends out a service call with the "Low battery charge" message (§...
  • Page 14 2.5.3) - END alarm 11 12 +12V GND Alarm Reset "END ALARM" message will be spoken in car and an "End of alarm" call (data / voice) will be forwarded to the call center to record rescue time. However a remote alarm RESET function is still available (§...

  • Page 15: Advanced Features

    2.6) - ADVANCED FEATURES 2.6.1) - Automatic site ID message (§ 4.1.6 of EN 81-28 norm) Automatic ID Message Enabled. If enabled (§ 3.2.14), device will automaticaly generate the Address message (§ 3.2.6) synthesizing telephone's ID number (§ 3.2.8). 2.6.2) - Call closing recognition (§ 4.1.2 of EN 81-28 norm) Automatic call closed recognition Enabled ! If enabled (§...

  • Page 16: Programming

    If AMIGO II has to be connected to a call center, the number must be supplied by the same call center (Anep: 8 digits - Ademco: 4 digits - P100: 8 digits - DMG 4/10 Digits: 4/10 digits). Otherwise, a 16 digits max. ID personal code must be entered.

  • Page 17: Programming Menu

    [ OK ] = Validates changes [ ESC ] = Exits current menu, returns to main, cancel last input The safety code is not a password but Enter 1234 DMG - Amigo2 NEXT just a filter to unwanted access to the Rev. X.X.X menu 1 - Français...
  • Page 18 Anep: 8 digits Ademco: 4 digits ID Number ID Number 3.2.8 WRITE P100: 8 digits XXXXX XXXX DMG 4 Digits: 4 digits DMG 10 Digits: 10 digits NEXT 0 -None 3 -P100 protocol Protocol Type 3.2.9 WRITE 1 -Anep 4 -DMG 4 Digits...
  • Page 19 Previous Previous page page 0 - Disabled Automatic Identity Message 3.2.14 WRITE Disabled 1 - Enabled NEXT Password setup 3.2.16 1234 NEXT Mess. recordings Instructions Msg (16sec.) Are You Sure? Recording... 3.2.17 Rec=1 Play=2 YES=OK NO=ESC Stop=ESC NEXT NEXT Low Battery Message (4 sec.) Regular Working Msg (4 sec.) Courtesy Car Message (8 sec.) End Alarm Msg (4 sec.)
  • Page 20 Previous Previous page page 1 - 1 Ring Rings before answer 3.2.19 WRITE 3 Rings ... 9 - 9 Rings NEXT 1 - 10 seconds Call center reply timeout 3.2.20 WRITE 30 seconds ... 9 - 90 seconds NEXT 0 - Playback Disabled Audio Messages playback 3.2.21 WRITE...

  • Page 21: Remote Programming

    3.3) - REMOTE PROGRAMMING ATTENTION: The telephone must be enabled for communication via DTMF tones. Remotely dial the phone number connected to 1 2 3 AMIGO 2 and wait for the 4 DTMF tones. 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9...
  • Page 22 0 = None (default) / 1 = Anep / 2 = Ademco / 3 = P100 Setting of communication protocol 4 = DMG 4 Digits / 5 = DMG 10 Digits Setting of max. number (1÷9) of attempts for the alarm 1 = 1 time / 2 = 2 times / 3 = 3 times (default) / ....
  • Page 24 DMG SpA Via delle Monachelle, 84/C • 00071 POMEZIA (ROMA) • ITALIA Tel. +39 06930251 • www.dmg.it 93010189...
