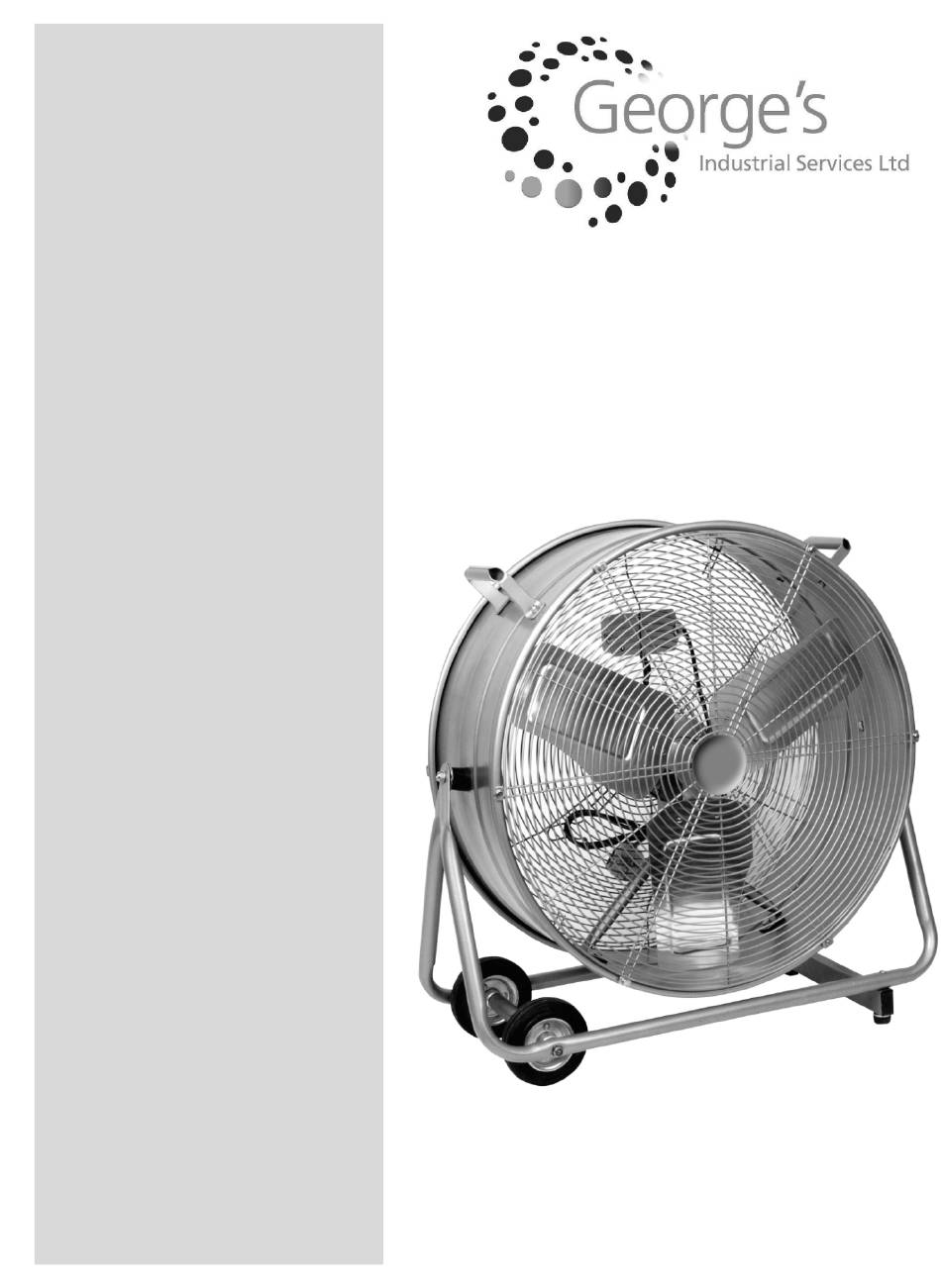

- Page 1 High Velocity Drum Fan DUAL VOLTAGE (Auto switch over) MODEL: DF24DVS & DF30DVS INSTRUCTION MANUAL SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE...
-
Page 2: General Information
GENERAL INFORMATION Packaging Please DO NOT dispose of any packaging until you have checked the appliance is operational. After removing the packaging ensure the contents are intact and complete. In the unlikely event of missing parts; contact your retailer. DO NOT leave children unattended with any of the packaging since it is a potential source of danger. -
Page 3: Important Safety Instructions
GENERAL INFORMATION WARNING - to reduce the risk of fire, electrical shock or injury to persons or Important Safety Instructions property: 1. Always operate the product from a power source of the same voltage, frequency and rating as indicated on the product identification plate. 2. - Page 4 OPERATING INSTRUCTIONS The drum fan is supplied ready assembled Auto switch power box (at rear) Handle Pivot for tilt adjustment Cable store (at rear) Wheels DO NOT OBSTRUCT THE AIR INLET OR OUTLET...
- Page 5 OPERATING INSTRUCTIONS Ensure the control switch is powered to the ‘0’ OFF position before connecting to the chosen power supply. Connect the mains plug to the required power supply. The drum fan will automatically switch between 110volts & 230volts so no manual adjustments are required.
-
Page 6: Technical Data
TECHNICAL DATA BS Plug Wiring Wiring Instructions: Should it be necessary to change the plug please note the wires in the mains lead are coloured in accordance with the following code: BLUE ‐ NEUTRAL BROWN ‐ LIVE GREEN AND YELLOW ‐ EARTH As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: 1. The BLUE wire is the NEUTRAL and must be connected to the terminal that is marked with the letter N or coloured BLACK. 2. -
Page 7: General Maintenance
TECHNICAL DATA Power Airflow Model Voltage ‐ Frequency (Watts) m³/minute (kg) (kg) 110 volts ‐ 50Hz DF24DVS 14.25 17.0 220~240 volts ‐ 50Hz Power Airflow Model Voltage ‐ Frequency (Watts) m³/minute (kg) (kg) 110 volts ‐ 50Hz DF30DVS 18.4 22.0 220~240 volts ‐ 50Hz GENERAL MAINTENANCE Ensure the appliance is switched OFF (0) position and the power cord is removed from the mains socket outlet . -
Page 8: Safety Feature
SAFETY FEATURE Over Heat protection This appliance is fitted with a thermal overload protection circuit to prevent overheating. When a overheat temperature is reached the appliance will shut off automatically. Normal operation can be automatically resumed when the appliance is cold down or manual reset. Manual reset Switch the power switches to the OFF ‘0’position. Remove the plug from the mains socket outlet. Check for obvious reasons that may have caused the appliance to over heat; for example, items placed over the air inlet or outlet. Wait for 15minutes before re‐connecting the appliance to the mains socket outlet and continuing with normal operation. -
Page 9: Warranty
WARRANTY ONE (1) YEAR LIMITED WARRANTY Retain this warranty information GEORGE’S Industrial Services undertakes to replace or repair at its discretion goods (excluding batteries) should they become defective within one year solely as a result of faulty materials & workmanship. If the product has not been operated, maintained or if any attempt has been made to rectify, dismantle or alter the appliance in any way the warranty will be invalidated.
