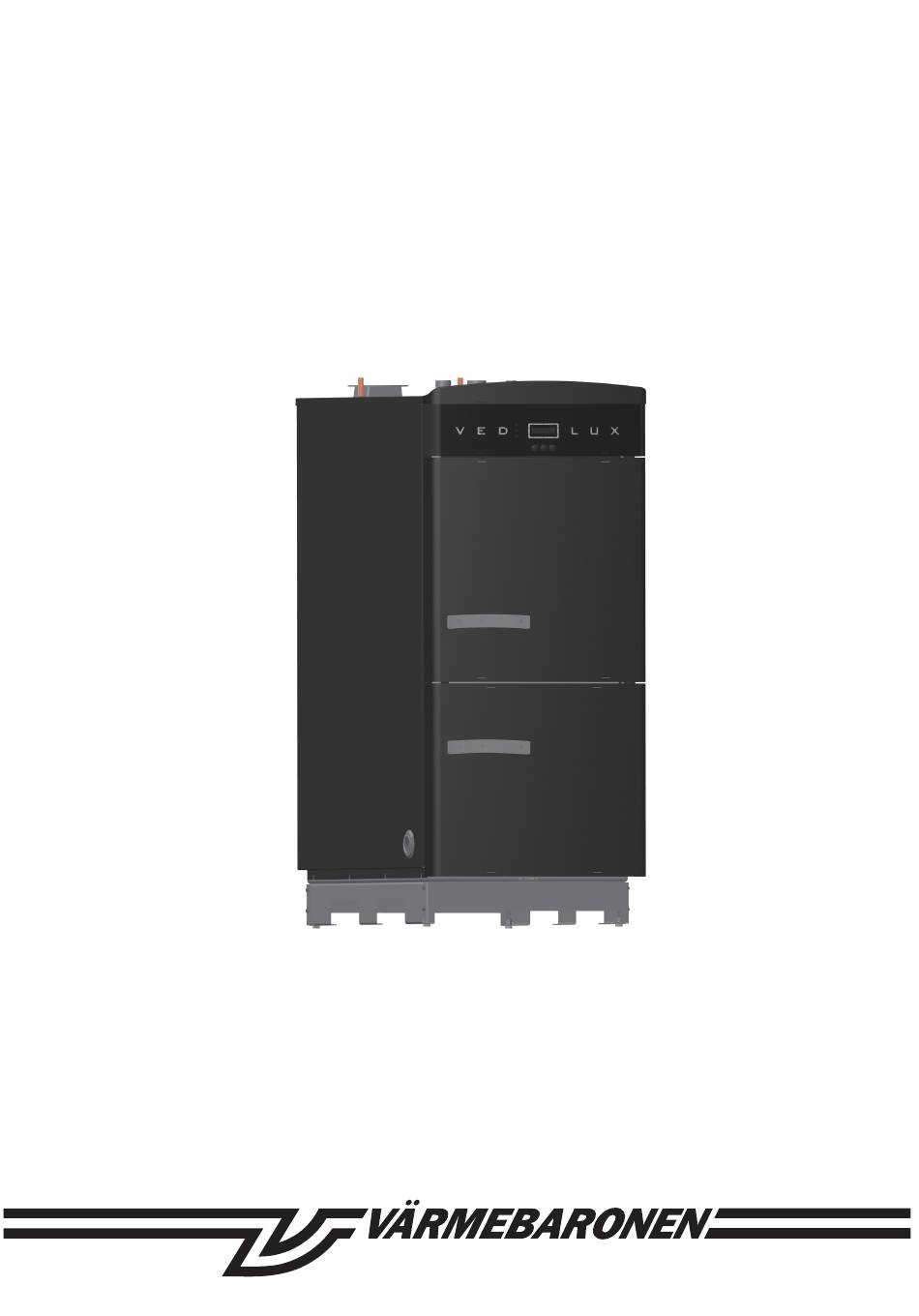

- Page 1 1 2 1 0 0 9 T H L n o . : - - - - - r e v 0 S M O K E L E S S H E A T Installation and maintenance Vedolux 350...
-
Page 2: Table Of Contents
Contents To be completed when the Vedolux 350 is Control panel............18 installed ..............4 Aggregate test - installation engineer ....19 Checklist - installation engineer ......5 Starting the boiler ..........20 Congratulations on making a good choice! ..6 First firing Safety and handling .......... - Page 3 Calibration of O probe Thermal valve Safety functions Menu - Settings ........... 33 TAD start Enter code Component specification ........38 01:Language 02:Boiler setpoint 03:TRG setpoint 04:O2 setpoint 05:TAD start 06:Switching off 10:V1 altern. air 11:V2 altern. air Värmebaronen Vedolux 350...
-
Page 4: To Be Completed When The Vedolux 350 Is Installed
To be completed when the Vedolux 350 is installed Serial number: ............................Installation date: ............................Plumber: ............................Phone: ............................Electrician: ............................Phone: ............................Other: ................................................................................................................................................................................................................................................................................Värmebaronen Vedolux 350... -
Page 5: Checklist - Installation Engineer
Safety valve has been tested and its drainage pipe has been laid to a drain. Boiler connected to mains power. Aggregate test performed, O probe calibrated and boiler correctly programmed. See ‘Starting the boiler’. User has been informed about how the system is operated and how it works. Värmebaronen Vedolux 350... -
Page 6: Congratulations On Making A Good Choice
Wood boiler with reversed combustion and lambda control for large properties Vedolux 350 Chimney • is a wood-fired boiler with a suction fan, designed Vedolux 350 has a suction fan which means that for heating properties. the boiler has low requirements for the chimney conditions. -
Page 7: Safety And Handling
• Subject to amendments and printing and • Risk of crushing! Never touch the lambda proofreading errors dampers when the boiler is switched on. • The hatch lock prevents the boiler’s hatches from being opened unintentionally. Värmebaronen Vedolux 350... -
Page 8: Operation
Operation Combustion control Restart after power cut The combustion in Vedolux 350 is set automatically via When the power returns, the secondary air damper the O value for optimum combustion is opened fully for 30 seconds so that the chimney is ventilated. -
Page 9: Technical Data
212 +0/-41 °F temperature Ambient temperature during operation 32 – 86 °F Noise level during operation 51 dB Manufactured to PED 97/23/EC article 3.3 Comply with UL 391, ETLM 78-1, CAN/CSA-B 366.1 Certified by Guardien Fire Test Labs Värmebaronen Vedolux 350... -
Page 10: Dimensions
Dimensions, inches 24.4 1025 40.4 9.21 Flue pipe Standard Flue pipe upwards, accessory ∅5.8 int. n147 inv. 13.7 15.7 n5.9 15.7 Värmebaronen Vedolux 350... -
Page 11: Overview
14. Bypass plate. 34. O probe. 15. Air plates, detachable. 35. Mains connection, 115 V~. 16. Wood store. 36. Supply, 115 V~, flue gas fan. 17. Grate. 37. Supply, 115 V~, charging pump. 18. Ceramics. 38. Fan. Värmebaronen Vedolux 350... -
Page 12: Installation - General
It is important for all connection points and flues not to leak dust and gas. If the boiler is connected higher up the chimney than a previous boiler was connected, the lower, inactive part must be filled. Värmebaronen Vedolux 350... -
Page 13: System In Principle
System in principle This is a system in principle. The actual system must be installed according to existing rules and the instructions provided by each manufacturer for its product. a. Vedolux 350 f. Manometer b. Accumulator system g. Open expansion tank c. -
Page 14: Pipe Installation
The opening pressure of the safety valve is determined by the component in the system that tolerates the lowest pressure. A closed expansion tank is best connected in the manner shown in the system in principle. Värmebaronen Vedolux 350... -
Page 15: Thermal Relay
The boiler must be fitted with one or more valves for filling and draining. The boiler is best filled with a fixed filling line. Venting The installation must be such that air is automatically vented via the expansion line and/or via bleed valves. Värmebaronen Vedolux 350... -
Page 16: Electrical Connection
Terminals 3 – 4: boiler temperature sensor. h. Max. temperature thermal relay Sensor type: Pt100. Max. temperature thermal relay (STB): 212 +0/-41°F. Measurement range: flue gas temperature sensor, -4..+930°F. boiler temperature sensor, -4..+930°F. Värmebaronen Vedolux 350... -
Page 17: Max. Temperature Thermal Relay
FLUE GAS TEMPERATURE SENSOR white PROBE HEATING white PROBE black + PROBE rey - Any intervention in the boiler’s electrical equipment that requires tools must be carried out under the supervision of a qualified electrician. Display/control panel Värmebaronen Vedolux 350... -
Page 18: Control Panel
Flashes when no correct : Used to access menus and confirm a boiler operation is possible. selection in a menu. d. Display, shows operating data and settings. When the boiler is switched off, the illumination goes out after 15 minutes. Värmebaronen Vedolux 350... -
Page 19: Aggregate Test - Installation Engineer
Test end [+&-] : next test step. indication on. Display 2 indication off. Test end [+&-] : next test step. indication on. Display 3 indication off. Test end [+&-] : to 'display when boiler is not in operation'. Värmebaronen Vedolux 350... -
Page 20: Starting The Boiler
• with a small fire, roughly ten pieces of wood. • without turbulators. When the ceramics are dry, the boiler can be fired normally. Check then at the outlet of the flue that the smoke is white and there is no odour. Värmebaronen Vedolux 350... -
Page 21: Firing - Operation
See the adjacent diagram. Open the hatch with the handle on the front of the hatch. Wait 5 – 10 seconds before raising the latch Latch while opening the hatch. Värmebaronen Vedolux 350... -
Page 22: Starting Firing
Filling door goes out and the boiler is switched off. unlock ⇓ CAUTION Open slowly! ⇓ Heating-up Add wood to the boiler and set fire to it. Close the hatches when the wood has been ignited. Värmebaronen Vedolux 350... -
Page 23: Filling When The Boiler Is In Operation
Do not open the boiler’s hatches. temperature has fallen below 572°F, the fan starts again. This prevents damage to the fan and the flue gas temperature sensor. RISK OF BURN INJURIES! Do not open the boiler’s hatches. Värmebaronen Vedolux 350... -
Page 24: Handling Wood
Finally, it should be dried in the boiler room two to three weeks before it is used. After this, the moisture content is approximately 20%. Värmebaronen Vedolux 350... -
Page 25: Sweeping - Ash Removal
Refit and close the soot hatch. • Pull out the bypass plate and empty it in the combustion chamber Refit it. Soot hatch folded down and inserted Bypass plate Värmebaronen Vedolux 350... -
Page 26: Maintenance
Ceramics, upper front. upper ceramics and temperature thermal relay trips repeatedly. c. Grate. combustion chamber wall. d. Ceramics, lower front. h. Sealing cord between e. Ceramics, lower rear. lower and upper ceramics. f. Gasket. i. Secondary air ducts. Värmebaronen Vedolux 350... -
Page 27: Action In Connection With A Risk Of Freezing
Create air supply by opening the boiler’s safety valve. Always cut the power to the boiler before the boiler water is drained. Air control actuator 1. Button for manual adjustment. 2. Choice of direction of rotation. Must be in position ‘CCW’. Värmebaronen Vedolux 350... -
Page 28: Menu System
The menu is exited with at the last test point or if no key has been pressed for one minute. The display returns to operation display. ↑ ↓ ↑ ↓ 11:V2 altern. air press E N D Värmebaronen Vedolux 350... -
Page 29: Menu - Information - Current Operating Status
--.- 2max Operating status, flue gas fan. Exhaust fan ON/OFF Operating status, charging pump. Load pump ON/OFF Current opening position for primary air damper. Primary motor --.- Current opening position for secondary air damper. Second. motor --.- Värmebaronen Vedolux 350... - Page 30 If the value is > 0%, the quantity of wood added must be reduced. Shows how many hours the boiler has been fired for. Operating hours After 60,000 hours, the counter is zeroed. ##### Software version number. Software ##.## The regulator’s serial/production number. Serial number ######## Värmebaronen Vedolux 350...
-
Page 31: Menu - Aggregate Test
Test end [+&-] : next test step. indication on. Display 2 indication off. Test end [+&-] : next test step. indication on. Display 3 indication off. Test end [+&-] : to ‘display when boiler is not in operation’. Värmebaronen Vedolux 350... -
Page 32: Safety Test
230°F so that the thermal valve, STW, can be tested. STW should now keep the boiler’s temperature below 230°F. If it does, the test of the thermal safety valve has been completed with a positive result. Värmebaronen Vedolux 350... -
Page 33: Max. Temperature Thermal Relay Thermal Valve Menu - Settings
Setting range: 0 – 100% If the flue gas temperature sensor or O probe is defective, the 11:V2 altern.air secondary air is set to this value. Only for emergency operation. Factory setting: 35% Setting range: 0 – 100% Värmebaronen Vedolux 350... -
Page 34: Boiler Temperature
Control Flue gas temperature over 662°F: The flue gas fan is switched off. Exhaust temp. measures: Flue gas temperature under 572°F: The flue gas fan starts. [°F] RISK OF BURN INJURIES! Do not open the boiler’s hatches. Värmebaronen Vedolux 350... - Page 35 Boiler temp. has been calibrated. [°F] ###.# Control The regulator works with V1 and V2 replacement air flow rate. After measures: firing, the boiler must be switched off with Remedy the cause as soon as possible. Värmebaronen Vedolux 350...
-
Page 36: Incorrect Measured Values For Flue Gas Temperature Frost Protection Incorrect Measured Values For O Probe Troubleshooting
Overheating protection Reset the overheating protection. triggered. The safety valve Expansion tank too small. See the ‘Expansion system’ section. opens when the system Prepressurisation in the Check the pressure in the tank. becomes hot. expansion tank too high/low. Värmebaronen Vedolux 350... -
Page 37: Over Temperature
At the same time, the charging pump is activated for 10 seconds. TAD start. If ‘TAD start’ is set to a temperature that is too high, the control will interpret it as failed ignition and switch the boiler off. See ‘03:TAD start’ in the ‘Settings’ menu. Värmebaronen Vedolux 350... -
Page 38: Component Specification
711396 Ash rake 440225 Powerjet LPG burner 710260 Turbulator tool 700465 Gasket wood filling hatch (m) 300013 Gasket, lower hatch 15 x 15 (m) 300014 Glass-fibre gasket, 20 x 20 (m) 700452 Insulation, front upper 700453 Insulation, fron lower Värmebaronen Vedolux 350... - Page 39 Värmebaronen Vedolux 350...
- Page 40 Värmebaronen AB Arkelstorpsvägen 88 SE-291 94 Kristianstad Sweden phone +46 44 22 63 20 fax +46 44 22 63 58 www.varmebaronen.se www.varmebaronen.com info@varmebaronen.se...
