Specifications are subject to change without notice for further improvement.
MC-UL423-00
MC-UL423T-00
MC-UL425-00
MC-UL427-00
MC-UL427M-00
MC-UL429-00
Product Color: Octane Orange (MC-UL423-00)
Octane Orange (MC-UL423T-00)
Dynamic Blue (MC-UL425-00)
Vibrant Violet (MC-UL427-00 & MC-
UL429)
Green with Envy (MC-UL427M-00)
Destination:
North America
© 2013 PANASONIC APPLICANCES COMPANY
OF AMERICA. All rights reserved. Unauthorized
copying and distribution is a violation of law.
Order Number MAC1206003CE
Vacuum Cleaner
Advertisement
Table of Contents
Related Manuals for Panasonic MC-UL423-00
Summary of Contents for Panasonic MC-UL423-00

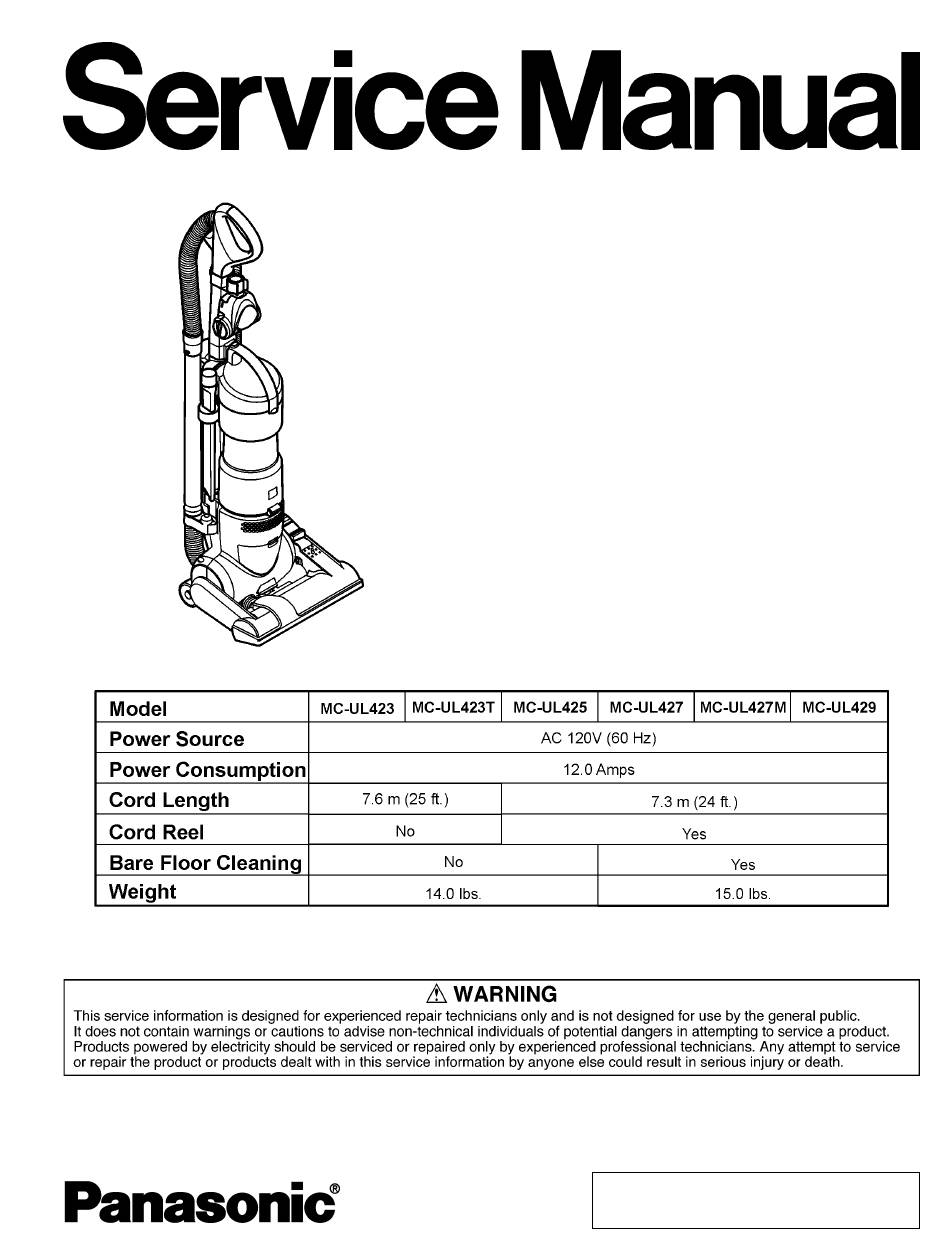

- Page 1 Order Number MAC1206003CE Vacuum Cleaner MC-UL423-00 MC-UL423T-00 MC-UL425-00 MC-UL427-00 MC-UL427M-00 MC-UL429-00 Product Color: Octane Orange (MC-UL423-00) Octane Orange (MC-UL423T-00) Dynamic Blue (MC-UL425-00) Vibrant Violet (MC-UL427-00 & MC- UL429) Green with Envy (MC-UL427M-00) Destination: North America Specifications are subject to change without notice for further improvement.
-
Page 2: Table Of Contents
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 CONTENTS Page Page 1 WIRING SCHEMATICS 2.3. Handle Assembly 1.1. Wiring Diagram (MC-UL423-00, MC-UL423T-00) 2.4. Dust Bin Assembly 1.2. Wiring Diagram (MC-UL425-00, MC-UL427-00, MC- 2.5. Packing Materials UL427M-00, MC-UL429-00) 3 SERVICE PROCEDURES 1.3. -
Page 3: Wiring Schematics
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 1 WIRING SCHEMATICS 1.1. Wiring Diagram (MC-UL423-00, MC-UL423T-00) 1.2. Wiring Diagram (MC-UL425-00, MC-UL427-00, MC-UL427M-00, MC- UL429-00) -
Page 4: Wire Management Drawing (Mc-Ul423-00, Mc-Ul423T-00)
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 1.3. Wire Management Drawing (MC-UL423-00, MC-UL423T-00) NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage. -
Page 5: Wire Management Drawing (Mc-Ul425-00, Mc-Ul427-00, Mc-Ul427M-00, Mc-Ul429-00)
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 1.4. Wire Management Drawing (MC-UL425-00, MC-UL427-00, MC-UL427M- 00, MC-UL429-00) NOTE: For general servicing, it is necessary to eliminate pinching of any wire during reassembly. After servicing any electrical component or electrical enclosure, the unit should be reassembled and checked for dielectric breakdown or current leakage. -
Page 6: Exploded View And Parts List
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2 EXPLODED VIEW AND PARTS LIST 2.1. Body 2.1.1. Exploded View... - Page 7 MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.1.2. Parts List Ref. No. Part No. Part Name & Description Qty. Remarks AC40KDSBZV07 DUST COMPARTMENT MC-UL423-00, MC-UL423T-00 AC40KDSAZV07 DUST COMPARTMENT MC-UL425-00 AC40KDRZZV07 DUST COMPARTMENT MC-UL427-00, MC-UL427M-00, MC-UL429-00 AXTN4+16BFY...
-
Page 8: Nozzle Housing
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.2. Nozzle Housing 2.2.1. Exploded View... -
Page 9: Handle Assembly
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.2.2. Parts List Ref. No. Part No. Part Name & Description Qty. Remarks AC01ADSAZU03 BODY NOZZLE HOUSING (DECO) MC-UL423-00, MC-UL423T-00, MC-UL425-00 AC01ADRZZU03 BODY NOZZLE HOUSING (DECO) MC-UL427-00, MC-UL427M-00, MC-UL429-00... -
Page 10: Dust Bin Assembly
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.4. Dust Bin Assembly 2.4.1. Exploded View... - Page 11 MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.4.2. Parts List Ref. No. Part No. Part Name & Description Qty. Remarks AC14BDRZZN09 HANDLE LID MC-UL423-00, MC-UL423T-00 AC14BDRZZC0V HANDLE LID MC-UL425-00 AC14BDRZZP0H HANDLE LID MC-UL427-00, MC-UL429-00 AC14BDRZZG0U HANDLE LID...
-
Page 12: Packing Materials
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 2.5. Packing Materials 2.5.1. Exploded View 2.5.2. Parts List (Packing Material) Ref. No Part No. Part Name & Description Remarks AC61ZDSBZU00 INDIVIDUAL CARTON MC-UL423-00, MC-UL423T-00 AC61ZDSAZU00 INDIVIDUAL CARTON MC-UL425-00... -
Page 13: Service Procedures
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 3 SERVICE PROCEDURES 3.1. Lower Plate 3.1.2. Installation 3.1.1. Removal 1. Place the vacuum cleaner in the upright position standing on the handle. This will minimize wheel interference when 1. -
Page 14: Agitator
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 should be reassembled and checked for dielectric 3.2. Agitator breakdown or current leakage. 3.2.1. Removal 3.3. Motor 1. Remove lower plate (See Lower Plate - Removal). 3.3.1. Removal 2. Lay vacuum cleaner with bottom facing upwards and nozzle flat 1. - Page 15 MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 14. (MC-UL427-00 only) Remove two (2) screws and motor flange. Lay aside. 15. Discard motor if defective. 3.3.2. Installation 1. Reconnect motor lead wires (refer to wiring diagram if necessary).
-
Page 16: Cord Reel (Mc-Ul427 & Mc-Ul425)
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 3.4. Cord Reel (MC-UL427 & MC- 3.5. Power Cord (MC-UL423) UL425) 3.5.1. Removal 3.4.1. Removal 1. Remove motor cover (See Cord Reel - Removal). 2. Cut black and white power cord leads at cord jacket. -
Page 17: On/Off Switch
MC-UL423-00 / MC-UL423T-00 / MC-UL425-00 / MC-UL427-00 / MC-UL427M-00 / MC-UL429-00 3.6. On/Off Switch 3.6.1. Removal 1. Remove lower plate (See Lower Plate - Removal). 2. Remove agitator and belt (See Agitator - Removal). 3. Remove motor cover (See Motor - Removal).
