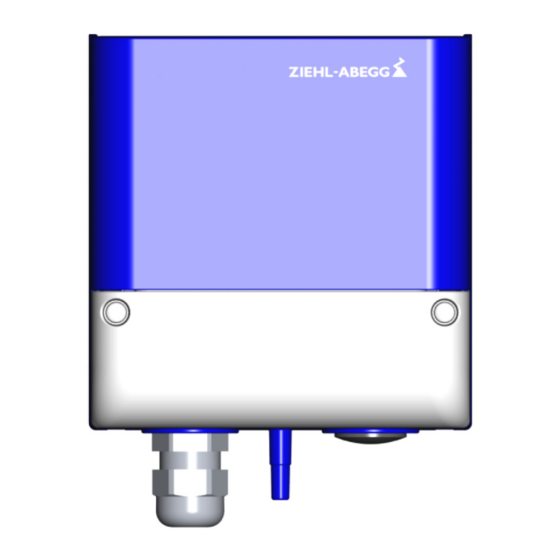

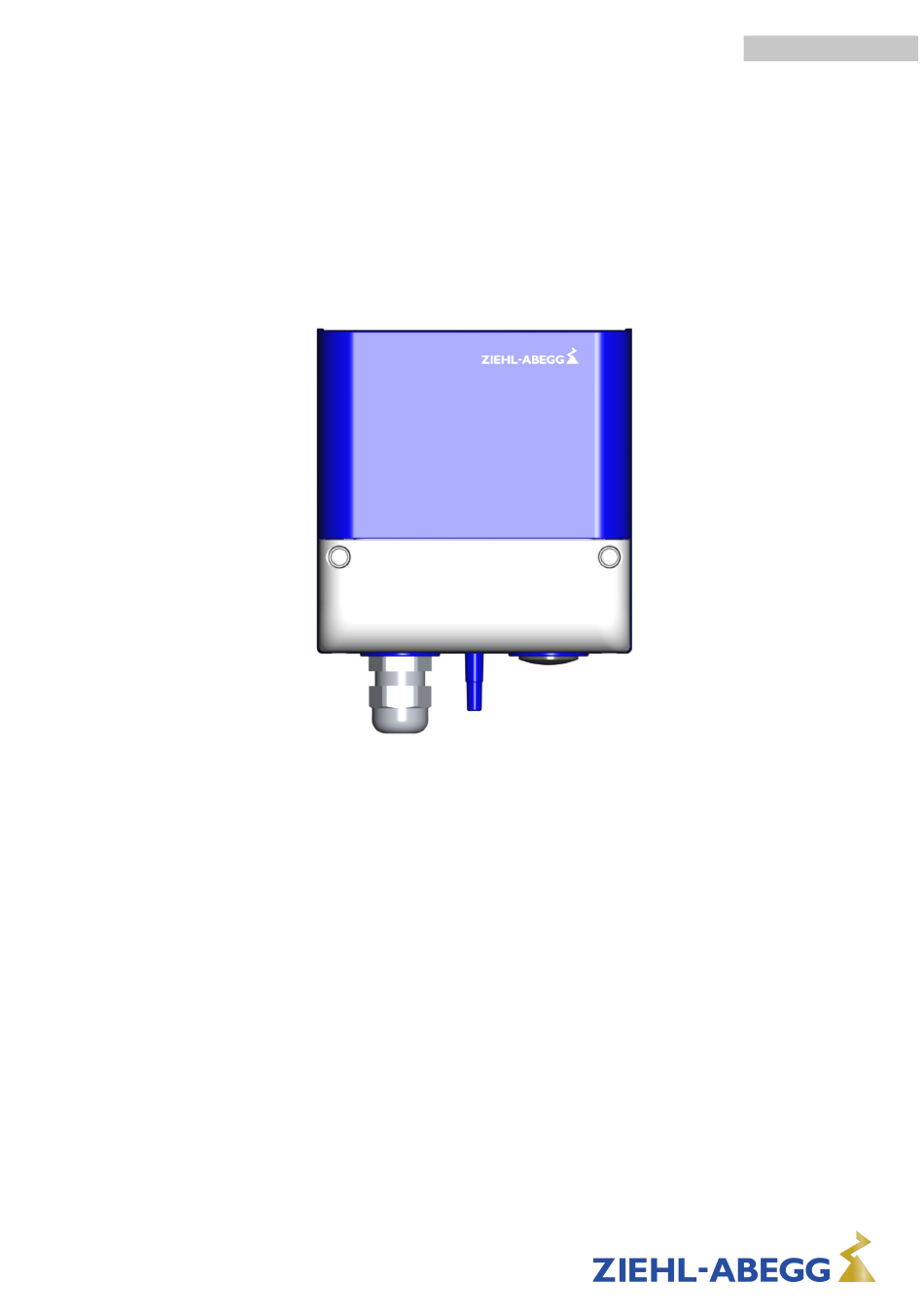

- Page 1 english MPG-..V Differential-pressure sensors with switchable measuring ranges for climate and clean-room application Operating Instructions Keep for reference! L-BAL-E248-GB 1931 Index 003 Part.-No. 00163446...
-
Page 2: Table Of Contents
Operating Instructions MPG-..V Content General notes ..........Structure of the operating instructions . -
Page 3: General Notes
Operating Instructions MPG-..V General notes 1 General notes Compliance with the following instructions is mandatory to ensure the functionality and safety of the product. If the following instructions given especially but not limited for general safety, transport, storage, mounting, operating conditions, start-up, mainte- nance, repair, cleaning and disposal / recycling are not observed, the product may not operate safely and may cause a hazard to the life and limb of users and third parties. -
Page 4: Product Overview
Operating Instructions MPG-..V Product overview • Electrical equipment must be checked regularly: Loose connections are to be re- tightened and damaged lines or cables must be replaced immediately. • Never clean electrical equipment with water or similar liquids. • A separate fault and performance monitoring-system with an alarm signal function is necessary in order to prevent personal injuries and material damages during malfunctions and in case the device fails. -
Page 5: Mounting
Operating Instructions MPG-..V Mounting 4 Mounting • Before installation remove the device from the packing and check for any possible shipping damage! • Assemble the device on a clean and stable base. Do not distort during assembly! Use the appropriate mounting devices for proper installation of the unit! •... -
Page 6: Connection And Operating Elements
Operating Instructions MPG-..V Connection and operating elements 5 Connection and operating elements +Us / GND Voltage supply A / GND Output signal 0...10 V Zero point button Status LED DIP switch measuring range “Minus”- connection in area with lower pressure “Plus”- connection in area with higher pressure Danger due to electric current... -
Page 7: Select Measuring Range
Operating Instructions MPG-..V Select measuring range 6 Select measuring range The DIP switches of “S2” are set to the respective highest measuring range at the factory, i.e. both DIP switches are down (1 + 2 = “OFF”). As small as possible a measuring range must be chosen for maximum accuracy at maximum resolution of the output signal (se Technical data / accuracy). -
Page 8: Check Sensor Function
Operating Instructions MPG-..V Check sensor function 8 Check sensor function 1. Connect the voltage supply (+U / GND), disconnect output 0 ... 10 V (A / GND). 2. Remove pressure hoses and measure output signal, nominal = 0 V. 3. Create pressure at the "+" connection against the "-" connection (e.g. by carefully blowing in), measure the output signal (0...10 V measuring range). -
Page 9: Enclosure
Operating Instructions MPG-..V Enclosure 9 Enclosure 9.1 Technical data Type MPG-200V MPG-1000V MPG-6000V Part-No. 384057 384058 384059 Voltage supply 10...24 V DC (+20 %) Protected against reverse polarity Output signal 0...10 V (characteristic linear) 10 V DC 13...24 V DC Max. - Page 10 Operating Instructions MPG-..V Enclosure Accuracy Type MPG-200V MPG-1000V MPG-6000V Measuring rang max. 0...200 Pa 0...1000 Pa 0...6000 Pa (0...0.8 in.wg) (0...4.0 in.wg) (0...24.0 in.wg) Tolerance zero point max. +/- 0.9 +/- 0.9 +/- 0.9 Tolerance full scale max. +/- 1.3 +/- 1.3 +/- 0.7 Resolution...
-
Page 11: Connection Diagram
Operating Instructions MPG-..V Enclosure 9.2 Connection diagram MPG-200/1000/6000V GND A GND ∆p Spannungsversorgung Voltage supply 10...24 V DC (10 V: I = 6 mA) (13...24 V: I = 14 mA) Ausgang Output MCDU05K1 0...10 V 16.12.2014 = 0.3 mA @ U 10 V) = 10 mA @ U 13...24 V) -
Page 12: Manufacturer Reference
- ventilation technology. phone: +49 (0) 7940 16-800 Email: fan-controls-service@ziehl-abegg.de Our worldwide contacts are available in our subsidiaries for deliveries outside of Ger- many, see www.ziehl-abegg.com. L-BAL-E248-GB 1931 Index 003 Part.-No. 00163446 12/12...
