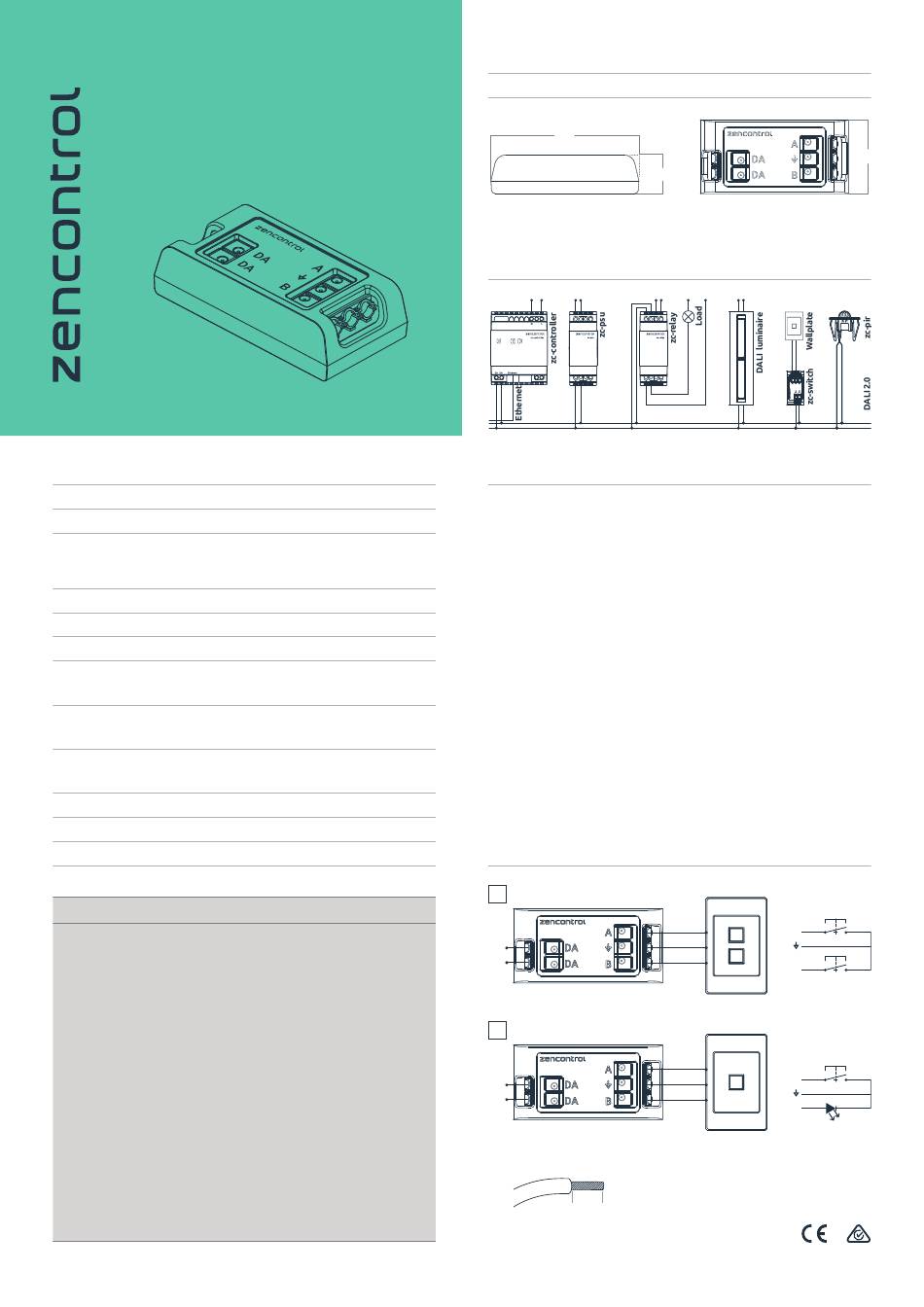

Zencontrol zc-switch Quick Start Manual

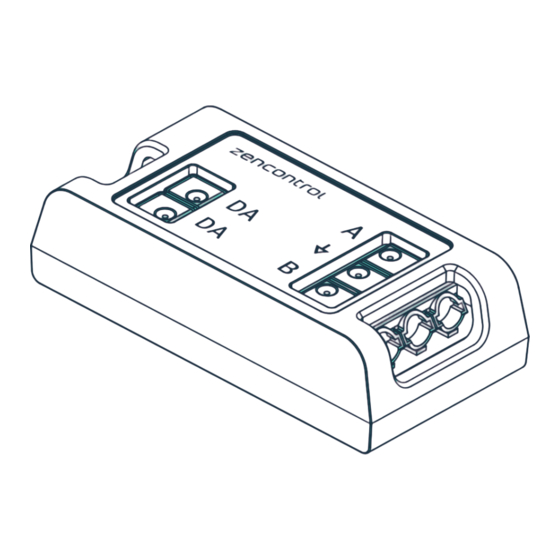

DALI-2 switch module zc-switch
Product range
Order code Description
zc-switch DALI-2 switch module, 2 configurable I/O
Specifications
Supply voltage 9.5 - 22.5 V dc (supplied from DALI)
Control system DALI-2
Supply current 5 mA
Input 2 floating dry contacts
Note: Any switch used shall be LV rated
Output FELV 3.3 V logic level output,
max. current 1 mA
Wiring 0.5 - 0.75 mm
Strip 6 - 7 mm
Operating temperature 0 to 45°C
Material PC
Ingress protection IP20

Safety information

■ This product must only be installed by a licensed electrician.
■ Before commencing installation turn off and isolate the
electrical supply.
■ There are no user serviceable parts, attempting to service any
part of the product will void the warranty
■ The switch must not be connected to any mains. It is
powered directly from the DALI line.
■ DALI is not SELV and as such should be treated as LV.
■ As the installer, it is your responsibility to ensure you comply
to all relevant building and safety codes. Refer to application
standards for the relevant rules.
■ When the installation is complete, leave this manual with the
building's owner for future reference.
■ The installer must protect against accidental contact, all
terminals are not safe to touch.
There is no isolation between the control terminals and
■
supply. Outputs should be treated as LV.
2
Dimensions
Dimensions 40 / 20 / 10.5 mm
40
10.5
System overview
N L L N N L
L N DA DA N L
DA DA L' in L' out
Installation
Remove the product from the box and inspect it for any damage. If
you believe the product to be damaged or otherwise unsound, do not
install the product. Please pack it back into its box and return it to the
place of purchase for replacement.
If the product is satisfactory, proceed with the installation:
1 Ensure safety warnings are adhered to.
2 Connect the two DALI terminals to the DALI line ensuring wiring
regulations are followed. DALI is not polarised. DALI is not SELV
and as such must be treated as LV. Do not connect the switch to
any mains voltages.
3 Connect the momentary switch(es) to the floating contact inputs
(A/B). Only connect one momentary switch per input.
Do not connect momentary input to mains voltage.
4 Install switch behind the wall-plate or mounting enclosure for
momentary switch. Note default configuration is A/B input.
Configuration dependant on DALI-2 application controller.
Wiring diagram
Input configuration (default)
A
DA
DA
Input / output configuration
B
DA
DA
Wire preparation
0.5 - 0.75 mm
2
6 - 7 mm
N L LN
Lʼout
Lʼin
Switch
A
COM
Switch
B
Switch
COM A
LED
B
20
