Ecoer ESI Series Service Manual
  1. Manuals
  2. Brands
  3. Ecoer Manuals
  4. Air Conditioner
  5. ESI Series
  6. Service manual

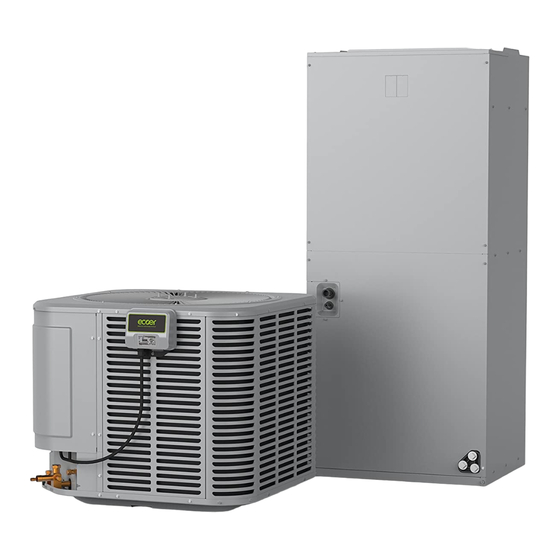

Ecoer ESI Series Service Manual

Unitary system
Hide thumbs

Advertisement

Table of Contents

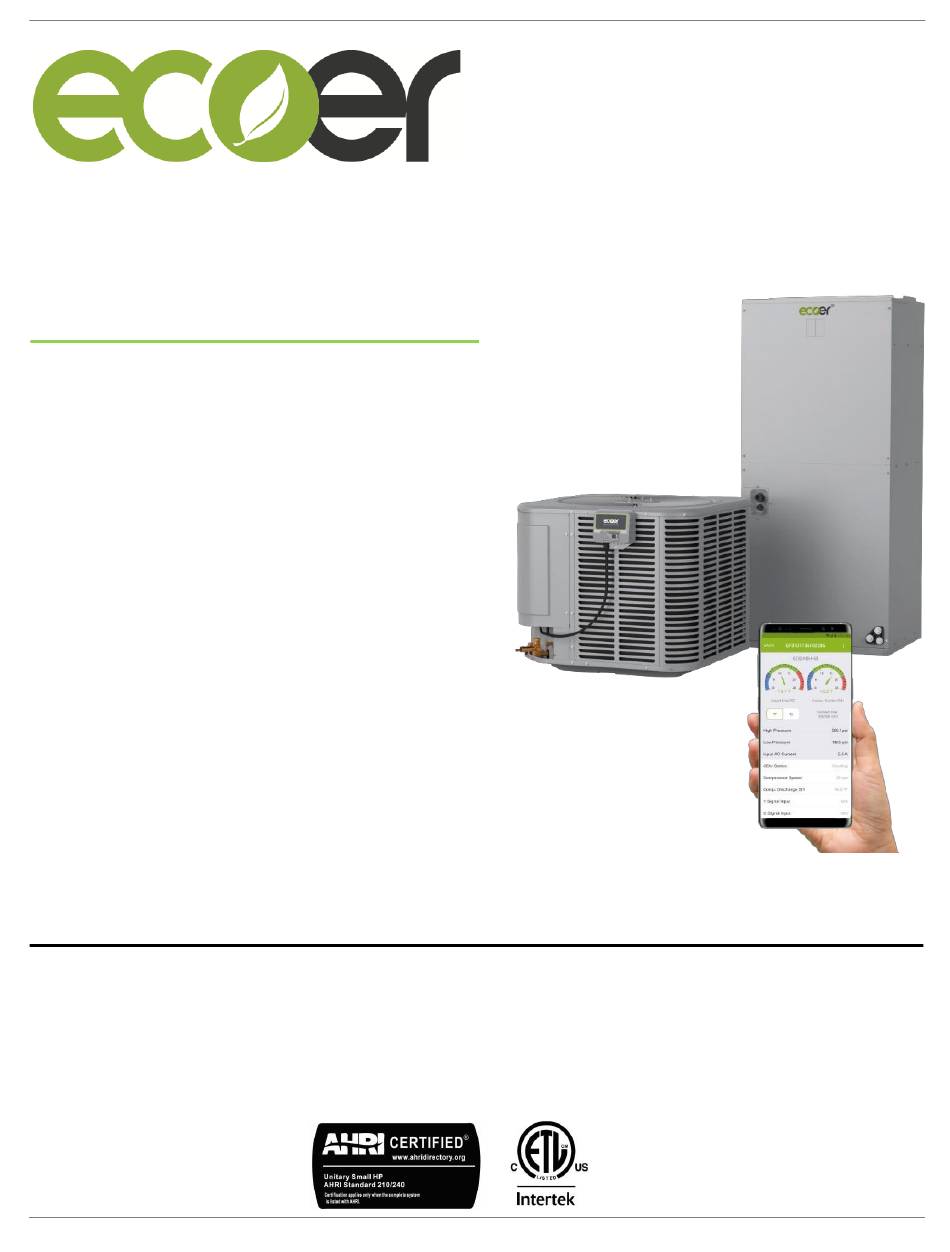

ESI (Ultra) Service Manual
ESI (Ultra) R-410A
Unitary Service Manual
Contents
1. General Information ----------------------------- 2
2. ESI (Ultra) Unitary System ---------------------- 3
2.1 Refrigerant Circuit ------------------------------ 3
2.2 Function and Control -------------------------- 7
2.3 Field Setting ------------------------------------- 17
3. Troubleshooting ---------------------------------- 25
3.1 Problems without Codes --------------------- 25
3.2 Error Codes list --------------------------------- 35
4. Parts List -------------------------------------------- 61
5. Appendix -------------------------------------------- 63
5.1 Sensor Characteristics -------------------------- 63
5.2 Wiring Diagram -------------------------------- 67
All phases of this installation must comply with National, State and Local Codes.
These instructions do not cover all variations in systems or provide for every possible contingency to
IMPORTANT
be met in connection with installing and servicing. Should further information be desired or should
particular problems arise which are not covered sufficiently for the purchaser's purposes, the matter
should be referred to local distributor.
Manufacturer reserves the right to change specifications or designs without notice.
1/68
www.ecoer.com
10.2019
