Swegon GOLD C Quick Start Manual

Adjustment of the Inclination of Rotary Heat Exchangers

GOLD/SILVER C, sizes 70-80,
L
≈ 0,5xL
Registered design. The company reserves the right to make design changes without prior notice.
≈ 0,5xL

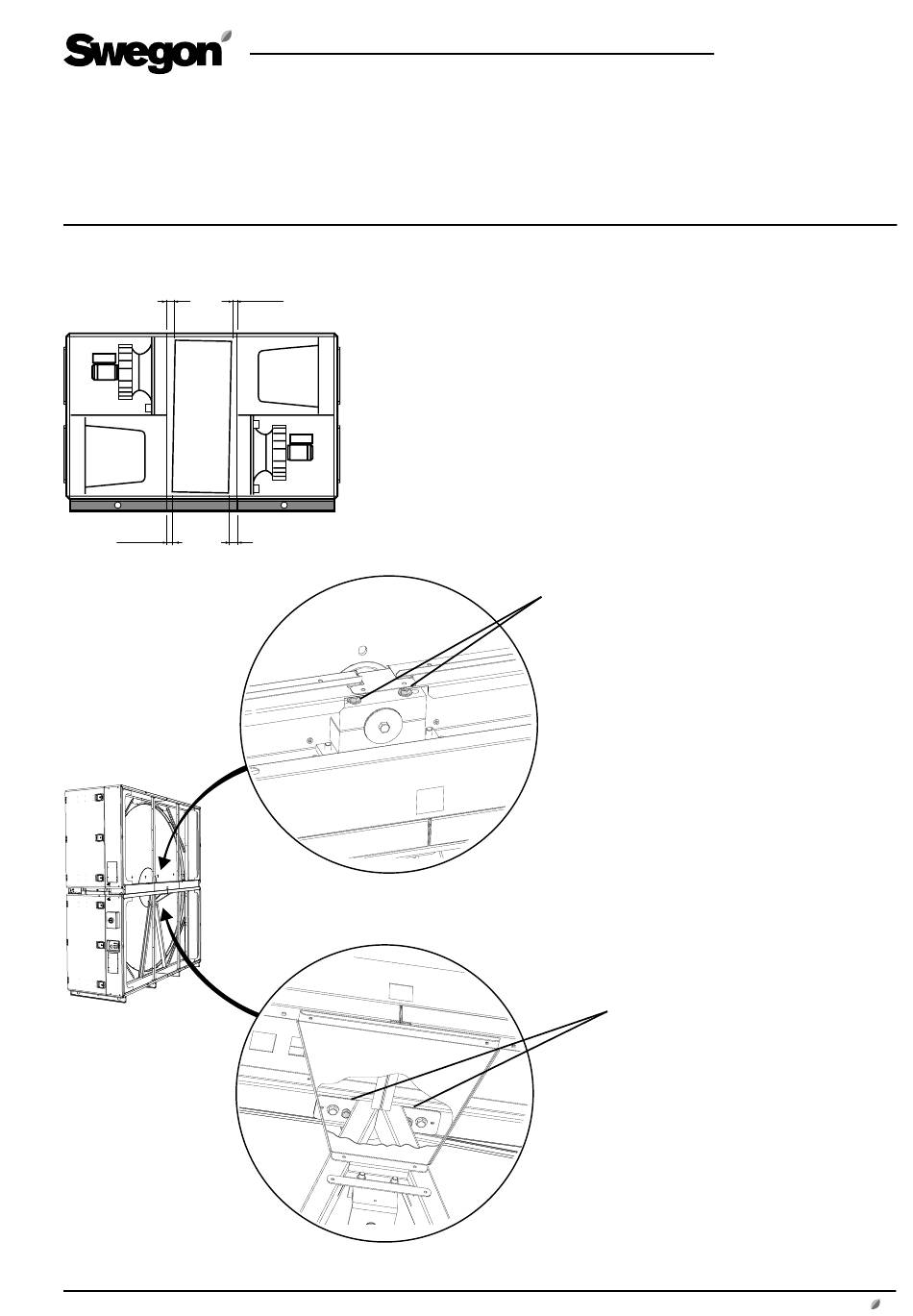

The illustration shows an appropriate rotor inclination
setting for Fan Arrangement 1. The inclination must al-
ways be toward the filter, which means that the inclina-
tion for Fan Arrangement 2 is in the other direction.
The rotor's inclination may need to be greater in ap-
plications that involve high airflows with associated high
pressure.
L
GB.ROTOR7080.141203
Slightly back off the locking bolts.
Do not dismantle the shaft bracket.
Adjust the inclination of the rotor by means
of the adjusting bolts. Tighten the adjusting
bolts equally.
When you have adjusted the inclination,
tighten the locking bolts.
