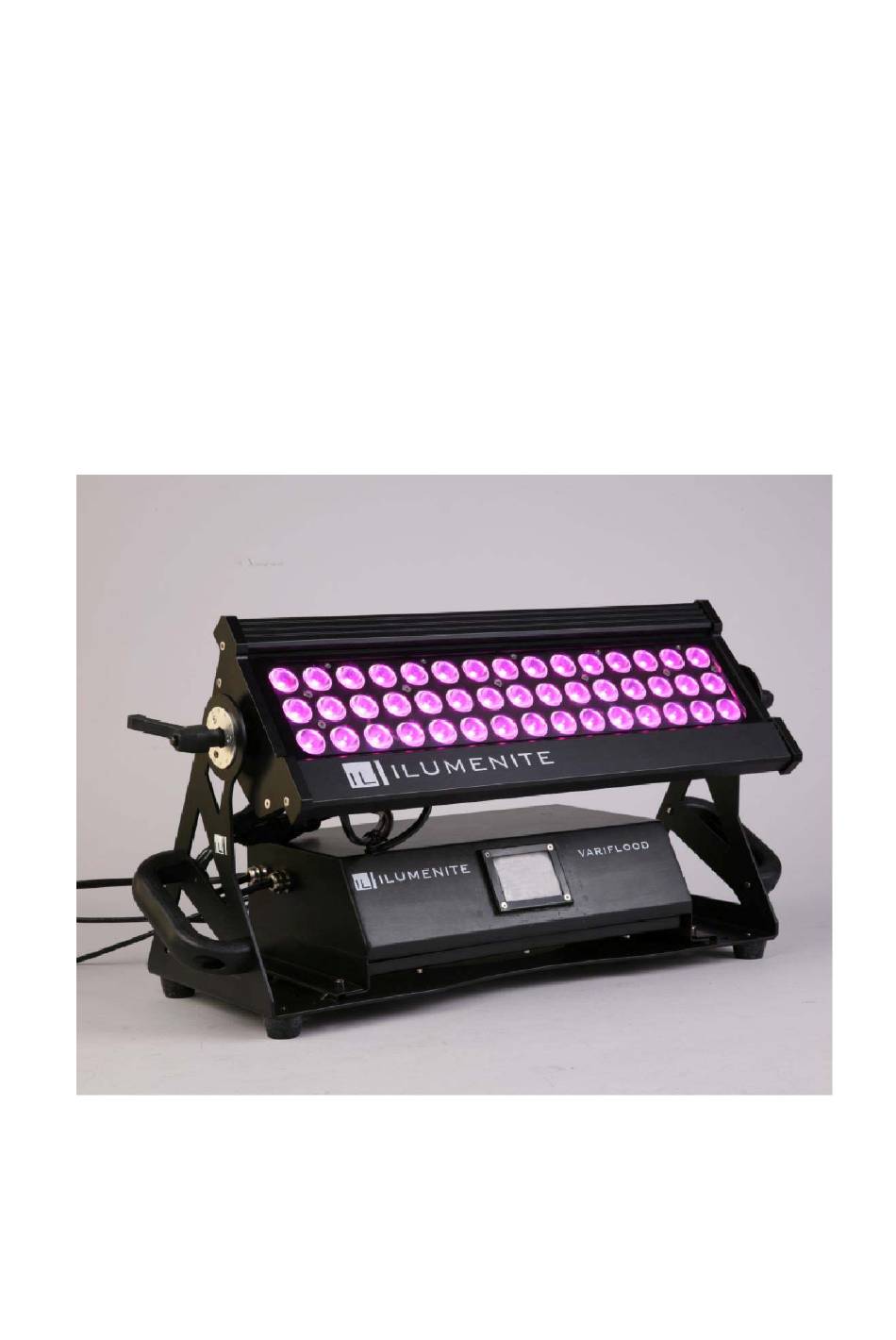

- Page 1 High Power LED Washer ILDW-7045524-00D-11 User Manual Page of 36...
-
Page 2: Table Of Contents
INDEX 1. Introduction..........................23 2、Technical Specification ......................23 3、Security Warning:........................24 4、Installation and Setup ......................24 5、The operation instruction....................... 26 一. The panel instruction....................26 一、 Menu instruction....................26 二、The way of connection for multiple units and the instruction for input and output connector 6、The distribution under the DMX control ................ -
Page 3: Introduction
1. Introduction Welcome to using the high power LED washer of Neo-Neon. The light takes the high power LED technology, with long lifespan and high IP rating. It has the high power red, matched with the green and blue balanced. It can make all kinds of vivid illumination effects, along with DMX receiving and auto mode. -
Page 4: 3、Security Warning
DMX-512 Controlling, 8 pieces of channels The RGB mixed colors is 255 grades The beam angle: 22.5° The luminous flux: 2115.51LM The maximum brightness: 11942.74Cd The total adjustable brightness: 0-100% Power：121.7W The power input: AC88--265V 50--60Hz Dimension: L685XW250XH311MM Weight: 15KG(including the connecting line and the accessories) IP rating: IP65(lamp cap) IP67(Power Supply Case) 3、Security Warning: Please read the user manual carefully before using and abide by the operation introduction... - Page 5 二、 This product can be laid on the flat ground by the rubber cushion under the bracket of the fixture shown as below: 三、 You can pull out rubber cushion under the bracket and secure the fixture on the truss through M6X20 bolt.
-
Page 6: 5、The Operation Instruction
四. The followed Effect drawing is Multiple Variflood mounted on a fixing truss. Drawing 2 四、 Adjustment when usage Please loosen handle at both side of the lamp and adjust projection appropriate angle then lock through adjusting the handles. 5、The operation instruction 一. - Page 7 Boost boost Press Boost off enter White Led The time of Press Up/enter Run Hour enter Change red led display Green Led Run Press Up/enter The time of Hour green enter Change display Bule Press Up/enter The time of Run Hour enter Change blue...
- Page 8 shutt Dimer Temperature temper Press Up/enter Show enter Change temperature on the head of wash . Master Press Up/enter enter Change operating Slaver SlavID Press Up/enter enter Change slave number when slave machine runs Schedule Sched Press Up/enter Enable or not enter Change whether...
-
Page 9: 二、The Way Of Connection For Multiple Units And The Instruction For Input And Output Connector
program timing Schedu 2-3seconds start enable Pgset submenu function instruction： Pgset Press ENTER for 2-3 seconds, then enter the next programming. Every programming has the following parameter： （1） 、SCEN：choose the ready to edit scene 1-10。 （2） 、FIXT：When the master runs, the scene includes the following slave number: All、odd number、even number、single slave machine。... -
Page 10: 6、The Distribution Under The Dmx Control
6、The distribution under the DMX control Numerical value Function description hutter/Strobe 7-59 strobe(20~1Hz) 60-69 Strobe on 70-78 Strobe off 79-87 Randomly strobe(from fast to slow) others open Dimmer 0-255 Total brightness adjustment 0-255 The value of the red brightness 0-255 The value of the green brightness 0-255 The value of the blue brightness... -
Page 11: 7、 Daily Maintenance
72 - 79 Medium speed random color 80 - 87 Fast speed random color White balance 0-63 Forbid white balance 64-189 Open the white balance control 190-250 Forbid white balance 251-255 Restore the white balance color (Set White Balance Control channel in the value of220.Set up RGB channel parameter and reset Macro channel 71，... -
Page 12: 二、 Cleaning And Maintaining
Check if it is the master mode It is installed the slave mode under the DMX mode The installation of the address code is wrong Check the address code and install them totally There is a piece of fixture whose After drawing the signal cable connector can not work normally input and output out of the... - Page 13 Page of 36...
