Beam ARCHON 500 Class Helicopter Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

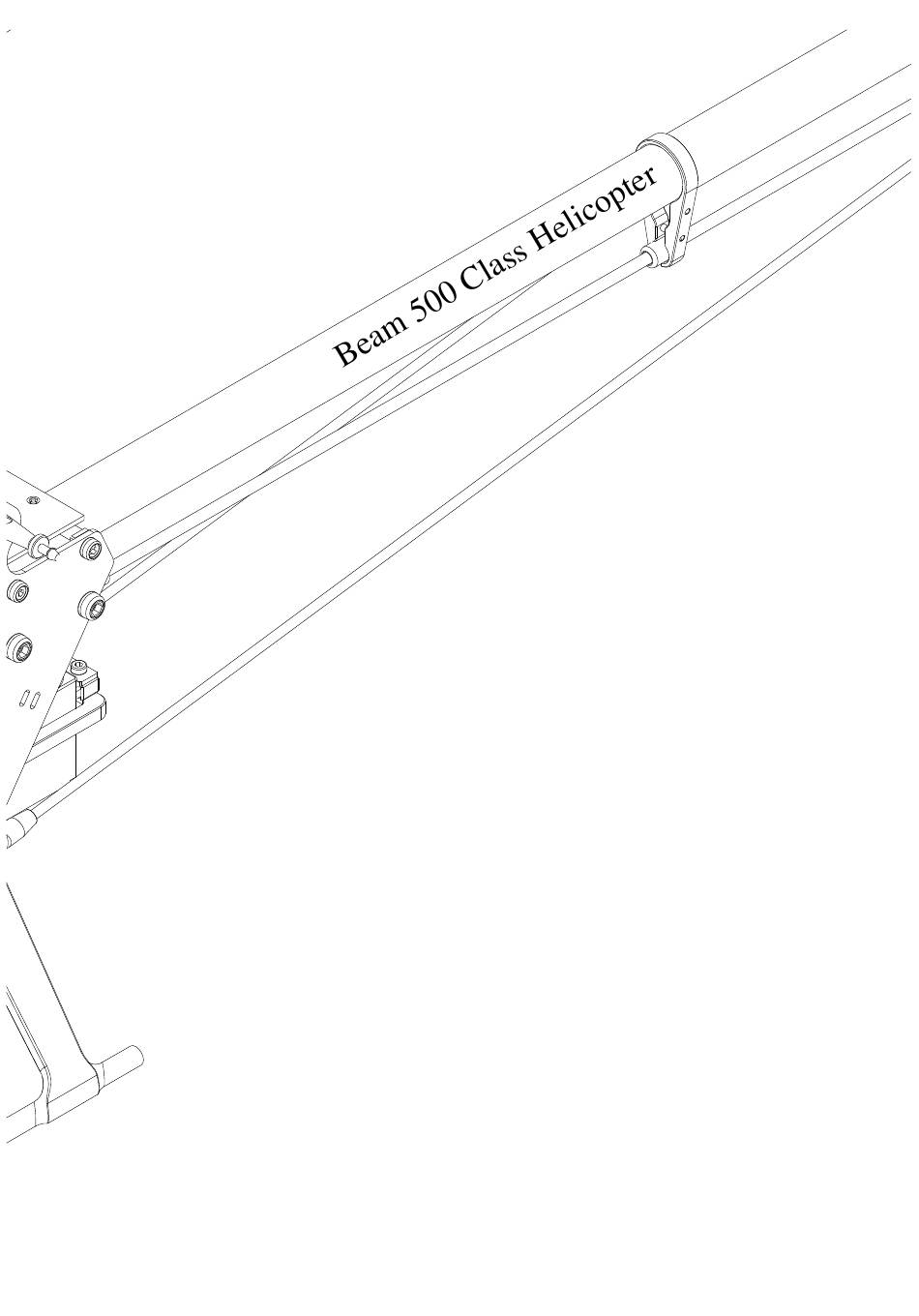

Beautifully Engineered Action Machine
BEAM
ARCHON
Manual
(20140904, V1.3)
Made in Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARCHON 500 Class Helicopter and is the answer not in the manual?

Questions and answers

Related Manuals for Beam ARCHON 500 Class Helicopter

Summary of Contents for Beam ARCHON 500 Class Helicopter

  • Page 1 Beautifully Engineered Action Machine BEAM ARCHON Manual (20140904, V1.3) Made in Korea...

  • Page 4: Warning

    By assembling, operating and maintaining the Beam Archon Helicopter, the user or person assembling, operating and maintaining the Beam Archon Helicopter indemnifies and agrees to hold harmless Beam Inc. and any of its employees, distributors, dealers and agents from any and all claims asserted based on the manufacturing, quality, assembly, operation and maintenance of the Beam Archon Helicopter.

  • Page 5: Table Of Contents

    ··············· ··············· Table of contents (목차) Warning! ··································································································· ◆ (경고) Table of contents ······················································································· ◆ (목차) 1. Safety guidelines for the R/C helicopter ·························· (R/C 헬리콥터의 안전 가이드) 1-1. Before flight ···················································································· (비행전) 1-2. During flight · ················································································· (비행시) 1-3. After flight ····················································································...

  • Page 6: Safety Guidelines For The R/C Helicopter (R/C 헬리콥터의 안전 가이드)

    Safety Guidelines for the R/C Helicopter (R/C 헬리콥터의 안전 가이드) 1. Beginners should get guidance and supervision from experienced flyers. (초보자는 경험자로부터 지도와 감독을 받아야한다.) 2. Fly only at approved airfields. Do not fly at school, residential area or near roads, railways and power lines.

  • Page 7: During Flight (비행시)

    1-2. During the flight (비행시) 1. We strongly recommend you to spend time in practicing the helicopter simulation program before you fly the real model. (모형헬기를 비행하기 전에 꼭 헬기 시뮬레이션 프로그램을 먼저 연습하기를 권장한다.) This will get you confidence and will significantly reduce the cost of repair. (이렇게...

  • Page 8: Tools Needed & Additional Items (조립에 필요한 도구와 기타 품목)

    Tools needed & Additional items (조립에 필요한 도구와 기타 품목) Tools needed Screw Driver Socket Driver Hex Wrench Ball Link Plier (Small) (5.5mm) (1.5mm, 2mm, 2.5mm(2Pcs)) Long Nose Plier Pitch Gauge Scissor Ball Reamer C.A Glue Thread Lock Cutting Knife (Cyano Adhesive) Additional items Transmitter...

  • Page 9: Assembly

    Assembly (조립) ◆ Read before assembly (조립전 주의사항) 1. Before assembly, read the instruction manual thoroughly familiarizing yourself with the model and assembly procedures. (조립에 앞서, 이 매뉴얼을 자세히 읽고 모형 헬리콥터의 특징과 조립순서를 미리 숙지한다. ) 2. Check the contents of the box and make sure there is no missing part and all parts are in good shape.

  • Page 10: Rotor Assembly Tip

    3-1. Assembly Tip TIP - 1 Tail Belt Guide Ball Bearing, # 2.5 x 6 x 2.6(2Pcs) Belt Guide Spacer 4 x 4.4mm(2Pcs) TIP - 2 Frame Assembly & Servo Assembly Elevator Servo Page 16 F-1 Frame Aileron Servo & Pitch Servo Page 16 Battery Mount, Servo Mount Tail Servo...
  • Page 11 TIP - 3 Belt Tension Adjustment SocketHead Bolt 3 35mm Socket Head Bolt 3 35mm NOTE Archon Detail - Main Gear : 140T Servo : Archon Bundul Servo & Metal Horn - Tail Pulley : 84T Motor : 1400Kv ~ 1700Kv(22.2v(6s)) - Main Blade : 450mm ESC : 70A ~ 90A (22.2v) - Tail Blade : 75mm...

  • Page 12: Gear

    3-2. Main Gear & Belt Pulley Sockethead Bolt, 2.5 x 4mm(4pcs) Sockethead Bolt, 2.5 x 4mm(4pcs) Main Gear Bearing One-Way Bearing Bearing One-Way Housing Bottom Bearing Logo One Way Bearing # 8 x 12 x 12 One Way Bearing Washer NOTE Apply a light coating of grease to the One-way Bearing.

  • Page 13: Swash

    3-2. Main Gear & Belt Pulley Sockethead Bolt, 2.5 x 4mm(4pcs) Sockethead Bolt, 2 x 5mm(4pcs) Swash Cap Swash Ball Unit Swash Plate Ball Bearing, # 25 x 32 x 4 Swash Base M2 Socket Washer(3Pcs) Sockethead Bolt, 2 x 4mm(3pcs) - 10 -...

  • Page 14: Head

    3-4. Head - 11 -...
  • Page 15 3-4. Head Main Grip & Main Center Hub Damper Spacer Damper (10.9 x 1mm) Demper O-Ring NOTE Center Hub Ball Bearing, # 6 x 12 x 4(4Pcs) Main Grip Large Spacer, 8 x 1mm Small Ball Bearing, # 6 x 12 x 4(4Pcs) Feathering Shaft NOTE Large...
  • Page 16 Linkage Rod Note the different mark on the Ball Link Control Arm Type - A Ball Link(10Pcs) (Hole size 2) Ball Link Ball Link (Hole size 2.5) (Hole size 2) Tip! Assemble Ball Link Counterclock Wise Upper Lower Control Arm Type - B Assemble Ball Link Counterclock Wise Ball Link(10Pcs) (Hole size 2)

  • Page 17: Tail

    3-5. Tail - 14 -...
  • Page 18 3-5. Tail Tail Shaft & Belt Pulley Ball Bearing, # 2.5 x 6 x 2.6(2Pcs) Sockethead Bolt, 2.5 x 4mm(2pcs) ButtonHead Bolt, 2.5 x 18mm Belt Guide Spacer Caution ButtonHead Bolt, 2.5 x 18mm 4 x 4.4mm(2Pcs) Bearing, # 4 x 9 x 4 Ball Bearing, # 4 x 9 x 4 T-2-1 Tail Control Unit...
  • Page 19 T-2-2 Tail Control Unit & Tail Control Lever Mount Sockethead Bolt, 2.5 x 6mm ButtonHead Bolt, 3 x 15mm ButtonHead Bolt, 2 x 8mm(4Pcs) Ball 3.3mm(M2) Ball 3.3mm(M3) Sockethead Bolt, 2.5 x 6mm Washer 4.8 x 2mm Caution ButtonHead Bolt, 3 x 15mm Tail Boom Sockethead Bolt, 2.5 x 20mm(2pcs) Buttonhead Bolt, 3 x 12.5mm(2pcs)
  • Page 20 T- 4 Boom Brace, Tail Control Rod Sockethead Bolt, 2.5 x 30mm Sockethead Bolt, 2 x 10mm Sockethead Bolt, 2 x 14mm Caution Note the direction of the Tail Drive Belt. Ball Link(2Pcs) (Hole size 2.5) Sockethead Bolt, 2 x 10mm Sockethead Bolt, 2 x 14mm Sockethead Bolt, 2.5 x 30mm No space is recommended.

  • Page 21: Frame

    3-6. Frame BEAM - 18 -...
  • Page 22 3-6. Frame Frame Sockethead Bolt, 2.5 x 4mm(2pcs) Sockethead Bolt, 2.5 x 14mm(2pcs) Sockethead Bolt, 2.5 x 6mm(28pcs) Sockethead Bolt, 2.5 x 14mm(2pcs) Sockethead Bolt, 3 x 6mm(2pcs) Sockethead Bolt, 3 x 35mm(2pcs) Sockethead Bolt, 2.5 x 14mm(2pcs) - 19 -...
  • Page 23 Bottom Plate Sockethead Bolt, 2.5 x 5mm(4pcs) Sockethead Bolt, 2.5 x 6mm(6pcs) Sockethead Bolt, 2.5 x 14mm(4pcs) - 20 -...
  • Page 24 Servo Sockethead Bolt, Sockethead Bolt, Sockethead Bolt, 2.5 x 16mm(4pcs) Ball 3.3mm(4Pcs) 2.5 x 10mm(10pcs) 2.5 x 12mm(2pcs) NOTE NOTE Caution Installation of Swash Servo Horn 17~17.5mm AL, Servo Spacer(2Pcs) Install Servo Horn Right-Angled to Servo In Neutrality Installation of Sockethead Bolt, Tail Servo Horn 2.5 x 16mm(4pcs)
  • Page 25 Gyro Mount Sockethead Bolt, 2 x 3mm(2pcs) Soket Head Bolt, 2 x 3mm(2pcs) Gyro Mount Battery Stopper Battery Foam - 22 -...
  • Page 26 Main Head & Main Gear & Tail Unit Assembly Sockethead Bolt, 2.5 x 10mm(2pcs) No space is recommended parts should fit into eac other Sockethead Bolt, 2.5 x 8mm Sockethead Bolt, 2.5 x 8mm Sockethead Bolt, Main Pulley Pin 2.5 x 10mm(2pcs) NOTE - 23 -...

  • Page 27: Etc

    3-7. ETC - 24 -...
  • Page 28 3-7. ETC Main Blade & Motor Pinion Gear ButtonHead Bolt, 3 x 20mm(2pcs) Sockethead Bolt, 3 x 10mm(2pcs) M3 Nut(2pcs) Main Blade Pinion Gear Sockethead Bolt, 3 x 10mm(2pcs) - 25 -...
  • Page 29 Pitch Check Unit Pitch Check Bar Sockethead Bolt, Sockethead Bolt, 2 x 3mm 2.5 x 6mm Sokethead Bolt, 2.5 x 6mm Pitch Fixation Bar Sockethead Bolt, 2 x 3mm(2pcs) Electronic Parts Recommended Placement - 26 -...

  • Page 30: Necessary Settings (기자제 세팅)

    Necessary Settings (기자제 세팅) 4-1. Suggested RPM of the main rotor (메인로터의 권장 RPM) Hovering : 2600 rpm ST1 (Loop,Roll) : 2800 rpm ST2 (3D) : 3000 rpm 4-2. Selecting Pinions (모터와 피니언 기어의 선정) Remarks (비 고) Motor turning force Proper pinions (모터의...

  • Page 31: Part List

    Part List 5-1. Gear, SwashPlate E5-3003 E5-3006 E5-2002 E5-3004 E5-7001 E5-2005 E5-3005 E5-3001 E5-3002 E5-2001 E5-3007 E5-2006 E5-7014 - 28 -...

  • Page 32: Head

    5-2. Head E5-4002 E5-4009 E5-4014 E5-4001 E5-7003 E5-4008 E5-4014 E5-7002 E5-4003 E5-4004 E5-4015 E5-4005 E5-7004 E5-4007 E5-7005 E5-4006 E5-4010 E5-4010 E5-4011 - 29 -...

  • Page 33: Tail

    5-3. Tail E5-5012 E5-7010 E5-5008 E5-5027 E5-5009 E5-7008 E5-7009 E5-5027 E5-5010 E5-5011 E5-5013 E5-5014 E5-5027 E5-5001 E5-5015 E5-5004 E5-7011 E5-7007 E5-5002 E5-7006 E5-6029 E5-5007 E5-5006 E5-5005 - 30 -...
  • Page 34 5-3 Tail E5-5003 E5-5017 E5-5016 E5-5018 E5-5024 E5-5025 E5-5023 E5-5021 E5-5022 E5-5020 E5-5019 - 31 -...

  • Page 35: Frame

    5-4. Frame E5-7013 E5-7012 E5-6014 E5-6003 E5-6004 E5-6007 E5-6009 E5-6033 E5-6031 E5-6011 E5-6014 E5-6010 E5-6012 E5-6005 E5-6008 E5-6001L E5-6006 E5-6013 E5-6001R - 32 -...
  • Page 36 5-4. Frame E5-6021 E5-6019 E5-6018 E5-6016 E5-6017 E5-6002 E5-6015 - 33 -...

  • Page 37: Frame & Etc

    5-5. Frame, ETC E5-4012 E5-8001 E5-6023 E5-6020 E5-6024 E5-6025 E5-6026 E5-6027 - 34 -...
  • Page 38 Note - 35-...
