Summary of Contents for ETAS ES1130.3

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 ES1130.3 Simulation Controller Board User’s Guide Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Copyright The data in this document may not be altered or amended without special notification from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this document. The software presented herein is provided on the basis of a general license agreement or a single license. Using and copying is only allowed in concurrence with the specifications stipulated in the contract.

  • Page 4: Table Of Contents

    Contents 1 Introduction ........... . . 5 Functions .
  • Page 5 4 ETAS Contact Addresses ........

  • Page 6: Introduction

    Introduction This section contains information about the basic features and areas of imple- mentation of the ES1130.3 Simulation Controller Board. A block diagram is also included here to show the schematic layout of the board. note Some components of the board may be damaged or destroyed by electrostatic discharges.
  • Page 7 • VMEbus interface – master interface: A16:D16, A24:D16, A40:MD32 – slave interface: A24:D16, A40:MD32 – interrupt controller – system controller with automatic activation – bus timer: BTO (256) – auto-ID configuration • high-performance host interface via Ethernet – PowerPC MPC860T –...

  • Page 8: Areas Of Implementation

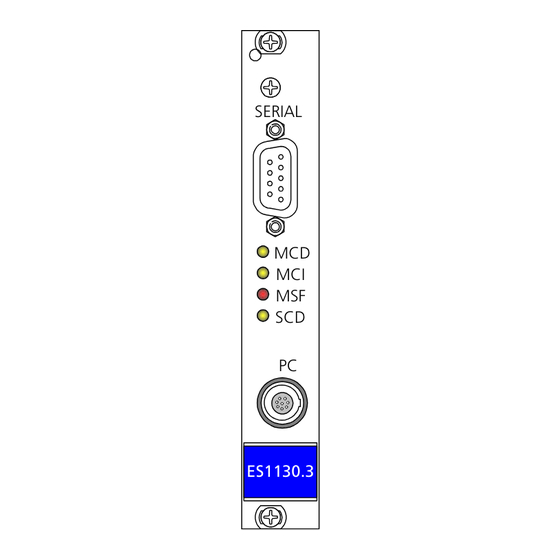

    ES1130.3 Fig. 1-1 Front Panel Areas of Implementation The ES1130.3 Simulation Controller Board can be used in VMEbus systems wherever high performance is necessary. The Ethernet interface provides a sim- ple link to host PCs. Possible areas of implementation include: •...

  • Page 9: Block Diagram

    Block Diagram The following figure shows you a block diagram of the ES1130.3 Simulation Controller Board. VME64 VME64 Slave Master Interface SERIAL UART Interface Extension Socket 256 kB MPC 860T MPC 750 256 kB SDRAM FLASH 10/100 L2 Cache SRAM...

  • Page 10: Hardware

    This section contains a detailed functional description, the pin allocation of the connectors and the technical data of the board. Functional Description This section describes each feature of the ES1130.3 Simulation Controller Board. You will find information on the following subjects: •...
  • Page 11 32-Bit-Counter (Decrementer) The MPC750 has two 32-bit counters at its disposal. The counters are loaded with a start value by writing to register addresses. Once the relevant release bits have been set in the status register, the counters are counted downwards at a rate of 16.66 MHz.

  • Page 12: Vmebus Interface

    RAM as VMEbus master. This memory area can be read and written directly. Before there is a master access to the VMEbus, the requester level and mode have to be set via the board control and status register. The ES1130.3 Simula- tion Controller Board supports a single-level arbiter.

  • Page 13: Mpc860T Communication Processor

    VME64 norm VMEbus Slot1 Controller The ES1130.3 Simulation Controller Board can independently recognize whether it should act as a system controller or not. The ES1130.3 assumes this function if it is in Slot1. 2.1.3...

  • Page 14: Ethernet Interface

    The Ethernet interface is responsible for the connection of the ES1130.3 Sim- ulation Controller Board to a host processor. The interface can be operated either with 10 or 100 MBit/s, half or full-duplex. Switching takes place auto- matically.

  • Page 15: Power Supply

    2.1.6 Power Supply The board has its own +3.3 V voltage regulator. This means it can be operated in card cages which only make +5 V supply voltage available. If the card cage makes +3.3 V available, the card automatically switches to the external supply with +3.3 V.

  • Page 16: Fig. 2-1 "Serial" Plug Connector

    Pin Allocation This section contains the pin allocation of the front-facing connector and the backplane connector of the ES1130.3 Simulation Controller Board. 2.4.1 "Serial" Plug Connector The "Serial" plug connector has three lines for the serial interface of the MPC750 main processor.

  • Page 17: Fig. 2-2 "Pc" Plug Connector

    2.4.2 "PC" Plug Connector The "PC" plug connector contains the lines for the Ethernet interface. The plug connector is designed as a eight-pin Lemo socket of size 1B. Fig. 2-2 "PC" Plug Connector Function Function n.c. n.c. n.c. n.c. Tab. 2-5 "PC"...

  • Page 18: Fig. 2-3 Pc Connection Cable Cbe100-X

    Tab. 2-6 VME 64 Pin Allocation PC Connection Cable A special cable is needed to connect the ES1130.3 Simulation Controller Board to the PC: the cable is perfectly adapted to the requirements (resulting from the high transfer rates). Fig. 2-3...

  • Page 19: Technical Data

    F 00K 102 571 PC connection cable, 20 m CBE100-20 F 00K 102 570 Technical Data This section contains the technical data on the ES1130.3 Simulation Controller Board in tabular form. MPC750 Main Processor Microprocessor MPC750 PowerPC, 366 MHz, 64-bit...
  • Page 20 Ethernet, IP Address and Subnet Mask Type 10/100BaseT, automatic configuration Ethernet address (MAC) Individual for each board IP address 192.168.40.11 Subnet mask 255.255.255.0 VMEbus Type Master interface and slave interface Access types: master interface A16:D16; A24:D16; A40:MD32 Access types: slave interface A24:D16;...
  • Page 21 Environmental Conditions Ambient temperature -40 °C to +85 °C (extended during operation temperature range) Storage temperature -55 °C to +85 °C Relative humidity 0 to 95%, no condensation Plug Connectors Backplane 160-pin DIN 41612 Front panel Ethernet: 8-pin Lemo, size 1B Physical Dimensions Circuit board 100 x 160 mm²...

  • Page 22: Firmware

    Firmware This section contains the description of the ES1130.3 Simulation Controller Board firmware. As the ES1130.3 board contains two processors, the imple- mented firmware is also divided into two separate parts: • the MPC860T firmware establishes the communication between the host PC and the control processor, MPC750.

  • Page 23: Tab. 3-1 Message Fields

    The terms have the following significance: Field Significance Length of complete message in bytes Process ID for addressing distributed software components ID for addressing objects of each software component Command for the object to execute Error code from the executed command (return value) Data Data Tab.

  • Page 24: Program Execution

    The host PC initiates the establishing of the TCP/IP connection. It uses the default address 192.168.40.11 and port 18001 of the ES1130.3 Simulation Controller Board. Once the connection has been established, additional data channels can be created with different port numbers.

  • Page 25: Mpc750

    SDRAM and the starts the main program in the SDRAM. This kind of main program always resides in the Flash memory because the ES1130.3 Simulation Controller Board is delivered with a standard main pro- gram and this can only be replaced by programming a new standard main program.

  • Page 26: Etas Contact Addresses

    +33 (1) 56 70 00 51 94588 Rungis Cedex E-mail sales@etas.fr France WWW: www.etas.fr Great Britain ETAS Engineering Tools Application and Services Ltd. Studio 3, Waterside Court Phone: +44 (0) 1283 - 546512 3rd Avenue, Centrum 100 Fax: +44 (0) 1283 - 548767 Burton-upon-Trent E-mail sales@etas-uk.net...
  • Page 27 Korea KESS Korean ETAS Sales and Service 3F Samseung Bldg Phone: +82 (2) 5747 016 61-1, Yangjae-dong Fax: +82 (2) 5747 120 Seocho-gu E-mail: kesshong@kornet.net Seoul Republic of Korea North America ETAS Inc. 3021 Miller Road Phone: +1 (888) ETAS INC...

  • Page 28: List Of Figures

    List of Figures Fig. 1-1 Front Panel....................7 Fig. 1-2 Block Diagram................... 8 Fig. 2-1 "Serial" Plug Connector ................. 15 Fig. 2-2 "PC" Plug Connector ................16 Fig. 2-3 PC Connection Cable CBE100-X ............. 17 Fig. 3-1 Structure of a Message According to L1 Protocol........21 Artisan Technology Group - Quality Instrumentation ...
  • Page 29 List of Figures Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 30: List Of Tables

    List of Tables Tab. 2-1 Memory Areas of the MPC750..............9 Tab. 2-2 Access Variants of the VMEbus Master Interface........11 Tab. 2-3 Meaning of the front panel LEDs............. 14 Tab. 2-4 "Serial" Pin Allocation................15 Tab. 2-5 "PC" Pin Allocation................. 16 Tab.
  • Page 31 List of Tables Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 32: Index

    Index Numerics 32-bit counter 10 Data technical 18 Decrementer 10 Dimensions Areas of implementation 7 physical 20 Dual-ported RAM 13 Backplane connector 16 Environmental conditions 20 BCSR Ethernet address 19 MPC750 10 Ethernet interface 13 Block diagram 8 Front panel 7 Communication processor 12 Artisan Technology Group - Quality Instrumentation ...
  • Page 33 VMEbus Slot1 controller 12 LED 14 Watchdog MPC750 10 MAC address 19 Main processor 9 Master interface MPC750 11 Memory MPC750 9 MPC750 9 BCSR 10 CR/CSR slave 12 interrupt controller 10 master interface 11 memory 9 slave interface 12 status register 10 VMEbus interface 11 watchdog 10...
