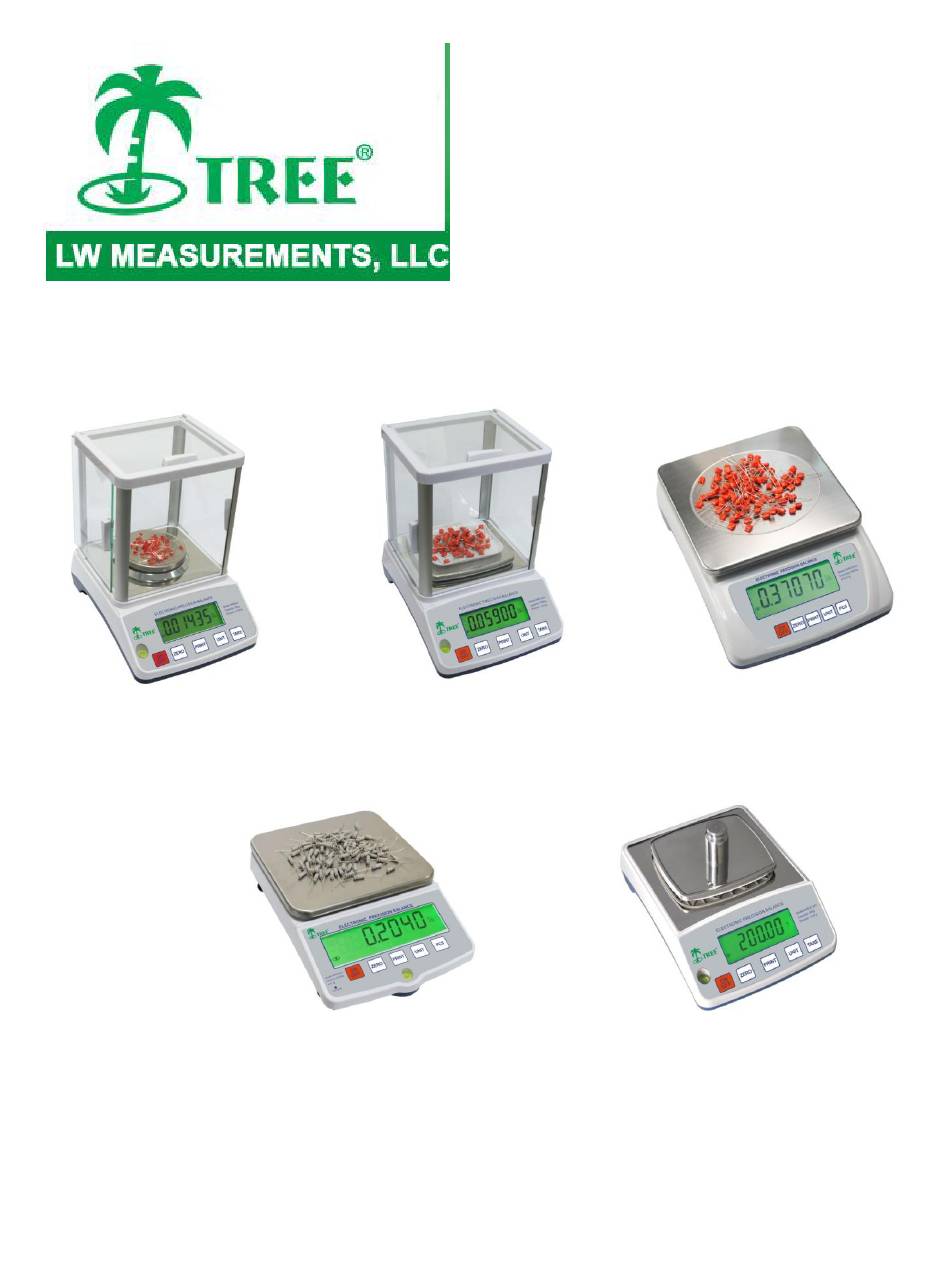

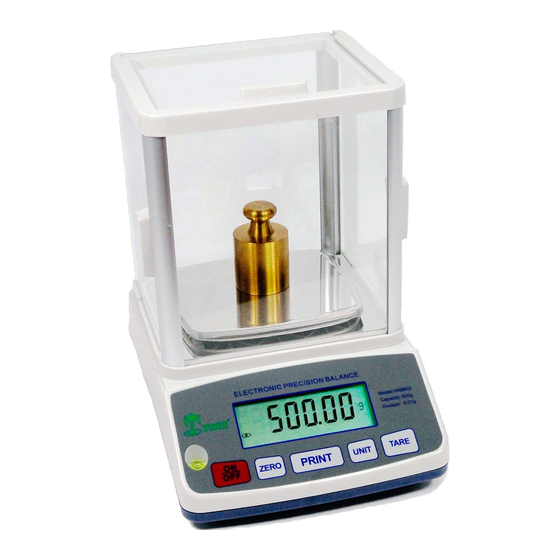

Page 1 Professional Weighing Equipment Operating Manual HRB Series intelligent weighing machine HIGH RESOLUTION BALANCE HRB 103 / 203 / 303 HRB 602 / 1002 HRB 3002 / 3001 / 6001 / 10001 HRB 10001LP / 20001 HRB 1002TL NOTE: THIS PRODUCT HAS BEEN CALIBRATED IN THE FACTORY.
Page 2: Table Of Contents
Table of Contents Section Page Declaration of Conformity Customer Service Introduction Safety Your weighing machine Functions Application & Conformity Data and parameters 9-10 Getting Started 11-13 Application Menu 14-16 Calibration Maintenance & Service Transportation & Storage Rev 4, 04.25.2019...
Page 3: Declaration Of Conformity
Declaration of Conformity Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: HRB - High Resolution Balances Models: HRB 103 HRB 203 HRB 303 HRB 602 HRB 1002 HRB 1002TL...
Page 4: Customer Service
Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work.
Page 5: Safety
Safety Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing machine may only be used with the power adapter supplied exclusively for use with the weighing machine.
Page 6: Your Weighing Machine
Your weighing machine Construction and functions Construction of the weighing machine The weighing machine consists of the weighing machine body (1), the scale-pan (2), the adapter (3) and this operating manual. Figure 2.1 Your weighing machine Rev 4, 04.25.2019...
Page 7: Functions
Functions The HRB Series are high-quality electronic precision weighing machines with the following specifications Model number Capacity Graduation Weighing pan Size Φ98mm HRB103 100g 0.001g Φ98mm HRB203 200g 0.001g Φ98mm HRB303 300g 0.001g HRB 602 600g 0.01g 135mm x 120mm...
Page 8 FEATURES − Auto zero tracking - Selectable beeper − Low battery indication - Selectable beeper − Large bright backlit LCD - Unit switching: g, oz, lb, dwt ..− Large stainless steel pan - 1.3 million internal resolution − Stability indication - 200,000 display resolution −...
Page 9: Application & Conformity
The power adapter produced for the operation of the weighing machine and intended exclusively for this application, complies with the appropriate electrical protection class. Data and parameters Technical data The following applies to HRB series Power supply: . Input: 110 or 230V AC (+/-15-20%); 50 to 60Hz . Output: 12v DC 500mA Allowable ambient conditions Temperature: 5°C .
Page 10 RS232 Data interface 1. Connector: DB9 BALANCE 2. Transmissions Settings Mode: Simplex Asynchronous Serial Baud Rate: 9600 Data Bit: 8 Parity Bit: None Stop Bit: 1 Data Format: ASCII 3. Transmission Information Format： 20 Byte ，blank=20H 4~13 14~18 ‘W: ’ DATA UNIT Start of Data Transmission=57H+3AH...
Page 11: Getting Started
Getting started Unpacking the equipment The machine is delivered in an environmentally-friendly carton, specifically developed for this precision instrument, which provides optimum protection for the balance during transportation. We suggest that you retain the original packaging in order to avoid transportation damage if shipping or transporting the balance and to allow the unit to be stored in the best conditions if it is out of operation for an extended period.
Page 12 Assembling your weighing machine The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: − Place the unit holder in position and add the weighing pan − Insert the power adapter cable plug into the socket at the rear of the balance. Choice of a suitable location The environment in which your weighing machine is used is very important.
Page 13 Leveling the weighing machine To function properly, the balance must be precisely horizontal. The balance is fitted with one bubble level. and adjustable feet for level-control, with the aid of which it is possible to compensate for small height differences and / or any unevenness in the surface on which the balance is positioned.
Page 14: Application Menu
Application Menu HRB 3002 HRB 3001 HRB 6001 HRB 103 HRB 203 HRB 303 HRB 1002TL HRB 10001 HRB 602 HRB 1002 HRB 10001LP HRB 20001 Display messages and key functions Display messages: Tare indicator Low battery indicator Weighing units Negative value indicator Zero indicator Stable indicator...
Page 15 Program options Please see our web-site at http://lwmeasurements.com for practical demonstrations of application usage. Interface Settings − Press [ON/OFF] to turn on the scale, when instrument displays -------- − Press [PRINT], the display will show b xxx value − Press [UNIT] to select among (1200,2400,4800,9600), default setting is 9600 −...
Page 16 Parameter settings Setting Zero range when power on Press ON/OFF key, and when “- - - - - - “ shows, press TARE(or PCS) key, display will show “Pzr x.x”, press UNIT key to select, factory default setting is 20 Setting Zero range of ZERO key Press ON/OFF key, and when“- - - - - - “shows, press TARE(or PCS) key, and then press ZERO key, display shows “Kzr xx”, press UNIT key to select, factory default...
Page 17: Calibration
Calibration Using an External Calibration Weight Calibration is required when the weighing machine is initially installed or if the balance is moved to a substantial distance from the original location or if ambient conditions change considerably. 30 minutes’ warm-up of the balance is always needed before weighing and calibration.
Page 18: Maintenance & Service
Maintenance & Service The weighing machine must be treated carefully and cleaned regularly. It is a precision instrument. For maintenance-work, the balance must be separated from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be reconnected to the power supply during the work by a third party.
Page 19: Transportation & Storage
Transport & Storage Transportation and shipping of the weighing machine Your weighing machine is a precision instrument. Treat it carefully. Avoid shaking, severe impacts and vibration during the transportation. Take care that there are no marked temperature fluctuations during the transportation and that the weighing machine does not become damp (condensation).
Page 20 HRB Series Conversions Of Various International Weight Units Model 3001 6001 1002 1002 3002 10001 UNIT 1002TL 1002TL 10001LP Resolut 20001 0.001g 0.001g 0.001g 0.01g 0.01g 0.01 0.1g 0.00005 0.00005 0.0001 0.0005 0.0005 0.001 0.005 0.00001 0.00001 0.00001 0.00002 0.00002 0.00005...
