Summary of Contents for Tree HRB Series

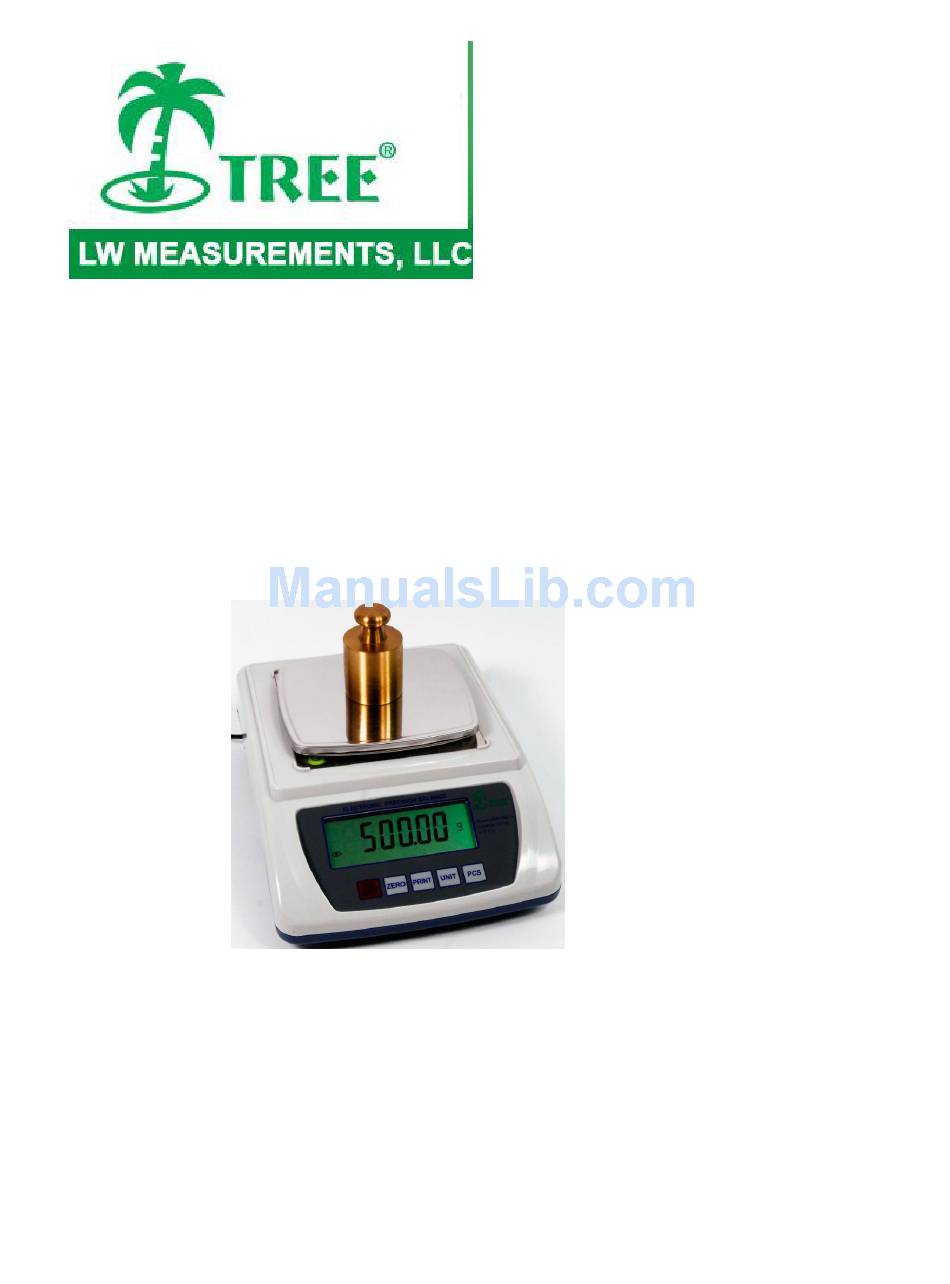

- Page 1 Professional Weighing Equipment HRB Series intelligent weighing machine HIGH RESOLUTION BALANCE TOP LOADER WITH COUNTING FUNCTION HRB 1002TL Operating Manual...
-
Page 2: Declaration Of Conformity
Declaration of Conformity Declaration of conformity for apparatus with CE mark We hereby declare that the product to which this declaration refers conforms to the following standards. Electronic scale: HRB - High Resolution Balances USA model UK (Europe) model HRB 1002TL ∕... -
Page 3: Customer Service
Identification Customer Service LW Measurements LLC, 3510 Industrial Drive, Unit H Santa Rosa, CA 95403 Tel: (707) 542-2185 FAX: (707) 542-3285 EUROPE LW Measurements Europe Ltd Chalkwell Park House 700 London Road Westcliff-on-Sea Essex SS0 9HQ United Kingdom Tel: 01702-476700 Fax: 01702-477380 ASIA LW Measurements PTY Ltd... - Page 4 Introduction What you should know about these Operating Instructions: Tree® Professional Weighing Equipment products are simple to operate. Nevertheless, you should read through these operating instructions in their entirety, so that you can make optimum use of the full potential and the diverse possibilities of the weighing machine in your daily work.
-
Page 5: Table Of Contents
Contents Section Heading Safety 1.1 Representation and symbols 1.2 Safety recommendations Your weighing machine 2.1 Construction and functions 2.1.1 Construction of the weighing machine 2.1.2 Functions of the weighing machine 2.2 Application, conformity 2.2.1 Correct use of the weighing machine 2.2.2 Conformity 2.3 Data and parameters 2.3.1 Technical data... - Page 6 4.2.2.5 Setting Zero range when power on 4.2.2.6 Setting Zero range of ZERO key 4.2.2.7 Setting Zero range of TARE key 4.2.2.8 Setting overload range 4.2.2.9 Setting Beeper 4.2.2.10 Setting ZERO and TARE function merge function 4.2.2.11 Setting Auto Shut off 4.2.2.12 Setting Backlight 4.2.3 Pieces counting Calibration using an external calibration weight...
-
Page 7: Safety
1 Safety 1.1 Representations and symbols Important instructions, which involve safety, are highlighted with the appropriate mark: 1.2 Safety recommendations When using the weighing equipment in surroundings with increased safety requirements, the corresponding regulations must be observed. The weighing machine may only be used with the power adapter supplied exclusively for use with the weighing machine. -
Page 8: Your Weighing Machine
2 Your weighing machine 2.1 Construction and functions 2.1.1 Construction of the weighing machine The weighing machine consists of the weighing machine body (1), the scale-pan (2), the adapter (3), and this operating manual. Figure 2.1 Your weighing machine... -
Page 9: Functions Of The Weighing Machine
2.1.2 Functions of the weighing machine The HRB Series are high-quality electronic precision weighing machines with counting function and the following specifications Model number Capacity Graduation Weighing pan Size HRB 1002TL 1000g 0.01g 135mm x 120mm Net/gross weight 1.4kg / 2.2kg... - Page 10 FEATURES Auto zero tracking Low battery indication Large bright backlit LCD Large stainless steel pan Stability indication Auto calibration Selectable auto back light Selectable beeper Selectable auto shut off 1.3 million internal resolution ...
-
Page 11: Application, Conformity
The power adapter produced for the operation of the weighing machine and intended exclusively for this application, complies with the appropriate electrical protection class. 2.3 Data and parameters 2.3.1 Technical data The following applies to HRB series Power supply: . Input: 110 or 230V AC (+/-15-20%); 50 to 60Hz . Output: 10-12v DC 150mA Allowable ambient conditions Temperature: 5°C - 40°C... -
Page 12: Rs232 Data Interface
2.3.2 RS232 Data interface 1. Connector: DB9 BALANCE 2. Transmissions Settings Mode: Simplex Asynchronous Serial Baud Rate: 9600 Data Bit: 8 Parity Bit: None Stop Bit: 1 Data Format: ASCII 3. Transmission Information Format： 20 Byte ，blank=20H 4~13 14~18 ‘W: ’ DATA UNIT Start of Data Transmission=57H+3AH... -
Page 13: Getting Started With Your Weighing Machine
3 Getting started with your weighing machine 3.1 Unpacking the equipment The machine is delivered in an environmentally-friendly carton, specifically developed for this precision instrument, which provides optimum protection for the balance during transportation. We suggest that you retain the original packaging in order to avoid transportation damage if re-shipping or transporting the balance and to allow the unit to be stored in the best conditions if it is out of operation for an extended period. -
Page 14: Assembling Your Weighing Machine
3.3 Assembling your weighing machine The weighing machine is delivered in partly dismantled condition. Assemble the individual components in the following sequence: Place the unit holder in position and add the weighing pan Insert the power adapter cable plug into the socket at the rear of the balance. 3.4 Choice of a suitable location The environment in which your weighing machine is used is very important. -
Page 15: Leveling The Weighing Machine
3.6 Leveling the weighing machine To function properly, the balance must be precisely horizontal. The balance is fitted with one bubble level. and adjustable feet for level-control, with the aid of which it is possible to compensate for small height differences and / or any unevenness in the surface on which the balance is positioned. -
Page 16: Working With The Application Menu Using The Intelligent Keypad
4 Working with the application menu using the Intelligent Key-Pad 4.1 Display messages and key functions 4.1.1 Display messages: Tare indicator Low battery indicator Weighing units Negative value indicator Zero indicator Stable indicator 4.1.2 Key Functions: 1. The On/Off key is to turn the Balance On or Off (Note: it has an On/Off hard switch at the bottom) 2. -
Page 17: Program Options
4.2 Program options Please see our web-site at http://lwmeasurements.com for practical demonstrations of application usage. 4.2.1 Interface Settings Press [ON/OFF] to turn on the scale, when instrument displays -------- Press [PRINT], the display will show b xxx BAU value ... -
Page 18: Setting Filter Parameter
4.2.2.4 Setting filter parameter “- - - - - - “shows, press PCS key, and then press ZERO key multiple times Press ON/OFF key, and when till display shows “FIL.x”, press UNIT key to select, factory default setting is 2 4.2.2.5 Setting Zero range when power on “shows, press PCS key, and then press ZERO key multiple times Press ON/OFF key, and... -
Page 19: Pieces Counting
4.2.3 Pieces counting Press [ON/OFF] to turn on the Balance, wait for “0” to appear on the display If necessary, press [ZERO] key to set the display to “0” Press [PCS] key to enter PCS mode, display will show P = XX ... -
Page 20: Calibration Using An External Calibration Weight
5 Calibration - Using an External Calibration Weight Calibration is required when the weighing machine is initially installed or if the Balance is moved to a substantial distance from the original location. 30 minutes of warming up of the Balance is always needed before weighing and calibration. -
Page 21: Maintenance And Service
6 Maintenance and service The weighing machine must be treated carefully and cleaned regularly. It is a precision instrument. For maintenance-work, the balance must be separated from the power supply (remove power adapter plug from socket). Also ensure that the balance cannot be reconnected to the power supply during the work by a third party. -
Page 22: Transport And Storage
7 Transport, storage 7.1 Transportation and shipping of the weighing machine Your weighing machine is a precision instrument. Treat it carefully. Avoid shaking, severe impacts and vibration during the transportation. Take care that there are no marked temperature fluctuations during the transportation and that the weighing machine does not become damp (condensation).
