Knape & Vogt FXTM181 Installation Instructions

Flush wall mount work center

Advertisement

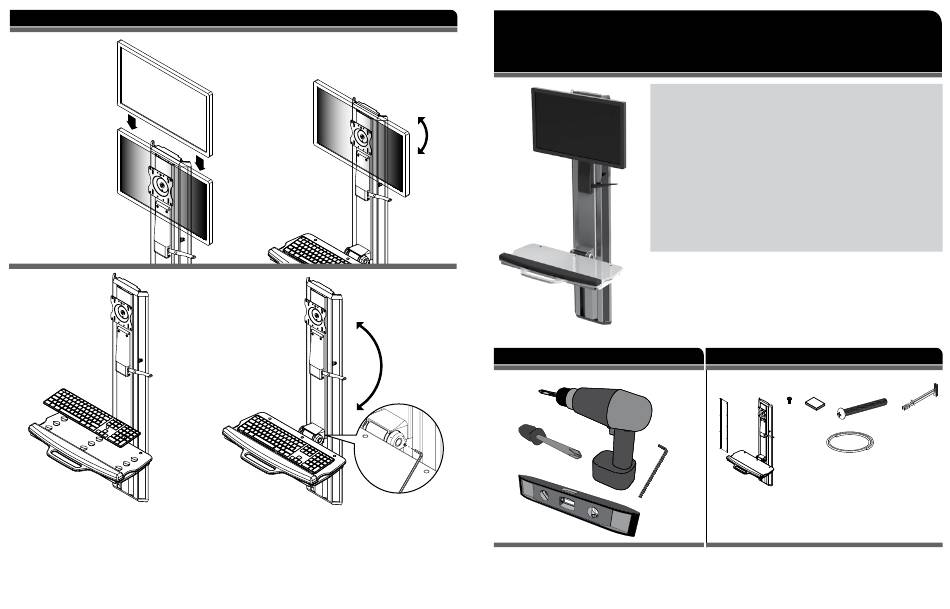

STeP 4

4.1
Slide the
monitor onto
the vesa plate
until the quick
connect snaps
into place

5.0

Affix the six (6)
velcro hook and
loops to the
keyboard tray
Position and
press the
keyboard onto
the tray
4.2
Monitor mount
allows for 90° vesa

5.1

Actuate lever
Tighten or loosen
for height
set screws on
adjustment
both sides to
disable auto-
retract feature
INSTALLATION INSTRUCTIONS
For Flush wall mount work center
rotation
TOOlS RequIRed
OOLS REQUIRED
FXTM181 Rev. C
INSTALLATION WARNINGS: Read the entire instruction sheet before you begin installation or
assembly. Installer must verify that the wall will safely support the combined weight of all the
attached equipment and hardware. Improper installation of this product can cause extensive
property damage or serious personal injury, either during or after the installation. It is the
responsibility of the installer to ensure that all applications including wood, concrete, block, brick,
steel, etc. are secured properly to code. California installations could require specific anchorage,
and additional mounting screws. Check with local authorities for codes in your area. Other
seismic states have similar regulations.
Warning: Max load 20 lbs of applied equipment including but not limited to: LCD, keyboard,
mouse, cabling and peripherals.
DISCLAIMER: The Manufacturer and/or Distributor will bear no responsibility for any damages of
any kind arising from any improper installation of this product. Because wall construction varies
widely and the ultimate method of mounting is out of the Manufacturers or Distributors control,
it is imperative that the installer consult with local engineering, architectural, or construction
personal to ensure the wall is constructed properly and to code to handle the applied load.
PARTS IN A BOX
Wall Mount
Console
Screw
Pad
Mouse cable
manager
Pan Head Screw
Toggler
FXTM181 Rev. C
