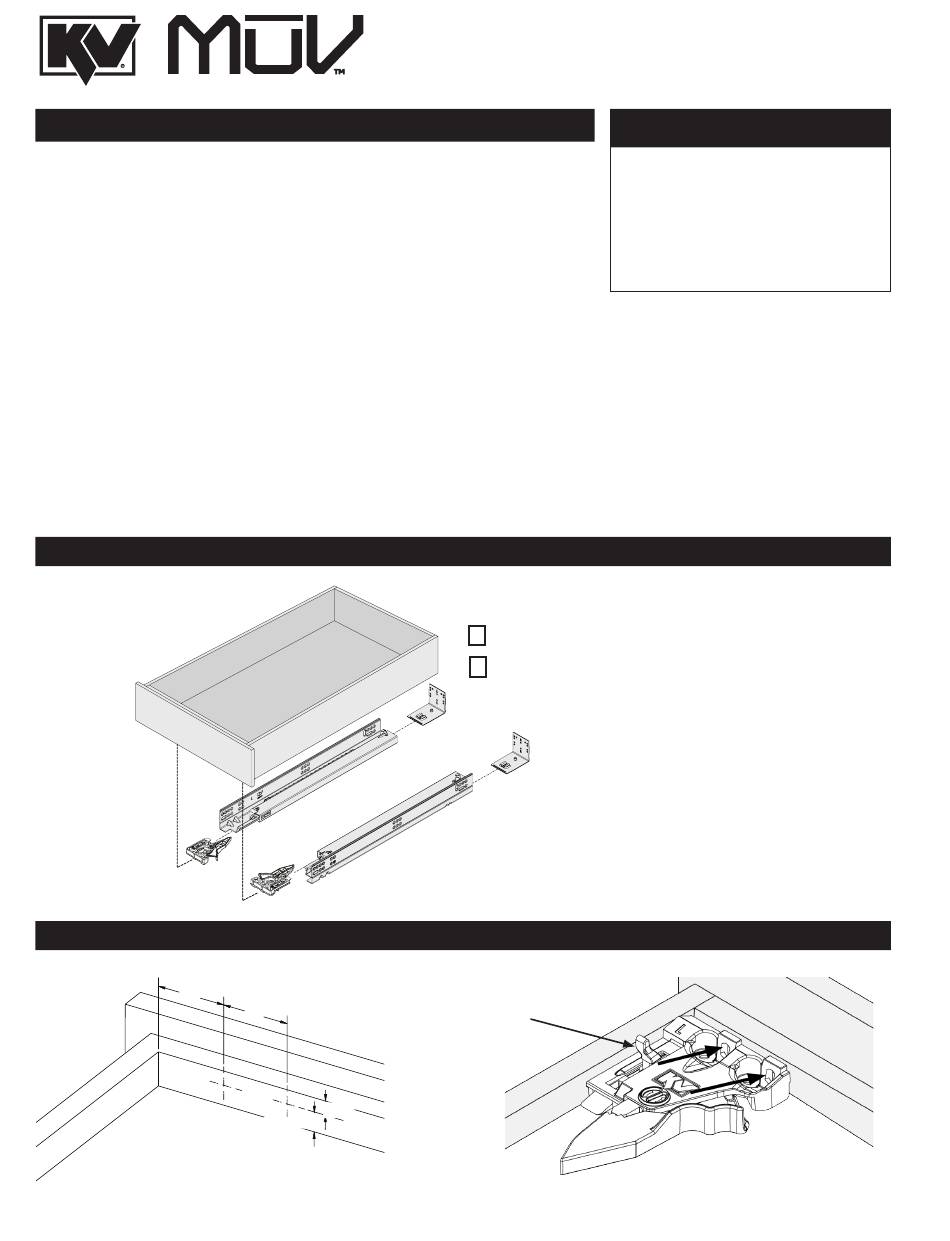

Knape & Vogt MUV34 Series Manual

Full extension soft close undermount drawer slide

Advertisement

Quick Links

SPECIFICATIONS

Number:
Full Extension Soft Close Undermount Drawer Slide
Mounting:
Side, for Frame or Frameless Construction
Height:
1-7/8"
Load Rating:
75-Pound Class
Finish:
Zinc
Travel:
Full Extension
Sizes:
9", 10", 12", 14", 15", 16", 18", 20", 21", 22"
Packaged:
Bulk (B): 6 Sets per Carton. Includes Front Release Levers (14"+). 12 Brackets.
Bulk (B): 4 Sets per Carton. Includes Front Release Levers (9",10",12"). 8 Brackets (4 Right Hand, 4 Left Hand).
Rear Brackets:
MUV-RBM Metal Rear Bracket (for use on 14",15",16",18",20",21",22" Slides)
MUV-RBP Plastic Rear Brackets (for use with 9",10",12" Slides)
Fasteners:
MUV-122: #7 x 5/8" Flat Head Screw – Slide
MUV-123: #6 x 1/2" Truss Head Screw – Front Release Levers and Rear Bracket
Install Jig:
MUV-121
31/32"
[24.6mm]
Drawer Bottom
34

DRAWER ASSEMBLY

DRAWER HARDWARE INSTALLATION

29/32"
[23mm]
Variable
1/4" [6.3mm]
Full Extension Soft Close
Undermount Drawer Slide

DRAWER SIZING

A
Max. drawer width= Length of slide + 10" for drawer fronts up to 6" tall
B
For drawer fronts greater than 6", max. drawer width is 18".
Release Lever Adjustment
1/8" [3mm]
(Vertical Adjustment)
Material Thickness
For use with the following
material thicknesses:
3/4"
[19mm]
11/16"
[17.5mm]
5/8"
[16mm]
Pre-drill front holes at 15º angle.
Drawer Bottom
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUV34 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Knape & Vogt MUV34 Series

  • Page 1 Full Extension Soft Close Undermount Drawer Slide SPECIFICATIONS Material Thickness For use with the following Number: Full Extension Soft Close Undermount Drawer Slide material thicknesses: Mounting: Side, for Frame or Frameless Construction 3/4" [19mm] Height: 1-7/8" 11/16" [17.5mm] Load Rating: 75-Pound Class 5/8"...
  • Page 2 Full Extension Soft-Close Undermount Drawer Slide Codes: FACE FRAME APPLICATIONS Stamping WITH DECORATIVE FRONT 2913 R 18 Cabinet Depth Interior Depth Slide Size Drawer Member Side R=Right L=Left Bracket: 3/16” to 1-7/8" [5mm to 48mm] Slides 14" + Date Code 3/16"...
  • Page 3 Full Extension Soft-Close Undermount Drawer Slide FRAMELESS APPLICATIONS WITH DECORATIVE FRONT Cabinet Depth Interior Depth Slide Length Setback 5/32” [4mm] Mount Position [see chart 1-7/16” [37mm] [see chart at bottom of page] [see chart at bottom of page] at bottom of page] 1-7/16”...
  • Page 4 Full Extension Soft-Close Undermount Drawer Slide DRAWER DIMENSIONS FOR FACE FRAME AND FRAMELESS APPLICATIONS Cabinet Opening Width Min. Top Opening Clearance: 1/4" [6.3mm] CRITICAL Inside Drawer Width CRITICAL Max. Drawer Bottom Recess: 1/2" [12.7mm] Min. Bottom Drawer Width Calculation Opening Clearance: 9/16"...

This manual is also suitable for:

Muv34 22Muv34 21Muv34 20Muv34 18Muv34 16Muv34 15 ... Show all
