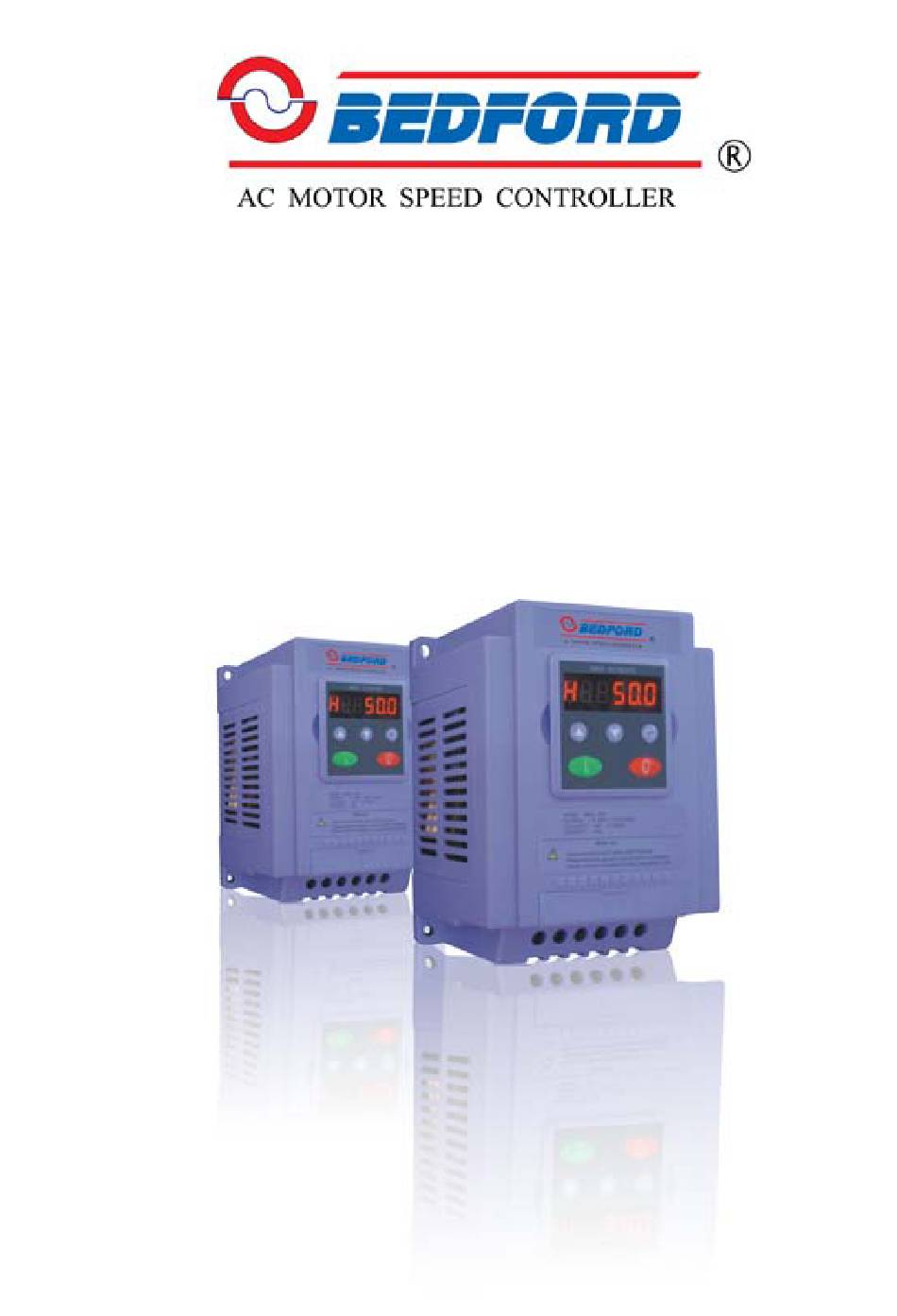

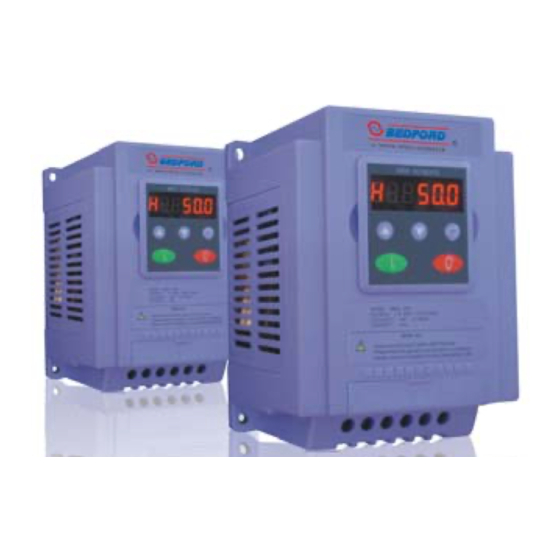

- Page 1 B800 Series Frequency Inverter BEDFORD (QUANZHOU) ELECTRONIC CO., LTD...
-
Page 2: Table Of Contents
9.2 Parameter explanation ..............21 10. Fault diagnosis and corrective actions 10.1 Notes for remedy once fault detects..........28 10.2 Troubleshooting................29 10.3 Notes during operation ..............30 11. BEDFORD- B800-1-200V series standard specification......31 12. BEDFORD- B800-1-400V series standard specification ......32... -
Page 3: Preface
1. Preface Thanks for you choose BEDFORD B800 series high functional frequency inverter, please read this manual carefully before use. 2. Notes for safe operation Frequency inverter is a latest product for electric and electronic; To guard your safety, there are signals both “danger” and “notice” in this manual to remind you safety precaution notices during movement, installation, operation and check. -
Page 4: Inspection Checkpoints
AC main power. Make sure the S/N on warranty is same as inverter. Please inform our salesperson ASAP if you find the above problems. 3.2 Model explanation BEDFORD - B800 – 2 001 Motor power: 001-1HP-0.75KW Voltage: 2 -200V 4-400V Series No. -
Page 5: Installation
4. Installation 4.1 Exterior Size 400V 1~2HP 3-5HP 7~10HP 200V 1~2HP 3-5HP 7~10HP 165mm 120mm 123mm... -
Page 6: Operating Environment
To ensure proper performance and long operation life, Follow the recommendations below when choosing a location for installing B800 series frequency inverter, Make sure the B800 series frequency inverter is protected from the following conditions . Ambient temperature: hanging type, -10~45℃... -
Page 7: Notice
4.3 Notice Notice •Please don’t hold the front cover when move, the right way is to hold the heatsink of inverter so as to avoid falling down which could injury person or damage inverter itself. •Please mount inverter onto nonflammable materials like metal and other else;... -
Page 8: Connection Diagram
220V only uses R/L and S/N. 2. Braking resistors of single phase 220V/1hp-2hp & three phase 400V/1hp – 2hp are all inbuilt. 3. B800 Series inverter default as keyboard control (F-12=1), it will work after AC main power input... -
Page 9: Notes For Operation
• Please don’t check the signal on PCB when inverter is running. • Parameters have already been set when ex-work, please don’t adjust it casually. 6．Keyboard Operation 6.1 LCD and operation Key (B800 Series without potentiometer) (B800-1 Series with potentiometer) -
Page 10: Utility Of Operation Key
6.2 Utility for operation key •When inverter ex-work, standard parameters are set as default. •Press “Enter” key one second, then enter into check/modify standard parameter group. •Press key to check the parameter group from F-01 to F-14 •Press “Enter” key again, which can read parameter value. - Page 11 If user want the motor stops work automatically (inertia stopping), please sets F-05 to 1. •V/F curve select F-06. General loading F-06=0. Such as fan, water pump etc. which are belonging to variable torque loading, Pls set F-06=1, which will reduce the energy wastage when motor run at low speed.
-
Page 12: Keyboard Operation Mode
7.2 Keyboard operation mode( Default F-13=1 when ex-work) •Put terminal 1, 2 open, the inverter appear to Stop ，LCD appear to H0.0. •Press “Run” Key ，frequency output increase. •Press “UP” Key •Press “DOWN” Key ,frequency output descends. •Press “STOP” Key , Inverter stop frequency output, LCD appears to stop. -
Page 13: Saving Condition After Parameter Modification
7.5 Parameters resume default (Parameters reset) •When inverter stop and appear “Stop” on LCD, simultaneity press and “Enter” Key 1 second •LCD appears P-SET, which means all parameters have resumed to default (ex-work value). •Press “Enter” Key again, LCD appears “Stop”. •Parameter F-37 would restore to 10, but F-39 and F-40 not change. -
Page 14: The Symbol Explanation On Lcd
8. The symbol explanation on LCD Symbol Symbol Explanation Explanation on LCD H50.0 A4.5 Output current 4.5A Frequency output 50HZ 1480 RPM 1480r/ min Stop Inverter stop work Parameter F-01 Parameter lock (F-38) Parameter Error, Radix Modified only when point Inverter over-load inverter stop twinkling... - Page 15 F-11 Voltage boost 0 to 25% of max output voltage 0: Terminal control F-12 Terminal or Keypad control 1: Keypad control –fwd only 2: Keypad control. fwd and rev F-13 Trip log Last four trips stored Read only F-14 Extended menu access Code 0 to 9999 EXTENDED PARAMETER SET F-15 Motor rated voltage...
- Page 16 F-27 Skip freq / 0 to F-01 (max) speed F-28 Skip freq / 0 to100% of rated speed/freq. F-09 speed band V/F characteristic 0 to base frequency (F-09) F-29 adjustment frequency (Function disabled when set to 0) Edge-r: Close Digital input 1 after power up to start drive Auto-0: drive runs whenever digital F-30 Drive start mode...
- Page 17 Parameter explanation to only-read window Range Factory Parameter Explanation to surveillance content setting setting value 1:Original analog input 2:Original analog input (F-35) 3:Setting frequency 4: Output frequency F-00 5: Slip frequency 6:Stator frequency 7: Motor voltage 8: DC bus voltage 9: Inside (NTC) 0~255...
- Page 18 Multi-function contact input (Digital input) Multi-function Multi-function Multi-function F-19 Contact 2 Contact 3 Contact 4 Open: Stop (disable) Open: Analog speed Open: Voltage analog Closed: Run (enable) reference input Closed: Preset /Jog Speed Closed: Current analog input Open: Analog speed Open: Preset / reference Jog Speed 1...
- Page 19 Open: Fwd Stop Open: Reverse Stop External trip input: (disable) (disable) Open: TRIP; Closed: Fwd Run Closed: Reverse Run Closed: no trip. (enable) (enable) Open: Stop (disable) Open: Preset / Closed: Run (enable) Jog Speed 1 Open: Run forward Closed: Preset / Closed: Run reverse Jog Speed 2 Open: Fwd Stop...
-
Page 20: Parameter Explanation
•Under keyboard operating mode, as F-12=1 or 2 and F-19=6, the rotary direction is controlled by multi-functions contact 3, which means the inverter can be started in reverse direction under the mode of keyboard operation. •Under keyboard operating mode, as F-12=1 or 2 and F-19=7, multi-function contact 2 and 3 “ON”... - Page 21 •F-06 V/F characteristic curve select. Either V=kf (linear) or V=kf (pumps/fans with HVAC rating). Note when F-06 is set to 1, the ramps are automatically set to 60s. (A) Relation between voltage and frequency. Pls. refer to picture: 0 curve is constant torque, 1 curve is variable torque.
- Page 22 • F-07 Rapid linear decelerate time when power cut off.(Fast stop) Deceleration ramp time after mains loss (F-05 =0 or 2) or when fast stop activated (see F-19). When F-05 =2 and F-07 =0, activation the fast stop disables the drive without braking (effectively coasting to stop) •...
- Page 23 When F-12 =2, the keypad START key toggles between forward and reverse. When stopped, target speed can be accessed/changed using the STOP, & buttons. • F-13 Trip log record. Most recent 4 trips stored in order of occurrence,. I.e. on entry, display shows most recent first. Press to step through all four.
- Page 24 •F-17 Carrier wave frequency selection. Effective power stage switching frequency inverter. Improvements in acoustic noise and output current waveform occur with increasing switching frequency at the expense of increased losses within the drive •F-18 Multi-function contact output selection.(Relay output function) Contacts closed if selected condition is true.
- Page 25 •F-25 Analog output functions. Analog output select. When F-25=0 then 10V = 100% of F-01. When F-25 =1 then 10V =200% of F-08 F-25 =2 or 3 gives a 10V digital output which is step-jumping digital •F-26 V/F Characteristic adjustment factor Used with F-29 to adjust the V/F characteristic.
- Page 26 •F-28 skip frequency/speed band. Width of skip frequency band, the centre of which is defined by F-27 •F-29 V/F Characteristic adjustment frequency Set the frequency at which the V/F adjustment factor in F-26 has full effect. This allows the motor voltage applied at the frequency in F-29 to be increased or decreased by the factor set in F-26 •F-30 Drive Start mode When set to Edge-r, if drive is powered up with digital input 1 closed...
- Page 27 •F-33 DC injection braking on enable When F-33 to “1”, DC injection is applied whenever the drive is enabled •F-34 External brake resistor Activate interior brake resistor. When F-42=1, Brake resistor functions enable. When F-42=2, Overload protection is required to avoid damages of both resistor and drive •F-35 Speed reference scaling factor Scales the analog input at control terminal 6 up or down, or the digital...
-
Page 28: Fault Diagnosis And Corrective Actions
•F-39 Accumulation running time (Hours run meter) Not affected by Reset to default command Read only. •F-40 Drive Identifier Drive rating, drive type and software version codes Read only Fault diagnosis and corrective actions 10.1 Notes for remedy once fault detects. •... - Page 29 Overload,150% current >1 Check driven machine; drive may be OL-trp min. too small for the load. Faulty thermostat on heat Refer to your BEDFORD Authorized TH-FIt sink. Distributor. 1. Check wiring to motor, look for if ph-ph or ph-Earth short circuit.
- Page 30 11. BEDFORD-B800-200V series standard size BEDFORD- B800 2001 2002 2003 2005 2007 2010 Voltage 1or 3φ200V-240V 3φ200V-240V Capacity (KW) 0.75 Rated output voltage (V) 3φ220V-240V Rated output current A 10.5 19.6 26.6 Control mode Sine wave PWM control Output frequency range...
- Page 31 BEDFORD-B800-380V series standard size BEDFORD- B800 4001 4002 4003 4005 4007 4010 Voltage 3φ 380V-440V Capacity (KW) 0.75 Rated output voltage (V) 3φ 380V-440V Rated output current A Control mode Sine wave PWM control Output frequency range Maximum 545Hz Frequency resolution Analog input volume: 0.1Hz...
- Page 32 AGENT：...
