ADT Pulse PGZNG1 Installation Manual

Installation Guide
ADT Pulse Interactive Solutions
®
Model: ADT Pulse Gateway PGZNG1

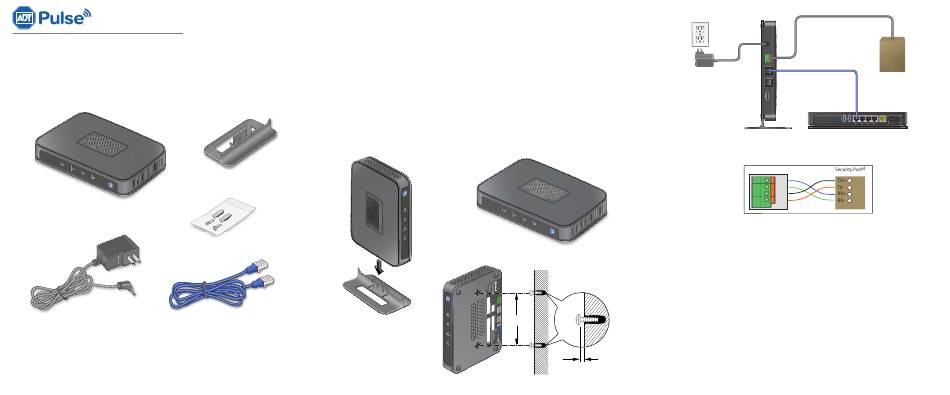

Package Contents

Gateway
Power Adapter
Warning: Do not stack equipment, or place equipment in tight spaces, in drawers, or on
carpets. Make sure that your equipment is surrounded by at least 2 inches (5 centimeters) of
air space.

Connecting the Gateway

1. Verify the package contents.
2. Decide where to place the Gateway.
Note: For best Wi-Fi coverage, identify a relatively central location within the
premises. Ensure that the Gateway can be conveniently wired to both the broadband
router and security panel, and is close to an AC outlet.
3. Install the Gateway in the proper orientation:
• Mount vertically (using the stand or wall mount kit) if the security panel and most
devices are on the same floor as the Gateway.
• Place horizontally if the security panel, devices and Gateway occupy multiple
floors.
Stand
Wall Mount Kit
Ethernet Cable
Vertical Mount
4. Connect the cables following steps a through d below.
a.
Horizontal Mount
b. Connect an Ethernet cable from one of the open ports of the broadband router to
c.
d. Plug the power cord into the Gateway and then plug the power adapter into an AC
5 1/2 inches
5. Wait until the Power and Devices LEDs on the Gateway become solid green (this could
take a few minutes).
6. To begin the installation process, go to https://portal.adtpulse.com/activation and use
3/16 inches
installer credentials to log into the ADT Pulse system.
Wall Mount
Gateway Broadband Router
Use a 4-wire cable to connect the Security Panel to the Security connector on the
Gateway.
Gateway
TX+
TX-
RX+
RX-
Notes:
• The security panel connection requires one of the following: Honeywell
HSPIM, DSC Communicator Module, GE Automation Module.
• Wiring: Tx(-) to Rx(-), Tx(+) to Rx(+), Rx(-) to Tx(-), Rx(+) to Tx(+).
• Wires must be stripped and seated deeply in terminal connection points.
the Broadband Ethernet port of the Gateway.
Pull wires gently to verify that Gateway connections are secure.
outlet.
Security Panel
