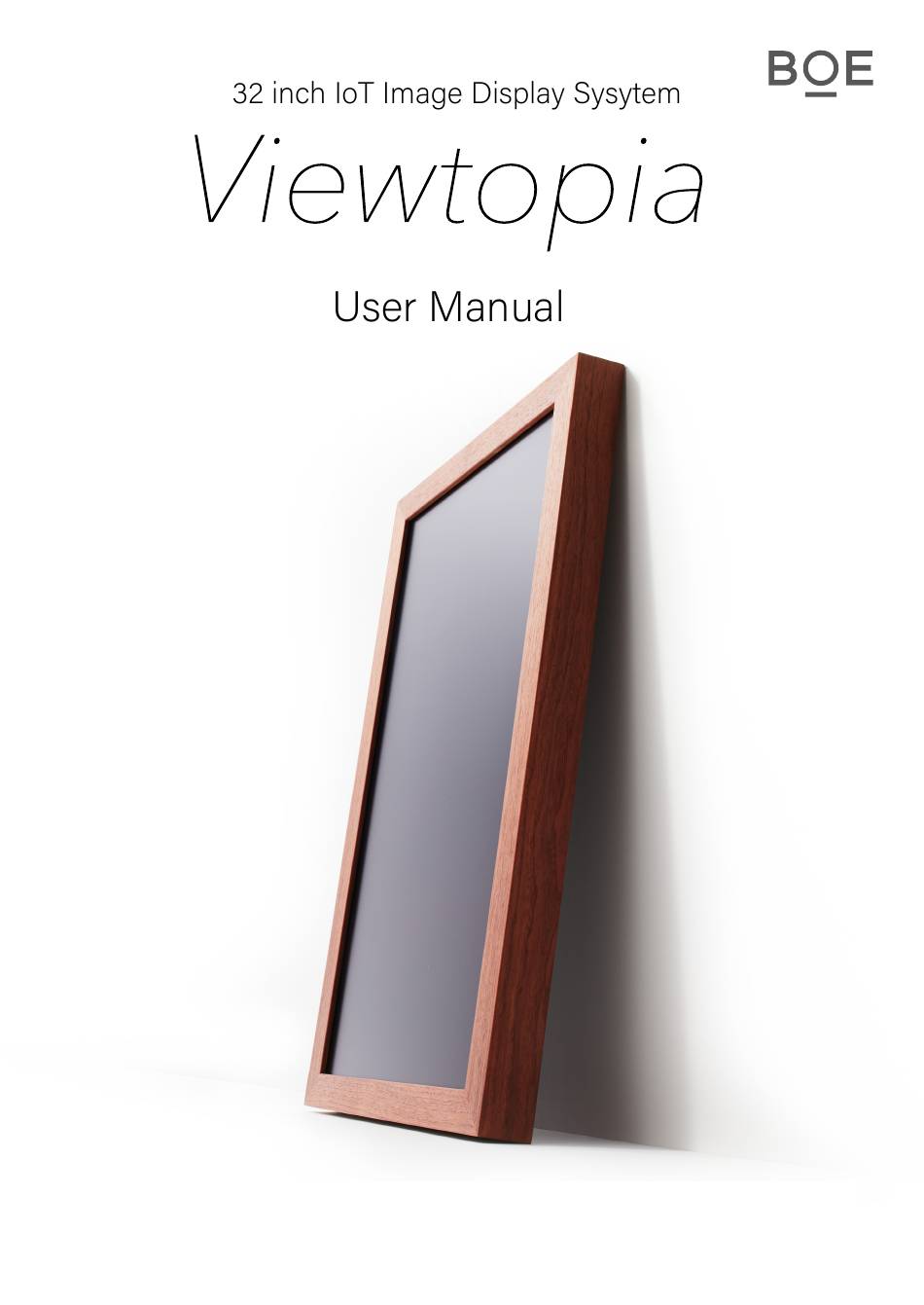

- Page 1 このたびは弊社製品をお買い上げいただきまして、誠にありがとうございます。 Thank you for purchasing a BOE product. ご使用前に、 この取扱説明書を必ずお読みになり、 正しく安全にお使いください。 For safe and proper use, please read this User Manual before using. This User Manual should be saved for future reference. お読みになった後は、大切に保管してください。...
-
Page 2: Table Of Contents
Table of contents Safety precautions ………………………… 3 Other information ………………………… 18 Usage precautions and information …… 5 How to display content on this unit ……………… 18 Installation methods ……………………… 6 Handling and safety precautions ………………… 18 Specifications ……………………………… 19 Wall-mounting …………………………………………… 6 Other methods ……………………………………………... -
Page 3: Safety Precautions
Safety precautions safety Know these symbols The lightning flash with arrowhead symbol, within an equilateral CAUTION triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the apparatus’s enclosure RISK OF ELECTRIC SHOCK that may be of sufficient magnitude to constitute a risk of electric DO NOT OPEN shock to persons. -
Page 4: Important Safety Instructions
Safety precautions (continued) Important safety instructions 1. Read these instructions. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from 2. Keep these instructions. the apparatus. 3. Heed all warnings. 11. -
Page 5: Usage Precautions And Information
Usage precautions and information Please read the following before using this unit. Radio interference Liquid crystal screen Although this unit meets certain standards, it Liquid crystal screens are made with precision still may be affected by radio interference. If technology. -
Page 6: Installation Methods
Installation methods Wall-mounting This unit has screw holes on the rear of the unit for a wall-mounting bracket compliant with VESA MIS-F (M6 and a pitch of 200 mm). A commercially available wall-mounting bracket compatible with MIS-F can be used to install the unit on the wall. Installation precautions for wall-mounting brackets ... -
Page 7: Front And Rear Of The Unit
Front and rear of the unit Names of parts Front Rear Lliquid crystal screen Wooden frame Screw holes for Speakers wall-mounting bracket AC connector Note(s) When disconnecting the AC power cable, grab the AC plug instead of pulling the cable. -
Page 8: Remote Control
Remote control Button names and operations Power button turns the unit on and off Cursor buttons (up/down/left/right) OK button selects an item in the menu and enters, etc. Calendar button Back button displays the calendar returns to the content screen MENU button Volume buttons displays the menu... -
Page 9: Preparations For Displaying Content
Preparations for displaying content Confirming the p.10 Prep. 1 ¢ accessories È Preparing the remote p.10 Prep. 2 ¢ control È p.11 Turning on the unit Prep. 3 ¢ È p.12 Connecting to Wi-Fi Prep. 4 ¢ Continued on next page ¢... -
Page 10: [Prep. 1] Confirming The Accessories
Download the dedicated App. The dedicated App for smartphone/tablet can 1 The following text will be displayed at the 3 “Information on user registration to Viewtopia” 4 The login ID and Password entry screen will be be downloaded from the below QR codes. -
Page 11: Prep. 3 Turning On The Unit
AC power cable to the power outlet. The system will boot up. 2 The BOE logo will appear, then the content screen will be displayed. Please perform user registration by following the... -
Page 12: Prep. 4 Connecting To Wi-Fi
Prep. 4 Connecting to Wi-Fi Setting for a Wi-Fi connection 1 From the menu, use [Up] and [Down] to select “Wi-Fi”, then press [OK]. Available Wi-Fi networks will be listed as shown below. 2 Select the SSID to connect to, then press [OK]. 3 On the software keyboard, use the cursor buttons on the remote control to enter the password. -
Page 13: Unit Settings
Unit settings Adjusting the brightness 1 From the menu, use [Up] and [Down] to select “Brightness”, then press [OK]. 2 Use [Up] and [Down] to select the brightness level. Continued on next page ¢... -
Page 14: Adjusting The Volume
Unit settings (continued) Adjusting the volume 1 From the menu, use [Up] and [Down] to select “Volume”, then press [OK]. 2 Use [Left] and [Right] to adjust the volume. Volume can also be adjusted with [+] and [-] (the volume buttons). -
Page 15: Setting The Time Zone
Setting the time zone 1 From the menu, use [Up] and [Down] to select “TimeZone”, then press [OK]. The time zone selecting screen will appear. 2 Use [Up] and [Down] to select the appropriate time zone, then press [OK]. Setting the on-screen display language 1 From the menu, use [Up] and [Down] to select “Language”, then press [OK]. -
Page 16: Displaying Date, Time, Or Calendar
Unit settings (continued) Displaying date, time, or calendar The date, time, or calendar can be displayed or hidden by pressing [Up] or [Down] while the content screen is displayed. The calendar button on the remote control can also be used to display or hide the calendar. -
Page 17: Placing The Unit In Sleep Mode
Placing the unit in sleep mode This unit can be placed in sleep mode by pressing the power button. When the unit is in sleep mode, the system is being suspended and it still consumes electricity. To completely turn off this unit, disconnect the AC cable. Deleting the setting information To change the registered user to another, this unit needs to be reset to its factory defaults. -
Page 18: Other Information
Other information How to display content on this unit To display still images and videos on this unit, the source files will need to be uploaded to the cloud server for View-topia via the dedicated web page or dedicated App. Then the uploaded files will be downloaded to each unit. -
Page 19: Specifications
Specifications Product specifications Screen size * 32 inches (Portrait/Landscape) Electronic power supply AC 100 - 240 V (up to 1.2 A) 50/60 Hz Resolution 1080×1920 (Full HD) Operable conditions Surrounding temperature: 1 - 40 °C Relative humidity: 20 - 80 % (No condensation) View angle 178°... -
Page 20: Troubleshooting
Troubleshooting Unit ■ Page to Symptom Where to check refer Unable to turn on the unit • Check to see if the AC plug is disconnected. • Check to see if the AC plug is connected to an outlet with voltage other than AC 120 V. -
Page 21: Unit Care
Unit care How to clean the unit Cleaning the body Disconnect the AC plug from the outlet and wipe the body with a dry, soft cloth designed to clean OA equipment, etc. Never use a highly volatile cleaner containing thinner, benzine, etc., chemical cloth, or air duster containing combustible material. - Page 22 Please contact us for any questions. BOE Japan Co., Ltd. Address Shinagawa East One Tower 4F 2-16-1 Konan, Minato-ku, Tokyo 108-0075, Japan Phone +81-3-6712-3960 Operating hours 09:00-18:00 (Mon. - Fri.) (Japan time) except for holidays, during the year-end and New Year holidays.
