Rico MD-BSW280 User Manual

280w moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

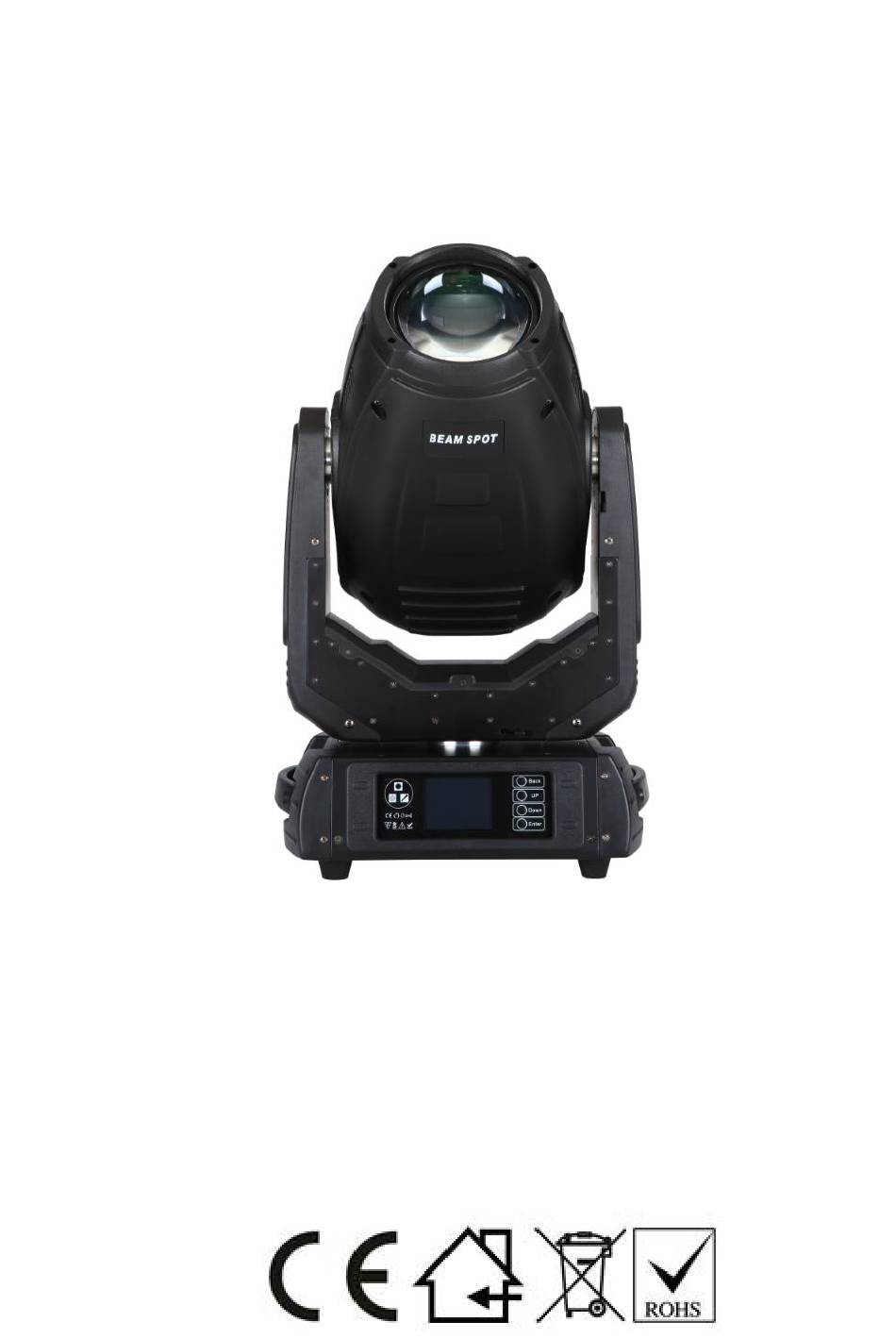

280W MOVING HEAD
User Manual
Please read this user manual before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD-BSW280 and is the answer not in the manual?

Questions and answers

Related Manuals for Rico MD-BSW280

Summary of Contents for Rico MD-BSW280

  • Page 1 280W MOVING HEAD User Manual Please read this user manual before using this product.
  • Page 2 INDEX STATEMENT ACCESSORIES SAFETY INSTRUCTION GENERAL GUIDELINES INSTALLATION TECHNICAL SPECIFICATION PHOTOMETRIC DIAGRAMS CONTROL SYSTEM PANEL OPERATION 1. B RIEF 2. O PERATION 1. O PERATE LIGHT WITH TOUCH OR ENCODER BUTTON 2. P ARAMETER VALUE SETTING 3. B OOLEAN PARAMETER SETTING （P ）...
  • Page 3 CHANNEL DESCRIPTION: CLEANING AND MAINTENANCE...

  • Page 4: Safety Instruction

    STATEMENT product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also cannot be responsible for any malfunction & problem owing to ignore the manual.

  • Page 5: General Guidelines

    GENERAL GUIDELINES  NEVER OPEN THIS FIXTURE WHILE IN USE!  During the initial operation of this fixture, a light smoke or smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.
  • Page 6 LOCATIONS ONLY on stage, in nightclubs, theatres, etc.  Please make sure there are NO FLAMMABLE MATERIALS close to the fixture while operating, to prevent any fire hazard.  The fixture must be installed in a location with adequate ventilation, at least 1.5 feet (.5m) from adjacent surfaces.

  • Page 7: Installation

    INSTALLATION C A U T I O N S  For added protection, mount the fixture in areas outside walking paths, seating areas, or in areas were unauthorized personnel might reach the fixture.  Ambient operating temperature range for this fixture is 5°...

  • Page 8: Clamp Mounting

    safety cable that can hold 12 times of the weight of the unit when installing the fixture. The equipment must be fixed by professionals. And it must be fixed at a place where is out of the touch of people Clamp mounting The moving head provides a unique mounting bracket assembly that integrates the bottom of the base, the included ‘Omega Bracket’...
  • Page 9 with XLR input and output connectors. Please refer to the diagram below. DMX-512 connection with DMX terminator: For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 10: Technical Specification

    TECHNICAL SPECIFICATION Light Sources: 280W(10R) Live Fsue:T5 A/250 Neutral Fuse: T5 A/250 Power Voltage: AC 100-240V, 50/60Hz Max Power Consumption：470W at 230V(I=2.05A,Power factor 0.96) Typical Power Consumption : 230W at 230V(I=1.8A, Power factor 0.95) Allow for a deviation of +/-10% Lamp: Lamp : Osram 280W Base Fap2.5...
  • Page 11 speeds Gobo wheels continuous rotation Glass gobos: outside diameter=15.9mm, image diameter=12.5mm, thickness=1.1mm Prisms: Rotation 6-facet linear prism with continuous rotation in both directions Rotation 16-facet circular prism with continuous rotation in both directions Frost filter : Separate, variable frost filter Zoom: Linear motorized zoom Strobe:...

  • Page 12: Photometric Diagrams

    Pan/Tilt Pan/Tilt: 540° / 270° Pan/Tilt Resolution: 16 bit, Electric correction Movement control: tracking and vector Pan/Tilt-lock mechanism Temperatures: Maximum ambient temperature : 45° Maximum surface temperature : 90° Minimum Distances: Min distance from flammable surface :1m Min distance to lit objects (Stand Mode-280W):10m Min distance to lit objects (Eco Mode-230W):7.5m Total Heat Dissipation: 1600 BTU/h (calculated)

  • Page 17: Control System

    CONTROL SYSTEM The DMX512 is widely used in intelligent lighting control, with a DMX 512 controller. Connect several lights together dmx in and dmx out, 3 pin XLR connectors: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal Panel operation Brief The light panel diagram show as Figure 1, Left area is TFT Displayer, support...

  • Page 18: O Peration

    Note: Prevent damage the touch or TFT displayer, Can not use sharp objects chick displayer. Figure 1 Panel diagram Operation 1. Operate light with touch or encoder button  The left area is TFT Displayer and touch, chick item or value with finger will to complete operation of set light setting(parameters) or view light state.

  • Page 19: B Oolean Parameter Setting

    Figure 2 will popup. Figure 2 Dialog of value setting  Modify value：Can quickly modify value via pull the slider to the desired position, or click the button of ‘up’ or ‘down’ whit finger on the right side to set the exact desired value, another way is roll encoder on the right hand side of panel.

  • Page 20: O Peration And Parameter Instruction

    4. Sub Menu（Parameter） Chick item of main menu, enter corresponding sub menu, shown in Figure 4, total 6 sub menu, includes class of parameter and status:  ADDRESS：Set light DMX address.  WORKMOD：Set light work mode, master or slave mode when in auto run mode.
  • Page 21 to corresponding sub menu(page) quickly. Set DMX Address Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the address code shouldn’t is not greater than (512- channels quantity), otherwise the light will not been controlled. Following is the operation: Enter the page of DMX address, as shown in Figure 5, click the blank area in right side of display will pop-up diglog as in Fig.
  • Page 22  SOUND Ctrl：Under this mode, light ignore data from DMX controller., When there is a strong sound in stage, the light will run a scene, otherwise it will keep the last scene.  M/S Choose：’M/S Choose’ is available when light just in ‘AUTO RUN’ or ‘SOUND Ctrl’...

  • Page 23: Test Light

     Touch enable：Disable or enable touch function, when disable, use encoder to operate light and set parameter.  Touch adjust：adjust touch function, normally, not enter this item. Figure7 page of display Test light Enter the page as shown in Figure 8, Light will into test mode, in this mode, the light does not receive the data for DMX controller.: ...

  • Page 24: S Et Light Run Parameter

    Figure 8 page of Test Set light run parameter Enter the page as shown in Figure 8, set the parameter of light:  Pan Invert: Reverse PAN move.  Tilt Invert: Reverse TILT mover.  Rectify enable：set as ‘OFF’, PAN or TILT will disable position rectify function.

  • Page 25: Channel Description

    View status Enter the page as shown in Figure 10:  View light current status, version；  DMXClr: Click to clear all DMX data to ‘0’.  SysRst：Click to reset light. Figure 10 page of status Channel description: Light support 2 DMX mode: 24ch (Standard) and16ch (sample), as shown in Table 1: Table 1 Channel brief MODE/CHS...
  • Page 26 0~89 none Blackout when color wheel 90~99 moving Blackout when gobos wheel 100~109 moving 110~119 Blackout when prisms moving Blackout when color, gobos, 120~129 Function prisms moving Reset 130~139 Lamp on（Over 3 seconds） Pan/Tilt （ Over Lamp Reset 140~149 seconds） Reset Effect motor (Over 3 150~189 seconds)
  • Page 27 84~92 Color 10（100%~10%） 93~101 Color 11（100%~10%） 101~110 Color 12（100%~10%） 110~119 Color 13（110%~10%） 119~129 White 130~134 Color 1 135~138 Color 2 139~143 Color 3 144~147 Color 4 148~152 Color 5 153~157 Color 6 158~161 Color 7 162~166 Color 8 167~171 Color 9 172~176 Color 10 177~180...
  • Page 28 Gobo Gobo 1 Wheel 10~15 Gobo 2 16~21 Gobo 3 22~27 Gobo 4 28~33 Gobo 5 34~39 Gobo 6 40~45 Gobo 7 46~51 Gobo 8 52~57 Gobo 9 58~63 Gobo 10 64~69 Gobo 11 70~75 Gobo 12 76~81 Gobo 13 82~87 Gobo 14 88~95...
  • Page 29 Forwards gobo rainbow from 202~221 slow to fast 222~223 stop Backwards gobo rainbow from 224~243 fast to slow Auto gobo selection from fast to 244~255 slow Rot.gobo Index White Gobo 1 8~10 Gobo 2 11~13 Gobo 3 14~16 Gobo 4 17~19 Gobo 5 20~22...
  • Page 30 60~67 Gobo 1 Shake (slow to fast) 68~75 Gobo 2 Shake (slow to fast) 76~83 Gobo 3 Shake (slow to fast) 84~91 Gobo 4 Shake (slow to fast) 92~99 Gobo 5 Shake (slow to fast) 100~107 Gobo 6 Shake (slow to fast) 108~115 Gobo 7 Shake (slow to fast) 116~123...
  • Page 31 Gobo rotation No rotation Forwards gobo rotation from fast 1~127 to slow 128~129 No rotation Backwards gobo rotation from 130~255 slow to fast Rot.gobo indexing androtation-fine ---- 0~255 Fine indexing (rotation) 0~19 Open position (hole) 6-facet linear rotating prism 20~49 -indexing 6-facet linear rotating prism- 50~75...
  • Page 32 208~215 Macro 11 216~223 Macro 12 224~231 Macro 13 232~239 Macro 14 240~247 Macro 15 248~255 Macro 16 Rot.Prism Index 0~255 0~200 degree Rot.Prism rotation No rotation Rot.Prism Forwards prism rotation from 1~127 fast to slow 128~129 No rotation Backwards prism rotation from 130~255 slow to fast Open...

  • Page 33: Cleaning And Maintenance

    reduced to 230W) 32~63 Shutter open, Full lamp power 64~95 Strobe-effect from slow to fast 96~127 Shutter open Opening pulse in sequences 128~159 from slow to fast 160~191 Shutter open Random strobe-effect from slow 192~223 to fast 224~255 Shutter open, full lamp power Dimmer intensity from 0% to 0~255 Dimmer...
  • Page 34 environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics.  Clean the external lens surface at least every 20 days with a soft cloth to avoid dirt/debris accumulation. ...
