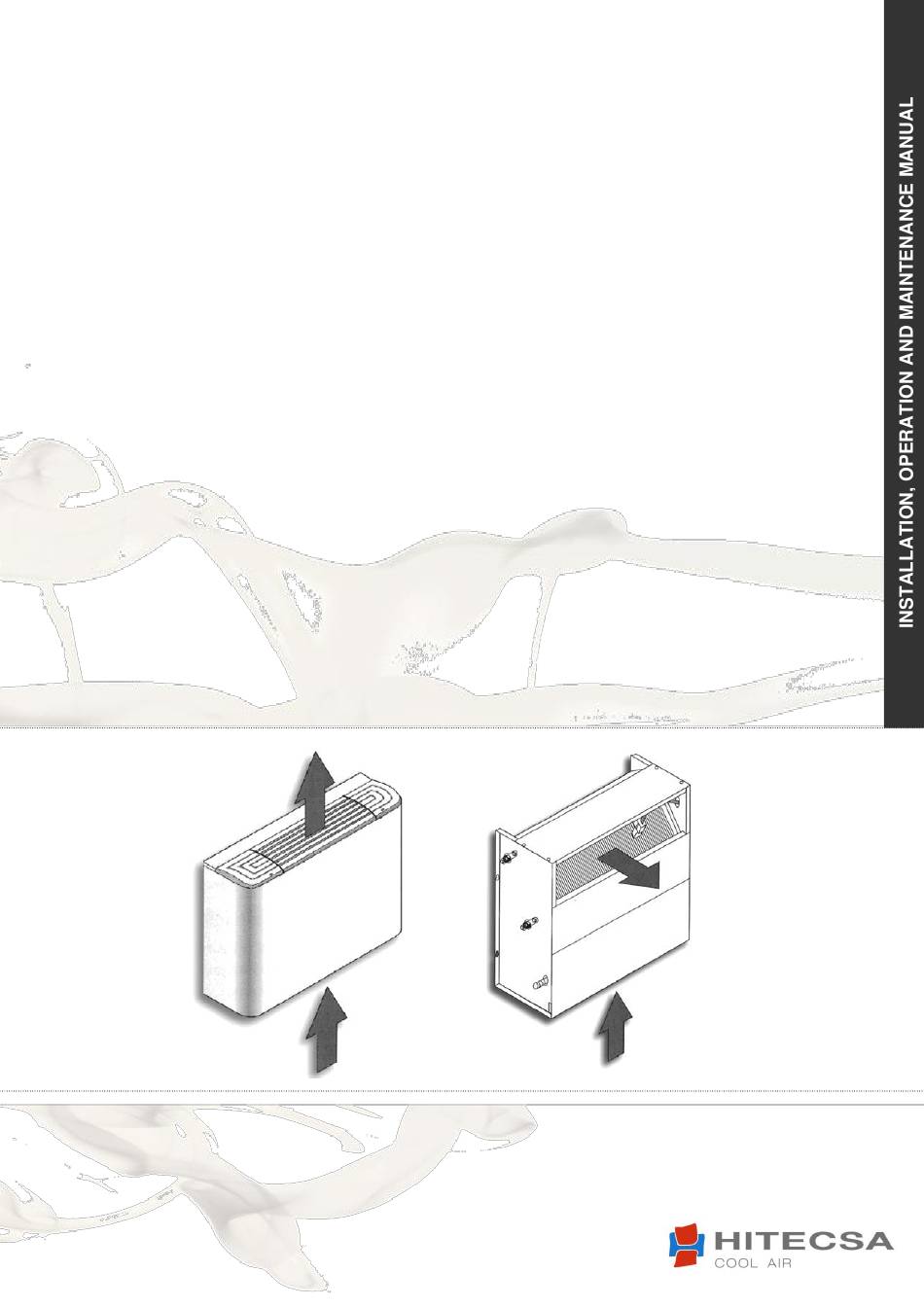

- Page 1 FCW / FCCW Bomba de calor CENTRIFUGAL FAN COIL UNITS With or without cabinet 10 │ 20 │ 30 │ 40 │ 50 │ 60 │ 70 │ 80 │ 90 │ 100 │ 110 │ 120 Models: IOM_FCW-FCCW_10a120_207995_181001_EN...
- Page 2 Thank you for trust in Hitecsa Product. From our company we are offering to the market, for more than 30 years, an extended range of specialized units for air conditioning and cooling installations. Our approach is based in efficiency, flexibility, manageability and practical solutions. It has built a hallmark of our product catalogue.
-
Page 3: Table Of Contents
FCW - FCCW INTRODUCTION ............................. 4 RECOMMENDATIONS ..........................4 TRANSPORTATION, RECEIVING, HANDLING ................... 5 SAFETY RULES ............................5 GENERAL DIMENSIONS .......................... 6 GENERAL TECHNICAL DATA ........................6 MAIN PARTS ............................7 RECOMMENDATIONS FOR INSTALLATION ..................... 7 FAN COIL INSTALLATION ........................8 WATER CONNECTIONS ........................... -
Page 4: Introduction
INTRODUCTION This installation, operation and maintenance booklet should always accompany the fancoil ready consultation by the installer or user if necessary. The appliance should be installed in compliance with regulations in force in each country and according to the manufacturer’s or qualified installer’ instruction. The manufacturer cannot be held liable for any damage to property or injury to persons and animals caused by incorrect installation of the appliance. -
Page 5: Transportation, Receiving, Handling
TRANSPORTATION, RECEIVING, HANDLING The appliance is dispatched enclosed in special protective packaging, which should be kept intact until the appliance is positioned in the final place of installation. The appliance should be handled with extreme care, always keeping it in its original packaging. One pallet may hold 11 fan coils model 10-60 (9 in vertical + 2 in horizontal) or 9 fan coils model 70-90 (9 in vertical). -
Page 6: General Dimensions
GENERAL DIMENSIONS * NOTE: dimensions referred to the units with left side water connections GENERAL TECHNICAL DATA IOM_FCW-FCCW_10a120_207995_181001_EN... -
Page 7: Main Parts
MAIN PARTS RECOMMENDATIONS FOR INSTALLATION Before installing the appliance, ensure that: 1) The place of installation has sufficient space for carrying out installation as well as routine and extraordinary maintenance work (see Pic. 4). 2) There are no obstructions for air intake and delivery. 3) The water connections are of the sizes, in the position and spaced apart as required by the appliance (see Dimension). -
Page 8: Fan Coil Installation
FAN COIL INSTALLATION Before installing the appliance, remove the housing (if present). Raise the flaps covering the control panel and the water connections. Remove the two screws fixing the housing to the fan coil load-bearing structure. Gipping the rear of the housing, remove it as shown in the Pic. 5 (NOTE: be careful of the lugs on the front part of the load-bearing structure, as shown in Pic.10). -
Page 9: Water Connections
To replace the housing. Take the cabinet from the packing box. Standing in front of the fancoil, lift cabinet, holding it by the sides, and tilt it (Pic. 10). Insert the lugs A into the relative slots B (Pic.11). Pivot the cabinet on its base until it is aligned with the wall. -
Page 10: Condensate Water Drainge
Connect the water inlet and outlet pipes, observing the indications given on the side of the appliance. Correctly insulate the water supply pipes to prevent dripping during the cooling mode of operation. A shutoff valve should be inserted on the water supply pipe and balancing valve on the outlet pipe. The valve body and balancing valve should also be properly insulated to prevent dripping. -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS Before carrying out electrical connections, ensure that the electricity supply to the supply line has been cut off, checking that the on-off switch is in the OFF position. Only qualified electricians should carry out the electrical connections. Check that the mains supply is single-phase 230 Vac/1/50 Hz (± 10%). Operating the appliance with voltages outside the above limits could cause malfunction and renders the warranty null and void. -
Page 12: Changing The Motor Speeds Of Rotation
CHANGING THE MOTOR SPEEDS OF ROTATION The fan coil motor has 6 speed settings, 3 of which are connected in the factory (red, blue and black wires connected to the motor auto-transformer). To use other speeds than those wired up in the factory, the red (minimum), blue (medium) and black (maximum) wires may be connected onto 3 of the 6 numbered terminals (1…6), taking into account that the speeds follow a sequence as shown in Pic. -
Page 13: Testing The Fancoil
TESTING THE FANCOIL Upon completion of installation, scrupulously check both the water and the electrical connections before switching on the appliance. Before mounting the housing (if present), fill the system, bring it up to pressure and bleed. Make the water circulate and check for leaks. Check correct operation of the fan coil at the 3 speeds, of the solenoid valves and of the minimum temperature thermostat (if installed). -
Page 14: Using The Appliance
10. Reconnect the wires to the relative terminal blocks or control panel (2), taking care that they are correctly positioned. 11. Replace the condensate collecting tray (4) in horizontal models or the galvanized panels in vertical models. 12. Remount the housing (if present). USING THE APPLIANCE This appliance should only be used by adults. -
Page 15: Using The Control Panel
USING THE CONTROL PANEL If the appliance has a built-in control panel, raise the flap and proceed as follows. Heating mode Put the season selector switch from the off position ( ) to the winter position ( ). The fan starts. In models with minimum temperature thermostat (optional), the fan starts when the internal heat exchanger is sufficiently hot. -
Page 16: Cleaning And Maintenance
CLEANING AND MAINTENANCE The appliance requires no periodic maintenance. Simple checks by the user to keep it in perfect working order are, however, necessary. ATTENTION! Before carrying out any cleaning or maintenance work, disconnect the appliance from the mains electricity supply! CLEANING THE AIR FILTER The appliance is fitted with an air filter on the fan inlet. -
Page 17: Cleaning The Housing And The Control Panel
CLEANING THE HOUSING AND THE CONTROL PANEL To clean the housing, use a dry soft cloth to avoid scratching the enamel. To clean the control panel and the air outlet louvers, use a vacuum cleaner fitted with a soft dusting tool or use a separate brush. - Page 18 HIPLUS AIRE ACONDICIONADO S.L. Masia Torrents, 2 Tel. +34 93 893 49 12 Fax. +34 93 893 96 15 08800 Vilanova i la Geltrú Barcelona, España www.hitecsa.com IOM_FCW-FCCW_10a120_207995_181001_EN We reserve the right to make modifications without prior notice...
