User Manual
Green Field
Irrigation Controller
Ag/MIS/UmEN-2732-05/19 Rev 1.1
116782
Green
Field

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Green Field and is the answer not in the manual?

Questions and answers

Related Manuals for Munters Green Field

Summary of Contents for Munters Green Field

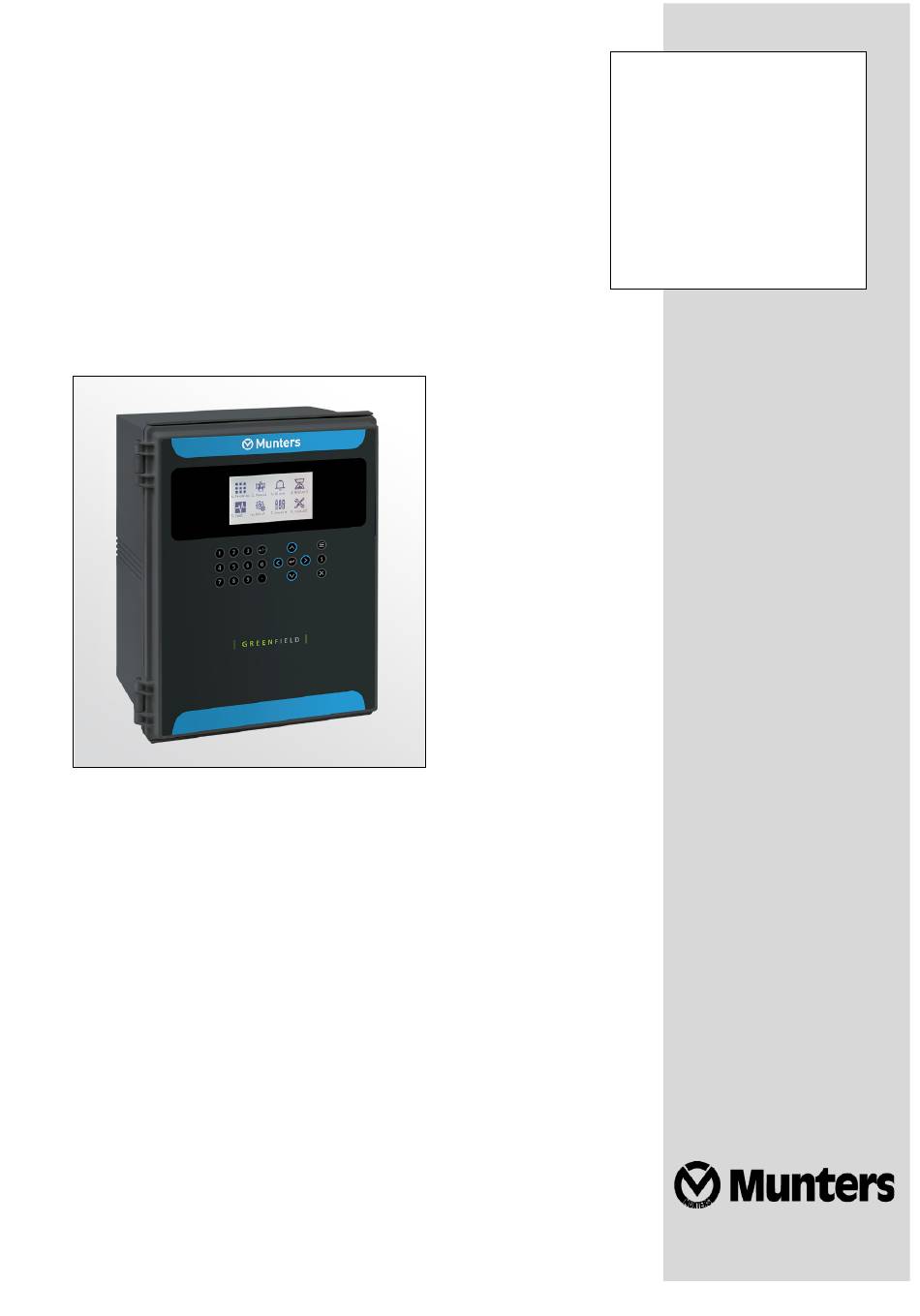

  • Page 1 Green Field User Manual Green Field Irrigation Controller Ag/MIS/UmEN-2732-05/19 Rev 1.1 116782...
  • Page 2 Munters reserves the right to effect modifications to the apparatus in accordance with technical and legal developments. © Munters AB, 2018...

  • Page 3: Table Of Contents

    3.4.2 Configuring the Analog Sensors ....................3.5 Irrigation Based on Radiation Sum ------------------------------------------------------------------------------------------------------------------------ 3.6 Irrigation Based on VPD Sum ----------------------------------------------------------------------------------------------------------------------------------- 3.7 Introduction to the Influence Program ------------------------------------------------------------------------------------------------------------------ 3.8 Using the Influences ------------------------------------------------------------------------------------------------------------------------------------------------------- 3.8.1 Setting the Influences ........................© Munters AB, 2018...
  • Page 4 6.2 RAD. & VPD SUM & DRAIN LOG ------------------------------------------------------------------------------------------------------------------------- 6.3 Uncompleted Irrigation ------------------------------------------------------------------------------------------------------------------------------------------------- 6.4 Uncompleted Programs ------------------------------------------------------------------------------------------------------------------------------------------------ 6.5 Daily Irrigation ------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.6 Irrigation Accumulation ------------------------------------------------------------------------------------------------------------------------------------------------ 6.7 Aux Meter Accumulation -------------------------------------------------------------------------------------------------------------------------------------------- 6.8 Accumulation Reset --------------------------------------------------------------------------------------------------------------------------------------------------------- 6.9 Filters --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.10 Cooling ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- © Munters AB, 2018...
  • Page 5 6.11 Sensor Log --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.12 Event Log ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 6.13 System Log --------------------------------------------------------------------------------------------------------------------------------------------------------------------------- WARRANTY ------------------------------------------------------------------------------------------------------------------------------------------------- 66 © Munters AB, 2018...

  • Page 6: Introduction

    The information contained herein has been prepared by qualified experts within Munters. While we believe the information is accurate and complete, we make no warranty or representation for any particular purposes. The information is offered in good faith and with the understanding that any use of the units or accessories in breach of the directions and warnings in this document is at the sole discretion and risk of the user.

  • Page 7: General Information

    Main Menu. There are 10 Hot Screens/Keys: 0: Hot Key- Icon of active actions/processes • 1: Main Screen/System Status • 2: Irrigation Process • 3: Irrigation Program Status • 4: Water, EC/pH, Dosing • © Munters AB, 2018...

  • Page 8: Main Menu Icons

    • o Up to eight dosing channels per program o Each channel can be defined by: Quantity Proportional Quantity Time Proportional Time Irrigation Timing Based on External Condition Programs • o Supports up to 15 programs © Munters AB, 2018...

  • Page 9: Operation Mode

    OPERATION MODE WRONG PASSWORD Please Try Again. The Operation mode can be configured to automatically return to the “Read-Only” mode after a certain amount of time. NOTE Refer to the SYSTEM SETUP section in the Installation Manual. © Munters AB, 2018...
  • Page 10 To perform a cold start or firmware upgrade, the controller must be in the “Technician” • mode. If there is a power failure, the controller powers up with the last used mode. • NOTE The Return period parameter format is HH:MM. The minimum period is one minute. © Munters AB, 2018...

  • Page 11: Program Menu

    To set the irrigation Run Time: 1. Go to Program > Water Run Time. 2. Select QTY or TIME. 3. Enter the water quantity/total run time. 4. Enter the Before and/or After quantity/time (optional). 5. Repeat as required for each program. © Munters AB, 2018...

  • Page 12: Dosing Program

    For every irrigation program, define a Dosing Program that defines the quantity of fertilizer per channel and its delivery method. You can define up to 10 Dosing Programs. NOTE If there is more than one fertilizer tank for the selected dosing channel, refer to Selector, page 42. © Munters AB, 2018...

  • Page 13: Proportional Quantity

    Proportional Time takes the required dosing time and spreads out each dose over the irrigation program in one of two manners: Open/close pulses per channel • Continual flow controlled by analog output • NOTE Refer to the Installation Manual for more details on configuring the method. © Munters AB, 2018...

  • Page 14: Time

    When using the Time delivery method, fertilizer is injected once, for the length of time defined in this screen. DOSING PROGRAM Program: INJECTION PER DOSING CHANNEL ACID 00:10 00:00 0.00 P. QTY EC Dosing Method P.TIME P. TIME PH Dosing Method P.QTY TIME QTY. © Munters AB, 2018...

  • Page 15: Quantity

    Proportional Time. In this method, fertilizer is spread out by quantity over the irrigation run time. Example: Channel 1 = P1 + P2 + P3…+ Pn = 4 liters NOTE The example below shows liters; in the USA use gallons. © Munters AB, 2018...
  • Page 16 5.00 2.00 EC Dosing Method QTY. PH Dosing Method QTY. When installing the Green Field Controller, the installation technician selects the required option. The user defines the quantity in the above screen. Main 7. Dosing Configuration Menu Define DOSING CONFIGURATION...

  • Page 17: Example Of Dosing By Quantity (Spread)

    EC Dosing Method P.QTY PH Dosing Method P.QTY **Channel 3 (Acid channel): pH is controlled at 5.50. To keep pH levels on target, the Pulse width (meaning the quantity in each pulse) fluctuates according to controller calculations. © Munters AB, 2018...

  • Page 18: Ec Pre-Control

    NOTE An EC Pre-Control valve relay must be defined by a technician at installation. EC Pre-Control ON (this enables the DOSING PROGRAM control) Program: EC Pre-Control: INJECTION PER DOSING CHANNEL ACID 2.00 5.00 3.00 Target EC 1.50 Target PH 5.50 EC Dosing Method P.QTY PH Dosing Method P.QTY © Munters AB, 2018...

  • Page 19: Irrigation Program

    If you enter one time, the time period is 24 hours, starting from the time entered. o If you enter two times, the first period goes from first time defined until the second time. The second period then starts and continues until the first time. For example in the screen © Munters AB, 2018...
  • Page 20 Dose/Water: For each day define the irrigation regime (refer to Configuring the Irrigation • Calendar, page 25). Irrigation Adjustments: Along with irrigation programs based on time, Green Field enables • adjusting or running irrigation based on the following: o Adjusting the Water Quantity Based on Weather Conditions, page 24...

  • Page 21: Setting Valve Sequence

    In this example, two valves operate simultaneously (valves operating together is a called a group). All other specifications are the same as those found in Example 1. NOTE Valves in the same group must have the same run time. © Munters AB, 2018...
  • Page 22 (C2), with a break of one hour between cycle start times. Cycle 3 (C3) begins at 10:30. In this cycle, there is a 30 minute break between cycles (C4). The process continues as shown in the graph below. © Munters AB, 2018...
  • Page 23 DATE : 19-Apr-07 TIME : 16:12:32 IRRIGATION PROGRAM Program: 4 Priority: Const. Start Time 08:00 10:30 12:30 Clock Start Min. Time 01:00 00:30 01:00 Valve # 001 + 002 003 Run Time # Dosing Prog Day: 01/03 Dose/Water © Munters AB, 2018...

  • Page 24: Adjusting The Water Quantity Based On Weather Conditions

    EATHER ONDITIONS The Green Field Controller enables you to manually increase or decrease the quantity of water on any given day. Depending on the weather conditions, you can change the quantity of water emitted from valves without changing the program.

  • Page 25: Configuring The Irrigation Calendar

    3.3.3 C ONFIGURING THE RRIGATION ALENDAR Green Field enables scheduling irrigation programs by: Daily calendar • Irrigation by dosing or water • When setting up a schedule, configure the following: Day: X/Y • o X represents the first day that the cycle begins. For example, if you want to define the first day of the cycle as day 4, define X as 4.
  • Page 26 Only If On: Used when there is one switch only. Irrigation continues as long as switch remains on Green Field supports up to 15 extension programs defining which trigger initiates irrigation. In each program, the start and stop trigger must be the same type (meaning both must be dry contact or analog sensor).

  • Page 27: Setting The Dry Contacts

    Dry Cont. Dry Con 1 Dry Con 2 <NONE> Shot <NONE> <NONE> <NONE> <NONE> Shot <NONE> <NONE> <NONE> <NONE> Shot <NONE> <NONE> <NONE> <NONE> Shot <NONE> <NONE> <NONE> Example of Tank Filling: Water Tank with Floats © Munters AB, 2018...

  • Page 28: Configuring The Analog Sensors

    --:-- <NONE> Ana. Sen 3 --:-- <NONE> --:-- --:-- <NONE> Ana. Sen 4 --:-- <NONE> --:-- --:-- <NONE> Ana. Sen 5 --:-- <NONE> --:-- --:-- <NONE> Ana. Sen 6 --:-- <NONE> --:-- --:-- <NONE> --:-- <NONE> © Munters AB, 2018...
  • Page 29 In the examples given above, irrigation has been set to start when the analog input is greater than 25 and irrigation stops when the input is 20. Oper. to Start and Oper. to Stop require a logical operation. The following table defines these symbols: © Munters AB, 2018...

  • Page 30: Irrigation Based On Radiation Sum

    3.5 Irrigation Based on Radiation Sum Green Field enables setting an irrigation trigger based on a radiation sum limit (joul/cm² = energy). When using this option, set the following: Start Time: Start Time is when the unit begins measuring radiation levels to implement the •...
  • Page 31 In the example below, between 8:00 – 10:00, the Radiation Sum Limit is 300; between 10:00 – 16:00 the limit is 150. Since during the afternoon hours there is a greater amount of sunlight, the user lowered the limit to ensure that they receive sufficient amounts of irrigation. © Munters AB, 2018...

  • Page 32: Irrigation Based On Vpd Sum

    3.6 Irrigation Based on VPD Sum Green Field enables setting an irrigation trigger based on Vapor Pressure Deficit (kPa•min). The Vapor Pressure Deficit (VPD) is a measurement which incorporates both the relative humidity (RH) and the temperature. When the VPD is high, that means that the RH is low or the temperature is high. Irrigation begins when the VPD reaches the user-defined limit.

  • Page 33: Introduction To The Influence Program

    Several Influences adjust the EC setting. The final adjustment amount is based on the sum total • of the different Influences. You enter up to three points for each Influence setting. Green Field automatically calculates the • curve based on these points.
  • Page 34 Example: As sunlight increases, a crop needs lower EC levels. The following screen illustrates increasing in the EC based on radiation. Since Green Field calculates the decrease in EC proportionally, there will be a 15% decrease when the radiation reaches 600 w/m2.
  • Page 35 Define the RadS percentage set points. 6. Set ACTIVE/SOURCE to Yes. 7. Press and confirm changes. Example: A user set irrigation to be triggered by the radiation sum. As can be seen, the increases are not proportional. © Munters AB, 2018...
  • Page 36 , define the drainage meter’s Ratio Liter/Pulse. Program > Irrigation 4. In , select Drain/MinT. a. Define the Drainage percentage set points. b. Define the MinT percentage set points. 5. Set ACTIVE/SOURCE to Yes. 6. Press and confirm changes. © Munters AB, 2018...
  • Page 37 EC level. This can be used, for example, to lower the EC input if EC levels in the drainage are above specifications. To set the EC Drainage Influence on the EC: Installation > Analog 1. In Input: a. Define a sensor as EC. b. Define a sensor as EC drain. © Munters AB, 2018...
  • Page 38 Example: A user wants to maintain an EC level of 1.5. To this end, he measures the drainage EC. When the drainage EC falls below 1.5, he increases the EC input. As it rises above 1.5 ms/cm, he decreases the input. © Munters AB, 2018...
  • Page 39 Set the Target EC. b. Set EC Dosing Method to Qty. Example: A grower wants to lower the EC as the kPa decreases. He sets this screen to reduce the increase in EC to match the decreasing VPD levels. © Munters AB, 2018...
  • Page 40 Target EC. b. set EC Dosing Method to Qty. Example: A grower’s flower crop requires higher EC levels when the temperature goes above room temperature 22° C). Using this screen, he can adjust the levels accordingly. © Munters AB, 2018...

  • Page 41: Agitator

    AGITATOR more than one agitator simultaneously mm:ss mm:ss Select Serial if not • Dosing Active 01:00 05:00 Dosing Not Active 05:00 60:00 enough power to operate Operation Mode Serial more than one agitator at a time © Munters AB, 2018...

  • Page 42: Selector

    Missing Pulses For No Flow Stop System Cons. Flow Alarms # of Irrig. Without Drainage Low Pressure Alarm (bar) No. Of Short Circ. To Pause NOTE See graph on next page for further information on these fields. © Munters AB, 2018...
  • Page 43 Set to give signal after XX flushes. If Delta Pressure still indicates a Delta Pressure Reiteration blockage, an alarm will be raised. Open main filter valve before flush to balance pressure for a reliable Dwell Time Main flushing process. © Munters AB, 2018...

  • Page 44: Cooling

    (to reduce temperature, increase humidity.) 8. Cooling Set On/Off time and select sensors 1. Program Temp. Sens. 1 +1 of each sensor: uses average of both Hum. Sens. 1 © Munters AB, 2018...
  • Page 45 Off time can be controlled according to temp. Program: 1 Status: Cooling High temp.= less off time Below RH Low temp.= more off time 00:00:10 00:00:10 00:00:10 00:00:10 Cool# Temp. Sens.: 1 2-- Hum. Sens.: 1 2 © Munters AB, 2018...

  • Page 46: Misting

    Heating From Time 08:00 1. Program To Time 16:00 Water Temperature 20.0 Difference Define • Temp. Sensor #1 Start/End Temp. Sensor #2 time Define Water • Temp. ± Difference (dead band) to stop Define • sensors © Munters AB, 2018...

  • Page 47: Manual Menu

    ACTIVE IRRIGATION ACTUAL LEFT CYCLE WATER 00:15:00 00:01:00 00:14:01 FLOW 100.000 0.000 STATUS ACTIVE PROGRAM: PAUSE  IRRIGATION 15:38:16  DOSING VALVE: 1 25-Apr-07  FILTER 3 MESSAGES  COOLING (2) EC Low Valve #1  ALARM © Munters AB, 2018...

  • Page 48: Start/Stop Program

    Use this screen to manually start/stop a valve. 3. Start/Stop Select Valve and corresponding Run Valve Time/Dosing program 2. Manual Menu To resume, reverse steps above and START/STOP VALVE select NO Valve Run Time # Dosing Program © Munters AB, 2018...

  • Page 49: Manual Filter Flush

    NOTE "All Filters" means all filters; however one only one filter is flushed at a time. NOTE Filter flush process can start only after main water line is full. Default time is one minute as shown in picture below (see Menu 3.3). © Munters AB, 2018...
  • Page 50 Dosing Channel Leak Delay(s) Dosing Channel Leak (Pulse) Dosing Flow Difference (%) Missing Pulses For No Flow Stop System Cons.Flow Alarms # of Irrig. Without Drainage Low Pressure Alarm (bar) No. Of Short Circ. To Pause © Munters AB, 2018...

  • Page 51: Alarm Menu

    5 Alarm Menu The Alarm Menu is used to control the Green Field’s alarm functions. Reset, page 51 • Alarm History, page 52 • Alarm Definition, page 52 • Alarm Setting, page 54 • EC/pH Alarm Definition, page 55 •...

  • Page 52: Alarm History

    NOTE The system logs up to 250 alarms. 5.3 Alarm Definition Use this function to define the system alarm thresholds. NOTE EC/pH thresholds are defined in EC/pH Alarm Definition, page 55. 3. Alarm Define trigger: deviation from target pressure, Definition flow… 3. Alarm © Munters AB, 2018...
  • Page 53 Stop System Cons. Flow Alarms Short Output Level (60-350) # of Irrig. Without Drainage Short O. Level EXP1 (60-350) Low Pressure Alarm (bar) Short O. Level EXP2 (60-350) No. Of Short Circ. To Pause Short O. Level EXP3 (60-350) © Munters AB, 2018...

  • Page 54: Alarm Setting

    D. Ch. Fault STOP STOP 01:00 Ext. Pause PAUSE IRRIG. 00:30 Alarm output activation: YES/NO • D. Boos.Prot. CONT. STOP 01:00 (siren, light). Low Pressure STOP STOP 01:00 R.U. Error STOP STOP 01:00 Host Error STOP STOP 01:00 © Munters AB, 2018...

  • Page 55: Ec/Ph Alarm Definition

    RADIO SYS. ALARM DEFINITION Definition Delay Active Inform 3. Alarm Alarm Type mm:ss Vbatt failure 00:00 Vbatt low 00:00 Vbatt warn 00:00 Cap failure 00:00 Card failure 00:00 I/O Open 00:00 I/O Shor 00:00 HOST Over current 00:00 © Munters AB, 2018...

  • Page 56: Radio System Alarm View

    PRIORITY: Send an SMS for this alarm as soon as it appears regardless of “Send Period” time • constraints NOTE Refer to the SETUP section (Menus 6.11-6.13) in the Installation manual for more information on the SMS feature. © Munters AB, 2018...

  • Page 57: History Menu

    6 History Menu The History Menu consists of read-only screens detailing the system's history data (measurements, settings, processes, events, graphs and so forth). The History Menu provides extensive information regarding measurements and processes performed by the Green Field. SENSORS LOG Sensor Time Avg.

  • Page 58: Irrigation Log

    Dosing quantities per channel (liter or gallon) or dosing time. EC Low Lowest EC value recorded during irrigation. EC Avg. Average EC value recorded during irrigation. EC High Highest EC value recorded during irrigation. pH Low Lowest pH value recorded during irrigation. © Munters AB, 2018...

  • Page 59: Rad. & Vpd Sum & Drain Log

    The Uncompleted Irrigation table provides information of irrigations that were started but could not be completed due to a failure. To understand why irrigation was not completed, it is advisable to cross- reference between this table and the Alarm Definition in section 4.3. The Uncompleted Irrigation table © Munters AB, 2018...

  • Page 60: Uncompleted Programs

    ‘+’ sign is added next to it to indicate that more valves are associated. The Green Field will attempt to complete the irrigations from the current day (until end day time) upon manual or automatic alarm reset.

  • Page 61: Daily Irrigation

    19.06 19.97 18.12 (liter or gallon). To 25.25 26.01 24.49 0.00 0.00 0.00 toggle the view 0.00 0.00 0.00 between quantities Press +/- to Toggle Quantity/Time and time, press the ‘+/-‘ key © Munters AB, 2018...

  • Page 62: Irrigation Accumulation

    To reset an auxiliary meter refer to the 2.200 20-Dec-06 2.500 20-Dec-06 ACCUMULATION {XE "Reset Total Quantity" } 3.450 20-Dec-06 table below. 3.600 20-Dec-06 5.700 20-Dec-06 4.200 20-Dec-06 The quantities displayed are in liters (gallons) up to 9999.999. © Munters AB, 2018...

  • Page 63: Accumulation Reset

    NOTE When resetting an Aux meter (or all Aux meters), its history will be erased from the Aux Meter Accumulation table. 6.9 Filters The filters history table provides daily information of the number and cause of flushing. FILTERS Date Delta P. Time Manual 10/Aug 9/Aug 8/Aug © Munters AB, 2018...

  • Page 64: Cooling

    For example: logging of two sensors uses four data fields; two for time and date and one for each sensor. In this case, the table will consist of a maximum of 2,500 lines. © Munters AB, 2018...
  • Page 65 6.12 Event Log The table provides information of all the processes performed by the Green Field including their time and date. EVENT LOG Event Date Time Water Leak # 4 20/Dec 09:01 Program # 1 Manual On 20/Dec 09:03 Valve #51 Manual Off...
  • Page 66 12 months of the delivery of the defective product. Munters has thirty days from the date of receipt in which to take action, and has the right to examine the product at the customer’s premises or at its own plant (carriage cost to be borne by...
  • Page 67 The use of non-original spare parts or incorrect assembly exonerates the manufacturer from all liability. Requests for technical assistance and spare parts can be made directly to the nearest Munters office. A full list of contact details can be found on the back page of this manual.
  • Page 68 Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Lansing, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone +86 10 80 481 121, Denmark Munters A/S, Phone +45 9862 3311, India...
