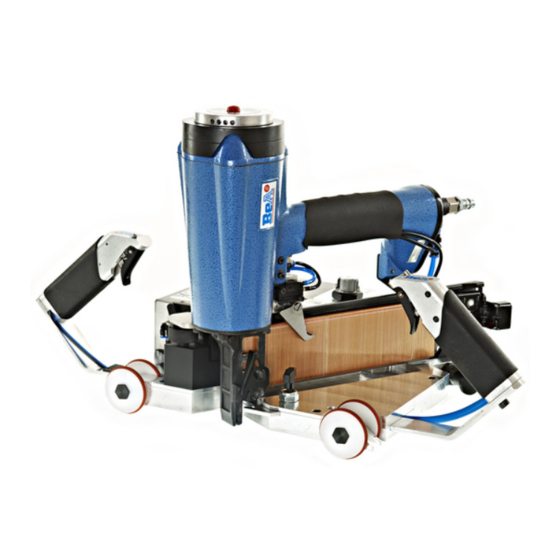

BEA 14412430 Instruction Manual

Skater
Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual
Skater

Advertisement

loading
Need help?

Need help?

Do you have a question about the 14412430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA 14412430

Summary of Contents for BEA 14412430

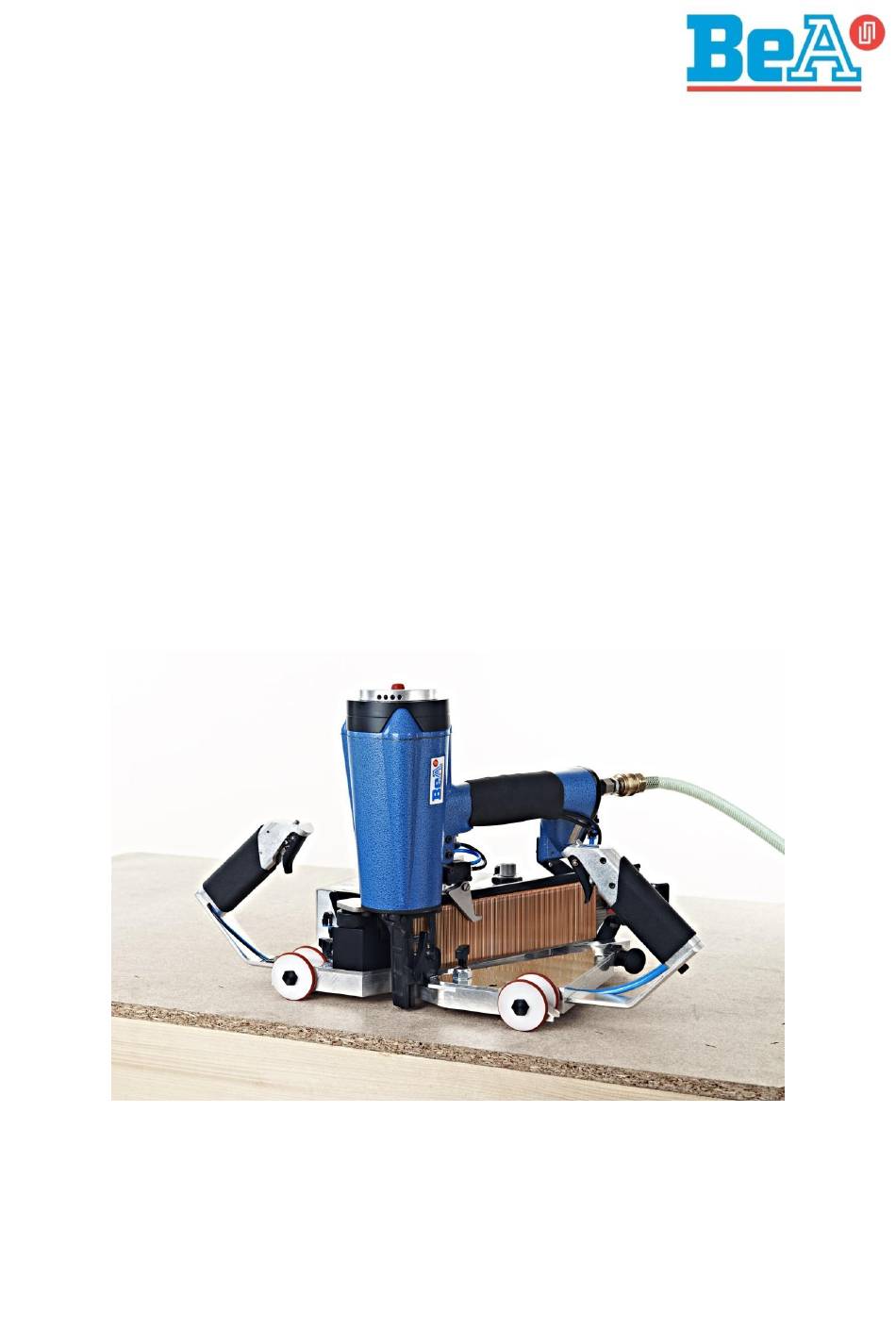

  • Page 1 Instruction Manual Skater...
  • Page 2 - 1 -...
  • Page 3 Description Single shot button Switch for two different stapling distances Handles Long handle support Butterfly screw for extendable handle Clamp screw for height adjustment Height adjustment screw Magazine Extendable handle Empty shot control Protector Butterfly screw for edge guide Aiming device Control wheel Safety wheel Main handle...
  • Page 4 Setting the stapling distance The stapling distance can be varied by the alternative use of either one cam (17) or two cams or three cams or four cams or five cams. The control wheel comes with threaded holes which are in a circular alignment. The cam or cams (17) must be screwed (18) into these holes by always keeping the same gap between each other.

  • Page 5: Height Adjustment

    To avoid accidentally firing when moving the skater on the board, all handles (3) are equipped with a safety stop (19). Only when the safety stop is pressed the trigger can be used. When the trigger is not in use the safety stop moves back in its position.
  • Page 6 Available staplers for the skater Tool: 14/65-830 Skater Tool: 180/65-835 Skater Article code: 12000624 Article code: 12000624 Staple type: 14,155 and 16 up to 65 mm Staple type: 180 up to 65 mm Tool: 800DC Skater Article code: 12000629 BDC 2.5 – 3.1 from 60 – 65 mm Staple type: Important!!! For lengths greater than 65 mm only 2 shots per second are possible...

  • Page 7: Mounting The Accessories

    Mounting the accessories Long handle Before attaching the long handle disconnect tool from the air supply. Remove the plug (26) from the air connection B (28) and store safely in (30) on the long handle support. Insert the long handle into the long handle support (4) until the holding bolt (29) snaps Connect the black hose to the connector A (27) and the blue hose to the connector B...
  • Page 8 Spare part list Skater (Article code: 14412430) distance switch siehe Seite 9 13301137 29 spiral pin 14509166 41 angular side part 14412354 13301138 lock nut 13300436 13303014 31 base 14412304 42 cover plate 14412360 13300438 18 3/2-control valve 13301453 43 cover...

  • Page 9: Single Shot

    Handle retain ring 13300346 pressure spring 13300948 13302779 allan screw 13301096 Fitted screw 13303888 lever 14412317 dowel 14412318 trigger 14412320 roller lever valve 13301457 10 valve handle bolt 14403761 11 handle isolation 15500680 12 label BeA 14403742 - 8 -...
  • Page 10 Distance switch screw nut 13009825 o-ring 13300005 13300007 compression piece 13303890 push-in connector 14000294 14000295 valve body 14412355 valve spool 14412356 Extended trigger handle allan screw 13301137 countersunk screw 13301260 spiral pin 14509166 long lever holder 14412315 cover sheet 14412316 handle on page 8 Wheel rocker 2...

  • Page 11: Side Plate

    Wheel rocker 1 retain ring 13300351 13303894 lock nut 13300436 13300437 ball bearing 13300642 allan screw 13301096 13301107 13301244 13302942 countersunk screw 13301271 13301273 10 screw nut 13301355 12 leg spring 13303889 14 valve 14001588 15 wheel 1 14412331 16 surface 14412333 17 shaft 1 14412334...
  • Page 12 DECLARATION OF CONFORMITY BeA Skater The manufacturer, importer of pneumatic fastener driving tools, the company Joh. Friedrich Behrens AG, Bogenstraße 43-45, 22926 Ahrensburg Germany Declares under sole responsibility that the product to which this declaration relates, is in conformity with the following standard: EN 12100 - 2011 "Safety of Machinery"...
