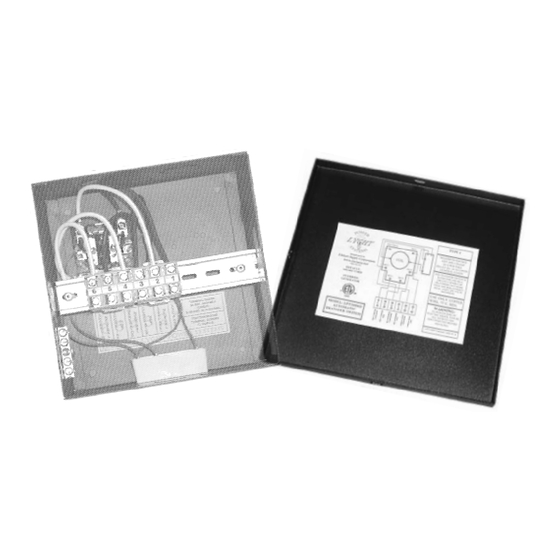

MODEL # LPT30BRD
120VAC
30 AMPS/POLE
AUTOMATIC TRANSFER SWITCH
AUTOMATICALLY SWITCHES FROM POWER CORD TO GENERATOR
SIMPLY BY STARTING THE GENERATOR
HEAVY DUTY RELAY ASSEMBLY WILL HANDLE 30 AMP POWER CORD
AND UP TO 4.5KW GENERATOR
DEPENDABLE SWITCHING-TRANSFERS BOTH HOT AND NEUTRAL
LEGS BY HEAVY DUTY DPDT RELAY
DESIGNED WITH A TERMINAL BLOCK TO SIMPLIFY WIRE
CONNECTIONS
BUILT-IN TIME DELAY ALLOWS GENERATOR TO GET UP TO SPEED
QUICK AND EASY INSTALLATION
DESIGNED FOR OEM AND AFTERMARKET APPLICATIONS
4016 Quartz Drive
Santa Rosa, CA 95405
Phone: 707 539-9003
Fax:
707 539-5212
Email: sales@generatorjoe.NET
Web
www.generatorjoe.NET
Advertisement
Table of Contents
Related Manuals for Esco LPT30BRD
Summary of Contents for Esco LPT30BRD
- Page 1 MODEL # LPT30BRD 120VAC 30 AMPS/POLE AUTOMATIC TRANSFER SWITCH AUTOMATICALLY SWITCHES FROM POWER CORD TO GENERATOR SIMPLY BY STARTING THE GENERATOR HEAVY DUTY RELAY ASSEMBLY WILL HANDLE 30 AMP POWER CORD AND UP TO 4.5KW GENERATOR DEPENDABLE SWITCHING-TRANSFERS BOTH HOT AND NEUTRAL...
- Page 2 The LPT30BRD is intended for use as an electrical transfer switch to automatically switch multiple sources (from one to another), i.e. switching from shoreline to generator power. The LPT30BRD is primarily designed for installation in conjunction with a generator having a rated output of no more than 4.5KW and an external power cord having a rated output of no more than 120VAC, 30A, 1PH, 60HZ.
