Yamaha ATS-2030 Quick Start Manual

Hide thumbs


Advertisement

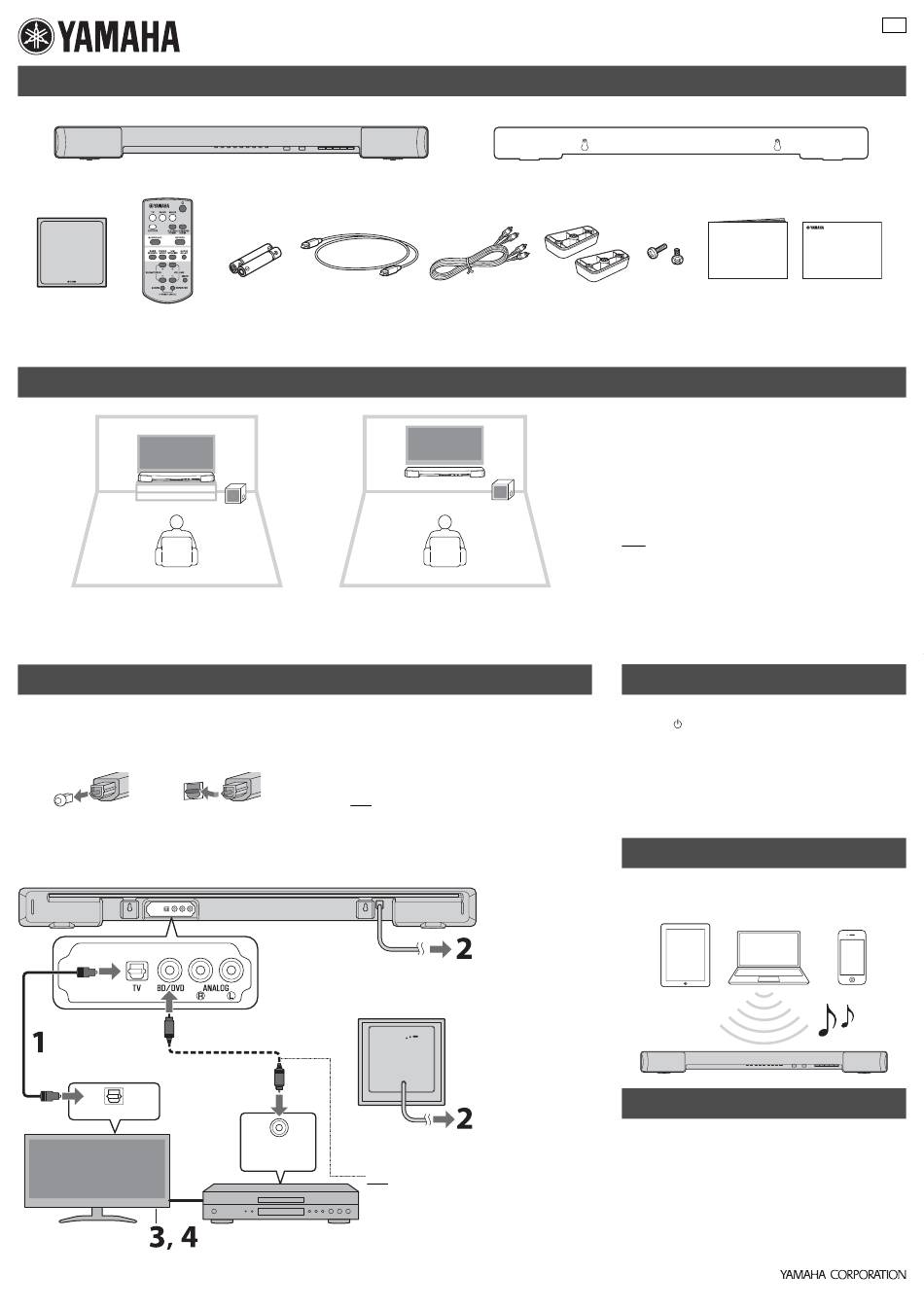

Before assembling and connecting, make sure you have received all of the following items.
Sound bar (ATS-CU2030)
Wireless subwoofer
Remote control
(NS-WSW41)
Placement
Connections
1.
Connect the TV and sound bar with the
optical cable (supplied).
Remove the cap of the optical cable and check the
direction of the plug.
2.
Connect the power cable of the sound bar
and subwoofer to AC wall outlets.
Sound bar (rear)
Coaxial digital cable
Optical cable
(commercially available)
(supplied)
OPTICAL OUTPUT
TV
© 2014 Yamaha Corporation
ATS-2030 Quick Start Guide
Two AAA batteries
Optical cable
(Install the batteries in
1.5 m (4.9 ft)
the remote control.)
3.
Turn on the TV and set the volume to
minimum.
4.
Disable the TV speakers using the TV's audio
settings menu (if available).
HINT
If a setting to disable the speaker output is not available on
your TV, you may disable it by connecting headphones to the
headphone jack on the TV. For details, refer to the instruction
manual of the TV.
Subwoofer (rear)
Coaxial digital
audio output
(orange)
HINT
If your playback device has a coaxial digital audio output,
you can connect it to the BD/DVD input of the sound bar
with a coaxial digital cable (commercially available).
Set top box or playback device
(such as a Blu-ray Disc
TM
player)
(Use when attaching the sound bar to a wall.)
RCA stereo cable
Stand × 2
1.5 m (4.9 ft)
(For sound bar)
Connect to an AC wall outlet.
Leave the unit powered off until
all connections are complete.
Connect to an AC wall outlet.
Mounting template
Owner's Manual
Screw × 2
(For attaching
the stand)
Place the sound bar in front of or below your TV, either with or
without a stand, at least 2'' away from your TV.
Place the subwoofer to the outside of the sound bar. To avoid
echoes from the wall, face the front side of the subwoofer
slightly inward.
The sound bar may also be mounted on a wall, using the
included mounting template and commercially available
screws. Refer to the Owner's Manual for additional mounting
instructions.
NOTE
• Be careful not to stack the sound bar/subwoofer with any other components,
as vibration may cause system disruption in other components.
Watching TV
For details, refer to the Owner's Manual.
1. Press
to turn on the sound bar.
The subwoofer turns on automatically simultaneously with
the sound bar.
2. Press the TV key to select TV as the input source.
3. Select the desired input source on the TV.
4. Press the VOLUME (+/-) keys to adjust the
volume.
Playback of a Bluetooth® device
You can connect a Bluetooth device, such as a smartphone or
digital music player, with the sound bar wirelessly. For details,
refer to the Owner's Manual.
... and more features!
For details about the other useful features, refer to the Owner's
Manual.
– TV remote control learning function
– TV Remote Repeater
– Clear voice
– UniVolume
The Bluetooth
®
word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by Yamaha Corporation is under license.
Blu-ray Disc is a trademark of the Blu-ray Disc Association.
Printed in Indonesia
C
Quick Start Guide
(This sheet)
ZM98670
