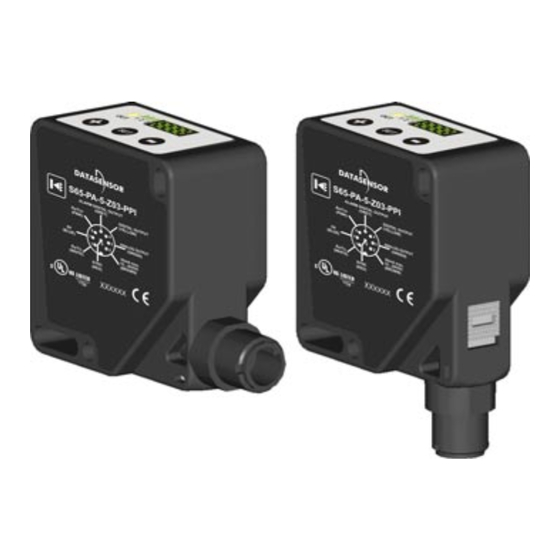

Datasensor S65-PA-5-Z Instruction Manual

S65-PA-5-Z
Line sensor
INSTRUCTION MANUAL
CONTROLS
OUTPUT LED
The yellow LED ON indicates that the NO output is closed.
DISPLAY (green-coloured display)
The display indicates the value of the measurement detected [operating mode function].
Please refer to the following paragraphs for the correct indications to follow during the acquisition or
setting phase.
M1, M2 LEDs
The LED couple visualises the operating mode according to the table given below:
OPERATING MODE
Object beg. – Object end
Object centre position
Width measurement
Area
ALARM LED
The blinking of the alarm LED indicates that the received signal is insufficient for the correct sensor
functioning. In this case the "digital alarm" output is activated.
SET PUSH-BUTTON
Pressing the push-button for at least 2 seconds activates the self-setting procedure (2 thresholds =>
2 phases).
A long pressure on the button (at least 6 seconds) allows the user to access into the sensor
parameter setting menu.
Please refer to the following paragraphs for the correct indications to follow during the parameter
setting phase.
+/- PUSH-BUTTONS
Pressing the + or – push-buttons for at least 2 seconds allows the user to access into the manual
adjustment mode of the 2 switching thresholds.
The contemporary pressure on the + and – push-buttons (at least 2 seconds) activates the
acquisition procedure of the working area map.
The contemporary pressure on the + and – push-buttons (at least 6 seconds) activates the setting
procedure of the reflecting tape characteristics.
Please refer to the following paragraphs for the correct indications to follow during functioning.
INSTALLATION
The sensor can be mounted by means of the three housing's holes
using two screws (M4x35 or longer) with washers.
Various orientable fixing brackets to ease the sensor positioning
are available (please refer to the accessories listed in the
catalogue).
The operating distance is measured from the front surface of the
sensor optics.
The M12 connector can be oriented at three different positions
using the specific fastening spring and rotating the block of 180°.
DIMENSIONS
50
42
11 5.5
M1 LED
ALARM LED M2 LED
OUTPUT LED
A 1 2
OUT
-
+
SET
SET PUSHBUTTON
20 17.05
M1 LED M2 LED
OFF
OFF
ON
ON
25
14
M12
15
DISPLAY
+/- PUSHBUTTON
mm
Power supply:
Ripple:
Consumption (output current excluded):
Outputs:
Serial interface:
SYNC input:
Output current:
Output saturation voltage:
Switching frequency:
Indicators:
Setting:
Data retention:
Operating temperature:
Storage temperature:
Electrical protection:
Operating distance (typical values):
Measurement range:
Minimum object detectable:
Resolution:
Linearity:
Emission type:
Ambient light rejection:
Vibrations:
Shock resistance:
Housing material:
Lens material:
OFF
Mechanical protection:
ON
Connections:
OFF
Weight:
ON
M12 CONNECTOR
*
Available only for the versions with RS485 serial interface (S65-PA-5-Z09-xxxZ).
NOTE: The wire colours are referred to the cables manufactured according to the European
standard.
The S65-PA-5-Z sensor is a line sensor.
The typical functioning diagram is shown in the drawing given below. The object to detect is placed in
front of the sensor and the reflecting tape (inside the package) behind the sensor. The sensor
illuminated with IR lights the tape and receives the reflected light on a photodiode array. Each object
placed between the reflecting tape and the sensor is naturally detected as a dark spot on a luminous
background.
The sensor has 5 operating modes:
• Object beg.: the position of the first object edge is detected
• Object end: the position of the second object edge is detected
• Object centre: the centre of the object is measured
• Width: the distance between the first and last object edge is measured
• Area: the sum of all the object obscured zones is measured
The following diagram shows the sensor output according to the possible object position inside the
meaurement zone.
First ob. edge
A A A A
B B B B
C C C C
D D D D
E E E E

TECHNICAL DATA

30 Vdc max. (short circuit protection)
30 Vdc max. (short circuit protection)
4 digit display (GREEN), OUTPUT LED (YELLOW)
2 LEDs (M1, M2) operating mode (GREEN)
0.5 mm amplitude, 10 ... 55 Hz frequency, for each
11 ms (30 G) 6 shock for each axis (EN60068-2-27)
CONNECTION
*
*
FUNCTIONING
Last ob. edge Center
Beg End (Beg+End)/2
End End 0
Beg Beg 0
0 0 0
0 0 0
APPLICATION NOTES
The drawing shows how the same object can generate
different obscured zones if placed in different positions
inside the sensor working zone. The same happens if
the object is placed at different distances.
The "Area" operating mode is particularly sensitve to the
reflecting tape's characteristics and for this reason the
sensor can detect the main specifications of the tape
used (please refer to "Advanced functions" paragraph").
10 ... 30 Vdc limit values
2 Vpp max.
70 mA max.
1 PNP or NPN output
1 PNP or NPN alarm output
4-20mA analogue output
RS485, 9600B, 8, N, 1
PNP
100 mA max.
≤ 2 V
> 130 Hz
1 ALARM LED (GREEN)
+, -, SET push-buttons
non volatile EEPROM memory
-10 ... 55 °C
-20 ... 70 °C
Class 2
200 mm
150 mm
0.9 mm
0.15 mm
1% max.
infared (875nm)
according to EN 60947-5-2
axis (EN60068-2-6)
ABS
Glass window and lenses
IP67 (TYPE 1 ENCLOSURE)
8-pole M12 connector
100 g. max.
Width Area
End-Beg End-Beg
0 End
0 1023-Beg
0 1023
0 0
