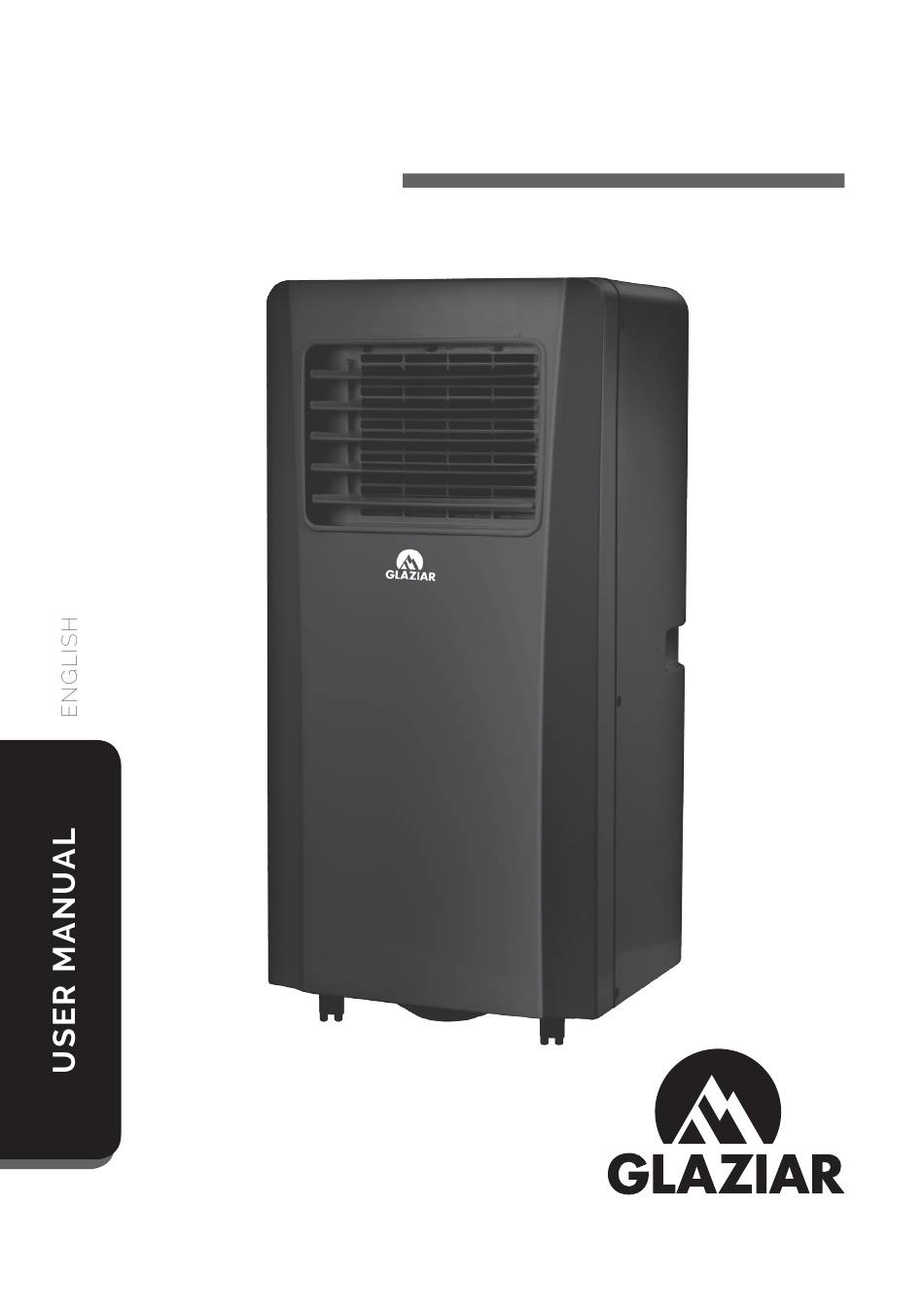

- Page 1 Silence S20 - S25 - S30 - S35 www.glaziar.com...
-
Page 2: Very Important
VerY IMPOrTanT! Please do not install or use your mobile air conditioner before you have carefully read this manual. Please keep this instruction manual for an eventual product warranty and for future reference. WarnInG 1- Do not use means to accelerate the frosting processe or to clean, other than those recommeneded by the manufacturer. - Page 3 on the environment. Do not puncture any part of the refrigerant circuit. • If the appliance is installed, operated or stored in a nonventilated area, the room must be designed to prevent to the accumulation of refrigerant leaks resulting in a risk of fire or explosion due to ignition of the refrigerant caused by electric heaters, stoves, or other sources of ignition.
- Page 4 appliance. 11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 12. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand...
-
Page 5: Safety Instruction
competent in the use of flammable refrigerants. 23. Do not operate or stop the unit by inserting or pulling out Die power plug, it may cause electric shock or fire due to heat generation . 24. Unplug the unit if strange sounds, smell, or smoke comes from it. notes: —... - Page 6 is plugged, and especially not during operation. Warn your children against these dangers. This air conditioner must be stored and transported upright, otherwise you may cause irreparable compressor damage. In case of doubt let the unit rest for at least 24 hours before you start it. Before cleaning the unit, turn it off and unplug the power cord.
- Page 7 - Servicing shall only be performed as recommended by the equipment manufacturer .Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. - Do not operate or stop the unit by inserting or pulling out Die power plug, it may cause electric shock or fire due to heat generation.
- Page 8 No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including igarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space.
-
Page 9: Repairs To Sealed Components
equipment so all parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system;... -
Page 10: Detection Of Flammable Refrigerants
5 DeTecTIOn Of flaMMaBle refrIGeranTs Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used. 6 leaK DeTecTIOn MeTHODs The following leak detection methods are deemed acceptable for systems containing flammable refrigerants. -
Page 11: Charging Procedures
8 cHarGInG PrOceDUres In addition to conventional charging procedures,the following requirements shall be followed. - Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. - Cylinders shall be kept upright. - Page 12 j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.
- Page 13 Competence of service personnel General Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected. In many countries, this training is carried out by national training organisations that are accredited to teach the relevant national competency standards that may be set in legislation.
- Page 14 • Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants. • Ensure sufficient ventilation at the repair place. • Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
- Page 15 loss and a refrigerant leak is possible. • Discharge capacitors in a way that won’t cause any spark. • Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger.
- Page 16 meaning of appropriate safety signs and the actions that need to be taken in connection with these signs. The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details.
-
Page 17: Installation Of The Exhaust Hose
cOMPOnenTs OPeraTIOnal Panel frOnT cOVer GUIDe THe WInD BOX rear cOVer PART DESCRIPTION MAIN AIR CONDITIONER UNIT InleT HOT -AIR EXHAUST HOSE HOSE CONNECTOR (WINDOW END) HOSE CONNECTOR (AIR CONDITIONER END) POWer lIne InleT WINDOW KIT REMOTER CONTROLLER casTOr SIDE VIEW FRONT VIEW REAR VIEW InsTallaTIOn... -
Page 18: Control Panel
fUncTIOns This mobile air conditioner has following functions: COOL, DEHUM, FAN. The fan has two speeds: LOW and HIGH. Possible settings: 16-31° C, 24h timer, overheat protection function. cOnTrOl Panel TEMPERATURE - bUTTON OPERATION MODE bUTTON POWER bUTTON TEMPERATURE + SICNAL RECEIVER FAN SPEED ADJUSTMENT TIMER ON/OFF... -
Page 19: Remote Control
- The unit will automatically turn on by the adjusted time. - You can reset the settings anytime. Press the TIMER button to deactivate the timer. Timer On: - You can set the timer to turn on the unit by the fixed time. - Turn on the unit. - Page 20 cleanInG, 1) Before starting cleaning or maintenance, turn the power off by pressing the POWER button, wait a few minutes and then unplug the power cord from the outlet. 2) Do not clean the air conditioner with water. 3) If the unit is damaged, please contact your dealer immediately.
-
Page 21: Troubleshooting
TrOUBlesHOOTInG Don’t repair or disassemble the unit by yourself, unsuitable repair may make the quality-protected card in vain, and even cause damage to the user or his/her possession. PrOBleMs caUse sOlUTIOn “1. The unit does not turn on when you press the Power button.” “Power cord is not plugged. - Page 22 • If you want to make a claim, so please bring the whole unit in its original packaging and with proof of purchase to your dealer. For a timely and convenient service register, visit our website also www.glaziar.com and learn more.
-
Page 23: Ec Declaration Of Conformity
ec-DeclaraTIOn Of cOnfOrMITY The unit complies with the essential health and safety requirements of the European Union. The EC declaration of conformity is the basis for the CE marking of this unit. With the publication of this manual, all previous are not valid. erP reGUlaTIOn This high-quality single-channel portable air conditioning unit is in accordance with the rules and regulations of the European Union, in...
