LSL Products BatteReady Installation & Operation Instructions

GENERAL INFORMATION: BatteReady™ is specifically designed to recharge and maintain lead-acid batteries in devices that aren't used on a regular basis. It
can be connected to your battery indefinitely, ensuring that the battery is always fully-charged and ready for use. Key features include: (1.) User-selectable
AUTOMATIC TEMPERATURE COMPENSATION for a precise, accurate charge under any weather conditions, (2.) AUDIBLE AND VISUAL "WATCHDOG"
WARNINGS if either the battery or AC power are accidentally disconnected, and (3.) Two USER-SELECTABLE CHARGE PROFILES to accommodate AGM,
Gell-Cell and conventional Flooded-Cell batteries.
AC Wall Outlet
1/4"
DC
Power
Supply
STEP 1: Identify a suitable mounting location for the Charger Unit, preferably within easy view of normal foot traffic and
less than 5-1/2 feet from an AC wall outlet. If located outdoors, both the Charger Unit and DC Power Supply must be
sheltered from the elements. Also, since the Charger Unit contains a temperature sensor, it should be located where it
will exposed to the same temperatures as your battery if the Temperature Compensation feature is turned on.
Secure the Charger Unit to your chosen mounting surface, using either the self-tapping screws or magnets included in
the kit. (The magnets are typically used to secure the Charger Unit to metal surfaces on the device containing your
battery - i.e., on a generator enclosure, tractor hood, motorcycle frame, etc.). To protect the paint on your metal surface,
attach a clear vinyl stick-on scratch protector to the bottom of each magnet.
STEP 2: On one end of the Charger Wires, strip 1/4" of insulation off the wire ends, attach them to the Green Connector, and then plug this Connector into
the Charger Unit:
1/4"
Black
Twist
Ends
Red
Strip 1/4" insulation off each wire end,
then twist fine wires in each wire tip together...
STEP 3: Route the Charger Wires over to your battery, and then attach the white Inline Connectors to it:
Black
Black
Red Red
Strip 1/4" insulation off each wire end, then
Cut Charger Wires at your
chosen Connector location... twist the fine wires in each wire tip together...
NOTE: On all connectors, the RED wire goes in the connector hole with a RED DOT next to it.
NOTE: Use a heat gun or butane lighter to shrink the tubing, taking care to avoid burning it.
STEP 4: Cut any excess length from the battery end of the red and black Charger Wires, leaving some slack for making connections to your battery.
STEP 5: Strip approx. 1/4" off the end of the Red [+] Charger Wire, twist any frayed wire strands together, and insert it into one
hole in Circuit Breaker. Take the surplus red wire left over from Step 4, and cut a piece long enough to go from the other hole on
the Circuit Breaker to your battery's POSITIVE post. Strip the insulation off one end of it, twist any frayed wire strands together,
and insert it into the other hole in the Circuit Breaker. Note that the circuit breaker is installed on the RED [+] wire - NOT on
the BLACK [–] wire.
CAUTION: The Circuit Breaker is a critical safety safety part that should not be omitted - Otherwise, a short circuit
anywhere in the wires between the battery and Charger Unit could cause the battery to supply tremendous amounts of
current, melting the wires and possibly resulting in a fire.
STEP 6: Strip approx. 1/4" off the other end of the Red wire you used in Step 5, insert it into the sleeve of a ring terminal, and
tightly crimp the sleeve to attach the wire to the terminal. In a similar manner, install the other ring terminal on the end of the black
[–] Charger Wire.
STEP 7: Connect the ring terminals to your battery posts (taking care to attach the RED wire to your battery's POSITIVE terminal),
plug the DC Power Supply into an AC wall outlet, plug the DC Power Cord into the Charge Unit, and mate the Inline Connectors.
This completes the installation process.

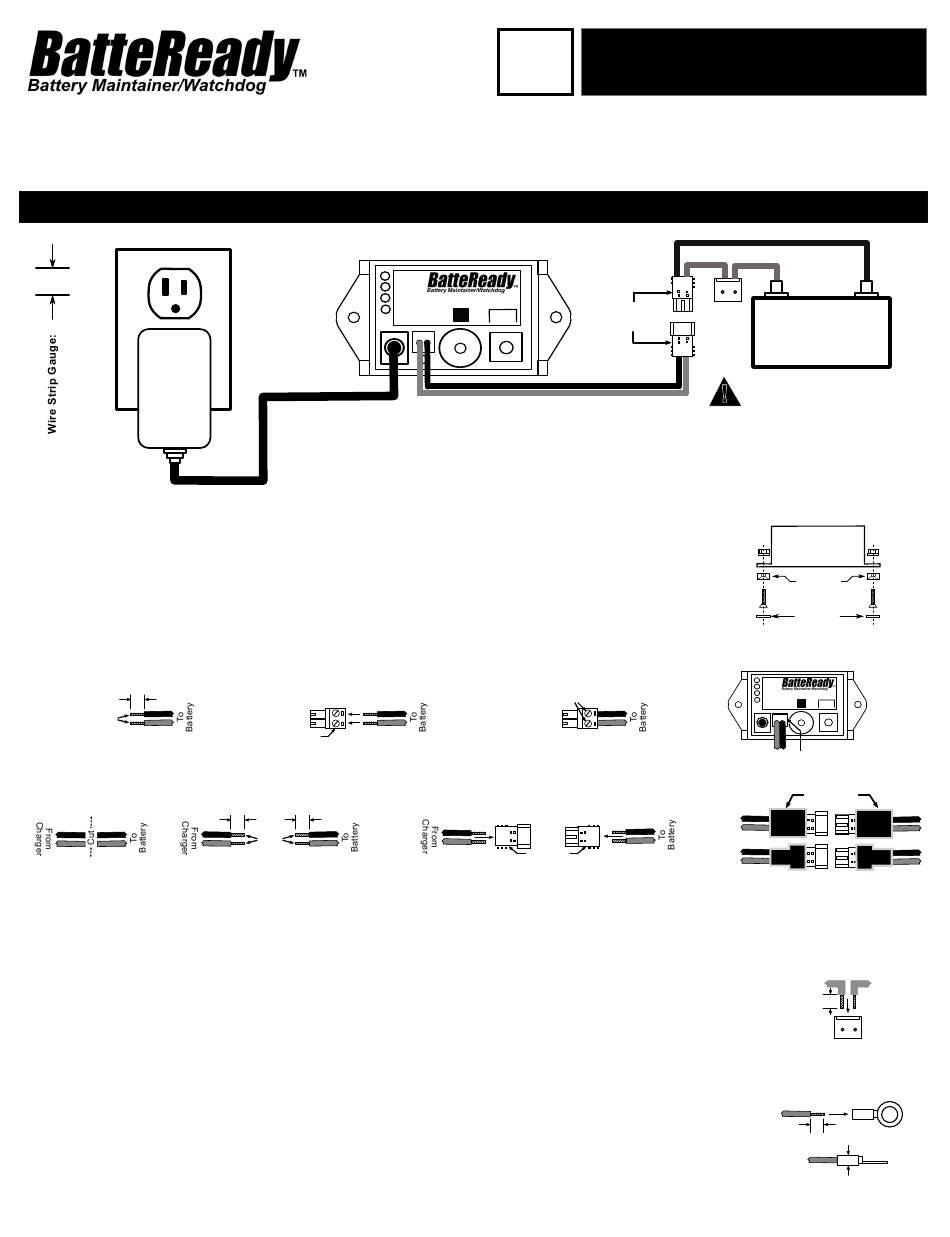

Step-By-Step Installation Instructions

(Using the parts included in the Full Kit )
DC Power Cord
Installation of the kit involves (1.) mounting the Charger Unit in a convenient location, (2.) routing the wires
from it to the DC Power Supply and your 12 Volt Battery, (3.) attaching the Inline Connectors at a convenient
point in the Charger Wires, (4.) using ring terminals to connect your Battery to the Charger Wires and Circuit
Breaker, and (5.) plugging the DC power Supply into an AC wall outlet and the Charger Unit.
Green
Connector
Black
Red
Red Dot
Insert wire tips into end of Green Connector
(red wire to connector side marked with a red dot)...
1/4" 1/4"
Black Black
Twist
Ends
Red Red
Revision
B3
Charger Unit
OK
No Batt.
•Temperature Compensated
No AC
•Charge Fault Alarm
!
BATTERY
Rev.
Silence
B3
+ –
Alarm
Charger Wires (20 AWG Copper Stranded)
Tighten
Screws
Tighten the connector screws
to secure the wires to the connector...
Bigger Inline Smaller Inline
Connector Connector
Black
Red
Red Dots
...push stripped wire ends into ROUND holes in bottom of connectors.
(red wires to red dots, bigger connector to Charger, smaller one to Battery)...
Installation/Operation
Instructions
Black
Red
+
Circuit
Inline
Breaker
Connectors
CAUTION: Use care around batteries -
!
Hazard of explosive gas, corrosive acid,
fire & burns from short circuits.
MAGNET MOUNTING DETAILS:
NyLock
Nut
Flathead
Screw
OK
No Batt.
No AC
!
Battery
Black
Red
...and then plug the Green Connector into
BATTERY receptacle on the Charger Unit.
Black
Red
...then slip a piece of black Heat-Shrinking Tubing over
each wire pair where it goes into the back of the
connector before applying heat to shrink it. (Tubing
should cover part of the wires, and part of the connector.)
–
Your
12 Volt
Battery
Charger Unit
NyLock
(side view)
Nut
Magnets
(bevel side down)
Flathead
Screw
Stick-On
Scratch
Protectors
•Temperature Compensated
•Charge Fault Alarm
Rev. Silence
B3
+ –
Alarm
Heat-Shrink
Tubing
(after applying heat)
Red [+]
Red [+]
Wire From
Wire To
Charge
Your
Unit Battery
1/4"
Circuit Breaker
Ring Terminal
1/4"
Crimp Here
(side view)
