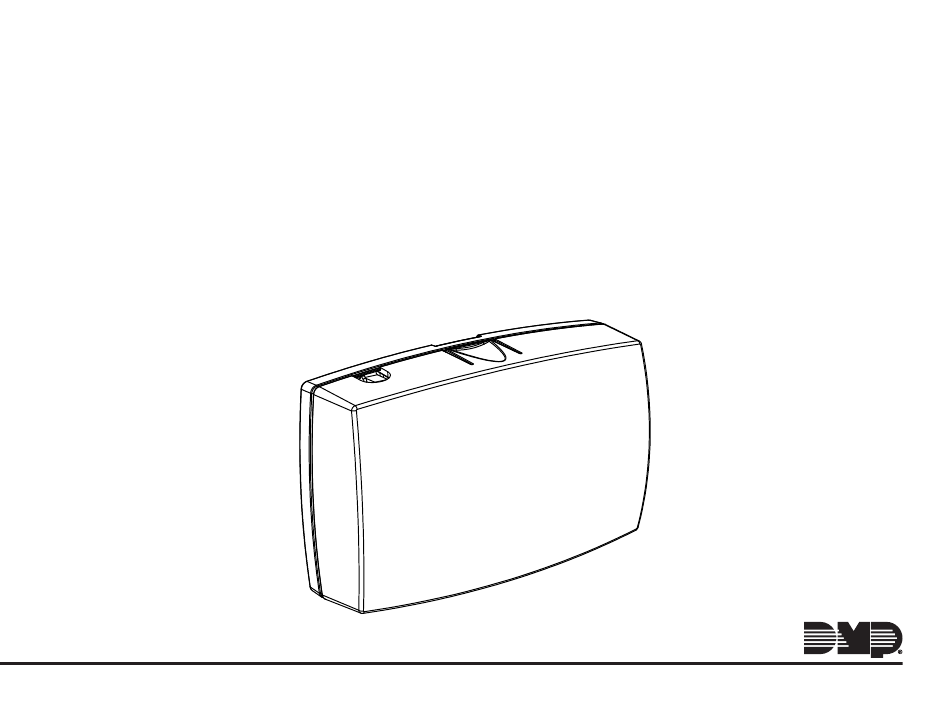

734N-WIFI Wiegand
Interface Module
INSTALLATION AND PROGRAMMING GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 734N-WIFI and is the answer not in the manual?

Questions and answers

Summary of Contents for DMP Electronics 734N-WIFI

  • Page 1 734N-WIFI Wiegand Interface Module INSTALLATION AND PROGRAMMING GUIDE...
  • Page 3: Table Of Contents

    Initialization Option ........15 Annunciators ..........1 Initialize Confirm Option ....... 16 Indicator LEDs ..........1 Communication Menu ......16 734N-WIFI Device Number ....16 About the 734N-WIFI ......1 734N-Wi-Fi DHCP ........16 Form C Relay ..........2 734N-WIFI IP Address ......17 Programming Connection .......
  • Page 4 Activate Zone 3 Request to Exit ..21 Proximity Readers ........34 Zone 3 REX Strike Time ......22 Proximity Credentials ......34 Activate On-board Speaker ....22 Accessories .........34 Card Options ..........22 Product Specifications ..... 35 Custom Card Definitions ....24 Wiegand Code Length ......24 Site Code Position and Length ..
  • Page 5: Power Supply

    The 734N-WIFI Wiegand Interface Module allows you add Wi-Fi network access control capability to XR150/XR550 Series panels using proximity or smart card readers. The 734N-WIFI provides a fast, safe, and secure connections to your local Wi-Fi network for AES encrypted TCP communication using a Wireless-G connection with the control panel.
  • Page 6: Form C Relay

    KEYPAD IN AND OUT FORM C RELAY CONNECTIONS The 734N-WIFI’s Form C relay draws up to 35mA of current. Refer to the NC/C/ The keypad in (KYPD IN) connection NO (Dry Contact Relay) and the Isolation receives and transmits data to the panel Relay sections in this document for more keypad bus or AX-Bus™.
  • Page 7: Pcb Features

    PCB FEATURES WIEGAND ZONES PIEZO INPUTS CONNECTOR Piezo DC INPUT WIFI NETWORK INDICATOR CONNECTOR LEDS DOOR RELAY TERMINAL Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 8: Install The 734N-Wifi

    INSTALL THE 734N-WIFI MOUNT THE 734N-WIFI The 734N-WIFI comes in a high-impact plastic housing that you can mount directly to a wall, backboard, or other flat surface. For easy installation, the back and ends of the 734N-WIFI housing have wire entrances.
  • Page 9: Wire The Electronic Lock

    WIRE THE ELECTRONIC LOCK The 734N-WIFI provides a Form C (SPDT) relay for controlling locks and other electronically-controlled barriers. The three relay terminals marked NO C NC allow you to connect the device wiring to the relay for module control.
  • Page 10: Isolation Relay

    Isolation Relay 12/24VDC 12/24VDC DC Door Strike Magnetic Lock Power Power – – Supply Supply Figure 4: Magnetic Lock Figure 5: Door Strike with an with an Isolation Relay Isolation Relay 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 11: Install The 333 Suppressor

    Use the included 333 suppressor with the 734N-WIFI to suppress any surges caused by energizing a magnetic lock 734N-Wi-Fi or door strike. Install the 333 across the 734N-WIFI C Piezo (common) and NO (normally open) or – PROG KYPD IN...
  • Page 12: Wire The Zone Terminals

    Figure 7 for more information on wiring the zone terminals. ZONE # RECOMMENDED DEVICE RESIDENTIAL FIRE DEVICES? Any burglary device Door Contact REX (PIR or Button) Any device Table 1: 734N-WIFI Zone Uses 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 13 Zone 1 1K EOL Zone 2 1K EOL Zone 3 1K EOL 1K EOL Zone 4 RED WHT GRN BLK Z4+ Z4– Figure 7: 734N-WIFI Zone Terminal Wiring Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 14: Connect A Card Reader

    CONNECT A CARD READER (optional) The 734N-WIFI provides direct 12/24VDC, 200mA output to the reader on the RED terminal connection. Figure 8 shows a reader with wire colors RED, WHT, GRN, and BLK connecting to terminals 1, 2, 3, and 4.
  • Page 15 Card Reader Shield Yellow Orange/Brown Black (GND) Green (Data 0) White (Data 1) Red (12/24VDC) RED WHT GRN BLK Z4+ Z4– Figure 8: Card Reader Wiring Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 16: Set The 734N-Wifi's Address

    SET THE 734N-WIFI’S ADDRESS To set the 734N-WIFI address, move the DIP switches on the PCB to the appropriate positions. See the following sections, Figures 9 and 10, and Table 2 to determine how to set keypad bus or AX-Bus addresses.
  • Page 17 1 2 3 4 1 2 3 4 zone expander, three extra zones will be mapped to the 734N-WIFI automatically. A 734N-WIFI with an address of 1 on AX500 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 would represent door 501 and zones 501-504.
  • Page 18 734N-WIFI Address Table To set the 734N-WIFI address, move the DIP switches to the appropriate positions. See Figures 9 and 10 for how to place the DIP switches for keypad bus and AX-Bus addresses. DEVICE/ DEVICE/ DEVICE/ DEVICE/ DEVICE/ DEVICE/...
  • Page 19: Program The 734N-Wifi

    734N-WIFI from the panel, all future programming should be performed through the panel. The panel’s programming overrides any programming performed from a keypad connected to the 734N-WIFI. While the 734N-WIFI is in programming mode, it will not be able to communicate with the panel. PROGRAM START DISPLAY...
  • Page 20: Initialize Confirm Option

    Press any select key or area to access the programming COMMUNICATION options in the Communication menu. 734N-WIFI DEVICE NUMBER 734N DEVICE NO: Enter a device number from 2-16 for the 734N-WIFI. The device number must be programmed as a device in the panel. Default is 7. 734N-Wi-Fi DHCP 734N...
  • Page 21: 734N-Wifi Ip Address

    NO. PANEL IP PORT PANEL IP PORT Enter the port number that the 734N-WIFI uses to send 2002 communication to the panel. This must be the same port that is programmed in the 734N-WIFI Listen Port in Network Options programming of the panel.
  • Page 22: 734N-Wifi Passphrase

    LAN. The SSID is blank by default. When an SSID is entered for the first time or changed, the 734N-WIFI searches for the SSID entered to ensure communication. The keypad then displays either the SSID FOUND or SSID NOT FOUND. While the SSID is being computed, PROCESSING displays.
  • Page 23: Wireless Network Key

    NO YES Selecting NO allows standard zone operation on zone 2. The default is NO. If the door being released by the 734N-WIFI module is protected (contact installed), a programmable bypass entry/exit timer can be provided by connecting its contact wiring to the 734N-WIFI module zone 2.
  • Page 24: Zone 2 Bypass Time

    If zone 2 restores prior to the end of the programmed time, the piezo silences. If the zone does not restore before the programmed time, the 734N-WIFI ends the bypass and indicates the open or short zone condition to the panel. ZONE 2 BYPASS TIME...
  • Page 25: Relock On Zone 2 Change

    After the programmed number of seconds, the relay restores the door to its locked state. The 734N-WIFI module provides a bypass-only option for REX on zone 3. When zone 3 OPENS from a NORMAL state, only a bypass occurs: the on-board relay does not activate.
  • Page 26: Zone 3 Rex Strike Time

    Typically, an access card contains data bits for a site code, a user code, and start/stop/parity bits. The starting position location and code length must be determined and programmed into the 734N-WIFI Module. Select DMP to indicate the reader sends a 26-45 bit data string. To select CARD OPTIONS:...
  • Page 27 ZN 3 REX TIME. No user code information is sent to the panel. Note: When set to DMP, the 734N-WIFI converts 17 bits of the 26 to 45-bit data string into a 5-digit number. 0 1 1 1 0 1 0 1 1 0 1 1 0 1 0 1 0 0 0 1 1 0 0 1 1 1...
  • Page 28: Custom Card Definitions

    Press the fourth select key or area to enter a number between 1-16. Default is 8. Press the CMD key to save the entry. 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 29: User Code Position And Length

    You can program up to eight three-digit site codes. the eee fff ggg hhh site code range is 0-999. Any previously programmed site codes display. Dashes represent blank site codes and indicate where digits display on the keypad. Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 30: Enter Site Code

    NUMBER OF USER CODE DIGITS ENTER SITE CODE The 734N-WIFI module recognizes user codes from four to 127 ___ ___ DEL twelve digits long. Press any top row select key or area to enter a user code digit length. This number must match the user code number length being programmed in the panel.
  • Page 31: No Communication With Panel

    OFF. Press any top row select key or area to change the default relay action. NO COMM WITH PNL Choose the action required when the 734N-WIFI cannot establish communication with the panel: OFF SITE ANY ON Press the first select key or area to choose OFF (Relay Always Off) —...
  • Page 32: Remove Keypad

    734N-WIFI module piezo continually sounds if the keypad remains connected and programming is finished. Remove the keypad harness to disconnect the keypad from the 734N-WIFI module and silence the alarm. 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 33: Keypad Bus Wiring Specifications

    When voltage is too low, the devices cannot operate properly. For additional information refer to the panel's Installation Guide, the 710 Installation Sheet (LT-0310), and/or the LX-Bus/Keypad Bus Wiring Application Note (LT-2031). Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 34: Certifications

    CERTIFICATIONS FCC Part 15 ID: CCKPC0136 Industry Canada: 5251A-PC0136 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 35: Fcc Information

    Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 36 Professional installation is required of equipment with connectors to ensure compliance with health and safety issues. 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 37: Industry Canada Informaiton

    L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 38: Proximity Readers

    Standard Light Proximity Card PSK-3 Proximity Key Ring Tag PSM-2P ISO Imageable Proximity Card 1306 Prox Patch™ 1326 ProxCard II® Card 1346 ProxKey III® Access Device 1351 ProxPass® 1386 ISOProx II® Card 734N-WIFI Installation and Programming Guide Digital Monitoring Products, Inc.
  • Page 39: Product Specifications

    + 2 mA per faulted zone Form C Relay 35 mA at 12/24 VDC Zones 5 VDC, 2 mA max Dimensions 4.5”W x 2.75”H x 1.75”D 11.43W x 7H x 4.45D Digital Monitoring Products, Inc. 734N-WIFI Installation and Programming Guide...
  • Page 44 LT-1213 18242 © 2018 Digital Monitoring Products, Inc.
