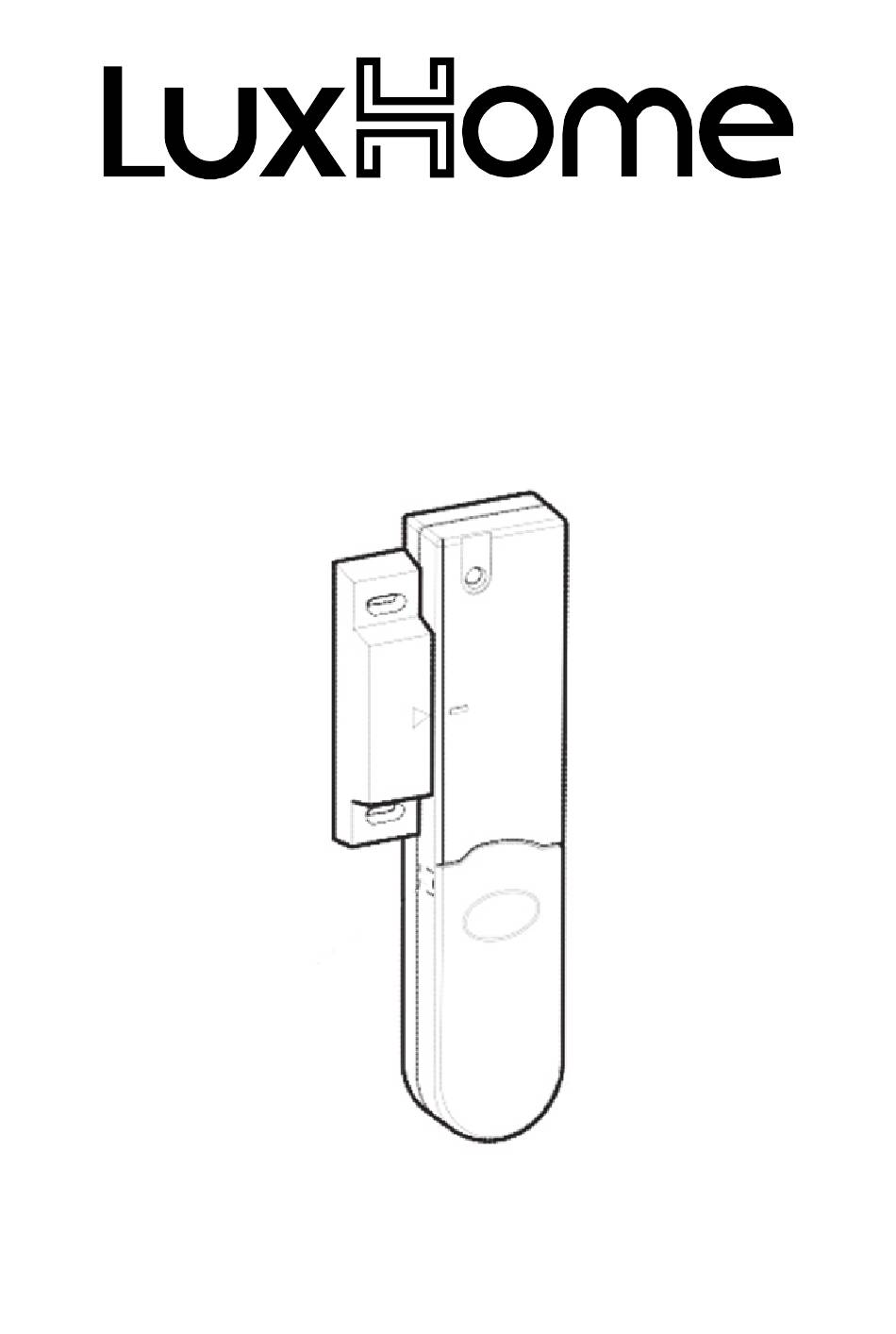

- Page 1 433MHz Wire Free Magnetic Contact Detector LHD110SU Instruction Guide...
- Page 2 Operating Instructions and be retained for future reference. Introduction The LuxHome Magnetic Contact Detector is designed for use with LuxHome wire free Intruder Alarm Systems operating on 433MHz only. The Magnetic Contact Detector comprises two parts; a Detector and a Magnet. They are designed to be fitted to doors or windows with the Magnet mounted on the opening part and the Detector mounted on the fixed frame.
- Page 3 Note: Take care when fixing the Detector to a metal frame, or mounting within 1 meter of metalwork (i.e. radiators, water pipes, etc) as this could affect the radio range of the device. If required, it may be necessary to space the Magnet and Detector away from the metal surface using a plastic or wooden spacer to achieve the necessary radio range.
- Page 4 5. If an additional wired Magnetic Contact is required, this should be wired to the terminal block provided in the battery compartment. The wired contact should be connected using two core (4AWG) wire of maximum length 1.5m. A cable entry cut-out is provided beside the terminal block in the battery cover. 6.
- Page 5 Otherwise these DIP switches are used to configure the alarm zone which the Detector operates on as follows: DIP 9 DIP 10 DIP 11 Zone 1 Zone 2 Zone 3 Zone 4 Zone 5 Zone 6 4. If additional external contacts are wired to the Detector, remove the jumper link S on the PCB.
- Page 6 A copy of your original invoice/receipt. b. A covering letter giving your full contact details, including email address (if applicable). c. A description of the fault or problem. LuxHome Alarm Systems Manufactured by Everspring Copyright © 013. All Rights Reserved.
