NOTE: USB ports should be directed to towards the rear of the whiteboard
✓

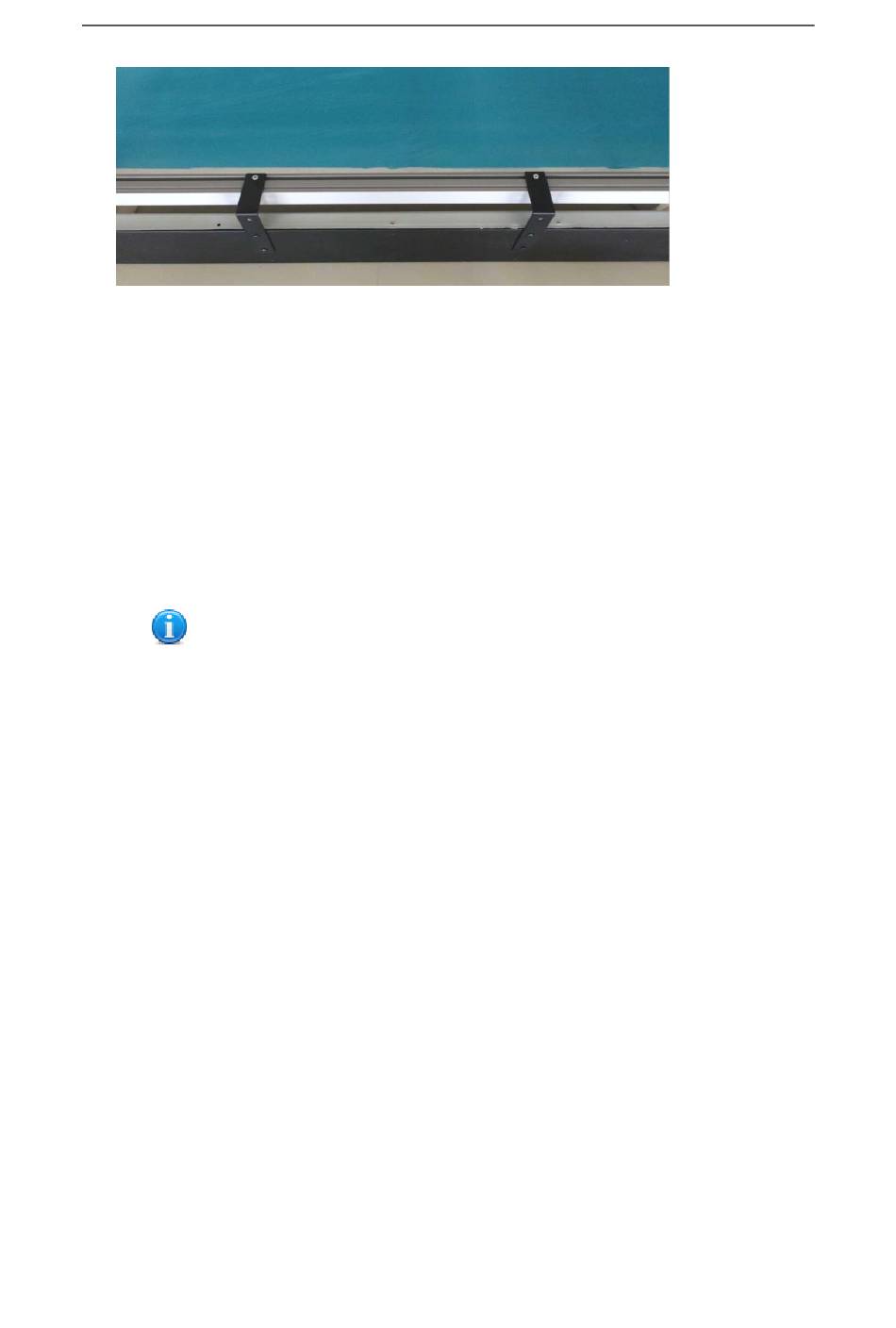

After the shelf has been installed, place the pens in their appropriate colour-coded
holders. The stickers in appropriate colours correspond to the colours which will be
activated once the respective pen is lifted. The holder without the sticker is where the
telescopic pointer should be placed. The holder labelled ERASER is intended for the
yellow pen which activates the eraser tool in the Avtek Interactive Suite.
✓
Use 1.5m USB cable to connect the whiteboard to the shelf. Next, use the 6m USB
cable to connect the shelf to the PC.
NOTE: The interactive shelf should be installed before the whiteboard is
attached to the wall. Otherwise it will be difficult to install.

2.2 Wall mounting of interactive whiteboard

(3) In order to install the whiteboard, you will need a tape measure, a screwdriver and a
drill.
✓
Select an appropriate area on the wall to install the whiteboard. Installing the
whiteboard there should make it easy connect it to a PC.
✓
On the wall, mark the points where holes need to be drilled.
✓
Drill all 8 mounting bracket holes

TT-BOARD 80 h = 1131mm, W = ok. 1440 mm

TT-BOARD 80 Pro h = 1131mm, W = ok. 1440 mm

TT-BOARD 100 Pro h = 1274 mm, W = ok. 1980 mm
✓
Attach the mounting brackets to the wall using the anchor screws and the holes you
drilled.
