Tech Aagam TA-AP55 User Manual

TA-AP55
Multi-Format to
HDMI Conversion
Box
U M
SER ANUAL
Package Contents-

1 Multi-Format to HDMI Conversion Box

1 user manual

1 power adapter DC 12V with lock

1 remote controller

1 RS-232 1.8M cable (DB-9 Male to Female)

1 RS-232 control software CD

2 rack rails, 6 screws
Any thing missed, please contact with your vendor.
Introduction
The Multi-Format to HDMI Conversion Box is a
multi-format to HDMI convertor for digital and analog video
input. It combines five independent switchers in a single
compact enclosure: 3x1 HDMI with embedded audio, 1x
VGA, 1x YPbPr video, 1x CVBS, 1x S-Video, and 4x1
analog stereo audio. The Multi-Format to HDMI
Conversion Box features three selectable switching modes,
including the ability to route all and HDMI sources to the
display using a single HDMI cable. Continuous EDID
communications between the HDMI and VGA sources and
the display device ensures the reliable display of video.
HDMI inputs and outputs are HDCP compliant, ensuring
display of content protected media. The Multi-Format to
HDMI Conversion Box is ideal for use in single-display
applications that require a hybrid switcher for integration of
digital and analog video sources and associated audio
signals.
Features

Deep Color video up to 12-bits, 1080p@60Hz (when
HDMI input to HDMI output)

Compliant with HDMI 1.3a and DVI 1.0 standards

Fully HDCP compliant

Video Inputs: 3 x HDMI, 1 x VGA, 1x YPbPr, 1 x
CVBS, 1 x S-Video

Audio Inputs: 3 x HDMI, 3 x 2-chn RCA(work with
YPbPr/ CVBS/ S-Video), 1*x3.5mm (work with VGA)

Video Output: 1 x HDMI

Audio Output: 1x 2-chn analog RCA

IR Remote controller for operation

Computer can be used RS232 to control

1U rack design
V1.0

Specifications

HDMI Input Connector
VGA Input Connector
YPbPr Input Connector
CVBS Input Connector
S-Video Input Connector
HDMI Output Connector
Max. Resolution
Remote control port
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)

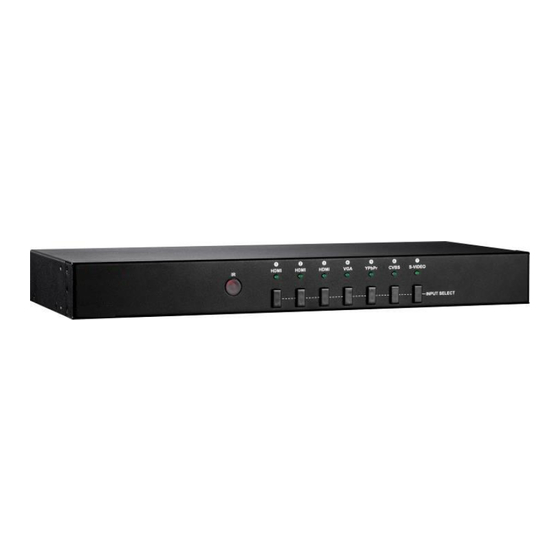

FRONT VIEW
1. Input port selection switch
2. Port LEDs
3. IR receiver
REAR VIEW
1. Power Supply
2. RS232 port
3
1
1
3. Video Input port
1
1
4. HDMI out port
1
5. Audio input port
UXGA, 1080p
RS232, 9600, 8 data bit,
Installation
no parity, 1 stop bit
DC 12V with lock
Before the installation, making sure the Multi-Format to
Metal
HDMI Conversion Box and monitor are turning off.
1800g
1. Making sure all equipments are turned off.
384x173x45mm
2. Plug the monitor cable into the HDMI OUT port
connector.
3. Plug the extension cables from video source device
(DVD player, PC, Digital camera) into the Video IN port
connectors.
2
3
1
-1-
Press the switch to access the selected video source.
LED lights up when the input port has been
successfully selected.
Take aim at IR receiver with remote controller.
1 2 3 4 3
Plug the power adapter.
Use a 9-pin RS-232 cable to connect both computer
serial port and RS-232 port, refer to" Matrix
Application Software"
3 x HDMI, 1 x VGA, 1x YPbPr, 1 x CVBS, 1 x S-Video
Work with input port: VGA, YPbPr, CVBS, S-Video
5
