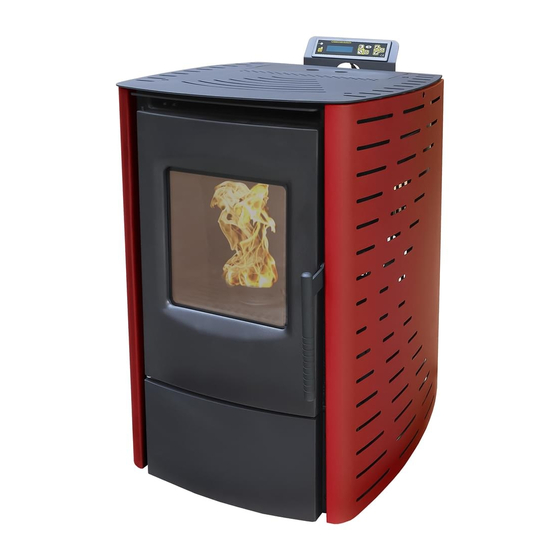

FREESTANDING PELLET STOVE
P6, P9 and P12
ORIGINAL OPERATING INSTRUCTIONS
0036
15
THIS MANUAL MUST STAY WITH APPLIANCE!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6 and is the answer not in the manual?

Questions and answers

Csilla Tunde Stelea
February 3, 2025

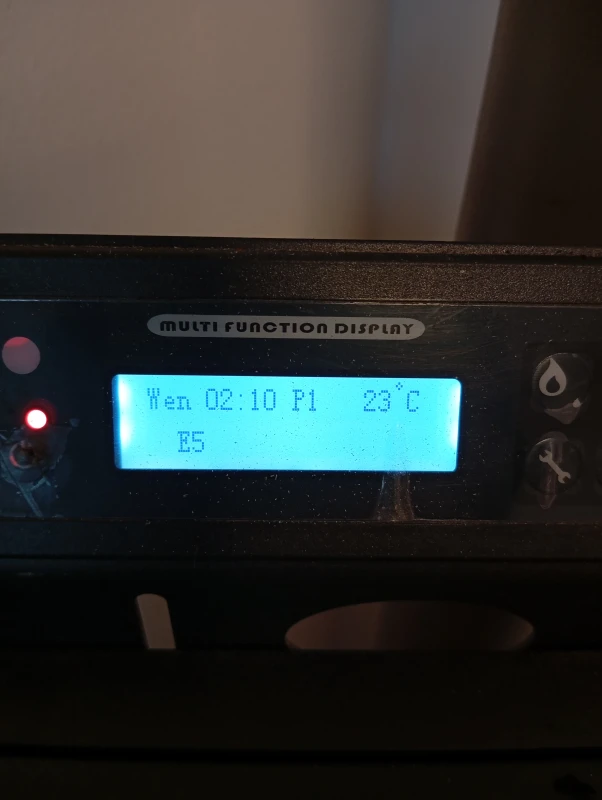

Mit jelent az E5 ös , és a P7 és hiba, amúgy nem kapcsol be a kályha

User image 67a0e40d53d30
0
1 comments:
Mr. Anderson
May 14, 2025

For the Nemaxx P6, "E5" on the display means the vent pipe is blocked. To fix it, shut down the stove and check the venting pipe, close the door properly or replace the door seal if needed, and raise the combustion fan’s speed if there are leakages.

For the P7, if the heater does not turn on, the issue could be that the hopper is empty (needs fuel), there is no fuel feed, the fuel feed is too little (requiring lowering the combustion fan speed), or the low temperature switch (30°C) is faulty and may need cooling time or replacement.

This answer is automatically generated

0

Related Manuals for Nemaxx P6

Summary of Contents for Nemaxx P6

  • Page 1 Version: 9a 13.11.2018 FREESTANDING PELLET STOVE P6, P9 and P12 ORIGINAL OPERATING INSTRUCTIONS 0036 THIS MANUAL MUST STAY WITH APPLIANCE!

  • Page 2: Table Of Contents

    Version: 9a 13.11.2018 TABLE OF CONTENTS 1. Fuel Requirement ......................... 3 2. Stove Features ..........................4 3. Method of construction ....................... 5 4. Pellet Stove Installation ....................... 7 5. Operation .............................11 6. Cleaning and Maintenance ......................26 7. Troubleshooting ......................... 32 8.

  • Page 3: Fuel Requirement

    Version: 9a 13.11.2018 1. FUEL REQUIREMENT Pellets are made from wooden waste, from sawmills and planning workshops, as well as from residue from forestry operations. These “starting products” are crushed, dried, and pressed into Pellet “Fuel” without any bonding agent. SPECIFICATIONS FOR HIGH QUALITY PELLETS Calorific Value: 5.3 kWh/kg...

  • Page 4: Stove Features

    Version: 9a 13.11.2018 2. STOVE FEATURES Pellet stove is advanced designed and has individual fresh air input and venting system. Negative pressure burning technology causes high efficiency and little ash outlet during burning. It will be shut off automatically by wrong burning or lack of fuel. Large BTU, quick heating and low fuel cost are its advantages.
  • Page 5 Version: 9a 13.11.2018 3. STRUCTURE INSTRUCTION The stove is mainly made up of following items: 21. Exhaust connection 1. Top covers 11. Motherboard 22. Power input socket 2. Door 12. Fire pot (contains the main fuse) 3. Pellet Hopper 13. Vacuum Switch 23.
  • Page 6 Version: 9a 13.11.2018 The heater is mainly made up of following items: 1. Combustion burn pot 2. Exhaust fan 3. Room circulation fan and auger motor. The following is a list of main components and their functions: IGNITER The HEATER comes equipped with an automatic electric igniter for lighting the fuel when the heater is in lighting mode only.

  • Page 7: Pellet Stove Installation

    Version: 9a 13.11.2018 4. PELLET STOVE INSTALLATION All NATIONAL AND LOCAL REGULATIONS AND EUROPEAN STANDARDS SHALL BE COMPLIED WITH WHEN INSTALLING THE APPLIANCE Before installing a stove in a room, select the right stove to be able to heat the room. Please check the STOVES’...
  • Page 8 Version: 9a 13.11.2018 Ensure that outlet routes to the chimney are not too long. Avoid too many changes of direction for the flue gas flow to the chimney (e.g. too many corners and bends). If you cannot connect directly to the chimney, use a connection piece with cleaning opening if possible.
  • Page 9 Version: 9a 13.11.2018 Method 1. Measure and draw the chimney connection (taking any floor plate thickness into consideration). 2. Chisel out (drill) the hole in the wall 3. Brick in the wall lining 4. Connect stove with the flue tube to the chimney. FLOOR PROTECTION For flammable floor surfaces (wood, carpet, etc.) a glass, steel plate or ceramic underlay is required.
  • Page 10 Version: 9a 13.11.2018 COMBUSTION AIR Each combustion procedure requires oxygen or air. As a rule this combustion air is removed from the living area for individual stoves. The air taken from the living area must be reintroduced. In modern houses, very tight fitting windows and doors can cause that not enough air flows back. This situation becomes problematic due to additional ventilation in the house (e.g.

  • Page 11: Operation

    Version: 9a 13.11.2018 5. OPERATION ALL NATIONAL AND LOCAL REGULATIONS AND EUROPEAN STANDARDS SHALL BE COMPLIED WITH WHEN OPERATING THE APPLIANCE ATTENTION: When the stove is in operation, please don‘t touch the front. It is extremely hot! NOTE: During first time running, the paint may burn. This may cause unpleasant smell. Please open the window and door for ventilation.
  • Page 12 Version: 9a 13.11.2018 START AND OPERATION - USERS GUIDE Please operate the stove as following (refer to stove structure figure and electrical control figure): Check the box, pellet grate bar, ash pan then adjust to proper position. OPERATIONS INSTRUCTIONS – QUICK REFERENCE GUIDE...
  • Page 13 Version: 9a 13.11.2018 ON/OFF 1. Turning the heater on and off is performed with the ON/OFF button After switching on, the message, „CLEANING“ will be shown in order to clean the fire pot. 2. After first phase „Cleaning“, the word „Lighting“ will be shown on the display.
  • Page 14 Version: 9a 13.11.2018 ATTENTION: During the flame switching off phase and exchanger cooling, you should not switch the stove on again until the cycle ends; this state is signalized by the display ‘SWITCHING OFF’ HOWEVER, it is possible to switch off the heater in every functioning phase. Turning off the heater is done by pressing the button ON/OFF for two seconds;...
  • Page 15 Version: 9a 13.11.2018 FLAME POWER VARIATION Depending on the heating desired, fuel intake quantity can be adjusted from few to many by the fuel intake button. For example: Pressing the button the quantity can be changed, the display shows the selected power.
  • Page 16 Version: 9a 13.11.2018 SELECTING AUTOMATIC AND MANUAL Pressing the keys the light shown on this button: will be on or off. If the light is on, it signals that automatic program is selected. Otherwise it is manual. DESIRED TEMPERATURE SETTING Pressing the keys on the display the temperature can be selected.
  • Page 17 Version: 9a 13.11.2018 HOW TO SET DETAILS SETUP – QUICK REFERENCE GUIDE...
  • Page 18 Version: 9a 13.11.2018 NOTE: Press and hold the button approx. 2 seconds to enter the setup menu. Press the button again to exit the setting menu. Press the button to confirm the settings and move to the next setting point. This will allow you to navigate through the setup menu.
  • Page 19 After P4, it is P5, this data is related to the exhaust fan’s speed of the “Cleaning” stage. The adjustable range is also from 20 to -20. The following is P6; this data is related to the exhaust fan’s speed of the “Feeding”, “Lighting” and minutes of “Stabilization” stage.
  • Page 20 Version: 9a 13.11.2018 CLOCK SETTING Begin as described on page 18. Press until the following message appears: You can select week or time by keys also using to change the day or time. To save the setting press and enter the next setting. CLEANING SETTING Begin as described on page 18.
  • Page 21 Version: 9a 13.11.2018 TIMER SETTING Begin as described on page 18. Press until the following message appears: With this function you program the heater for a weekly programming, associating the switching on and the switching off at the pre fixed timetables. You can program daily switching on and switching off for the whole week.
  • Page 22 Version: 9a 13.11.2018 ECO MODE SETTING Begin as described on page 18. Press until the following message appears: Press the key ,to select the Mode 1 or Mode 2 Mode 2 is for turning to minimum power, while mode 1 is for stopping the stove. To save the setting press and enter the next setting.
  • Page 23 Version: 9a 13.11.2018 ATTENTION!!! It means the fire has gone out automatically during the operation, when the exhaust gas temperature is lower than 40-45 degree. Such as: 1. There is no fuel in the hopper. 2. Auger motor is broken and stops feeding the fuel.
  • Page 24 Version: 9a 13.11.2018 During the operation, the stove is interrupted by power cut. It means you need to clean the stove. If everything is fine, you can press to delete the Error code. ATTENTION!!! If showing following words when you start the stove: It means temperature sensor 1(exhaust gas temperature sensor) - short-circuit.
  • Page 25 Version: 9a 13.11.2018 SAFETY POWER FAILURE After the power failure, the display will be show E7. If short power failure, you can manually go back to „Stabilization“. Clear the E7 by „okay button“, restarting the stove and pressing „fire button“ for 3 seconds During power failure a small amount of smoke may be emitted.

  • Page 26: Cleaning And Maintenance

    Version: 9a 13.11.2018 6. CLEANING AND MAINTENANCE CAUTION: • Only work on the stove when the main plug has been removed from the socket. • During assembly do not drop any items (screws) etc. into the fuel container - they can block the conveyor auger and damage the stove. •...
  • Page 27 Version: 9a 13.11.2018 CLEANING THE FIRE PAN CAUTION: Clean fire pan daily. Reassure that ash or clinker does not block the air feed openings. The fire pan can easily be cleaned inside the stove. After removing the pan the area underneath can be vacuumed clean. If the stove is heated in continuous operation, then it must be switched off twice within 24 hours in order to clean the pan.
  • Page 28 Version: 9a 13.11.2018 CLEANING THE GRATE DOOR GLASS The best way to clean the grate door glass is using a damp cloth with small amount of ash from the firebox. Stubborn dirt can be removed using a special cleaner that can be purchased from your specialist stove dealer.
  • Page 29 Version: 9a 13.11.2018 Step 1: Remove the top cover(s) (D), f.ex. model P12. Step 2: Clean the access openings (3 and 5). Orientation: 4 = pellet container Step 3: Remove the cover (D) below and clean the access opening with brush and vacuum cleaner.
  • Page 30 Version: 9a 13.11.2018 Step 4: Clean the access openings (1 and 2) regularly in the back, upper part of the combustion chamber. Left access opening Right access opening...
  • Page 31 Version: 9a 13.11.2018 CLEANING THE CONVECTION BLOWER To clean the convention blower, disconnect the stove power cord from the electrical outlet. Remove the side panels and rear panel (For all models) (and front bottom cover for NB-PI, NB-PS, NB-P01, NB-PE09 ). A vacuum can be used to remove any dust accumulation on the blower’s blades or inside the blower duct.

  • Page 32: Troubleshooting

    Version: 9a 13.11.2018 7. TROUBLESHOOTING HOW TO REPLACE INGITION BAR AND AUGER SYSTEM HOW TO REPLACE THE ROOM FAN (BLOWER)
  • Page 33 Version: 9a 13.11.2018 HOW TO REPLACE THE COMBUSTION FAN...
  • Page 34 Version: 9a 13.11.2018 The general troubles, the possible reasons and the solutions are as following. After solving problems start the stove again: Problem Reason Solution 1. The start light or display does not No power in stove or in the Check the power and wires.
  • Page 35 Version: 9a 13.11.2018 Problem Reason Solution 3. No feeding after 20 seconds of starting. There are three stages for the feeding process. Stage one is during the first several minutes, feeding is constant. „Feeding“ is showing on the LCD display Stage two is the following couple minutes, the feeding light is off.: „Light“...
  • Page 36 Version: 9a 13.11.2018 Problem Reason Solution 6. orange and lazy fire, piled pellet, Lack of air intake for Clean the block in gate bar. carbon on the glass burning. Check the door and window glass gasket sealed or not. Check the air intake pipe and venting pipe blocked or not, and clean it.

  • Page 37: Electronic Plan

    Version: 9a 13.11.2018 ELECTRICAL GENERATOR OPERATION Your stove can be powered with a gas driven electrical generator. However, the generator’s electrical regulator may not be compatible with the stove’s electronics. The higher the quality of the generator, the greater the chance that it is compatible with the stove. 8.
  • Page 38 Version: 9a 13.11.2018 MANUFACTURER REPRESENTATIVE Bargain24 AG eFulfillment GmbH Sihleggstr. 23 Ikarusallee 15 8832 Wollerau 30179 Hannover Switzerland Germany E-Mail: sales@bargain24.ch Internet: www.bargain24.com The right to make technical and design modifications in the course of continuous product development remains reserved.
