Genesis WG4 Speaker-Strobe Installation Sheet
Description

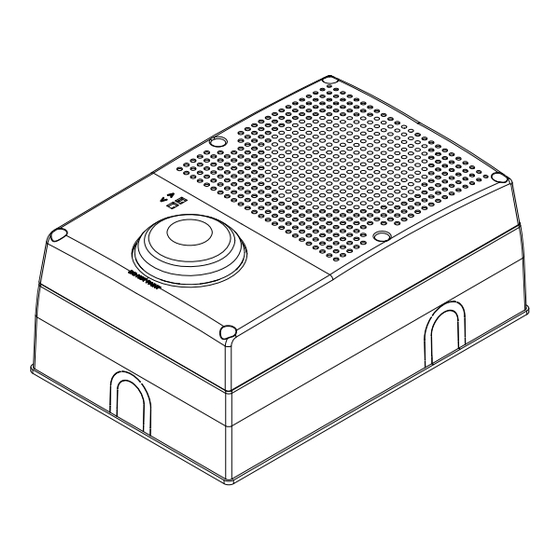

The Genesis WG4 Speaker-Strobe is a fire alarm and mass
notification and emergency communication (MNEC) appliance
designed for indoor or outdoor wet location use on ceilings or
walls. See Table 1 for a list of models and Table 2 for a list of
accessories.
The speaker-strobe includes field-configurable switches for
setting speaker and strobe output levels. The settings are
visible after final installation.
Table 1: Models
Number Description
WG4RF-SVMC Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, red with FIRE marking,
15/29/70/87 cd, clear lens
WG4RN-SVMC Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, red without marking,
15/29/70/87 cd, clear lens
WG4WA-SVMA [1] Outdoor-rated wall/ceiling speaker-strobe
25/70 V), multi-tap, white with ALERT marking,
13/25/59/62 cd, amber lens
WG4WA-SVMC Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, white with ALERT marking,
15/29/70/87 cd, clear lens
WG4WF-SVMC Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, white with FIRE marking,
15/29/70/87 cd, clear lens
WG4WN-SVMA [1] Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, white without marking,
13/25/59/62 cd, amber lens
© 2011 UTC Fire & Security. All rights reserved.
Number Description
WG4WN-SVMC Outdoor-rated wall/ceiling speaker-strobe
(25/70 V), multi-tap, white without marking,
15/29/70/87 cd, clear lens
[1] Only indoor strobes with a clear lens comply with the latest
requirements of UL 1971 Signaling Devices for the Hearing Impaired.
Table 2: Accessories
Number Description
WG4WTS [1] Outdoor-rated surface skirt, white - for Genesis WG4
speaker or speaker/strobe
WG4RTS [1] Outdoor-rated surface skirt, red - for Genesis WG4
speaker or speaker/strobe
WGRGSKT Appliance replacement gasket
[1] The trim skirt is outdoor-rated when used with the 449 weatherproof
box.
Synchronized operation requires a separately installed
synchronization control module. See Table 3 on page 3 for a
list of compatible synchronization sources.
Installation
Install this appliance in accordance with the latest edition of
NFPA 72 and the local authority having jurisdiction.
WARNING: Electrocution hazard. To avoid personal injury or
death from electrocution, remove all sources of power and
allow stored energy to discharge before installing or removing
equipment.
Caution: Electrical supervision requires that the wire run be
broken at each terminal. Do not loop the signaling circuit field
wires around the terminals.
Note: The Genesis WG4 Speaker-Strobe may be ceiling-
mounted or wall-mounted and may be placed in one of four
positions (strobe above, strobe below, and strobe to either
side); place the electrical box accordingly. See Figure 4.
To install the speaker-strobe:
1. Remove the cover from the speaker-strobe by first
removing the six cover screws. See Figure 1.
2. If desired, place the optional trim skirt over the electrical
box. See "Specifications" for a list of compatible boxes.
