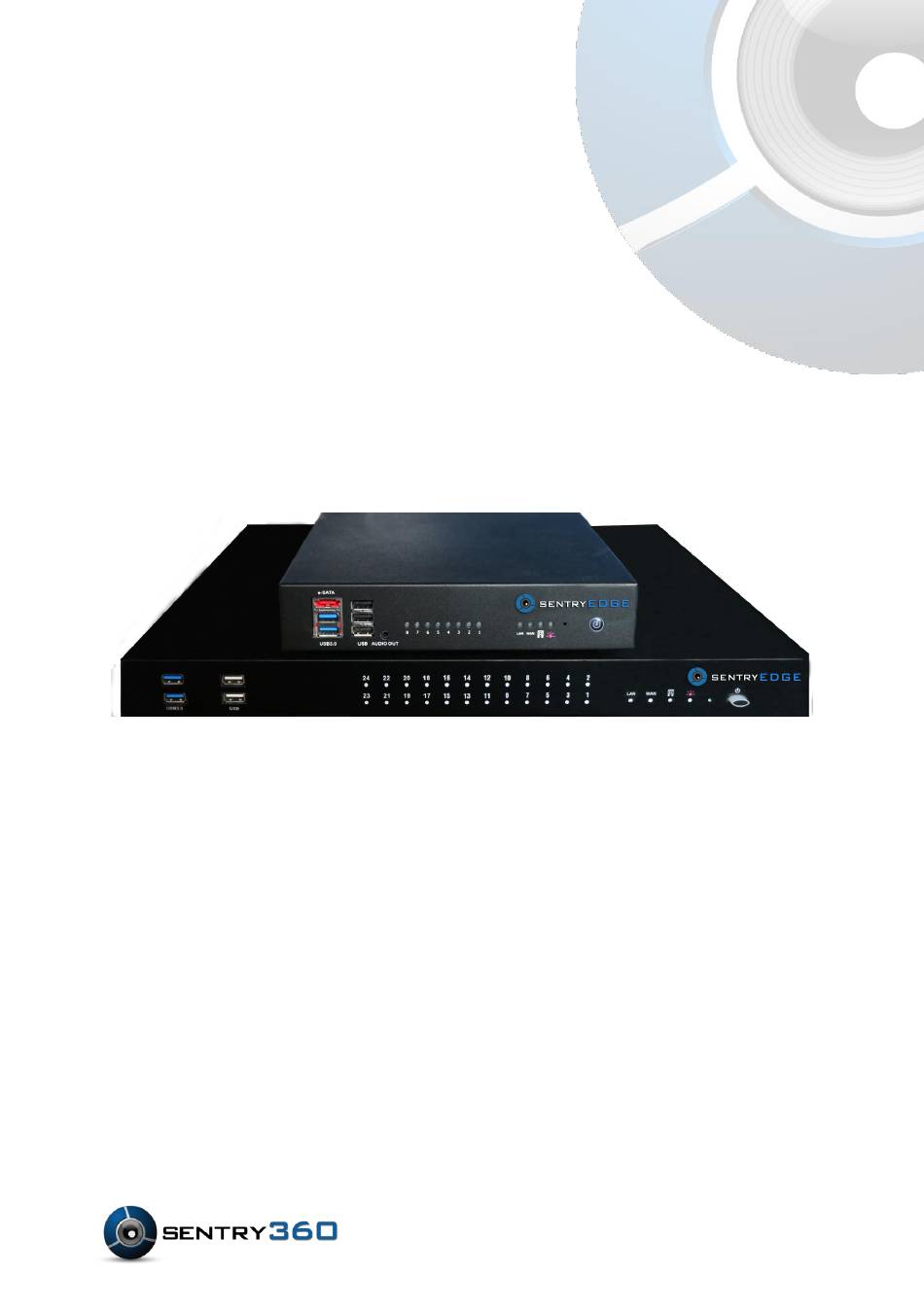

sentryEdge™ NVR

Mounting Guide

Ver 1.0

©Sentry360 2014

Need help?

Do you have a question about the sentryEdge and is the answer not in the manual?

Page 2 Table of Contents 8 Port Mounting ......................... 3 16 / 24 Port Mounting ......................5 Contact Information ......................6...
Page 3: Port Mounting
8 Port Mounting The 8 port sentryEdge™ NVR may be wall or surface mounted using the included hardware. Please reference the following steps to attach the mounting brackets to the NVR housing. 1. Locate the four mounting screws on the base of the NVR.
Page 4 2. Remove the screws, align the mounting bracket, and attach the bracket using the original screws. 3. Repeat for the other side of the NVR. Use the included wall mount hardware, or hardware appropriate to the mounting surface, and the open mounting holes on the brackets to complete mounting the NVR.
Page 5 16 / 24 Port Mounting The 16 / 24 port sentryEdge™ NVR may be rack mounted using the included hardware. Please reference the following steps to attach the mounting brackets to each side of the NVR housing. 1. Locate the three screws on one side of the NVR, toward the front of the device.
Page 6: Contact Information
Contact Information For support, please contact Sentry360: Website: http://www.sentry360.com Email: support@sentry360.com Toll Free: 1-800-261-2707 Direct: 1-630-355-3440...
