Dorel Juvenile Group Alpha Omega Elite 65 Manual

Deluxze 3 in 1 rear-facing child restraint 2.3-18 kg (5-40 lb) 48-91 cm (19-36 in.) forward-facing child restraint 10-30 kg (22-65 lb) 74-132 cm (29-52 in.) booster seat 18-45 kg (40-100 lb) 102-132 cm (40-52 in)
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

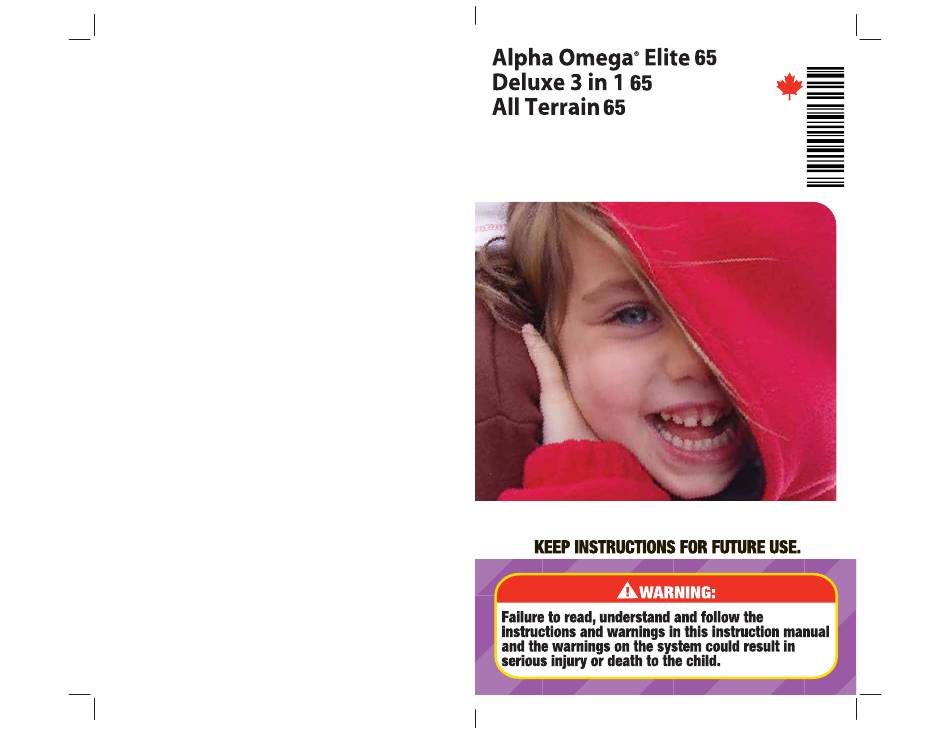

4358-5694 Elite Eng.indd 1-2
4358-5694 Elite Eng.indd 1-2
rear-facing child restraint 2.3-18 kg (5-40 lb)
48-91 cm (19-36 in.)
forward-facing child restraint 10-30 kg (22-65 lb)
74-132 cm (29-52 in.)
booster seat 18-45 kg (40-100 lb) 102-132 cm (40-52 in)
Read all instructions BEFORE USING
this child restraint and booster seat.
4358-5694A (11.01.11)
11/16/11 1:24 PM
11/16/11 1:24 PM
